Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts,
which may have come loose during shipment. Identify and count all items and compare with the parts list shown
below. It is recommended to have two people during assembling and to remove the back and base of the
furniture out from the box.
Please follow the drawings below to assemble the item
ITEM
A
SEAT
B
LEFT SIDE FACING (LSF) BACKREST
C
CENTER BACKREST
D
RIGHT SIDE FACING (RSF) BACKREST
E
LEFT SIDE FACING (LSF) ARM
F
RIGHT SIDE FACING (RSF) ARM
WEIGHT CAPACITY (PER SEAT)
HARDWARE DIMENSIONS
VERIFICATION TOOL
ASSEMBLY INSTRUCTION

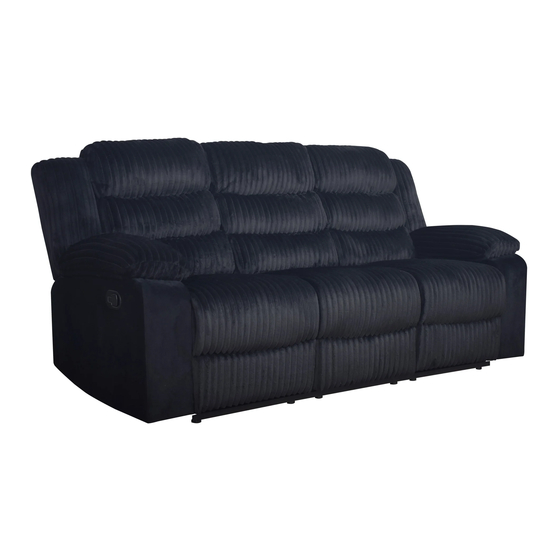

U1816-30 WILLOW
SOFA W/DUAL RECLINER
PARTS LIST
DESCRIPTION
1
inches
SKETCH
350 LBS
2
3
QTY
1 PC
1 PC
1 PC
1 PC
1 PC
1 PC
4
MADE IN MALAYSIA
PAGE 1 OF 3
Advertisement
Related Manuals for New Classic Furniture U1816-30
Summary of Contents for New Classic Furniture U1816-30
- Page 1 ASSEMBLY INSTRUCTION U1816-30 WILLOW SOFA W/DUAL RECLINER Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts, which may have come loose during shipment. Identify and count all items and compare with the parts list shown below.
- Page 2 STEP 1: Locate the metal bracket at the back of seat (A). STEP 2: Install the backrests (B/C/D) by align and insert the metal bracket on the backrests (B/C/D) to the metal bracket of the seat (A). Please make sure the brackets are inserted all the way and secured into position.
- Page 3 STEP 5: Open the footrest by pulling the handle. STEP 6: Complete ASSEMBLY COMPLETED MADE IN MALAYSIA PAGE 3 OF 3...
