New Classic Furniture U1816-25 Assembly Instruction

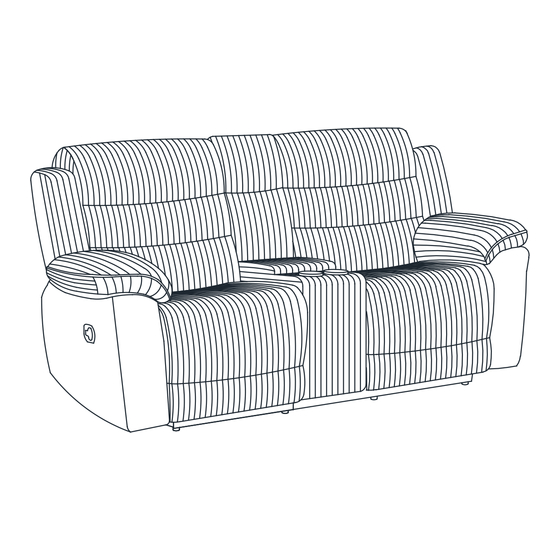

Willow console loveseat w/dual recliners
Hide thumbs
1
2
3

Advertisement

Quick Links

Download this manual
Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts,
which may have come loose during shipment. Identify and count all items and compare with the parts list shown
below. It is recommended to have two people during assembling and to remove the back and base of the
furniture out from the box.
Please follow the drawings below to assemble the item
ITEM
A
SEAT
LEFT SIDE FACING (LSF) BACKREST
B
C
CONSOLE BACKREST
RIGHT SIDE FACING (RSF) BACKREST
D
E
LEFT SIDE FACING (LSF) ARM
F
RIGHT SIDE FACING (RSF) ARM
G
KNOB SCREWS
WEIGHT CAPACITY (PER SEAT)
HARDWARE DIMENSIONS
VERIFICATION TOOL
ASSEMBLY INSTRUCTION
U1816-25 WILLOW CONSOLE
LOVESEAT W/DUAL RECLINERS

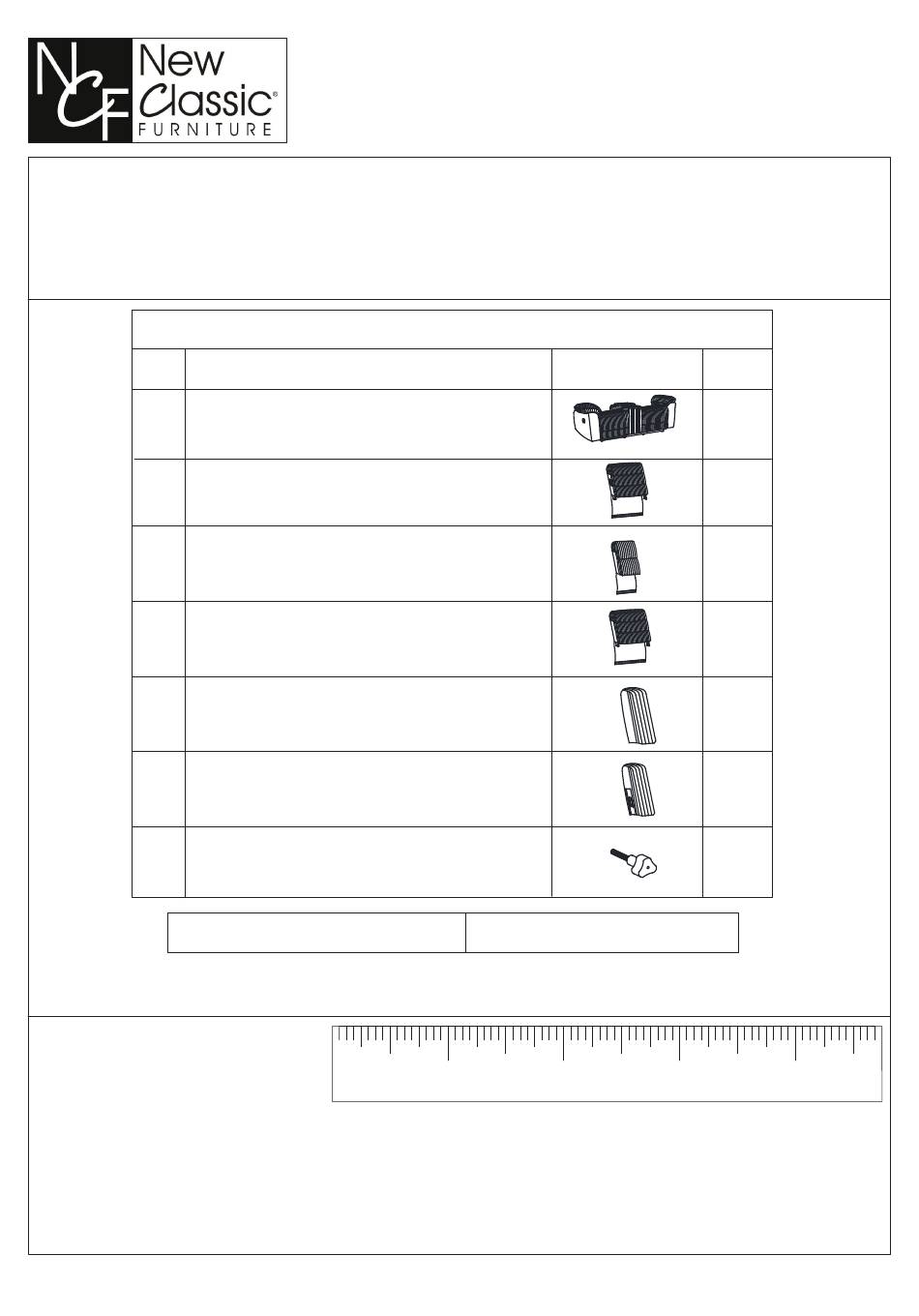

PARTS LIST
DESCRIPTION
1
inches
QTY
SKETCH
1 PC
1 PC
1 PC
1 PC
1 PC
1 PC
2 PCS
350 LBS
2
3
4
MADE IN MALAYSIA
PAGE 1 OF 3

Advertisement

loading
Need help?

Need help?

Do you have a question about the U1816-25 and is the answer not in the manual?

Questions and answers

Related Manuals for New Classic Furniture U1816-25

Summary of Contents for New Classic Furniture U1816-25

  • Page 1 ASSEMBLY INSTRUCTION U1816-25 WILLOW CONSOLE LOVESEAT W/DUAL RECLINERS Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts, which may have come loose during shipment. Identify and count all items and compare with the parts list shown below.
  • Page 2 STEP 2: Open the zipper on the back of seat (A) for the STEP 1: Locate the Console Backrest (C) underneath the seat (A) installation of console backrest. “RIGHT” “LEFT” *Pull out Part “C” Open zipper STEP 3: Place the console Backrest (C ) in the correct STEP 4: Install the backrests (B/D) by align and insert the metal bracket on the backrests (B/D) to the position and then attach to the seat (A) by...
  • Page 3 STEP 5: Install the arms by sliding the metal bracket on the STEP 6: Press the velcro strip on the backrests (B/C/D) LSF arm (E) into the metal bracket on the LSF to the velcro strip on the bottom of seat (A) backrest (B) and the metal bracket on RSF arm (F) into the metal bracket on the RSF backrest (D).
