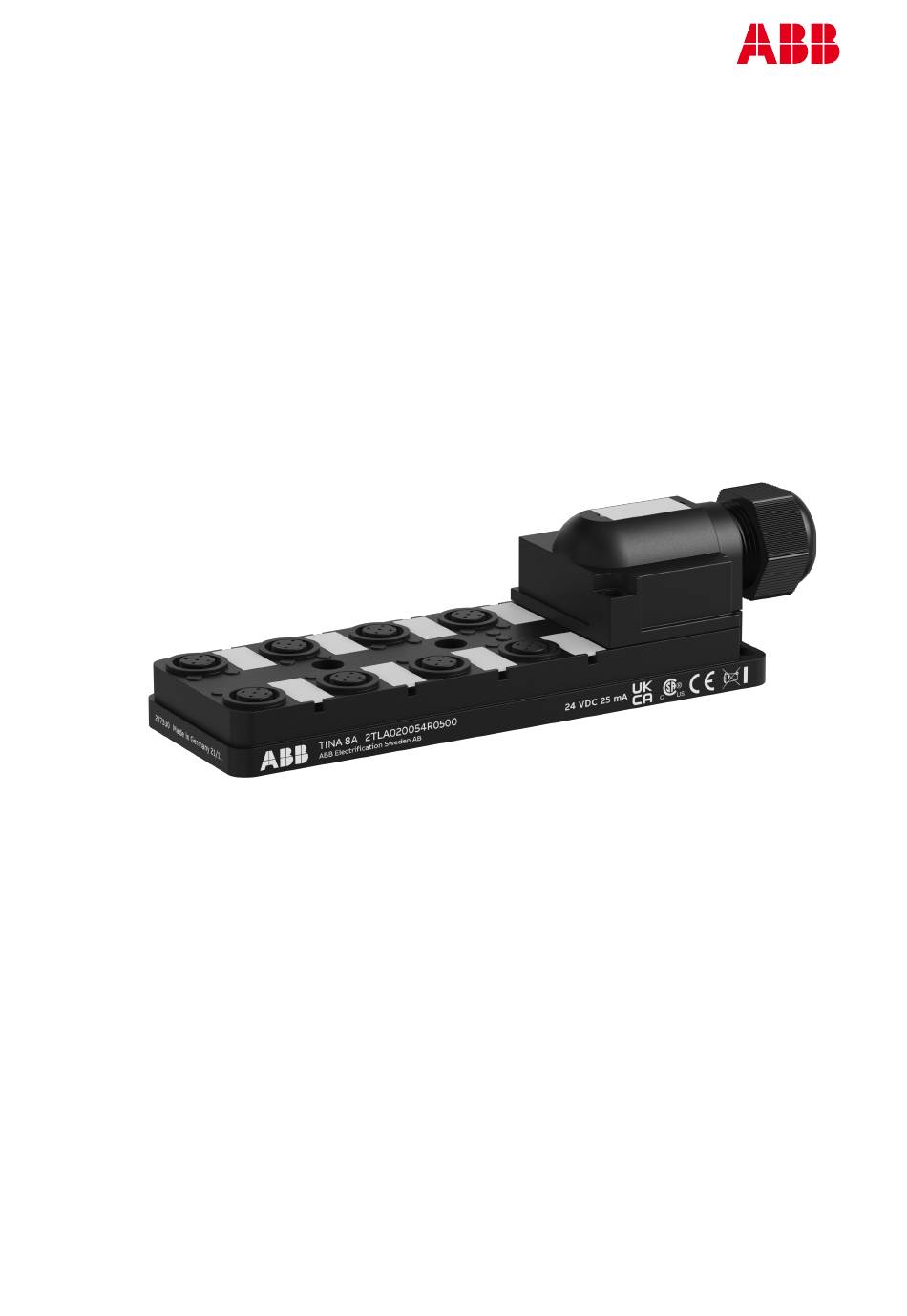

- Page 1 — SA F E T Y PR OD U CTS Tina 8A Connection block Product Manual 2TLC172142M0201 Rev.F ORIGINAL INSTRUCTIONS new.abb.com/low-voltage/products/safety-products...
- Page 2 Suitability for use ABB shall not be responsible for conformity with any standards, codes, or regulations that apply to the combination of products in the customer’s application or use of the product. Third party certificates for the products are available at https://new.abb.com/low- voltage/products/safety-products.
-
Page 3: Table Of Contents
Table of Contents 1 Introduction ..........................4 Purpose of document ........................ 4 Intended audience ........................4 Reading prerequisites ........................ 4 Special notes ..........................4 2 Safety ............................5 Safety precautions ........................5 3 Product description........................6 4 Installation........................... 7 Installation precautions ......................7 Testing safety functions ...................... -
Page 4: Introduction
This document is intended for authorized personnel. Reading prerequisites It is assumed that the reader of this document has knowledge of the following: • Basic knowledge of ABB safety products • Knowledge of machine safety Special notes Pay attention to special notes in the document:... -
Page 5: Safety
Safety Safety precautions The safety precautions must be followed during installation, operation, maintenance and troubleshooting. It is the responsibility of the user to ensure the correct overall functionality. Warning! Carefully read through the entire product manual before using the device. Warning! The devices shall be installed by authorized personnel following applicable Safety regulations, standards and the Machinery directive. -
Page 6: Product Description
Product description Tina 8A is a connection block with eight M12 5-pole connectors. It is used to simplify wiring and reduce cable costs by enabling up to eight safety devices to be connected to a safety controller or safety PLC through a single cable. -
Page 7: Installation
Installation • Attach Tina 8A to the surface using four M4 bolts. • Mount all the wires to the terminal block (number 1-13). • Connect the safety devices to the M12 connectors and attach Tina 1A units to the unused connectors. -
Page 8: Connections
White DYNlink signal output Blue 0 VDC Black DYNlink signal input Grey Information input M12 5-pole female connector Caution! All cable colors according to ABB standard cables. Warning! Information output signals shall never be used for safety purpose(s). 2TLC172142M0201 Rev.F... -
Page 9: Connection Examples
Connection examples Caution! All cable colors according to ABB standard cables. 2TLC172142M0201 Rev.F... -
Page 10: Functions
Functions Information output signal attributes The information output of the unit (terminal block pin-13) is set either high or low according to the following table: DYNlink input signal status Safety status of devices Information output signal (terminal block pin-2) connected to the M12 status (terminal block 5-pole connectors 1-8 pin-13) -
Page 11: Maintenance
(EN 62061:2005+A1:2013+A2:2015, EN ISO 13849-1:2015). Warning! In case of breakdown or damage to the product, contact ABB. Do not try to repair the product yourself since it may accidentally cause permanent damage to the product, impairing the safety of the device which in turn could lead to serious injury to personnel. -
Page 12: Troubleshooting
Troubleshooting Problem Probable cause Action No DYNlink signal out One or more of the devices Check status of the device/unit(s). (0 VDC) open DYNlink input (terminal Check cable connections or the block pin-2) open, +0 VDC unit before. or +24 VDC Loss of power supply Check +24 VDC / 0 VDC power supply. -
Page 13: Dimensions
Dimensions All dimensions are in mm. 2TLC172142M0201 Rev.F... -
Page 14: Technical Data
Address ABB Electrification Sweden AB SE-721 61 Västerås Sweden Order code/Ordering data 2TLA020054R0500: Tina 8A Connection block Power supply Required power supply type PELV/SELV, not intended to be connected to a DC distribution network. Note: A DC distribution network is defined in IEC 61326-3-1:2017 as “Local DC electricity supply... - Page 15 Humidity range 35 to 85 % (with no icing or condensation) Housing material Based on polyamide Connectors M12 5-pole female connectors (x8) 5+9-pin terminal block Conductor cross section area: 0.25 – 1 mm (AWG 16-24) Wire strip length: 7 mm Tightening torque 5+9 screw terminal block: 0.25 Nm M12 connector: 0.6 Nm...
-
Page 16: Declaration Of Conformity
Declaration of conformity EC Declaration of conformity 2TLC172142M0201 Rev.F... - Page 17 UK Declaration of conformity 2TLC172142M0201 Rev.F...
