Bissell Symphony 1132 Series Manual

INTRODUCTION

We're glad you purchased a BISSELL hard floor cleaner. Everything we know about floor care went into the design and construction of this complete, high-tech home cleaning system. Your BISSELL hard floor cleaner is well made, and we back it with a limited two-year warranty. We also stand behind it with a knowledgeable, dedicated Consumer Care department, so, should you ever have a problem, you'll receive fast, considerate assistance. My great-grandfather invented the floor sweeper in 1876. Today, BISSELL is a global leader in the design, manufacture, and service of high quality homecare products like your BISSELL hard floor cleaner

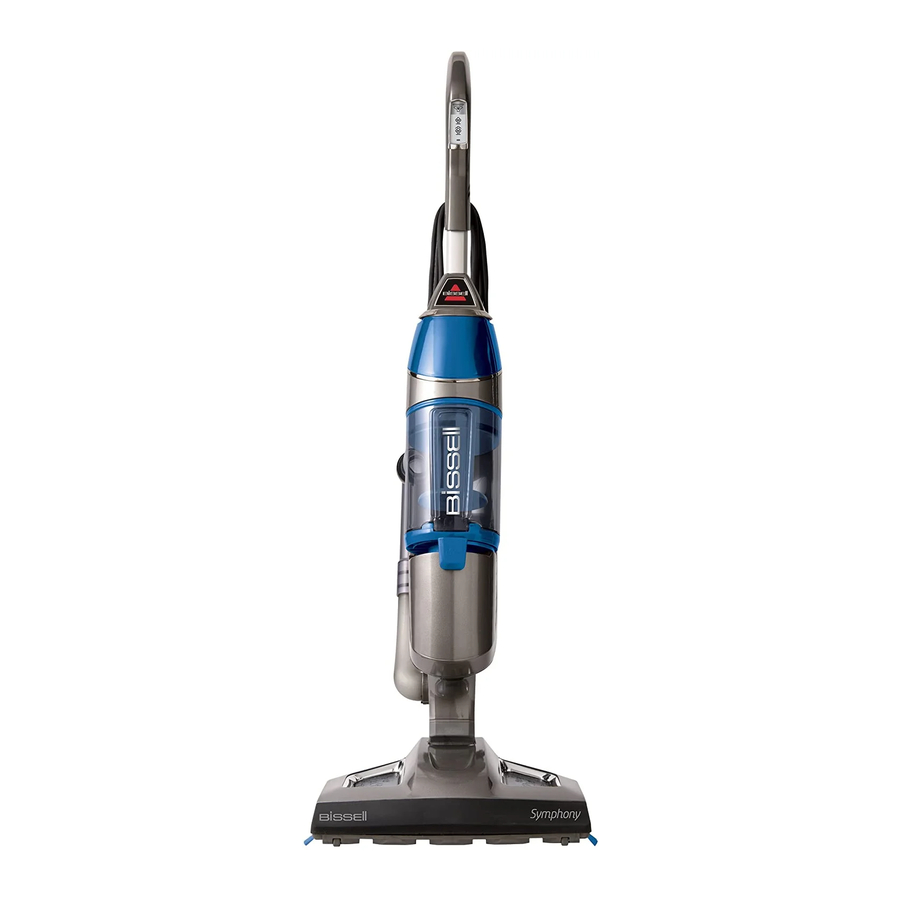

Product View

1. Steam Trigger
2. Easy Touch Digital Controls™ – LO/HI Steam & Vac On/Off
3. Cord Clip
4. Handle
5. 25' Power Cord
6. Water Tank with Easy Fill Opening
7. Vacuum Filter
8. Bottom Empty Dirt Bin
9. Microfiber Mop Pads (quantity varies by model)
10. Quick Release Pad Tray™
11. Water Cup
12. Water Filter (varies by model)
13. Carpet Glider (varies by model)
14. Scent Discs (varies by model)
15. STEAMBOOST™ Tray (varies by model)
16. STEAMBOOST™ Disposable Pads (varies by model)
17. Vacuum Nozzle

Plastic film can be dangerous. To avoid danger of suffocation, keep away from babies and children.

Do not plug in your hard floor cleaner until you are familiar with all instructions and operating procedures.

To reduce the risk of electric shock, turn power switch off and disconnect polarized plug from electrical outlet before performing maintenance or troubleshooting checks.

Operations

Special Features
Easy Touch Digital Controls™
The fingertip power controls are located on the front of the handle. Settings include:
(HI) High Steam
Use for durable floors or on sticky messes. To turn steam on, press once. Click again to turn steam off. Can be used simultaneously with the vacuum function or separately as a steam mop only.

(LO) Low Steam
Use on delicate floors or for light, everyday cleaning. To turn steam on, click once. Click again to turn steam off. Can be used simultaneously with the vacuum function or separately as a steam mop only.
NOTE: You must select a steam setting first and then hold down the hand trigger to produce steam.

(VAC) Vacuum
On/off switch. Can be used simultaneously with either steam function or separately as a stick vacuum only.
NOTE: All settings can be used alone or either steam setting can be used simultaneously with the vacuum setting.

Microfiber Mop Pads
Reusable microfiber mop pads are machine washable and safe for virtually all hard floor surfaces. The white microfiber pad is best for everyday use on delicate flooring like sealed hardwoods and laminate. The gray and white striped pad can be used for scrubbing heavily soiled floors and cleaning tougher messes.

STEAMBOOST™ Disposable Pads (select units)
Single use disposable Steamboost Mop Pads are safe for virtually all hard floor surfaces. Use them when you would prefer to dispose of your messes rather than wash your pads clean.

Appliance will not pick up crayons, marbles and other large objects.

Tip

• Do not attempt to use your hard floor cleaner on the steam setting without water in the tank. You may hear a knocking sound indicating there is no water.

Be sure to turn off vacuum mode if you encounter liquid on the floor

Getting Ready
The mop pad may have already come attached to the mop pad tray on the foot of the unit. If not, please follow step 1 below.
For Microfiber Mop pads, please follow these steps:

Do not operate appliance with damp or wet filters or without all filters in place.

1. Attach mop pad.
   1. Step on foot release for mop pad tray and lift unit off tray.

   2. Some units may come with fragrance discs. Add fragrance disc in the mesh pocket in the mop pad. Use the whole disc for a refreshing scent or cut in half for a lighter scent.

   3. Wrap mop pad around the bottom of the tray, making sure the gray stitching is in the front and the quick release tab is in the back.

   4. Put the mop pad tray back down on the floor and set the unit back on top. It will click into place.

Some units may come with a disposable pad option.

For STEAMBOOST™ disposable pads (select units), please follow these steps:

1. Attach STEAMBOOST™ pad
   1. Step on foot release for mop pad tray and lift unit off tray.
   2. Open the tray by lifting up the release tab.

   3. Undo the flaps on the pad.
   4. Place opened tray on pad. Wrap pad around the bottom of the tray, making sure the ends of the pad are folded on top of the tray.

   5. Close the tray by folding down, snapping into place over the pad.

   6. Put the STEAMBOOST™ pad tray back down on the floor and set the unit back on top. It will click into place.


2. Fill the water tank.

   1. On the back of the unit, open the Easy Fill opening of the water tank and use the included water cup to fill the water tank with water. Don't overfill or water may spill from the tank. For best results, water should be at room temperature.
   2. Close the Easy Fill opening.
   3. The water tank holds 13oz. and will last approximately 15 minutes depending on the amount of the steam used during cleaning.
3. Pull and twist the Quick Release™ cord wrap clockwise to unwrap the power cord completely and plug into an outlet as described on the Important Safety Instructions.
   NOTE: Upon the first use of the Symphony or first use after refilling the water tank, the pump may make a 'knocking' sound. This is normal and could last up to 30 seconds.

Never put descaling, alcoholic, or detergent products into the steam cleaner, as this may damage it or make it unsafe for use.

Tip

• Use of distilled or demineralized water is recommended to prolong the life of your hard floor cleaner. To add a fresh scent as you clean, try BISSELL demineralized waters in various scents like Citrus, Eucalyptus Mint and Spring Breeze.

Using Your Symphony Hard Floor Vacuum and Steam Mop
The hard floor cleaner can be used as a vacuum and a steam mop at the same time or separately. For best results and time savings, use the powerful vacuum to clear floor of dust and small debris as you steam mop.
Your hard floor cleaner is designed to clean hard flooring, such as ceramic tile, marble, stone and sealed hard wood floors. Use on waxed or some unwaxed floors may result in a diminished glossiness. The hard floor cleaner is not for use on unsealed wood floors. For best results, test in an inconspicuous area and check the care instructions from your flooring manufacturer.

1. Plug the unit in and wait 30 seconds for it to heat up. When the Steam Ready light illuminates, choose the level of steam to clean your floor:
   HI for durable floors or sticky messes.
   LO for delicate floors or every day cleaning.
   NOTE: It is recommended to use the low level steam setting when using the STEAMBOOST™ disposable pad (select units).

2. Press steam trigger on the underside of the handle to actuate steam

3. Push the VAC switch down to turn on the cyclonic vacuum.
4. Begin cleaning by slowly moving the unit over the floor surface while pressing the steam trigger on the underside of the handle. Moisture on the floor is normal when using in steam mode.
5. When the hard floor cleaner stops emitting steam, turn the unit off (both steam mop and vacuum functions) and unplug. Open the Easy Fill opening of the water tank and use the water cup to add more water to the tank. For best results, water should be at room temperature. Then close the Easy Fill opening, turn the unit back on and continue cleaning.
   NOTE: To be sure to sanitize an area of your floor, use the microfiber cloth pads and slowly and evenly stroke the Symphony back and forth at least three times over the area using continuous steam. For best results, remove the pad and wash after use.

To reduce the risk of electric shock, turn power switch off and disconnect polarized plug from electrical outlet before performing maintenance or troubleshooting checks.

Tip

• For vacuum use on low pile area rugs, remove pad tray for improved performance.

Maintenance & Care

Removing All Mop Pads

To reduce the risk of electric shock, turn power switch off and disconnect polarized plug from electrical outlet before performing maintenance or troubleshooting checks.

Upright storage of the cleaner with a wet mop pad may result in the formation of white marks on your floor. To remove the white marks, clean area with vinegar.

1. Unplug hard floor cleaner from electrical outlet.
2. Step on foot release for mop pad tray and lift unit off tray.

3. Carefully remove mop pad from the mop pad tray using the Quick Release™ Tab. The mop pad and tray may be hot.
4. Put the mop pad tray back down on the floor and set the unit back on top. It will click into place.
5. The mop pad can be machine washed in warm water. Use only liquid detergents. Do not use fabric softeners or bleach. For best results, air dry.
6. For STEAMBOOST™ disposable pad (select units), throw away after use. Do not flush.

Empty Dirt Tank
The dirt tank needs to be emptied when the dirt reaches the 'Full' line on the side of the tank.

1. Unplug hard floor cleaner from electrical outlet.
2. Remove the Easy Empty dirt tank from the unit by moving the lock button on the front of the unit to the left.

3. Hold the dirt tank over a garbage container. Press the bottom lid release button on the back of the dirt tank to empty dirt.

4. Mount the Easy Empty dirt tank back on the vacuum base and push the lock button to the right until it is centered on the front of the unit.
   NOTE: The dirt tank may be washed in warm water with a mild detergent. Make sure it is completely dry before replacing.

Cleaning or Replacing the Vacuum Filter
The key to maximum performance is having a clean filter. Cleaning the filter after each use will help your vacuum operate at peak efficiency. Use only genuine BISSELL Symphony replacement filters in your BISSELL hard floor cleaner. To purchase visit www.BISSELL.com. To clean filter:

To reduce the risk of electric shock, turn power switch off and disconnect polarized plug from electrical outlet before performing maintenance or troubleshooting checks.

1. Turn power off and unplug unit.
2. Remove the dirt container from the unit, as directed above.

3. Remove filter and tap firmly against the inside of a waste container, removing any visible dirt.

4. Replace filters back into the dirt container and attach dirt container to the base of the unit. Slide the lever to your right to lock.

NOTE:

• After heavy usage, you may clean the pre-motor, foam filter by washing it gently by hand in warm water and mild dish detergent. Rinse thoroughly and make certain it is completely dry before replacing it.
• You may replace the paper, pleated filter when dirty. Recommended replacement is every 6 months. Reference for replacement part information.

Thermal Protector
An internal thermal protector has been designed into your vacuum to protect it from overheating. When the thermal protector activates, the vacuum motor will stop operating. If this happens:

To reduce the risk of electric shock, turn power switch off and disconnect polarized plug from electrical outlet before performing maintenance or troubleshooting checks.

1. Turn the cleaner OFF and unplug from electrical outlet.
2. Empty dirt container, check filters and air passages for dirt accumulation.
3. The thermal protector automatically resets after approximately 2 hours. If the thermal protector does not reset, call BISSELL Consumer Services or visit the website.

Replacing the Water Filter
Some models will come with an optional water filter. If your unit comes with a water filter:
It is recommended to fill your unit with distilled water only. Periodically check your water filter. When the green grains turn blue, change your water filter. If the filter is not changed at the appropriate time, calcium deposits may accumulate on the heater, causing damage or reduced performance.
NOTE: If your unit does not come with a water filter, it is still recommended to use distilled water to fill your unit. Using your unit without a water filter does not diminish performance or cause damage.
To replace the filter:

1. Using the grips on the side of the filter, pull filter out of the unit.
2. Push filter firmly into the machine until it's flush. Reference for replacement part information.

Cleaning Hose Tube

To reduce the risk of electric shock, turn power switch off and disconnect polarized plug from electrical outlet before performing maintenance or troubleshooting checks.

1. Grab bottom end of the hose and pull lower portion away from the body.

2. Seperate the hose into two pieces.
3. Wash hose.

4. Align the top of the hose to the groves on the hose opening of the unit.
5. Twist hose down to insert lower portion of hose to the unit.

6. Make sure hose fits tightly into the unit.


Cleaning Foot of Unit

1. To clean the foot and bristles, push the release button on the back of the pivot joint and pull the foot to release it from the appliance.
2. Wash bottom of foot and bristles with cold water.

3. Look for any clogging in the steam nozzle. To clean, run water over steam nozzle.
   NOTE: Make sure foot and bristles are dry before attaching the foot to the appliance.
4. To re-attach the foot to the appliance: place the foot on the floor, push the appliance down into the foot and then listen for the click that sounds when properly attached.

Troubleshooting

To reduce the risk of electric shock, turn power switch off and disconnect polarized plug from electrical outlet before performing maintenance or troubleshooting checks.

Please do not return this product to the store.
Other maintenance or service not included in the manual should be performed by an authorized service representative. Thank you for selecting a BISSELL product.
For any questions or concerns, BISSELL is happy to be of service. Contact us directly at 1-800-237-7691.

IMPORTANT SAFETY INSTRUCTIONS

READ ALL INSTRUCTIONS BEFORE USING YOUR HARD FLOOR CLEANER.
When using an electrical appliance, basic precautions should be observed, including the following.

ALWAYS CONNECT TO PROPERLY GROUNDED OUTLET. SEE GROUNDING INSTRUCTIONS.

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY:

• Turn off all controls before unplugging.
• Do not direct steam at people, animals, or equipment containing electrical components.
• Unplug from outlet when not in use and before conducting maintenance or troubleshooting.
• Do not fill water tank with more than 12 ounces of water
• Do not leave unattended.
• Do not allow to be used as a toy.
• Close attention is necessary when used by or near children.
• Do not immerse in water.
• Do not use for any purpose other than described in this User Guide.
• Use extra care when cleaning on stairs.
• Do not turn over the device or touch the steam nozzle when using the device in steam mode.
• Do not open water fill cap when machine is turned on.
• Use only manufacturer's recommended attachments; use of attachments not provided or sold by BISSELL may cause fire, electric shock or injury.
• Never put descaling, aromatic, alcoholic, chemicals, additives, or detergent products into the appliance, as this may damage it or make it unsafe for use.
• Do not use with damaged cord or plug.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• If appliance has been dropped, damaged, left outdoors, or dropped into water, have it repaired at an authorized service center.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle with wet hands.
• Do not put any object into appliance openings, or restrict air flow.
• Do not use with any opening blocked.
• Keep openings free of dust, lint, hair and anything that may reduce airflow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Do not pick up flammable materials (lighter fluid, gasoline, kerosene, etc.) or use in the presence of explosive liquids or vapors.
• Do not pick up toxic material (chlorine bleach, ammonia, drain cleaner, etc.).
• Do not use appliance in an enclosed space filled with vapors given off by oil base paint, paint thinner, some moth proofing substances, flammable dust, or other explosive or toxic vapors.
• Do not use on leather, wax polished furniture or floors, synthetic fabrics, velvet or other delicate, steam-sensitive materials.
• Do not use outdoors.
• Do not pick up hard or sharp objects such as glass, nails, screws, coins, etc.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use without dust cup or filters in place.
• Always turn off this appliance before connecting or disconnecting the nozzle.
• Use only on indoor surfaces.
• Keep appliance on a level surface.
• Always turn off vacuum mode if you encounter liquid on the floor.

Improper connection of the equipment-grounding conductor can result in a risk of electrical shock. Check with a qualified electrician or service person if you aren't sure if the outlet is properly grounded. DO NOT MODIFY THE PLUG. If it will not fit the outlet, have a proper outlet installed by a qualified electrician. This appliance is designed for use on a nominal 120-volt circuit, and has a grounding attachment plug that looks like the plug in the illustration. Make certain that the appliance is connected to an outlet having the same configuration as the plug. No plug adapter should be used with this appliance.
GROUNDING INSTRUCTIONS
This appliance must be connected to a grounded wiring system. If it should malfunction or break down, grounding provides a safe path of least resistance for electrical current, reducing the risk of electrical shock. The cord for this appliance has an equipment-grounding conductor and a grounding plug. It must only be plugged into an outlet that is properly installed and grounded in accordance with all local codes and ordinances.

FOR OPERATION ON A 120 VOLT A.C. 60 HZ POWER SUPPLY ONLY.
This model is for household use only.
SAVE THESE INSTRUCTIONS FOR FUTURE USE
www.BISSELL.com

SURFACE MAY BE HOT. AVOID CONTACT.
