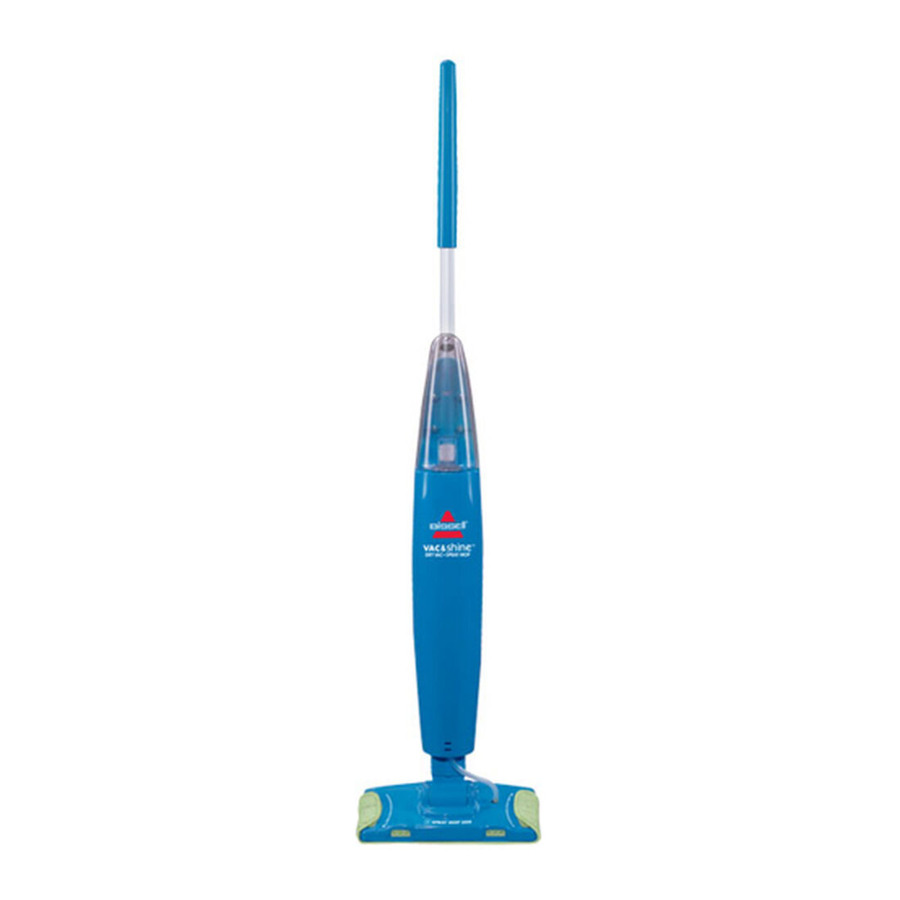

Product view

Cleaning fluid
Keep plenty of genuine BISSELL 2X formula on hand so you can clean and protect whenever it fits your schedule. Always use genuine BISSELL deep cleaning formulas. Non-BISSELL cleaning solutions may harm the machine and will void the warranty.

BISSELL
2X Hard Floor Solutions Formula

BISSELL
2X Wood Floor Solutions Formula

Assembly

Assembling your new Vac&shine is a 3 step Process, requiring no tools.

Insert foot into body of unit until you hear a click.
Place the Solution Tube onto the spray connector.
Insert the handle into the body of the unit. Turn handle until key in handle falls into position until you hear a "click".

Charging

information Note: The unit will come partially charged. Charge completely before using 12 hours or overnight. Average run time for dry Vacuuming is 12 minutes.

A. To charge, place the charger plug into the Charging Port on the side of the unit. Make sure it is in securely and the charge indicator light is illuminated. Make sure power switch is in the "off" position.

Filling the Clean Tank

Remove tank from the unit.
Unscrew the black cap on the bottom of the solution tank and remove the insert.
Fill with Tap Water to the full line and fill the remainder with BISSELL 2x Hard Floor or Wood Floor Solutions formulas.
Replace the cap and insert assembly.
Place the full tank back into the unit.

information Tip:
You will only utilize battery charge while dry vacuuming. For wet mopping, the batteries are not used, extending usage time.

information Tip:
Gently push the tank into place. If you see air bubbles in the tank, it is seated properly.

Operations

Dry Vac

Operations - Dry Vac

Tip:
The MicroFiber pad should be placed in the areas directed. Covering the vacuum suction path will stop all suction.

Attach the Gentle Clean® MicroFiber pad onto the base of the unit. Begin by attaching the pad onto the Velcro on one side of the unit, wrapping it under the foot and attaching on the other side

information Tip: if the microfiber covers the vacuum suction path, the unit will not suction. see picture 1B.

Turn the unit on.
With the Dry Vac side of the unit facing forward, begin cleaning. You will see dry dirt, crumbs and debris being collected in the Dirty Tank.
Check the filter frequently. If you see hair and fuzzy debris collecting on the filter, remove the dirty tank and dirty tank lid to clean the filter.

To clean the filter, gently tap it on the edge of the trash can, brushing off anything that may be sticking to the filter. The filter can also be rinsed with warm water. Let air dry before inserting back into the unit.

Switching from dry Vac to Wet mop

information Tip:
When the trigger is squeezed the vacuum suction will stop; extending battery life.

To change from dry vacuuming to wet cleaning simply flip the unit around!

Wet mop

By squeezing the trigger, you will turn off the vacuum suction.
Water and Solution will flow to the 2 spray tips on the Wet Mop side. Gently mop the floor with the Gentle Clean MicroFiber pad. Depressing the trigger will dispense water and solution based on your cleaning job.

Sticky, dirty areas may require more water and solution.

Floor will need to air dry for 3-5 minutes.

information Tip:
You do not have to empty the Dirty Tank before wet mopping.

Cleaning the Gentle Clean ® microfiber Pad

After Wet Mopping, remove the MicroFiber Pad to launder or wash.

To wash, simply toss in the wash, air dry and reuse. No need to buy disposable cloths every time you use your Vac&Shine!

Maintenance and care

Storing and Charging your Vac&shine

Your Vac&shine can be stored ready-to-use, by leaving water and formula in the Clean Tank.

To charge while storing, place the charger plug into the charging port on the side of the unit. Make sure it is securely connected and the charger indicator light is illuminated.

Battery Removal And Disposal

Important: Unplug charger.
Remove tanks (clean and dirty) and discard.
Remove screws (6) holding Product Housing together (see diagram).
Use screwdriver to score Rating Label on side of unit.
Separate Housings and locate Battery Pack in bottom/ center of unit.
Remove wires from the Battery Pack.
Keep Battery Pack together - DO NOT separate individual batteries. For specific disposal instructions of batteries, please contact: RBRC (Rechargeable Battery Recycling Corporation) 1-800-822-8837.
Discard remainder of product.

This product contains a rechargeable nickel cadmium battery (sometimes referred to as a "Ni-Cad" battery) pack. The average life of a Ni-Cad battery is 5-7 years, depending on frequency of use. According to Federal regulations, proper removal and disposal of Ni-Cad batteries are required.

Troubleshooting

To reduce the risk of electric shock, turn power OFF and disconnect polarized plug from electrical outlet before performing maintenance or troubleshooting.

Unit will not turn on
Possible causes	Remedies
Unit is not charged	Charge unit completely
No or Low suction
Possible causes	Remedies
1. Unit is not charged	1. Charge unit completely.
2. Filter is clogged	2. Clean filter.
3. Dirty tank is not properly installed	3. Remove and reinstall dirty tank.
4. Microfiber pad is covering suction path	4. Remove and replace microfiber pad.
5. Foot not properly installed	5. Remove and reinstall foot.
No Spray
Possible causes	Remedies
1. Clean tank is empty	1. Fill clean tank.
2. Clean tank is not installed properly	2. Remove and reinstall clean tank.
3. Handle is not installed properly	3. Remove and reinstall handle.
4. Solution tube is not installed properly	4. Remove and reinstall solution tube.

Other maintenance or service not included in the manual should be performed by an authorized service representative.

Thank you for selecting a BISSELL product.

Please do not return this product to the store.

For any questions or concerns, BISSELL is happy to be of service. Contact us directly at 1-800-237-7691.

Replacement parts - BISSELL Vac&Shine

Item	Part No.	Part Name
1	203-6917	Handle Assembly
2	203-6918	Solution Tank (w/ cap & insert)
3	203-6919	Solution Tank cap & insert
4	203-6920	Collection Tank
5	203-7514	Collection Tank Lid
6	39U5	2-pack Filters
7	30A3	2-pack Pads
8	203-6926	Charger
9	56L9	16 oz. Hard Floor Solutions
10	81T7	16 oz. Wood Floor Solutions

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should be observed, including the following:

To reduce the risk of fire, electric shock, or injury:

Store indoors.
Do not expose to rain.
Do not immerse.
Do not handle with wet hands.
Do not use Vac&Shine™ if it has been dropped, damaged, left outdoors or dropped into water. Have it repaired at an Authorized Service Center.
Do not use with damaged cord or plug on the charger.
Do not unplug charger by pulling on cord.
Do not damage the charger cord. Never carry or pull the charger unit by the cord, use cord as a handle, close door on cord, or pull cord around sharp edges or corners. Keep cord away from heated surfaces.
Do not use an extension cord. Charger should plug directly into electrical outlet.
Do not put any object into appliance openings, use with blocked opening, or restrict air flow.
Do not expose hair, loose clothing, fingers or body parts to openings or moving parts.
Do not pick up hot, burning or smoking objects such as cigarettes, matches or hot ashes.
Do not pick up flammable or combustible materials (lighter fluid, gasoline, kerosene, etc.) or use in the presence of explosive liquids or vapor.
Do not use appliance in an enclosed space filled with vapors given off by oil base paint, paint thinner, some moth proofing substances, flammable dust, or other explosive or toxic vapors.
Do not pick up toxic material (chlorine bleach, ammonia, drain cleaner, gasoline, etc.)
Do not allow to be used as a toy. Close attention is necessary when used by or near children.
Do not use for any purpose other than described in this User's Guide.
Use only manufacturer's recommended attachments - use of attachments not provided or sold by BISSELL may cause fire, electric shock or injury.
Use only cleaning products formulated or recommended by BISSELL for this appliance.
Use only the charger supplied by BISSELL (packaged with your appliance) to recharge your Vac&Shine™.
Use charger unit only in standard electrical outlet (120v–60 hz).
Use charger in dry location only.
Keep openings free of dust, lint, hair, etc.
Unplug charger unit from outlet before maintenance or cleaning.
Unplug by grasping the plug, not the cord.
Be extra careful when cleaning stairs.
Turn off all controls when finished cleaning.
Do not charge the unit outdoors.

Your Vac&Shine™ contains rechargeable nickel cadmium batteries. Do not incinerate batteries as they can explode when exposed to high temperatures.

Battery cell leaks can occur under extreme conditions. If battery cell liquid comes in contact with the skin:

Wash immediately with soap and water, then neutralize with a mild acid such as vinegar or lemon juice.
If battery cell liquid gets into the eyes: Flush immediately with clean water for a minimum of 10 minutes.
Seek medical attention.
Do not use without dust bin and/or filters in place.
Do not run appliance over the charging cord.

SAVE THESE INSTRUCTIONS
This model is for household use only.

If you need information about repairs or replacement parts, or if you have questions about your warranty, contact BISSELL Consumer Services.

Website or E-mail:
www.bissell.com
Use the "Customer Support" tab.

Or Call:
BISSELL Consumer Services
1-800-237-7691
Monday - Friday 8 a.m. - 10 p.m. ET Saturday 9 a.m. - 8 p.m. ET

Or Write:
BISSELL Homecare, Inc.
PO Box 3606
Grand Rapids, MI 49501
ATTN: Consumer Services

Don't forget to register your product!
Registering is quick, easy and allows us to serve you better over the lifetime of your product. You'll receive:

BISSELL Reward Points
Automatically earn points for discounts and free shipping on future purchases.

Efficient Service
Supplying your information now saves you time should you need to contact us with questions regarding your product.

Product Support Alerts
We'll contact you with any important product alerts.

Special Promotions
Optional: Register your email to receive notice of offers, contests, cleaning tips and more!

Visit bissell.com/registration now!

information NOTE: Please keep your original sales receipt. It provides proof of purchase date in the event of a warranty claim.
