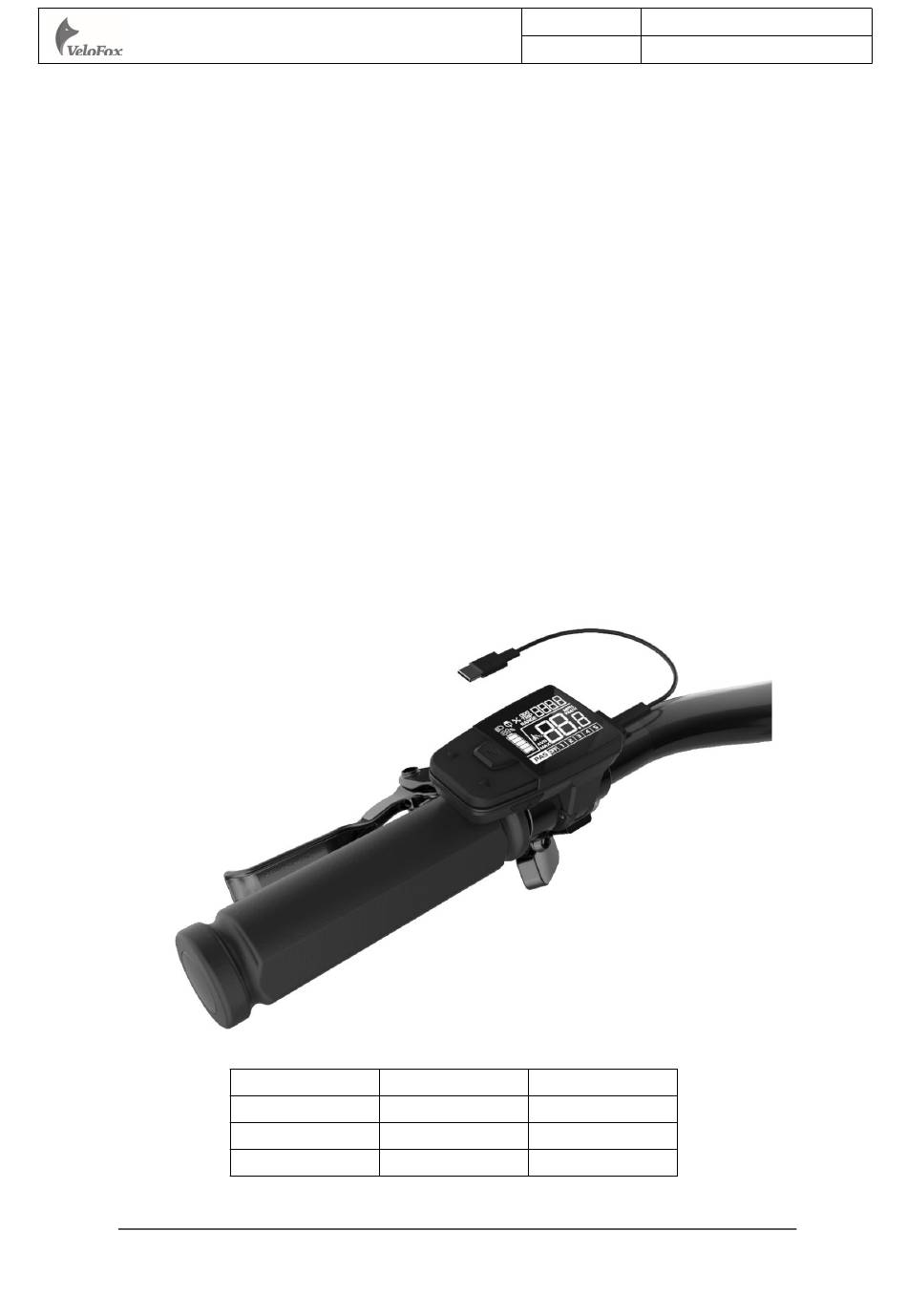

- Page 1 Doc No. 杭州威狐智能科技有限公司 Version 1.03 Hangzhou VeloFox Intelligent Technology Co,. Ltd. DM01 Display Functionality Introduction Product Name：Intelligent LCD display Part Number：DM 01 Signature Date Editor Leo Liao 2020.03.26 Checked Ivan Chen 2020.03.26 Approved 2020.03.26 第 1 页/共 27页...
- Page 2 Doc No. 杭州威狐智能科技有限公司 Version 1.03 Hangzhou VeloFox Intelligent Technology Co,. Ltd. Documents modification history Version Editor Date Contents V1.02 Leo Liao 2020.04.26 1. changed the original interface after power-on 2. modified the setting interface, the information indicated 3. added the remark for the RANGE feature 4.
- Page 3 If you have any questions about DM 01 functional definition, please consult our sales or technical support team. Our company (VeloFox ®) reserves all the rights to interpret and explain DM01 functional definitions. Hangzhou Velofox Intelligent Technology Co., Ltd Content 第...
-
Page 4: Table Of Contents
Doc No. 杭州威狐智能科技有限公司 Version 1.03 Hangzhou VeloFox Intelligent Technology Co,. Ltd. A. Product introduction ..........................5 1. Product name and model ......................5 2. Product Introduction ....................... 5 3. Range of application ........................ 5 4. Appearance and size ........................ 5 5. Display coding rules .........................6 B. -
Page 5: Product Introduction
Doc No. 杭州威狐智能科技有限公司 Version 1.03 Hangzhou VeloFox Intelligent Technology Co,. Ltd. A.Product introduction 1. Product name and model LCD display for electric power assist bikes Product model：DM01 2. Product Introduction IMD craft, 2.5D chamfer, 4H extra hard glass screen. -
Page 6: Display Coding Rules
Doc No. 杭州威狐智能科技有限公司 Version 1.03 Hangzhou VeloFox Intelligent Technology Co,. Ltd. 68.5mm 41.3mm 42mm 5. Display coding rules As shown as above picture, Production serial number Manufacture year and week number Manufacture factory code, M1, M2, M3 Hardware version number, C-CAN, U-UART, last 2 numbers means version（may omit）... -
Page 7: Product Manual
Doc No. 杭州威狐智能科技有限公司 Version 1.03 Hangzhou VeloFox Intelligent Technology Co,. Ltd. Parameter character value (reserved) Parameter character value (wheel size value, 700C=70, 27.5=27) Parameter character value （ speed limit information, range from 04 to 46 00 代表不限速） Parameter character value （voltage，24/36/43/48/52，can be expanded）... -
Page 8: Function Overview
Doc No. 杭州威狐智能科技有限公司 Version 1.03 Hangzhou VeloFox Intelligent Technology Co,. Ltd. 2. Function overview ① Five buttons, separated walk assist button, good hand-feeling ② 6 power assist level ③ Units: Metric/Imperial switchable ④ Speed display: Real-time speed,maximum speed,average speed ⑤ Battery indicator with percentage display. -
Page 9: Interface
Doc No. 杭州威狐智能科技有限公司 Version 1.03 Hangzhou VeloFox Intelligent Technology Co,. Ltd. 4. Interface 4.1 Boot interface Boot interface, after turn on the display for 2 seconds, all segments of the display are on. After communication build, display gets the assist level information, TRIP/ODO information and so on. -
Page 10: Function Interface Introduction
杭州威狐智能科技有限公司 Version 1.03 Hangzhou VeloFox Intelligent Technology Co,. Ltd. ② Current speed and unit: Displays the current riding speed. The default unit is KM/H, and the speed is shown with one decimal place. ③ Trip and ODO: The unit is defaulted to KM. Trip mileage is displayed with one decimal place, with a maximum value of 9999. - Page 11 Doc No. 杭州威狐智能科技有限公司 Version 1.03 Hangzhou VeloFox Intelligent Technology Co,. Ltd. Other function interface Trip indicate The top-left corner displays the icon . The trip mileage is shown in the function display area using 4 , with one decimal place retained. After exceeding 999.9 KM, decimal places will not be displayed.
- Page 12 Doc No. 杭州威狐智能科技有限公司 Version 1.03 Hangzhou VeloFox Intelligent Technology Co,. Ltd. Endurance mileage indicate The display reads the remaining range information provided by the controller and shows it. The top-left corner displays the icon, and the specific mileage value is shown in the function display area using 4 .
- Page 13 Doc No. 杭州威狐智能科技有限公司 Version 1.03 Hangzhou VeloFox Intelligent Technology Co,. Ltd. Max speed indicate Displays the maximum riding speed within the current trip mileage segment, with a maximum value of 99.9 KM/H. Error code indicate The display shows a fault maintenance...
- Page 14 Doc No. 杭州威狐智能科技有限公司 Version 1.03 Hangzhou VeloFox Intelligent Technology Co,. Ltd. press 、 to switch items loop. Short presses will cycle through the settings menus. In any 、 settings menu, short pressing the M button enters parameter edit mode, causing the corresponding parameter to flash at a frequency of 1 Hz.
-
Page 15: Button Defination
Doc No. 杭州威狐智能科技有限公司 Version 1.03 Hangzhou VeloFox Intelligent Technology Co,. Ltd. 5. Button defination 5.1 Button name： Power button Adjust up mode Adjust down Walk mode Power button: Turn on/off the display Adjust button: adjust the assist power level while riding and setting function when setting operation. -
Page 16: Basic Function Operation
Doc No. 杭州威狐智能科技有限公司 Version 1.03 Hangzhou VeloFox Intelligent Technology Co,. Ltd. 6. Basic function operation 6.1 Turn on/off the display With the display and controller connected normally, press and hold the button while the display is off to show the full-screen startup interface. The display will then transition to the basic interface and begin normal operation. -
Page 17: Information Switch
Doc No. 杭州威狐智能科技有限公司 Version 1.03 Hangzhou VeloFox Intelligent Technology Co,. Ltd. 6.3 Information switch In the powered-on state, a short press of the M button will cycle through TRIP,ODO,RANGE. displaying these function details in a loop: Trip Mileage (TRIP/AVG) -> Total Mileage (ODO/MAX) -> Remaining Range (RANGE). -
Page 18: Speed Information Switch
Doc No. 杭州威狐智能科技有限公司 Version 1.03 Hangzhou VeloFox Intelligent Technology Co,. Ltd. 6.5 Speed information switch In basic function interface, display show the real-time speed, average speed, max speed and mileage information switch. Check 6.3 for the information switches. 6.6 Walk assist function... -
Page 19: Battery Power Indicate And The Assist Power Output
杭州威狐智能科技有限公司 Version 1.03 Hangzhou VeloFox Intelligent Technology Co,. Ltd. 6.7 Battery power indicate and the assist power output Battery level information includes both a battery bar indicator and a remaining percentage indicator. When the battery level is normal, the display shows the battery level in 1-5 bars based on the battery capacity. -
Page 20: Setting Function
杭州威狐智能科技有限公司 Version 1.03 Hangzhou VeloFox Intelligent Technology Co,. Ltd. 3. Range information show hypen - - - - 4. When the voltage is lower than the undervoltage （considering the current influence the voltage, converted to the voltage value at 0 current）... - Page 21 Doc No. 杭州威狐智能科技有限公司 Version 1.03 Hangzhou VeloFox Intelligent Technology Co,. Ltd. Setting Interface Description Setting data Remark item Value=KM/H Default Value=KM/H Unit UNT=Unit KM/H—Metric setting MPH—Imperial Value= 1, back Default light level 60% Value= 1 Backlight bLG=Back Value= 2 back...
- Page 22 Doc No. 杭州威狐智能科技有限公司 Version 1.03 Hangzhou VeloFox Intelligent Technology Co,. Ltd. DPS=display Value= fixed Read only software value Display version Software version * Note ： wheel size seting will need the support information from controller’s communication protocol. When wheel size setting choose CCF value, allow user to define the wheel’s Circumference value of the system.
-
Page 23: Data Clearance
杭州威狐智能科技有限公司 Version 1.03 Hangzhou VeloFox Intelligent Technology Co,. Ltd. Reference table for the corresponding circumference value of common wheel diameter: 8. Data clearance When display is on and show TRIP interface, long press M button to clear the TRIP information,... -
Page 24: Error Information
杭州威狐智能科技有限公司 Version 1.03 Hangzhou VeloFox Intelligent Technology Co,. Ltd. 9. Error information Display can warn the bike faults and show error codes on the interface when faults are detected. Detailed error code show on the function area and blink at 1Hz. When error code shown, display will not show ODO, TRIP, RANGE icon, other functions show normally. -
Page 25: Wire Defination
Doc No. 杭州威狐智能科技有限公司 Version 1.03 Hangzhou VeloFox Intelligent Technology Co,. Ltd. 10. Wire defination 10.1 Standard wires definition: Our company has defined the standard wiring for the display according to typical applications. The standard wiring requires matching conversion harnesses. We have specific standards for the length and interface of these conversion harnesses. -
Page 26: Standard Conversion Wire Specifications
Doc No. 杭州威狐智能科技有限公司 Version 1.03 Hangzhou VeloFox Intelligent Technology Co,. Ltd. 10.2 Standard conversion wire specifications： Adaptor-C2H: Adaptor-C2J: 第 26 页/共 27页... -
Page 27: Package Specifications
Doc No. 杭州威狐智能科技有限公司 Version 1.03 Hangzhou VeloFox Intelligent Technology Co,. Ltd. C. Package specifications Standard delivery, in a double corrugated box packaging. The inner layer is a double corrugated septum plus EPE foam product bag. Outer box size：580*390*168mm (L*W*H) D. Note ...
