- Page 1 杭州威狐智能科技有限公司 文件编号 Hangzhou VeloFox Intelligent Technology Co,. Ltd. 1.01 版本号 DM03 Display Functionality Introduction Product Name: Intelligent OLED Display Product Model: DM 03 Signature Date Editor Leo Liao 2020-06-17 Checked Approved...
- Page 2 杭州威狐智能科技有限公司 文件编号 Hangzhou VeloFox Intelligent Technology Co,. Ltd. 1.01 版本号 版本修订历史 Version No. Reviser Date Revision content V1.01 Leo Liao 2020.06.17 Initial version Leo Liao 2020.07.27 Update display coding rules 第2 页/共 27页...
-
Page 3: Table Of Contents
杭州威狐智能科技有限公司 文件编号 Hangzhou VeloFox Intelligent Technology Co,. Ltd. 1.01 版本号 Content A Product Introduction ........................... 4 1. Product name and model ....................... 4 2. Product Introduction ......................4 3. Range of application ......................4 4. Appearance and size ......................4 5. -
Page 4: A Product Introduction

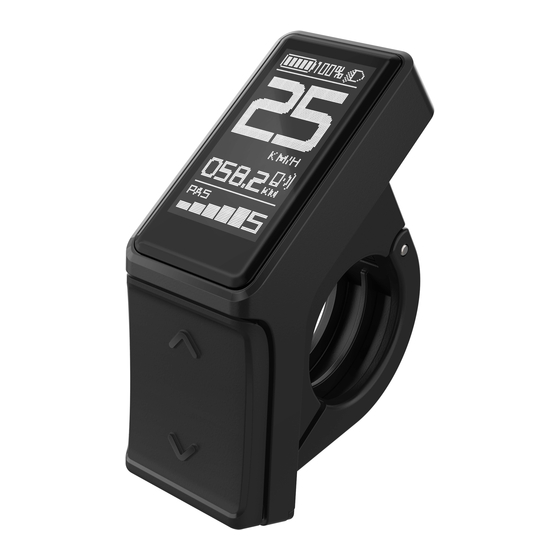

Suitable for all E-bikes that comply with EN15194 standard 4. Appearance and size The shell material of DM03 is PC+GF10, the screen is made of imported tempered glass with 2.5D chamfering technology. This product is suitable to be installed on the left side of horizontal tube... -
Page 5: Display Coding Rules
杭州威狐智能科技有限公司 文件编号 Hangzhou VeloFox Intelligent Technology Co,. Ltd. 1.01 版本号 with a handlebar size ofφ22.2mm. 23.5mm 1.3” OLED 22.2mm 63.5mm 5. Display coding rules As shown as above picture: The Production serial number The year and week of manufacture The code of manufacture factory M0，M1, M2 The hardware version number, C-CAN, U-UART （last 2 digits means version number）... -
Page 6: B Product Manual
杭州威狐智能科技有限公司 文件编号 Hangzhou VeloFox Intelligent Technology Co,. Ltd. 1.01 版本号 Parameter character value (2 digits reserved) forfdigitsreserved) Parameter character value (wheel size, 700C=70, 27.5=27) 27.5=27) Parameter character value（speed limit information, range from 04 to 46，00= no speed limit） Parameter character value （voltage，24/36/43/48/52，can be expanded）... -
Page 7: Installation
杭州威狐智能科技有限公司 文件编号 Hangzhou VeloFox Intelligent Technology Co,. Ltd. 1.01 版本号 ③ Unit: Km / miles ④ Speed: Real-time speed（SPEED） 、maximum speed（MAX） 、average speed（AVG） ⑤ Battery indicator with percentage display ⑥ Range: Endurance mileage（*available if BMS provides necessary info） ⑦ Headlight on/off status indication and control ⑧... -
Page 8: Interface
杭州威狐智能科技有限公司 文件编号 Hangzhou VeloFox Intelligent Technology Co,. Ltd. 1.01 版本号 4. Interface 4.1 Boot interface Boot logo interface is displayed for 3 seconds after display is turned on. When the communication connection is established, display enters the main interface which shows information obtained from the controller. -
Page 9: Basic Interface And Operation
杭州威狐智能科技有限公司 文件编号 Hangzhou VeloFox Intelligent Technology Co,. Ltd. 1.01 版本号 4.2 Basic interface and operation Power button 5 Pin Plug M button Basic interface Adjust button ① Display adopts 4 buttons: power button、M button、 button、 button ② Standard Outlet is a board end connector, which is convenient for after-sales maintenance and replacement ③... -
Page 10: Other Function Interfaces
杭州威狐智能科技有限公司 文件编号 Hangzhou VeloFox Intelligent Technology Co,. Ltd. 1.01 版本号 communication connection is established, display enters the main interface, showing real-time information stored in the controller and battery BMS according to communication protocol. (Battery indicator will not show battery percentage if BMS info is not available) Other function interfaces Function interfaceⅠ... -
Page 11: Setting Interface
杭州威狐智能科技有限公司 文件编号 Hangzhou VeloFox Intelligent Technology Co,. Ltd. 1.01 版本号 Walk assist interface Long press button to enter the walk assist mode, interface as shown below: Error code indication interface When the display receives the error info returned by controller, it will show detailed error code on interface, indicating relevant electrical system fault information. -
Page 12: Button Definition
杭州威狐智能科技有限公司 文件编号 Hangzhou VeloFox Intelligent Technology Co,. Ltd. 1.01 版本号 Setting interface level 1 menu page For more setting operation illustration , please refer to part 7 5. Button definition 5.1 Button name: power mode Adjust up Adjust down Power button: Turn on/off the display... -
Page 13: Basic Function Operation
杭州威狐智能科技有限公司 文件编号 Hangzhou VeloFox Intelligent Technology Co,. Ltd. 1.01 版本号 Press the button and soon released, while the button is released,the function Short press activated accordingly Press the button and hold, when the hold time exceeds the setting time(generally Long press 2 seconds), the function activated accordingly. -
Page 14: Information Switch
杭州威狐智能科技有限公司 文件编号 Hangzhou VeloFox Intelligent Technology Co,. Ltd. 1.01 版本号 Short press 、 button to switch assist level. Switching level is not cycled, that is, after reaching 5 level, short press button to return to off level. It’s the same when adjusting up. -
Page 15: Speed Information Switch
杭州威狐智能科技有限公司 文件编号 Hangzhou VeloFox Intelligent Technology Co,. Ltd. 1.01 版本号 6.5 Speed information switch In basic function interface, display shows the real-time speed, average speed, and maximum speed. Users can switch info by short press M button. Check 6.3 for more information switch. - Page 16 杭州威狐智能科技有限公司 文件编号 Hangzhou VeloFox Intelligent Technology Co,. Ltd. 1.01 版本号 no power output from the motor, and disabled assist level switch. Power assist level is displayed as OFF or 0. To get out of low-voltage mode, reset, and increase the voltage above low-voltage value and battery capacity above 5%.
-
Page 17: Setting Function
杭州威狐智能科技有限公司 文件编号 Hangzhou VeloFox Intelligent Technology Co,. Ltd. 1.01 版本号 7. Setting Function Display provides specific parameter setting functions. The optional items of setting function will be deleted according to different market and product standards. The following is the complete parameter setting, information reading function description under the default state of display. - Page 18 杭州威狐智能科技有限公司 文件编号 Hangzhou VeloFox Intelligent Technology Co,. Ltd. 1.01 版本号 Value= 1, Default Value= back light level Backlight BLG=Backlight level Value= 2 setting Back light level Value= 3 Back light level100% AutoOFF= Auto Value=OFF,5-30 Default Auto sleep Value=5min shutdown Step=5 min...
-
Page 19: Advanced Setting Functions
杭州威狐智能科技有限公司 文件编号 Hangzhou VeloFox Intelligent Technology Co,. Ltd. 1.01 版本号 *Advanced ADVSET=Advanced Go to advanced advanced setting setting setting settings options secondary parameter setting interface Reset RESET Reset All parameters factory will be restored setting factory setting 8. Advanced setting functions... - Page 20 杭州威狐智能科技有限公司 文件编号 Hangzhou VeloFox Intelligent Technology Co,. Ltd. 1.01 版本号 After the password is typed correctly, advanced setting is entered, divided into two-page contents. Short press to pick and select, triangle cursor on the right indicates selected 、 object. Advanced setting functions descriptions：...
- Page 21 杭州威狐智能科技有限公司 文件编号 Hangzhou VeloFox Intelligent Technology Co,. Ltd. 1.01 版本号 PAS= Pedal Value= L1-L5 Power assistant Level L1 to L5; Power assist assist level 0-100% level setting corresponding to each gear Step=1% Ssensor=Speed Value= 1--12 Default value： Speed sensor magnet Step=1；...
- Page 22 杭州威狐智能科技有限公司 文件编号 Hangzhou VeloFox Intelligent Technology Co,. Ltd. 1.01 版本号 Current CurLtd= current Value= 0-31.5A Default Value： limit setting limitation Step=0.5A Controller’s current limit setting System SysVol= select Value= Default value： voltage system voltage 24V/36V/48V setting Choose system voltage LowVol= Value= 10.0-...
-
Page 23: Reference Table For The Circumference Value Corresponding To Common Wheel Diameters
杭州威狐智能科技有限公司 文件编号 Hangzhou VeloFox Intelligent Technology Co,. Ltd. 1.01 版本号 Reference table for the circumference value corresponding to common wheel diameters 9. Data clearance Data clearance is aimed at the removal of data information such as subtotal mileage TRIP, average speed, and maximum speed. -
Page 24: Error Information
杭州威狐智能科技有限公司 文件编号 Hangzhou VeloFox Intelligent Technology Co,. Ltd. 1.01 版本号 10. Error information Display can warn bike faults. When faults are detected, error code will be shown on interface and blink at 1Hz. When error code is shown, button functions will not be affected, meaning interfaces can be shown normally by pressing buttons. -
Page 25: Wire Definition
Standard outlet is board end plug-in DM03 offers two modes of outlet: board end plug-in and non-board end plug-in. The non-board end plug-in mode is a conventional way for direct cable access to the product. -
Page 26: Standard Conversion Wire Specifications
杭州威狐智能科技有限公司 文件编号 Hangzhou VeloFox Intelligent Technology Co,. Ltd. 1.01 版本号 Orange(KP) Power lock control wire White(TX) Data transmission wire of display Brown(VCC) Power wire of display Green(RX) Data receiving wire of display Black(GND) GND of display reserve reserve 11.2 Standard conversion wire specifications：... -
Page 27: D Note
杭州威狐智能科技有限公司 文件编号 Hangzhou VeloFox Intelligent Technology Co,. Ltd. 1.01 版本号 Outer box size：580*390*168mm (L*W*H) D Note In the use of the display, pay attention to the security, do not plug the display in and out the when the power is on；...
