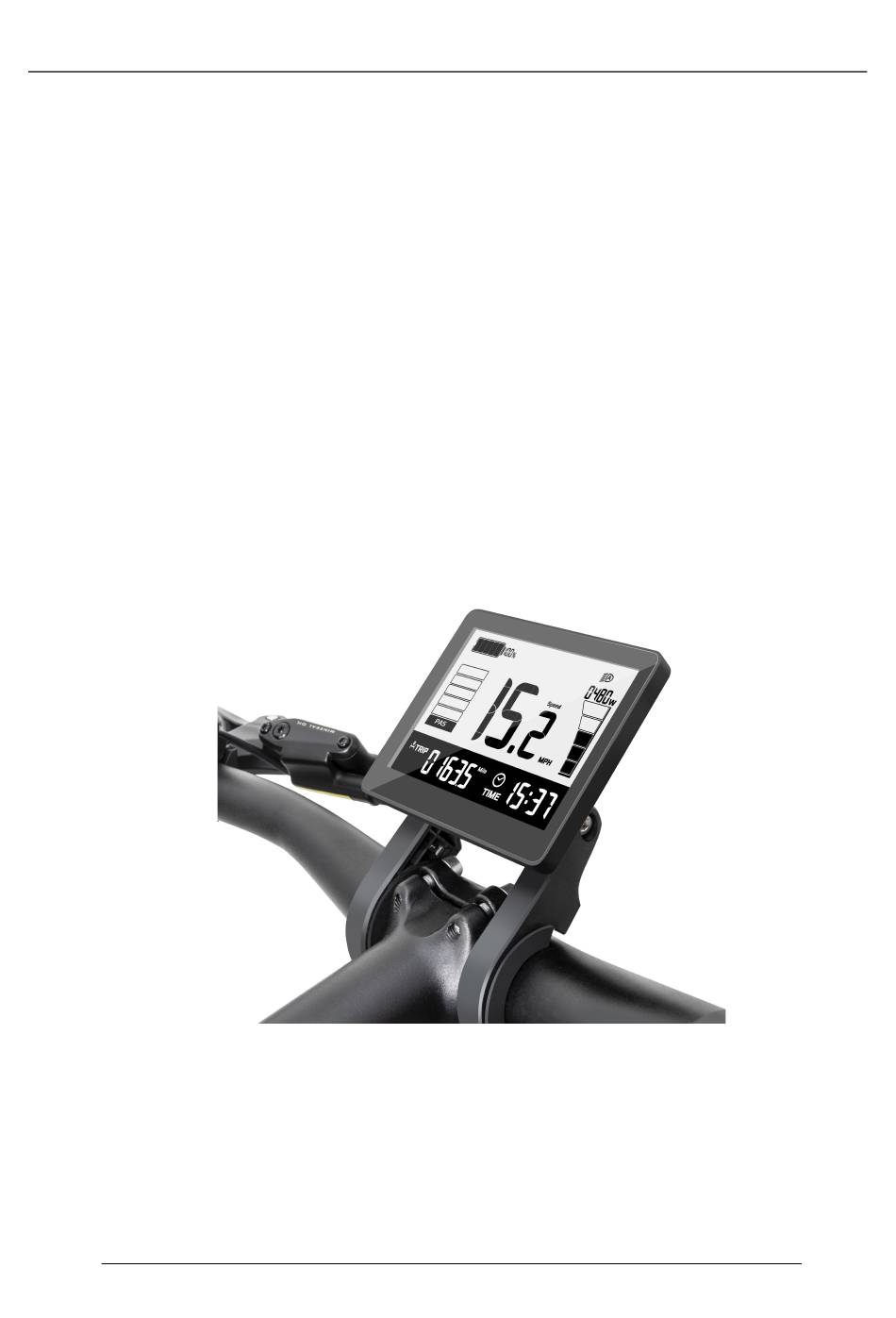

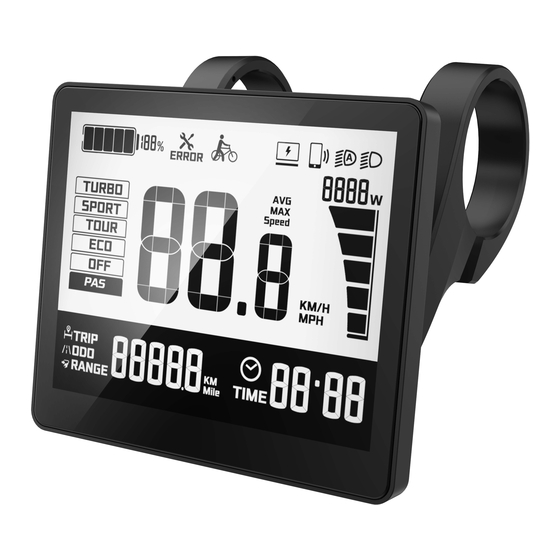

- Page 1 DM05 Display Functionality Introduction Product Name：FSTN Screen LCD Display Product Model：DM 05 第1 页/共 27页...
- Page 2 1.02 Hangzhou VeloFox Intelligent Technology Co,. Ltd. Ver. Modification History Version No Reviser Date Revision content V1.01 Leo Liao 2020.12.14 Initial version V1.02 Leo Liao 2021.2.23 1. Add declaration content 2. Revise dimensions and sizes 3. Add software version interface...
- Page 3 DM05 is possible, due to various technical requirements in different ebike applications. Please consult your drive system supplier for additional function requirements and data display. If you have any questions about DM05 functional definition, please consult our sales or technical support team.
-
Page 4: Table Of Contents
1.02 Ver. Hangzhou VeloFox Intelligent Technology Co,. Ltd. A. Product Introduction ......................... 5 1. Product name and model ......................5 2. Product introduction ........................ 5 3. Range of application ........................ 5 4. Appearance and size ........................ 5 5. Display coding rules ......................... 6 B. -
Page 5: Product Introduction
1. Product name and model FSTN screen display of electric power assist bike Product model：DM05 DM05 includes two versions of UART communication and CAN BUS communication DM05_U corresponds to UART communication version； DM05_C corresponds to CAN BUS communication version. -
Page 6: Display Coding Rules
1.02 Hangzhou VeloFox Intelligent Technology Co,. Ltd. Ver. product is mid-mount on the horizontal tube with a handlebar size ofφ22.2mm, φ25.4mm, φ 31.8mm. The remote control is left mounted on the horizontal tube with a handlebar size ofφ22.2mm, φ23.8mm. 82.6mm 3.5”LCD... -
Page 7: Product Manual
1.02 Hangzhou VeloFox Intelligent Technology Co,. Ltd. Ver. Parameter character value（reserved） Parameter character value (wheel size value, 700C=70, 27.5=27) Parameter character value（speed limit information, range from 04 to 46） Parameter character value （voltage，24/36/43/48/52，can be expanded） Customer software version number（may omit）... -
Page 8: Function Overview
① Display locking clip includes two handle bar sizes, size A Φ31.8mm，B Φ25.4mm. Please include the requested locking clip size in the purchase order. Installing DM05 display: Adjust display to a position easy to operate, using M3*10 hex set to screws and tighten. Tightening torque: 0.8N.m... -
Page 9: Interface
1.02 Ver. Hangzhou VeloFox Intelligent Technology Co,. Ltd. 4. Interface 4.1 Boot interface Boot logo interface is displayed for 2 seconds after the display is turned on. When the communication connection is established, display enters the main interface which shows information obtained from the controller. -
Page 10: Function Interface Introduction
1.02 Ver. Hangzhou VeloFox Intelligent Technology Co,. Ltd. ③ 3.5 inch FSTN LCD screen combines positive and negative mode display 4.3 Function interface introduction Boot interface and basic function interface Boot interface Basic interface Boot logo interface is displayed for 3 seconds after display is turned on. When the communication connection is established, display enters the main interface, showing real-time information stored in the controller and battery BMS according to the communication protocol. - Page 11 1.02 Ver. Hangzhou VeloFox Intelligent Technology Co,. Ltd. Odometer and related info indication Odometer info is displayed next to sign with 5 . If it exceeds 9999.9, the decimal point is not displayed, and the maximum value is 99999. If it exceeds the maximum value 99999, the displayed number is the actual ODO minus 100000 (If actual ODO is 100001, the displayed number is 1).
- Page 12 1.02 Ver. Hangzhou VeloFox Intelligent Technology Co,. Ltd. *RTC If chosen display model includes RTC module in its hardware, display will show real time clock on the bottom right conner Error code indication When the display receives the error info returned by controller, it will show on basic interface，and a numerical error code will be displayed in speed display area, blinking at 1Hz.
-
Page 13: Setting Interfaces
1.02 Ver. Hangzhou VeloFox Intelligent Technology Co,. Ltd. Setting interfaces Within 10s after turning on display, long press M button to enter setting interface, short press 、 to switch between setting interfaces. In any setting interfaces, short press M to enter parameter editing state, the selected parameter will blink at 1 Hz, short press 、... -
Page 14: Setting Rtc
1.02 Ver. Hangzhou VeloFox Intelligent Technology Co,. Ltd. Sleep time setting interface Unit setting interface Backlight setting interface Software version interface Speed limit interface Wheel size setting Unit setting interface For more setting operation illustration, please refer to part 7... -
Page 15: Button Definition
1.02 Ver. Hangzhou VeloFox Intelligent Technology Co,. Ltd. Sleep time setting interface RTC setting interface Wheel diamerter setting interface Button definition 5.1 Button name： Adjust up Mode function Adjust down Power-on button Power button: Turn on/off the display Adjust button: Adjust the assisting power level during riding and switch functions... -
Page 16: Definition Of Button Operation
1.02 Ver. Hangzhou VeloFox Intelligent Technology Co,. Ltd. 5.2 Definition of button operation： Operation Description Type Press the button and soon released, while the button is released,the function Short press activated accordingly Press the button and hold, when the hold time exceeds the setting time(generally Long press 2 seconds), the function is activated accordingly. -
Page 17: Information Switch
1.02 Ver. Hangzhou VeloFox Intelligent Technology Co,. Ltd. Short press PAS level does not switch in cycles, that is after reaching BOOST level , short press to return to PAS off level. It’s the same when adjusting up. 6.3 Information switch In a power-on state, short press M button to switch in cycles among TRIP, ODO and RANGE: TRIP/AVG ->... -
Page 18: Speed Info Indication
1.02 Ver. Hangzhou VeloFox Intelligent Technology Co,. Ltd. To change light state manually under auto light function, long press That is, if the light is on under auto light function, switch off light by manually long press . If the light is off under auto light... -
Page 19: Battery Power Indicator And Assist Power Output
1.02 Ver. Hangzhou VeloFox Intelligent Technology Co,. Ltd. 6.7 Battery power indicator and assist power output Battery power information is divided into battery bar indication and remaining percentage indication. When battery power is normal, battery capacity is divided into 5 bars. -
Page 20: Setting Function
1.02 Ver. Hangzhou VeloFox Intelligent Technology Co,. Ltd. Level 0 5% ≤ SOC < 10% Level 0 and icon blink at 1Hz 0% ≤ SOC < 5% Remarks about battery indicator： When there is a battery communication error： 1. Display will estimate the power according to the voltage and show the battery level accordingly；... - Page 21 1.02 Ver. Hangzhou VeloFox Intelligent Technology Co,. Ltd. page. In any setting interfaces, short press M button to enter the next level menu, and long press M button to return to the previous level menu. First level parameter setting interface, and the description of each parameter interface is as follow:...
- Page 22 1.02 Ver. Hangzhou VeloFox Intelligent Technology Co,. Ltd. Value=12，14， Default 16，20，24，26， value： Wheel dIA=Wheel 27，27.5， size diameter 700C，28，*29， When setting *CCF value=CCF, （* default unit customization is inch） is allowed Value=5-46, Default increment is 1， value：25 Speed SPd=Speed unit is km/h 。...
-
Page 23: Reference Table For The Circumference Value Corresponding To Common Wheel Diameters
1.02 Ver. Hangzhou VeloFox Intelligent Technology Co,. Ltd. Reference table for the circumference value corresponding to common wheel diameters： 8 Data clearance Within 10s after display is turned on, when display is at TRIP interface, long press M button to show TRIP data clearance window, while TRIP icon is blinking at 1 Hz, short press M button to confirm data clearance. -
Page 24: Error Information
1.02 Ver. Hangzhou VeloFox Intelligent Technology Co,. Ltd. information can’t be cleaned manually on the display, professional service tools are required. 9 Error information Display can warn bike faults. When faults are detected, error code will be shown on the interface and blink at 1Hz. -
Page 25: Wire Definition
10 Wire definition 10.1 Standard wires definition: The standard outlet of the display DM05 is in the form of a designated waterproof connector. The standard outlet needs to match the corresponding conversion wire. Velofox has set a corresponding standard for conversion wire length and interface standards. -
Page 26: Standard Conversion Wire Specifications
1.02 Hangzhou VeloFox Intelligent Technology Co,. Ltd. Ver. 10.2 Standard conversion wire specifications： Adaptor-C2H: 第26 页/共 27页... -
Page 27: Please Note
1.02 Ver. Hangzhou VeloFox Intelligent Technology Co,. Ltd. PLEASE NOTE In the use of the display, pay attention to the security, do not plug the display in and out when the power is on； Try to avoid exposure in harsh environments like heavy rain, heavy snow, and strong sunlight ...
