3. Connect one end of the cable to the SC port on the switch and the
other end to the SC port on the other device. Since SC connectors are
keyed, the cable can be attached in only one orientation.

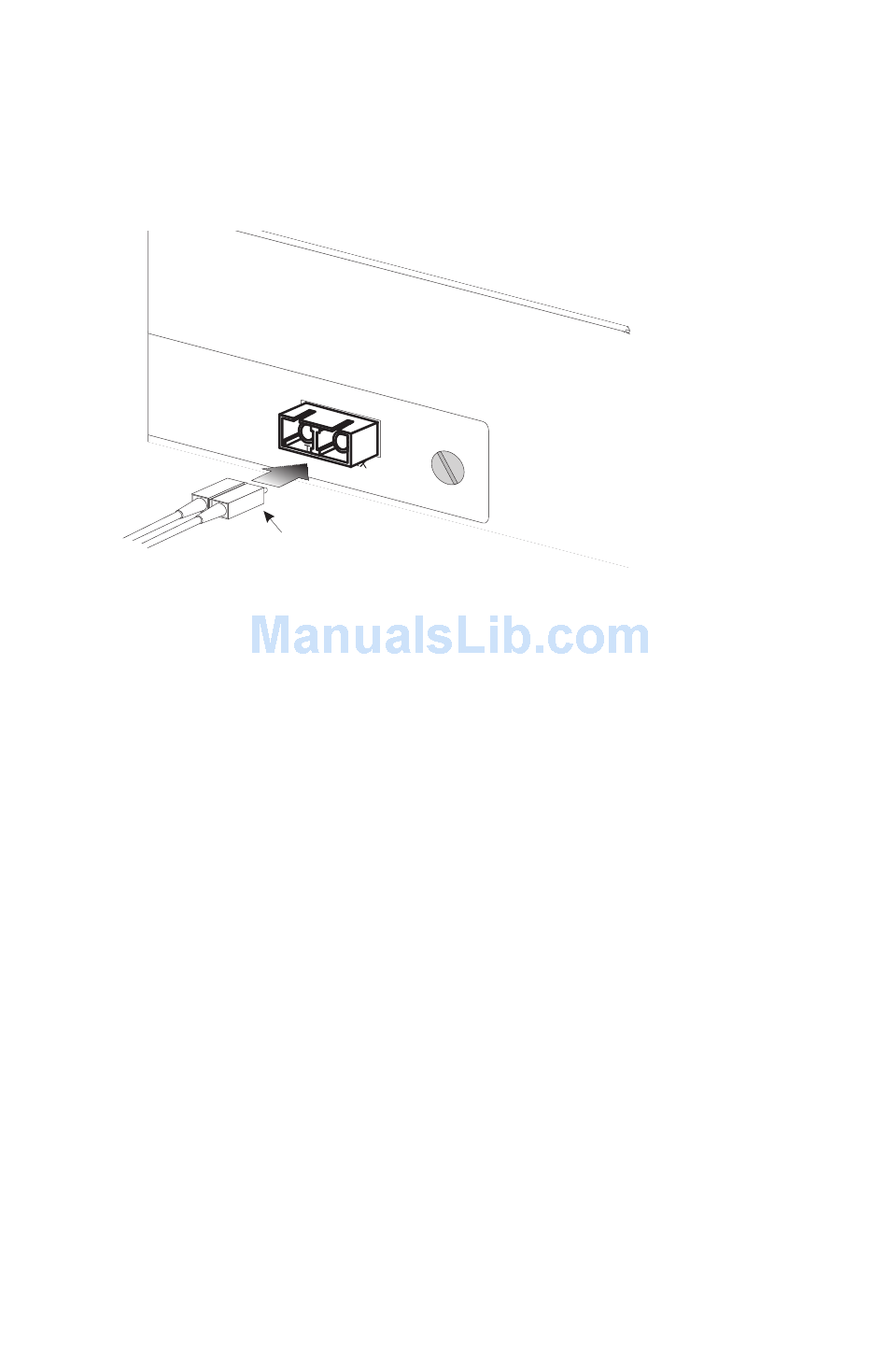

SC fiber connector
Figure 4-3. Making SC Port Connections
4. As a connection is made, check the green Link LED on the switch
corresponding to the port to be sure that the connection is valid.
Note: If you use the optional SC-ST Converter, be sure to connect the
converter's Tx (Rx) port to the Rx (Tx) port on the other device.
The 100BASE-FX fiber optic ports operate only at 100 Mbps, full duplex.
You can run a single-mode fiber link up to 20 kilometers (12.43 miles).
However, note that power budget constraints must also be considered
when calculating the maximum cable length for your specific environment.
The 1000BASE-SX and 1000BASE-LX fiber optic ports operate at
1 Gbps full duplex, with auto-negotiation of flow control. The maximum
length for fiber optic cable operating at Gigabit speed will depend on the
fiber type as listed under "1000 Mbps Gigabit Ethernet Collision Domain"
on page 2-5.
