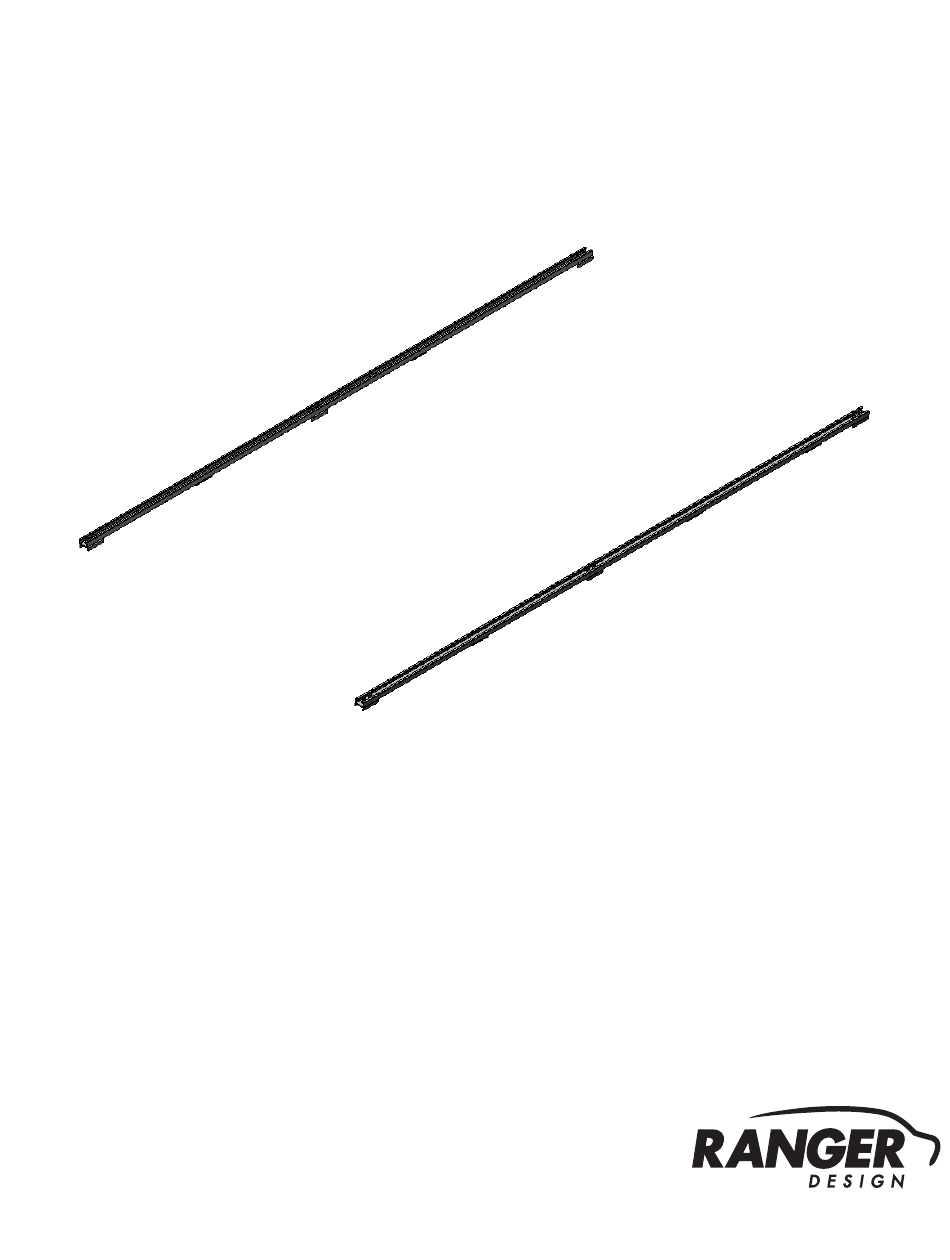

- Page 1 INSTALLATION GUIDE 18-U0022 MOUNTING TRACKS Ram ProMaster ( 136" Wheelbase, Standard & High Roof )
-
Page 2: Required Items
Parts are Present Item No. Description Qty. 10-711 Mounting Track 106" Long 10-342 Roof Clamp 10-343 Top Roof Clamp 70-015 Foam Sheet 96-0022 Fastener Kit 18-U0022 Installation Guide | REV. C2 | Page 2 For technical support, contact us at 1-800-565-5321... -
Page 3: Phase 2 - Installation
PHASE 2 – INSTALLATION 2.1 MOUNTING TRACKS INSTALLATION 2.1.1 Attach the foam sheet under the mounting track. ront 15" 41 - 3/4" 21 - 3/4" 70-015 70-011 18-U0022 Installation Guide | REV. C2 | Page 3 For technical support, contact us at 1-800-565-5321... - Page 4 TOOLS q Cordless Impact q 1/2" Socket FASTENERS USED 12× #94-105 Hex Nut #98-123 Lock Washer #98-117 Flat Washer Roof Clamp ( 6 ) 18-U0022 Installation Guide | REV. C2 | Page 4 For technical support, contact us at 1-800-565-5321...
- Page 5 “Congratulations, you have successfully installed your Mounting Tracks Thank you for doing business with us.” cs@rangerdesign.com For any feedback or suggestions you might have, please contact: 18-U0022 Installation Guide | REV. C2 | Page 5 For technical support, contact us at 1-800-565-5321...
