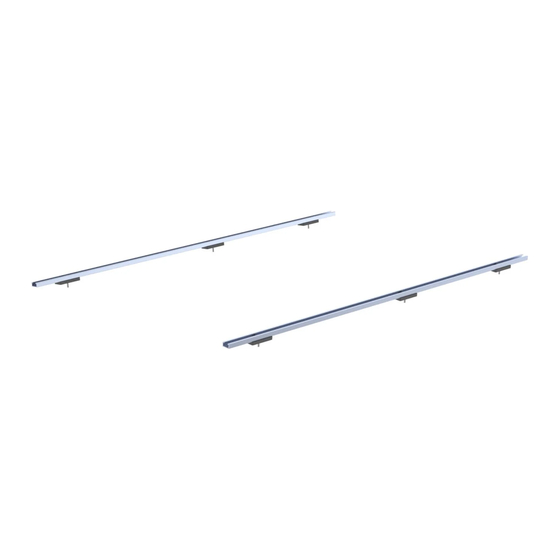

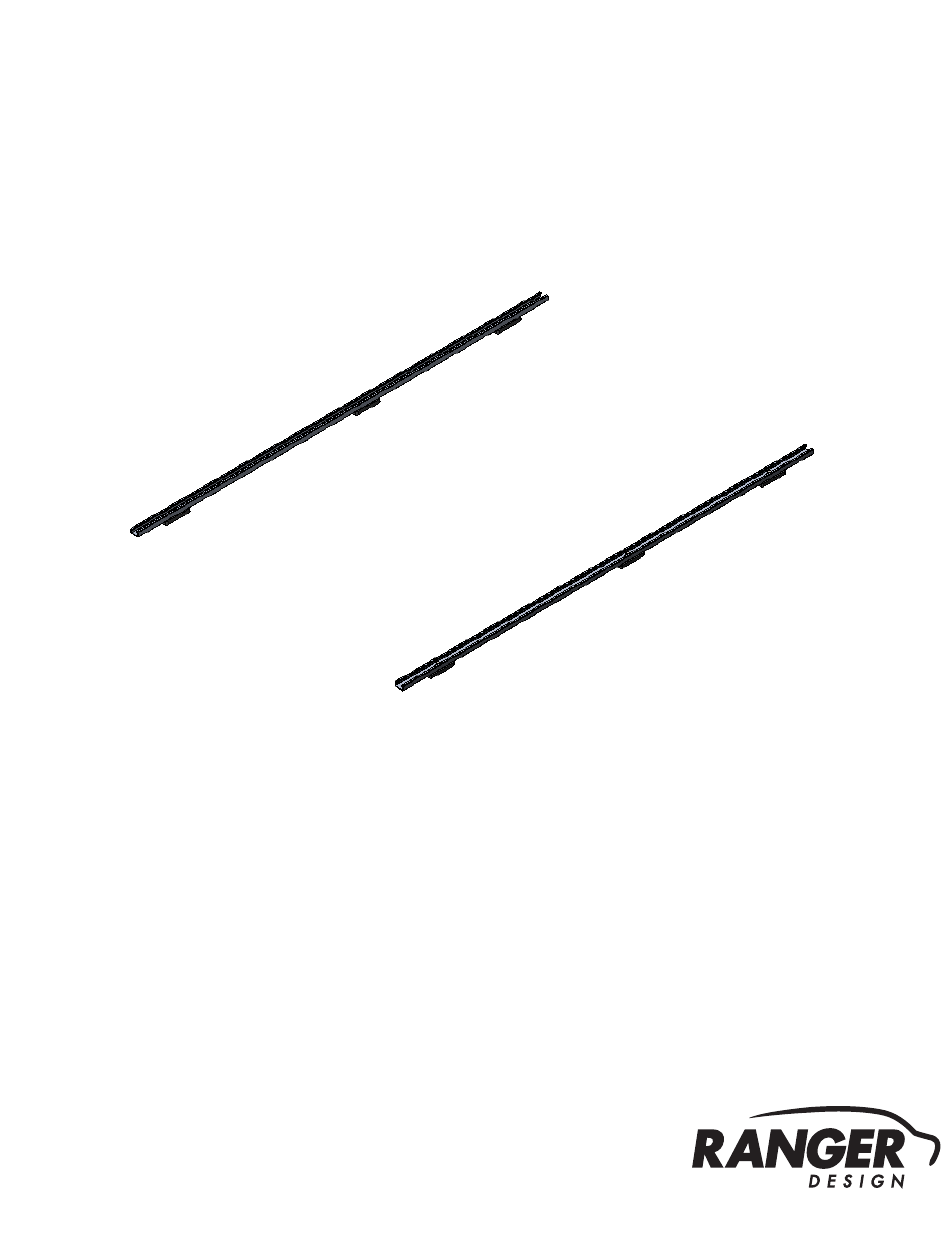

- Page 1 INSTALLATION GUIDE 18-U0042 MOUNTING TRACKS Ford Transit ( Regular Wheelbase, Standard & Medium Roof )
-
Page 2: Order Of Operation
ORDER OF OPERATION MAX RACK SINGLE SIDE MAX RACK DOUBLE SIDE 18-U1806 18-U1810 18-U1815 OPTIONAL: Applicable only for Max Rack Double Side. MOUNTING TRACK 18-U1807... - Page 3 Cordless Impact q Ratchet q Tape Measure q Marker q Ladder q 1/2" Wrench q 1/2" Socket q Sawhorse ( Optional ) q Box PERSONS 18-U0042 Installation Guide | REV. E1 | Page 3 For technical support, contact us at 1-800-565-5321...
-
Page 4: Phase 1 - Assembly
1.1.1 Unpack components; compare with the bill of materials. 10-712 18-053 1.1.2 Verify all parts are present. Item No. Description Qty. 10-712 Mounting Track 84" Long 18-053 Spacer 96-0042 Fastener Kit 18-U0042 Installation Guide | REV. E1 | Page 4 For technical support, contact us at 1-800-565-5321... -
Page 5: Phase 2 - Installation
PHASE 2 – INSTALLATION 2.1 MOUNTING TRACKS INSTALLATION 2.1.1 Slide the stud plate on both ends of the mounting track. Ront 18-191 FRom cRossbaR box 18-U0042 Installation Guide | REV. E1 | Page 5 For technical support, contact us at 1-800-565-5321... - Page 6 • Apply a bead of silicone around each hole, then fasten the tracks to the roof. Ront TOOLS q Cordless Impact q 13mm Socket FASTENERS USED 6× #90-004 Hex Bolt M8 × 50 #98-123 Lock Washer #98-117 Flat Washer 18-U0042 Installation Guide | REV. E1 | Page 6 For technical support, contact us at 1-800-565-5321...
- Page 7 NOTE: If you do not have an overhead lift, lift the front crossbar onto the roof first then the rear crossbar. FRONT CROSSBOW REAR CROSSBOW 18-U0042 Installation Guide | REV. E1 | Page 7 For technical support, contact us at 1-800-565-5321...
- Page 8 Recommended set VEHICLE CROSSBAR CENTER TO CENTER DISTANCE LADDER SIZE 65" ( 3 & 3 24' & S oles p To xTension only ransiT 18-U0042 Installation Guide | REV. E1 | Page 8 For technical support, contact us at 1-800-565-5321...
- Page 9 Arm Socket pace Flush TOOLS q Ratchet q 1/2" Socket FASTENERS USED 8× cRossbaR FasteneR #94-105 Hex Nut #98-123 Lock Washer #98-117 Flat Washer 18-U0042 Installation Guide | REV. E1 | Page 9 For technical support, contact us at 1-800-565-5321...
- Page 10 Recommended set VEHICLE CROSSBAR CENTER TO CENTER DISTANCE LADDER SIZE 65" ( 3 & 3 24' & S oles p To xTension only ransiT 18-U0042 Installation Guide | REV. E1 | Page 10 For technical support, contact us at 1-800-565-5321...
- Page 11 • The center of the ladder must be behind the front hook when the ladder is loaded. 15" nd oF the laddeR inumum enteR oF the laddeR Ront lush REAR FRONT 1.5" 1/16" 1/16" 18-U0042 Installation Guide | REV. E1 | Page 11 For technical support, contact us at 1-800-565-5321...
- Page 12 • The center of the ladder must be behind the front hook when the ladder is loaded. lush exTend 8' STEP LADDER 10' STEP LADDER 18-U0042 Installation Guide | REV. E1 | Page 12 For technical support, contact us at 1-800-565-5321...
- Page 13 Mounting Tracks and your completed Rack on your vehicle! Thank you for doing business with us.” cs@rangerdesign.com For any feedback or suggestions you might have, please contact: 18-U0042 Installation Guide | REV. E1 | Page 13 For technical support, contact us at 1-800-565-5321...
