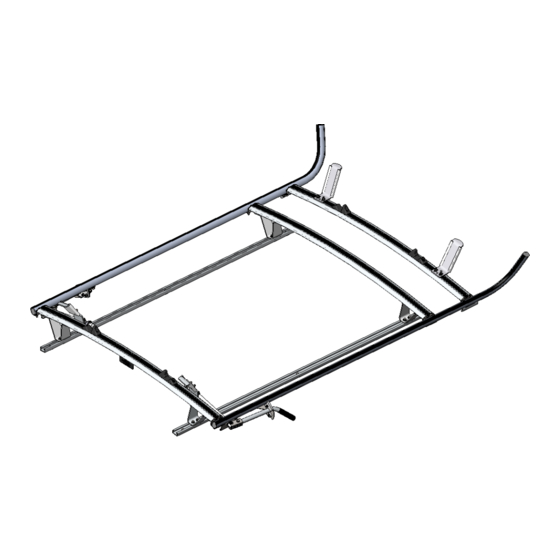

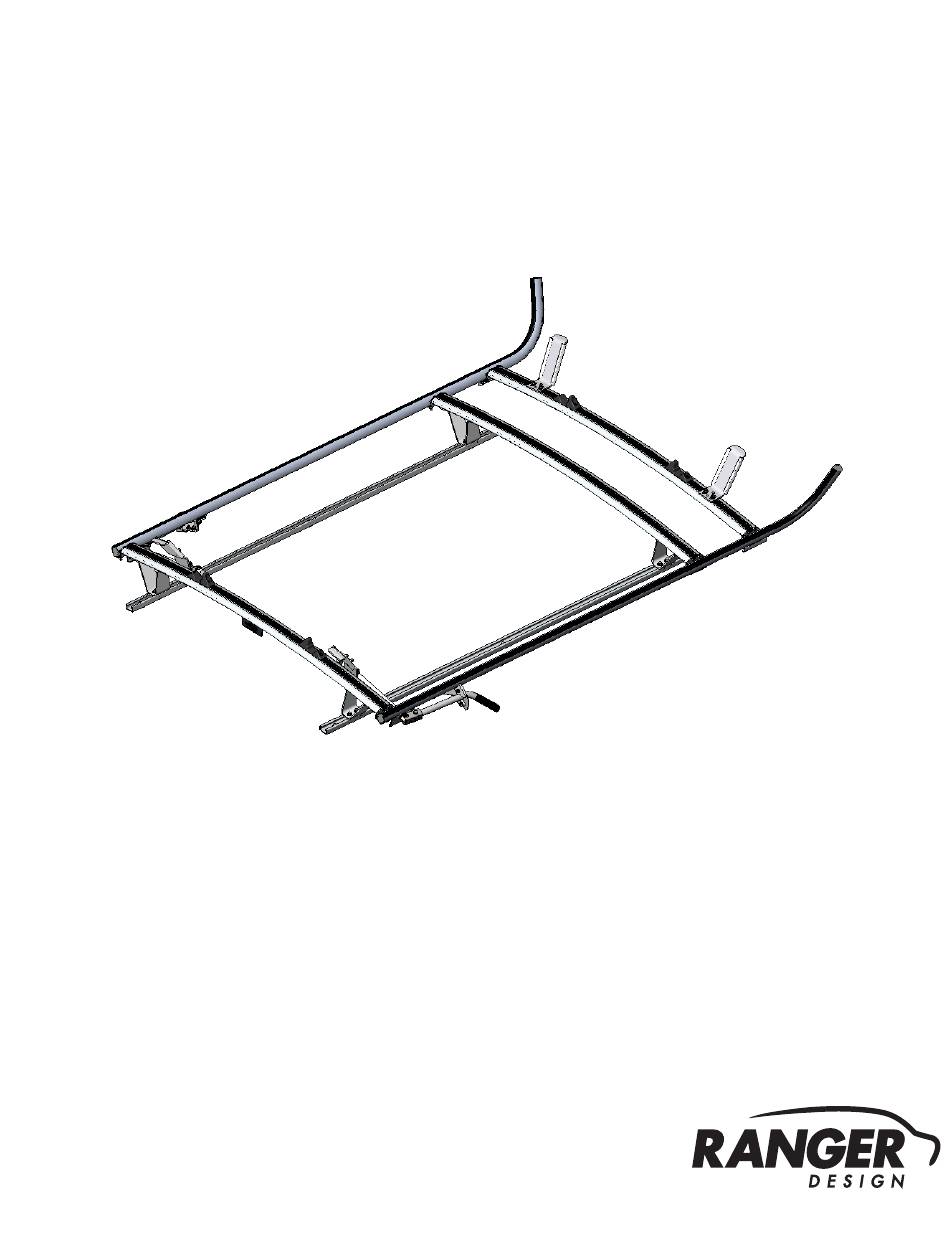

- Page 1 INSTALLATION GUIDE 1530-PCX Double Clamp Ladder Rack Promaster City ( Aluminum )
-
Page 2: Required Items
QUICK START GUIDE Phase 1 - Assembly q 1.1 Setup............................... 3 - 5 q 1.2 Ladder Rack Assembly........................6 - 13 Phase 2 - Installation q 2.1 Mounting Tracks Installation......................q 2.2 Ladder Rack Installation........................15 - 18 q 2.3 Note..............................REQUIRED ITEMS NOTE: Use Sawhorses if possible, or use the box as a flat protective surface on the ground or table. -
Page 3: Phase 1 - Assembly
Ski ( Left ) 15-3011 Ski ( Right ) 15-3122 Rear Crossbow 15-3127 Front Crossbow 15-4290 Front Hook 94-1009 Assembly Fastener Kit 96-1013 Install Fastener Kit 1530-PCX Installation Guide | REV. B2 | Page 3 For technical support, contact us at 1-800-565-5321... - Page 4 #90-491 Carriage Bolt 5/16" × 1" Lock Washer 34× Regular 5/16" # 98-123 #98-160 Spacer SS304 #98-117 Flat Washer #98-123 Lock Washer #94-105 Hex Nut 1530-PCX Installation Guide | REV. B2 | Page 4 For technical support, contact us at 1-800-565-5321...
- Page 5 #98-149 Neoprene Spacer SS304 Lock Washer 8× 5/16" # 98-123 SS304 Spacer 10× 0.290" ID × 1.375" OD × 0.125" L # 98-149 NEOPRENE 1530-PCX Installation Guide | REV. B2 | Page 5 For technical support, contact us at 1-800-565-5321...
- Page 6 HARDWARE USED 4× hardware is pre assembled #90-225 Hex Bolt 5/16" - 18 × 2" SS304 #98-117 Flat Washer #98-117 Flat Washer #94-111 Lock Nut 1530-PCX Installation Guide | REV. B2 | Page 6 For technical support, contact us at 1-800-565-5321...
-
Page 7: Passenger Side
5/16" × 3/4" SS304 5/16" × 3/4" SS304 8× 8× #90-491 Hex Bolt #90-491 Hex Bolt 5/16" × 1" SS304 5/16" × 1" SS304 1530-PCX Installation Guide | REV. B2 | Page 7 For technical support, contact us at 1-800-565-5321... - Page 8 NOTE: The more slanted side of the V foot should be closer to the end of the crossbow. HARDWARE USED 16× hand tighten the nuts Carriage bolts are already on the crossbows. #98-117 Flat Washer #98-123 Lock Washer #94-105 Hex Nut 1530-PCX Installation Guide | REV. B2 | Page 8 For technical support, contact us at 1-800-565-5321...
- Page 9 Marker HARDWARE USED 4× Carriage bolts are already on the crossbows. #98-117 Flat Washer #98-123 Lock Washer #94-105 Hex Nut 12 - 3/4" 1530-PCX Installation Guide | REV. B2 | Page 9 For technical support, contact us at 1-800-565-5321...
- Page 10 Cutter HARDWARE USED 4× hardware is pre assembled #90-491 Carriage Bolt 5/16" × 1" #98-117 Flat Washer #98-123 Lock Washer #94-105 Hex Nut 1530-PCX Installation Guide | REV. B2 | Page 10 For technical support, contact us at 1-800-565-5321...
- Page 11 Cordless Impact q 1/2" Socket HARDWARE USED 4× #90-491 Carriage Bolt 5/16" × 1" #98-117 Flat Washer #98-123 Lock Washer #94-105 Hex Nut 1530-PCX Installation Guide | REV. B2 | Page 11 For technical support, contact us at 1-800-565-5321...
- Page 12 TOOLS q Mallet HARDWARE USED 6× #90-491 Carriage Bolt 5/16" × 1" SS304 1530-PCX Installation Guide | REV. B2 | Page 12 For technical support, contact us at 1-800-565-5321...
- Page 13 #98-123 Lock Washer #94-105 Hex Nut 2× Carriage bolts are already on the ski. #98-160 Spacer #98-117 Flat Washer #98-123 Lock Washer #94-105 Hex Nut 1530-PCX Installation Guide | REV. B2 | Page 13 For technical support, contact us at 1-800-565-5321...
-
Page 14: Phase 2 - Installation
Cordless Impact q 10mm Socket HARDWARE USED 10× #90-825 Hex Bolt M6 × 20mm #98-119 Lock Washer #98-113 Flat Washer #98-149 Neoprene Spacer 1530-PCX Installation Guide | REV. B2 | Page 14 For technical support, contact us at 1-800-565-5321... - Page 15 2.2.1 Position the Ladder Rack ( minimum two persons ) on the vehicle so that the feet are on the tracks. NOTE: If you do not have a hoist, lift the ladder rack onto the roof manually. Ladder Rack 1530-PCX Installation Guide | REV. B2 | Page 15 For technical support, contact us at 1-800-565-5321...
- Page 16 1/2" Socket q Tape Measure FASTENERS USED 8× #90-209 Hex Bolt 5/16" × 1" #98-123 Lock Washer #98-117 Flat Washer #94-150 Channel Nut 1530-PCX Installation Guide | REV. B2 | Page 16 For technical support, contact us at 1-800-565-5321...
- Page 17 2.2.3 Center the crossbows on the vehicle, then tighten all the “V” feet to the crossbows. TOOLS q Ratchet q 1/2" Socket 1530-PCX Installation Guide | REV. B2 | Page 17 For technical support, contact us at 1-800-565-5321...
- Page 18 Now adjust the front hook to be snug against the ladder rung and tighten the bolts on the front crossbow. TOOLS q Cordless Impact q 1/2" Socket front hook 1530-PCX Installation Guide | REV. B2 | Page 18 For technical support, contact us at 1-800-565-5321...
- Page 19 If the handle is interfering with the door or roof of the vehicle, disassemble the handle, then assemble it in an alternate position as shown. Handle 1530-PCX Installation Guide | REV. B2 | Page 19 For technical support, contact us at 1-800-565-5321...
- Page 20 “You have successfully installed your 1530-PCX Ladder Rack Thank you for doing business with us.” cs@rangerdesign.com For any feedback or suggestions you may have, please contact: 1530-PCX Installation Guide | REV. B2 | Page 20 For technical support, contact us at 1-800-565-5321...
