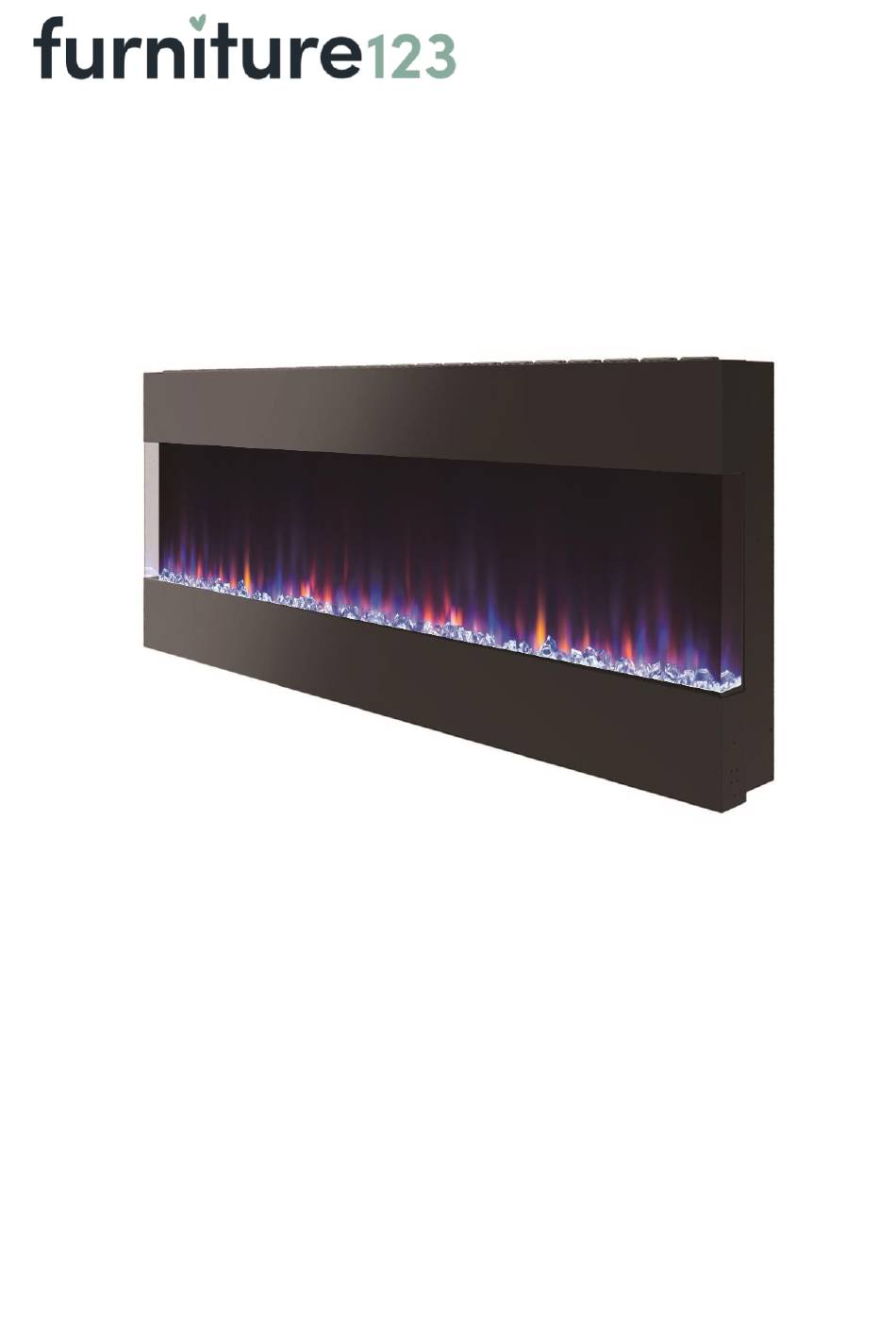

- Page 1 USER MANUAL ELECTRIC FIREPLACE 60” AGL017 Thank you for choosing this electric fireplace. Please read this manual before using or installing the electric fire and keep it safe for future reference.
-
Page 2: Table Of Contents
CONTENTS SAFETY PARTS SUPPLIED INSTALLATION OPERATION REMOTE CONTROL CARE AND MAINTENANCE BATTERY WARNING SUPPORT TECHNICAL SPECIFICATIONS PRODUCT FICHE... -
Page 3: Safety
SAFETY INFORMATION When using electrical appliances, basic safety precautions should always be followed, including the following: • IMPORTANT: Read all instructions and warnings carefully before starting installation. Failure to follow these instructions may result in a possible electric shock or fire hazard and will void the warranty. •... -
Page 4: Manual Handling
• Keep the heater clean. Do not allow any object to enter the ventilation or exhaust opening, as this may cause electric shock, fire, or damage to the heater. • Do not use the appliance for other than its intended use. It is designed for domestic indoor use only. - Page 5 • When lifting, always keep your back straight. Bend your legs and not your back. • Avoid twisting at the waist. It is better to reposition your feet. • Avoid upper body / top heavy bending. Always bend from the knees rather than the waist.
-
Page 6: Electrical Safety
ELECTRICAL SAFETY The heater must not be located under an electrical socket; the socket must always be accessible in order to disconnect the heater from the electrical supply for maintenance and cleaning. Important: This heater must be earthed. The mains supply must be safely routed to an electrical socket from the heater. -
Page 7: Parts Supplied
PARTS SUPPLIED NOTE: Pictures and contents in this manual may differ from the product due to continuous product improvement. DESCRIPTION IMAGE DESCRIPTION IMAGE Fireplace (Mounting Wall Plug bracket (18 used) attached) ST4*40 Screw Remote (18 used) ST4*10 Locking Screw Bracket (8 used) Crystal Bag Manual... - Page 8 EMBEDDED 1. Remove the mounting bracket from the back of the fireplace by removing the screws. 2. Fix 2 brackets to either side as shown in the image using 2 ST4*40 screws per bracket. 3. Using 2 people, lift the fireplace and insert into your embedded wall. 4.
-
Page 9: Operation
OPERATING BY MANUAL BUTTON NOTE: The manual control panel on the fire only has some basic functions in case you lose the remote. Please use the remote to change most functions. POWER BUTTON: Power ON/OFF. FLAME BUTTON: Press once till the digital tube displays “F0”; this is the flame colour selection. - Page 10 HEATING BUTTON: Press once to turn on the low heating mode. Press twice for high heating mode and three times to turn the heating off. (Remark: For the heating to operate, the indoor temperature must be lower than the set temperature.) Hold the heating button to turn off the digital screen to switch between Celsius and Fahrenheit by pressing up or down to cycle through.
- Page 11 CURRENT CLOCK SETTING: Hold the timing button to enter the current time setting. First, the LED of the daylight will light up and flash. Press up or down to select which day of the week. After completing the selection, press the timing button to confirm. At this time, enter the current time setting and press up or down to select the time;...
-
Page 12: Remote Control
REMOTE CONTROL The buttons on the remote match the functions previously described and include some further ones. 1. Charcoal Fire colour 2. Flame adjustment 3. Charcoal lock to currently displayed colour displayed when in C0 Mode (Loop) 4. Flame lock to currently displayed colour displayed when in F0 Mode (Loop) 5. -
Page 13: Care And Maintenance
CARE AND MAINTENANCE IMPORTANT: Before any cleaning or maintenance, the unit needs to be completely disconnected from power. Dust can be removed by lightly wiping the glass surface with a clean, lint-free cloth or paper towel. Use a damp cloth with a good-quality household glass cleaner to remove fingerprints or other marks. -
Page 14: Battery Warning
BATTERY WARNING KEEP OUT OF REACH OF CHILDREN Swallowing can lead to chemical burns, perforation of soft tissue, and death. Severe burns can occur within 2 hours of ingestion. Seek medical attention immediately. • If the battery compartment (if applicable) does not close securely, stop using the product and keep it away from children. -
Page 15: Waste Electrical Recycling
Unit 2A, Trident Business Park, Neptune Way, Leeds Road, Huddersfield, HD2 1UA. TECHNICAL SPECIFICATION Description of Product Wall-mounted & Embedded Model AGL017 60” Rated Voltage 220-240V ~ Rated Frequency 50 Hz Rated Power Max 1400W Dimensions (W) x (H) x (D)60”... - Page 16 Model Identifier: AGL017 Item Symbol Value Unit Item Unit Heat Output Type of heat input, for electric storage local space heaters only (select one) Nominal heat manual heat charge control, with integrated output thermostat Minimal heat manual heat charge control with room and/or...
