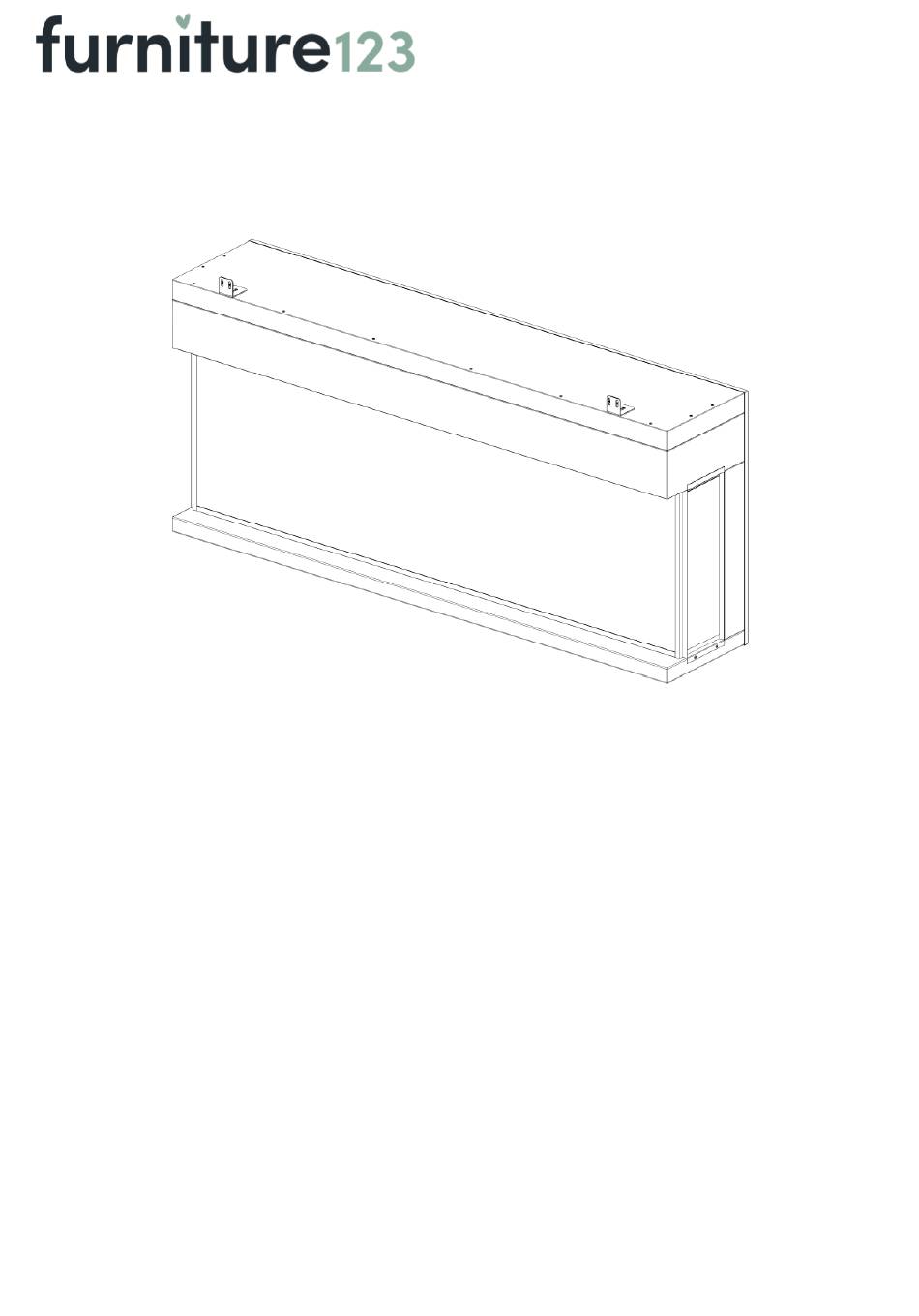

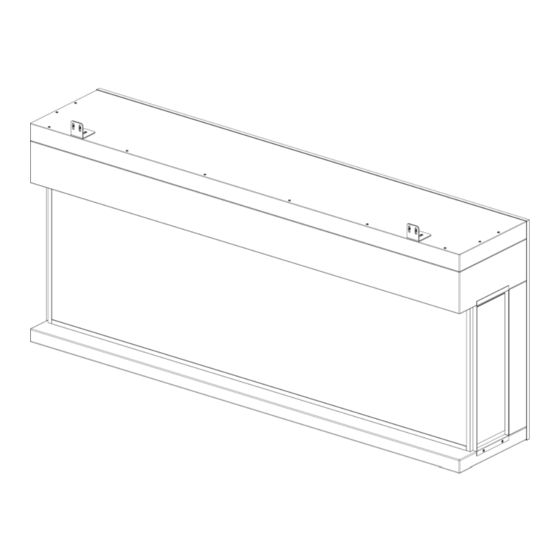

- Page 1 USER MANUAL MEDIA WALL ELECTRIC FIREPLACE AGL067 AGL068 AGL069 Thank you for choosing this electric fireplace. Please read this manual before using or installing this electric fire and keep it safe for future reference.
- Page 2 CONTENTS SAFETY PARTS SUPPLIED INSTALLATION OPERATION CARE AND MAINTENANCE SUPPORT TECHNICAL SPECIFICATIONS PRODUCT FICHE...
- Page 3 SAFETY INFORMATION When using electrical appliances, basic safety precautions should always be followed, including the following: • IMPORTANT: Read all instructions and warnings carefully before starting installation. Failure to follow these instructions may result in a possible electric shock or fire hazard and will void the warranty. •...
- Page 4 • There may be a trace of odour during the first few minutes of initial use, or after a period of storage. This is normal and will quickly disappear. • If the glass is damaged, do not use the heater in order to avoid a hazard. •...
- Page 5 • Always keep the heater as close to the body as possible. This will minimize the cantilever action. • If required, use gloves to provide additional grip. • Always use assistance if required. THIS SYMBOL MEANS DO NOT COVER, IN ORDER TO AVOID OVERHEATING.
- Page 6 NOTE: Pictures and contents in this manual may differ from the product due to continuous product improve. Part Diagram Description L-shaped bracket 2 PCS M5x10 screw 2 PCS M4X14 screw 4 PCS AGL067 16 PCS AGL068 20 PCS AGL069 24 PCS Shakeproof washer 2 PCS...
- Page 7 INSTALLATION INSTRUCTIONS NOTE: Two people are recommended for installation. Remove the 5 screws holding the fixing bracket above the front glass panel then carefully remove the bracket. Step Remove the 8 screws holding the side panel in place and then carefully remove the side panels. Step Slide the front glass panel to the left, take down the glass panel and place it on a soft surface.
- Page 8 Remove the protective film from the decorative bed first. Place the logs into the fire as desired. Step Slide the front glass panel back into the unit taking great care not to damage the glass. Step Insert the fixing bracket back into place and secure with 5 screws. Step...
- Page 9 (Optional) Fix the side panels on the unit with 8 screws if required. Step MEDIA WALL INSTALLATION FIXED FROM THE FRONT Fix the L-shaped brackets [A] on the top of the heater with 2 screws [B]and 2 gaskets [E]. Insert the heater into the media wall from the front.
- Page 10 MEDIA WALL INSTALLATION FIXED FROM BEHIND Fix the L-shaped bracket [A] on the top of the heater with 2 screws [B] and 2 gaskets [E]. The other side of the L-shaped bracket can be fixed on the media wall with 4 screws [C]. See Fig. A. Step 1 Insert the heater into the media wall from the front and ensure that the brackets at the back of the unit...
- Page 11 MEDIA WALL INSTALLATION FIXED FROM BEHIND Fix the L-shaped bracket [A] on the top of the heater with 2 screws [B] and 2 gaskets [E]. The other side of the L-shaped bracket can be fixed on the decorative wooden frame with 4 screws [C]. Step Insert the heater into the media wall from the front and ensure that the brackets at the back of the unit align...
- Page 12 RECESSED FLUSH...
- Page 13 Press this button to adjust the temperature. FLAME EFFECT Press this button to change flame color. There are ten types of COLOR flame effect. EFFECT Hold it for about 3 seconds to change toplight color. There are seven types of toplight effect.
- Page 14 Press this button to change flame color. There are ten types of flame effect. Which consists of yellow, blue, red and multi-color. According to personal preferences, you can press this button FLAME many times until reach the desired color effect. Hold it for about EFFECT 3 seconds to decrease the flame intensity.
- Page 15 CARE AND MAINTENANCE When cleaning unit, the power supply should be disconnected and the unit should be cool. Dust can be removed by lightly wiping the glass surface with clean, lint free cloth or paper towel. To remove fingerprints or other marks, use a damp cloth with a good quality household glass cleaner.
- Page 16 Description Fully inset media wall fire Model AGL067 AGL068 AGL069 Rated Voltage 220-240V~ 220-240V~ 220-240V~ Rated Frequency 50-60Hz 50-60Hz 50-60Hz Rated Power Max 1 800W Max 1800W Max 1800W Dimensions (H) x (L) x (D) 50x127x26.2cm 50x152.4x26.2cm 50x177.8x26.2cm Weight 35.87Kg 42.73Kg...
- Page 17 Model identifier(s): AGL067 AGL068 AGL069 Item Symbol Value unit Item unit Heat output Type of heat input, for electric storage local space heaters only (select one) Nominal heat manual heat charge control, with [no] output integrated thermostat Minimum heat Manual heat charge control with room...
