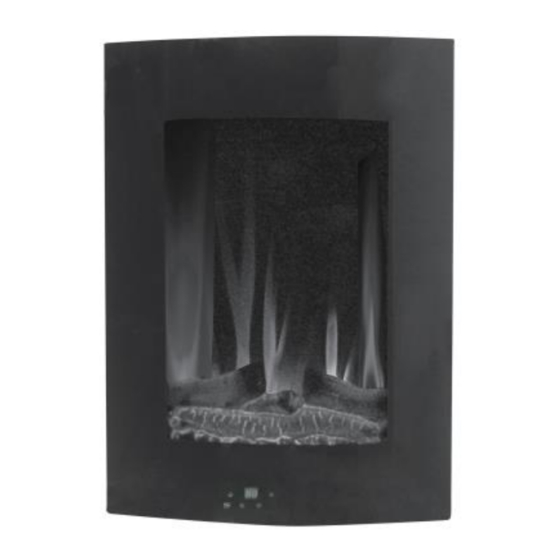

- Page 1 USER MANUAL ELECTRIC FIREPLACE AGL048 Thank you for choosing this electric fireplace. Please read this manual before using or installing this electric fire and keep it safe for future reference.
-
Page 2: Table Of Contents
CONTENTS PARTS SUPPLIED SAFETY PRODUCT DIMENSIONS LOG TO CRYSTAL INSTRUCTIONS OPERATION CARE AND MAINTENANCE SUPPORT TECHNICAL SPECIFICATIONS PRODUCT FICHE... -
Page 3: Parts Supplied
PARTS SUPPLIED NOTE: Pictures and contents in this manual may differ from the product due to continuous product improve. SAFETY INFORMATION When using electrical appliances, basic safety precautions should always be followed, including the following: • IMPORTANT: Read all instructions and warnings carefully before starting installation. - Page 4 • Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present. • If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.
-
Page 5: Product Dimensions
• This appliance should not be used as a drying rack for clothing, nor should Christmas stockings or decorations be hung on or near it. • This electric fire is an instant heat source to warm up a room and is great for visual room ambiance it doesn’t necessarily need to be used as a constant or permanent source of heating for the home. - Page 6 ELECTRICAL SAFETY The heater must not be located under an electrical socket; the socket must always be accessible in order to disconnect the heater from the electrical supply for maintenance and cleaning. Important: This heater must be earthed. The mains supply must be safely routed from the heater to an electrical socket.
-
Page 7: Log To Crystal Instructions
LOG TO CRYSTAL INSTRUCTIONS 1. Firstly, carefully remove the outer glass around the bracket and then undo the mounting screws. (1, 2) 2. Gently remove the outer glass (3) 3. Remove the screws holding in the log set and then carefully take out the log set. (4, 4. -
Page 8: Operation
OPERATING BY MANUAL BUTTON NOTE: The manual button on the firebox unit will not provide you with all the function control, and its purpose is to control some basic function when you lose the remote handset. Please use the remote handset to carry out all functions. Power Heating Down... - Page 9 Hold the heating button to turn off the digital screen to then switch between Celsius or Fahrenheit by pressing up or down to cycle through. The SET setting indicator light will be flashing. UP BUTTON: Press repeatedly to increase set temperature. The SET setting indicator will be flashing and the current temperature unit light will be on.
- Page 10 CURRENT CLOCK SETTING: Press and hold the timer button to enter the current time setting. First, the LED of the daylight will light up and flash. Press up or down to select which day of the week. After the selection is completed, press the timer button to confirm. At this time, enter the current time setting and press up or down to select the time;...
- Page 11 REMOTE CONTROL The buttons on the remote match the functions covered in the previous section unless otherwise stated. 1. Charcoal Fire colour 2. Flame adjustment 3. Charcoal lock to currently displayed colour displayed when in C0 Mode (Loop) 4. Flame lock to currently displayed colour displayed when in F0 Mode (Loop) 5.
-
Page 12: Care And Maintenance
CARE AND MAINTENANCE When cleaning unit, the power supply should be disconnected and the unit should be cool. Dust can be removed by lightly wiping the glass surface with clean, lint free cloth or paper towel. To remove fingerprints or other marks, use a damp cloth with a good quality household glass cleaner. -
Page 13: Support
Buy It Direct Unit J6, Lowfields Business Park, Lowfields Way, Elland, West Yorkshire, HX5 9DA TECHNICAL SPECIFICATION Description of Product Wall-mounted Model AGL048 Rated Voltage 220-240V ~ Rated Frequency 50 Hz Rated Power Max 1300W Dimensions (W) x (H) x (D) - Page 14 Model Identifier: AGL048 Item Symbol Value Unit Item Unit Heat Output Type of heat input, for electric storage local space heaters only (select one) Nominal heat manual heat charge control, with integrated output thermostat Minimal heat manual heat charge control with room and/or...
