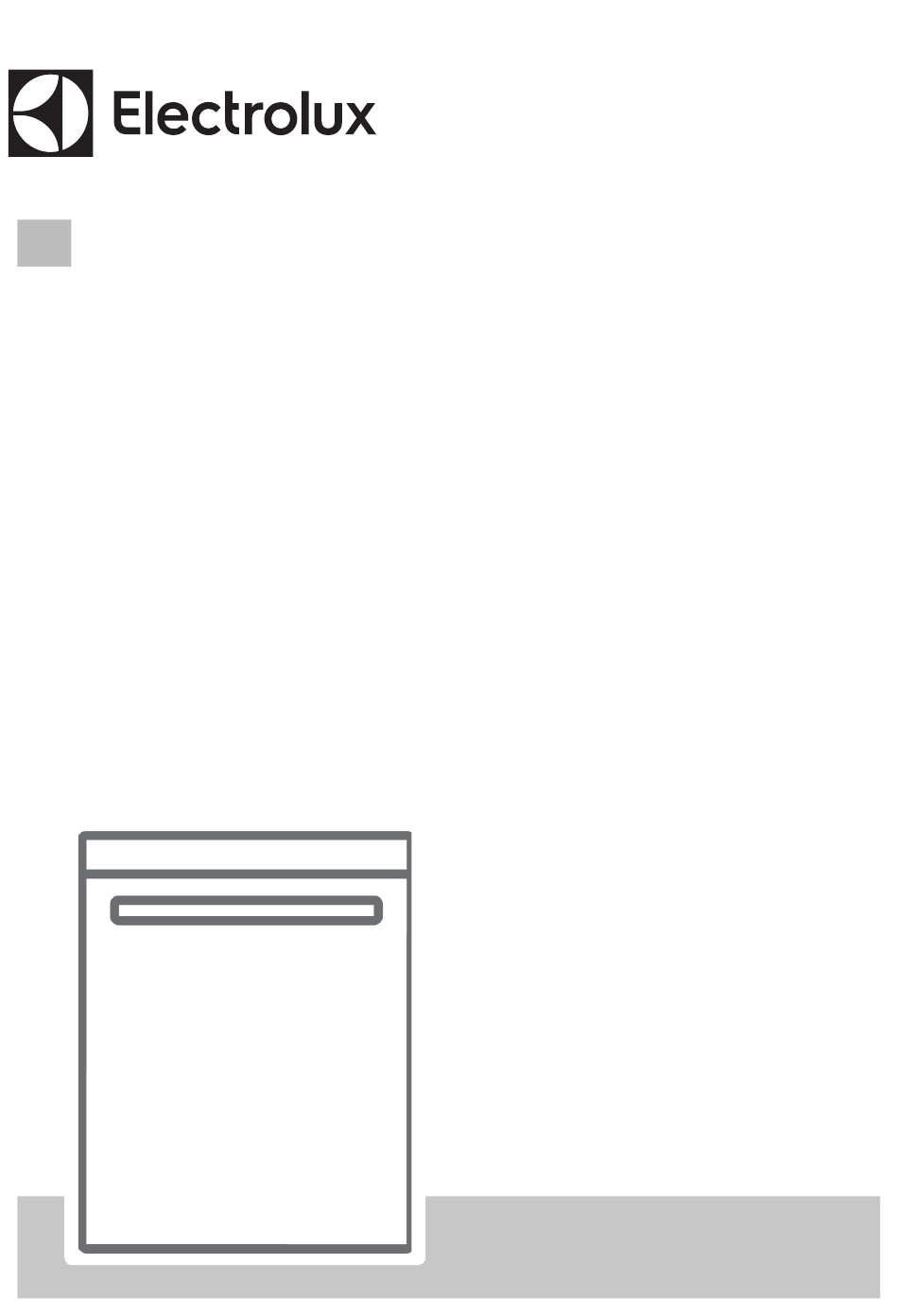

- Page 1 Dishwasher / User Manual EFF1360VSA...
- Page 2 Thank you for choosing this product. This user manual contains important information on safety and instructions intended to assist you in the operation and maintenance of your appliance. Please take the time to read this user manual before using your appliance and keep this book for future reference.
-
Page 3: Table Of Contents
CONTENTS 1 SAFETY INSTRUCTIONS ................1 1.1 General Safety Warnings ....................1 1.2 Installation Warnings .....................2 1.3 During Usage........................3 2 INSTALLATION ....................6 2.1 Machine Positioning .......................6 2.2 Water Connection ......................6 2.3 Water Inlet Hose ......................6 2.4 Drain Hose (Model Depending) ..................7 2.5 Electrical Connection ......................7 2.6 Fitting The Machine Undercounter .................8 3 TECHNICAL SPECIFICATIONS .............. -
Page 4: Safety Instructions
1 SAFETY INSTRUCTIONS 1.1 General Safety Warnings • Read these instructions carefully before using your appliance and keep this manual for future reference. Please check the packaging of your machine before installation and the outer surface of the machine once the packaging has been removed. Do not operate the machine if it appears damaged or if the packaging has been opened. -
Page 5: Installation Warnings
There may be some residue left in the machine after washing. Keep children away from the machine when it is open. 1.2 Installation Warnings • Choose a suitable and safe place to install your machine. • Only original spare parts should be used with the machine. -
Page 6: During Usage
Always use the coated plug supplied with your machine. If the electrical cable is damaged, it should only be replaced by a qualified electrician. • Connect the hose directly to the water inlet tap. The pressure supplied by the tap should be a minimum of 0.03 MPa and a maximum of 1 MPa. - Page 7 Do not open the door while the machine is in operation, hot water may spill out. Safety devices ensure the machine stops if the door is opened. The machine door should not be left open. It may cause accidents. Place knives and other sharp objects in the cutlery basket in a blade-down position.
- Page 8 Pull the plug to disconnect the machine from the mains, never pull on the cord. EN - 5...
-
Page 9: Installation
2 INSTALLATION 2.3 Water Inlet Hose 2.1 Machine Positioning When positioning the machine, place it in an area where dishes can be easily loaded and unloaded. Do not put the machine in an area where the ambient temperature falls below 0°C. Read all warnings located on the packaging before removing the packaging and positioning the machine. -
Page 10: Drain Hose (Model Depending)
2.4 Drain Hose (Model Depending) 2.5 Electrical Connection WARNING: Your machine is set to operate at 220-240 V. If the mains voltage supply to your machine is 110 V, connect a transformer of 110/220 V and 3000 W between the electrical connection. Connect the product to a grounded outlet protected by a fuse complying with the values in the... -
Page 11: Fitting The Machine Undercounter
2.6 Fitting The Machine Undercounter If you wish to fit your machine undercounter, there must be sufficient space to do so and the wiring-plumbing must be suitable to do so. WARNING: The countertop, of which the machine will be placed under, must be stable in order to prevent imbalance. -
Page 12: Technical Specifications
3.2 Technical Specifications 3 TECHNICAL SPECIFICATIONS 13 place Capacity settings Dimensions Height 850(mm) Width 598(mm) Depth 598(mm) Net weight 41.1 kg Operating 220-240 V voltage / 50 Hz frequency Total current 10(A) Total power 1900(W) Maximum: Water supply 1 (Mpa) pressure Minimum: 0.03 (Mpa) - Page 13 RECYCLING • Some machine components and packaging consist of recyclable materials. • Plastics are marked with the international abbreviations:(>PE<, >PP<, etc. ) • The cardboard parts consist of recycled paper. They can be put into waste paper containers for recycling. •...
-
Page 14: Before Using The Appliance
4 BEFORE USING THE 4.3 Fill The Salt (IF APPLICABLE) APPLIANCE To add softener salt, open the salt compartment cap by turning it counter 4.1 Preparing Your Dishwasher For First clockwise. (1) (2) At first use, fill the compartment with 1 kg salt and water (3) until it is almost overflowing. -
Page 15: Test Strip
4.4 Test Strip Run water Keep the Shake the Wait Set the hardness level of through the strip in the strip. (1min.) your machine. tap (1min.) water (1sec) second munite munite NOTE: The level is set to 3 as default. If the water is well water or has a hardness level above 90 dF, we recommend that you use filter and refinement devices. -
Page 16: Filling The Detergent
in cool, dry places out of reach of children. detergents in short programs. Please use powder detergents instead. Add the proper detergent for the selected If you encounter problems when using program to ensure the best performance. The amount of detergent needed depends combined detergents, please contact the on the cycle, load size, and soil level of detergent manufacturer. - Page 17 If the dishes are not drying properly or are spotted, increase the level. If blue stains form on your dishes, decrease the level. Level Brightener Dose Indicator Rinse-aid not r1 is shown on the dispensed display. 1 dose is r2 is shown on the dispensed display.
-
Page 18: Loading Your Dishwasher
5 LOADING YOUR DISHWASHER For best results, follow these loading guidelines. Loading the household dishwasher up to the capacity indicated by the manufacturer will contribute to energy and water savings. Manual pre-rinsing of tableware items leads to increased water and energy consumption and is not recommended You can place cups, glasses, stemware, small plates, bowls, etc. - Page 19 Height Adjustable Rack (peg type) Upper Basket The foldable racks in the upper basket Height Adjustment enable the placement of large items such Turn the Rail Stop Clips, at the ends of the as pots and pans. Each section can be rails, to the sides to open them (as shown folded separately.
-
Page 20: Alternative Basket Loads
5.2 Alternative Basket Loads Unsuitable Items For Dishwashing Lower Basket • Cigarette ashes, candle leftovers, polish, paint, chemical substances, iron-alloy materials. • Forks, spoons and knives with wooden, bone, ivory or nacrecoated handles; glued items, items soiled with abrasive, acidic or base chemicals. •... -
Page 21: Program Table
6 PROGRAM TABLE Duration Symbol Programme Description (min) Quick Quick wash program for lightly soiled dishes. Standard program for dishes which are used daily but are not heavily soiled. (Reference) A faster program for dishes which are used daily but are not heavily Super 50’... -
Page 22: The Control Panel
7 THE CONTROL PANEL position, then turn it to select a program. Extra features can be activated with the newly selected program. NOTE: Simultaneously press the "+" and "-" buttons for 3 seconds to activate/ deactivate the Child Lock. When it is first activated, “CL”... - Page 23 7.1 Changing a Program The End light will Follow the steps below to change illuminate after a pro- gram is cancelled. the program while in operation. Press the Start/Pause button. 7.3 Switching the Machine Off After the program stops, select the desired program When the End light illuminates, using the Program Selection turn the Program Selection Knob...
-
Page 24: Cleaning And Maintenance
8 CLEANING AND To remove and clean the filter combination, turn it counter clockwise and remove it by MAINTENANCE lifting it upwards (1).Pull the coarse filter out Cleaning your dishwasher is important to of the micro filter (2).Then pull and remove maintain the machine’s service life. -
Page 25: Drain Pump
8.3 Drain Pump Large food residues or foreign objects which were not captured by the filters may block the waste water pump. The rinsing water will then be above the filter. Warning Risk of cuts! When cleaning the waste water pump, ensure that you do not injure yourself on pieces of broken glass or pointed imple- ments. -
Page 26: Troubleshooting
9 TROUBLESHOOTING FAULT POSSIBLE CAUSE TROUBLESHOOTING Your Dishwasher is not plugged in. Plug your Dishwasher in. Switch your Dishwasher on by pressing the Your Dishwasher is not switched on. On/Off button. Fuse blown. Check your indoor fuses. The program does not start. - Page 27 FAULT POSSIBLE CAUSE TROUBLESHOOTING Use the correct amount of detergent, as Not enough detergent used. instructed in the program table. Rinse aid dosage and/or water Increase rinse aid and/or water softener softener setting set too low. level. Whitish stains remains on dishes.
- Page 28 AUTOMATIC FAULT WARNINGS AND WHAT TO DO TROUBLE POSSIBLE FAULT WHAT TO DO CODE Make sure the water inlet tap is open and water is flowing. Separate the inlet hose from the tap and clean the filter of Water inlet system failure the hose.
- Page 29 52523759...
