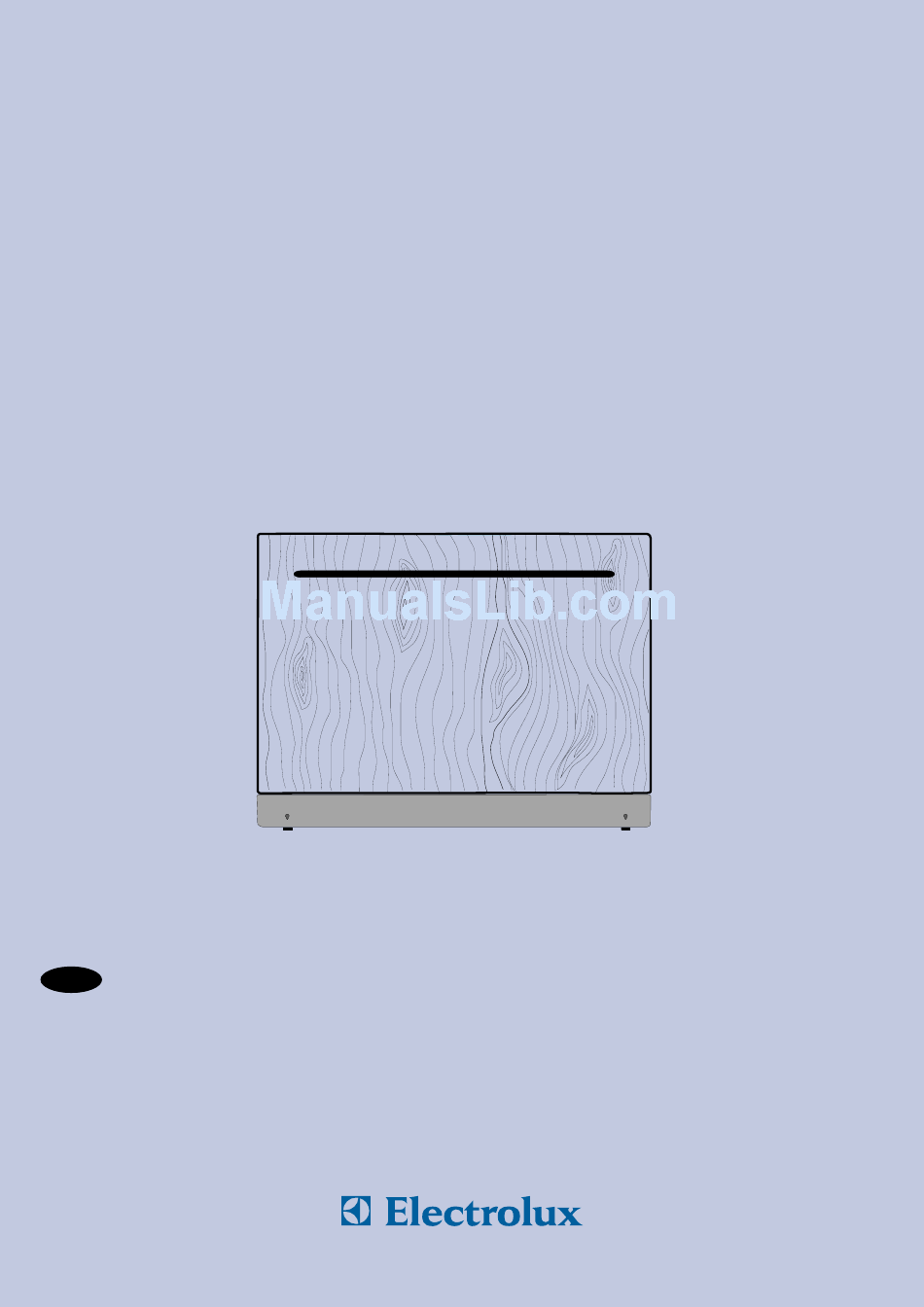

  • Page 1 G e s c h i r r s p ü l e r D i s h w a s h e r Model ESL 9160 Bedienungsanleitung Seite 2 Instruction book page 21...
  • Page 2: Table Of Contents

    Contents Safety instructions Maintenance and cleaning Cleaning the filters Disposal Prolonged periods of non-operation Frost precautions Economical and ecological dishwashing Moving the machine Installation instructions Something not working Building-in Levelling Hints for test centres Fixing to the adjacent units Water supply connections Water unlet hose with safety valve Water outlet hose connection Electrical connection...
  • Page 3: Safety Instructions

    Safety instructions It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is left with the appliance in order that the new owner can get to know the functioning of the appliance and the relevant safety information.
  • Page 4: Installation Instructions

    Installation instructions Any electrical and/or plumbing work required to install Water supply connections this appliance should be carried out by a qualified This dishwasher may be fed with either hot (max. 60°) or cold electrician and/or plumber or competent person. water.
  • Page 5: Water Outlet Hose Connection

    Water outlet hose connection Electrical connection The end of the drain hose can be connected in the following Information concerning the electrical connection is given on the ways: rating plate on the edge of the dishwasher’s door. 1. To the sink outlet spigot, securing it to the underside of the Before plugging the appliance into the wall socket, make sure work surface.
  • Page 6: Description Of The Appliance

    Description of the appliance Internal lights Upper basket Water hardness dial Salt container Detergent dispenser Rinse aid dispenser Control panel Rating plate Filters 10. Lower spray arms 11. Upper spray arm NOTE: this dishwasher has internal lights that turn on and off when the opening and closing of the dishwasher’s door occurs.
  • Page 7 "Half load" button In this case you have to set a washing programme (and : this option is useful and economical eventual options) again. when only a few dishes need washing reducing the consumption of water and energy. This option must be linked NOTE: With the use of this function together with programme to the selection of a washing programme.
  • Page 8: Audible Signals

    Audible signals Audible signals have been introduced to help indicate which operations the dishwasher is performing: - setting of the water softener - end of programme - intervention of an alarm due to malfunction Deactivation/activation of the audible signals (The dishwasher must be switched off) Factory setting: audible signals activated 1.
  • Page 9: Prior To Using For The First Time

    Prior to using for the first time Before using your dishwasher for the first time: b) Setting electronically (The dishwasher must be switched off) 1. Ensure that the electrical and water connections comply with the installation instructions NOTE: the electronic setting of the water softener is 2.
  • Page 10: Filling With Dishwasher Salt

    Filling with dishwasher salt Rinse aid Only use salt specifically designed for use in Rinse aid is automatically added during the last rinse, ensuring dishwashers. thorough rinsing, and spot and streak free drying. All other types of salt not specifically designed for use in The dispenser, which is positioned inside the door, holds about a dishwasher, especially table salt, will damage the water 110 ml of rinse aid, which is sufficient for between 16 and 40...
  • Page 11: In Daily Use

    In daily use Check if it’s necessary to refill with dishwasher salt or rinse Loading cutlery and dishes Sponges, household cloths and any object that can Load cutlery and dishes into the dishwasher. absorb water may not be washed in the dishwasher. Fill with dishwasher detergent .
  • Page 12: The Cutlery Basket

    The cutlery basket Use of detergent Long bladed knives stored in an upright position are a Only use detergents specifically designed for use in potential hazard. dishwashers. Long and/or sharp items of cutlery such as carving knives Using no more than the correct amount of detergent must be positioned horizontally in the upper basket.
  • Page 13: Different Kinds Of Detergent

    Different kinds of detergent Detergent tablets Detergent tablets from different manufactures dissolve at different rates. For this reason, some detergent tablets do not attain their full cleaning power during short washing programmes. Therefore please use long washing programmes when using detergent tablets, to ensure the complete removal of detergent residuals.
  • Page 14: Washing Programmes

    Washing programmes Degree of soil Programme Options available Cycle (3) Consumption values with the description Energy Water type of load programme consumption consumption (in kWh) (in litres) 1 cold rinse (to avoid food scraps Any. from sticking together). Partial load (to be completed Rinse and Hold This programme does not require the later in the day).
  • Page 15: Starting A Washing Programme

    Starting a washing programme In this fully integrated appliance the controls are located on the Cancel a washing programme in progress top of the door. When selecting a programme, the door needs Open the dishwasher door. to be open. Press for about 2 seconds the button cancel, the indicator light of the programme selection button will illuminate and in the digital display will appear two horizontal lines (--) 1.
  • Page 16: Maintenance And Cleaning

    Maintenance and cleaning Clean the external surfaces of the machine and control panel Attention! with a damp soft cloth. If necessary use only neutral Under no circumstances may the dishwasher be used without detergents. Never use abrasive products, scouring pads or filters.
  • Page 17: Something Not Working

    Something not working Certain problems are due to the lack of simple maintenance or oversights, which can be solved with the help of the instructions given here, without calling out an engineer..a flashing fault code appears The dishwasher will not start or stops during operation and a sequence of intermittent audible signals are heard. Open the dishwasher’s door.
  • Page 18: The Wash Results Are Not Satisfactory

    ...the wash results are not satisfactory The dishes are not clean The wrong washing programme has been selected. The dishes were arranged in such a way as to stop water reaching all parts of the surface. The baskets must not be overloaded. The spray arms do not rotate freely due to wrong arrangement of the load.
  • Page 19: Hints For Test Centres

    Hints for test centres Testing in accordance with EN 60704 must be carried out with appliance fully loaded and using the test programme (see "Washing programmes" chart). Test in accordance with EN 50242 must be carried out when the salt container and rinse aid dispenser have been filled with salt and rinse aid respectively and using the test programme (see "Washing programmes"...
