Electrolux EFC3862MS User Manual
Electrolux EFC3862MS User Manual

Electrolux EFC3862MS User Manual

Compact dishwasher

Advertisement

Quick Links

用户手册 英文
6710022399
EFC3862MS(WQP8-3802)
ELECTROLUX
80g双 胶纸
· Ö Ç ø
00

Advertisement

loading
Need help?

Need help?

Do you have a question about the EFC3862MS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Electrolux EFC3862MS

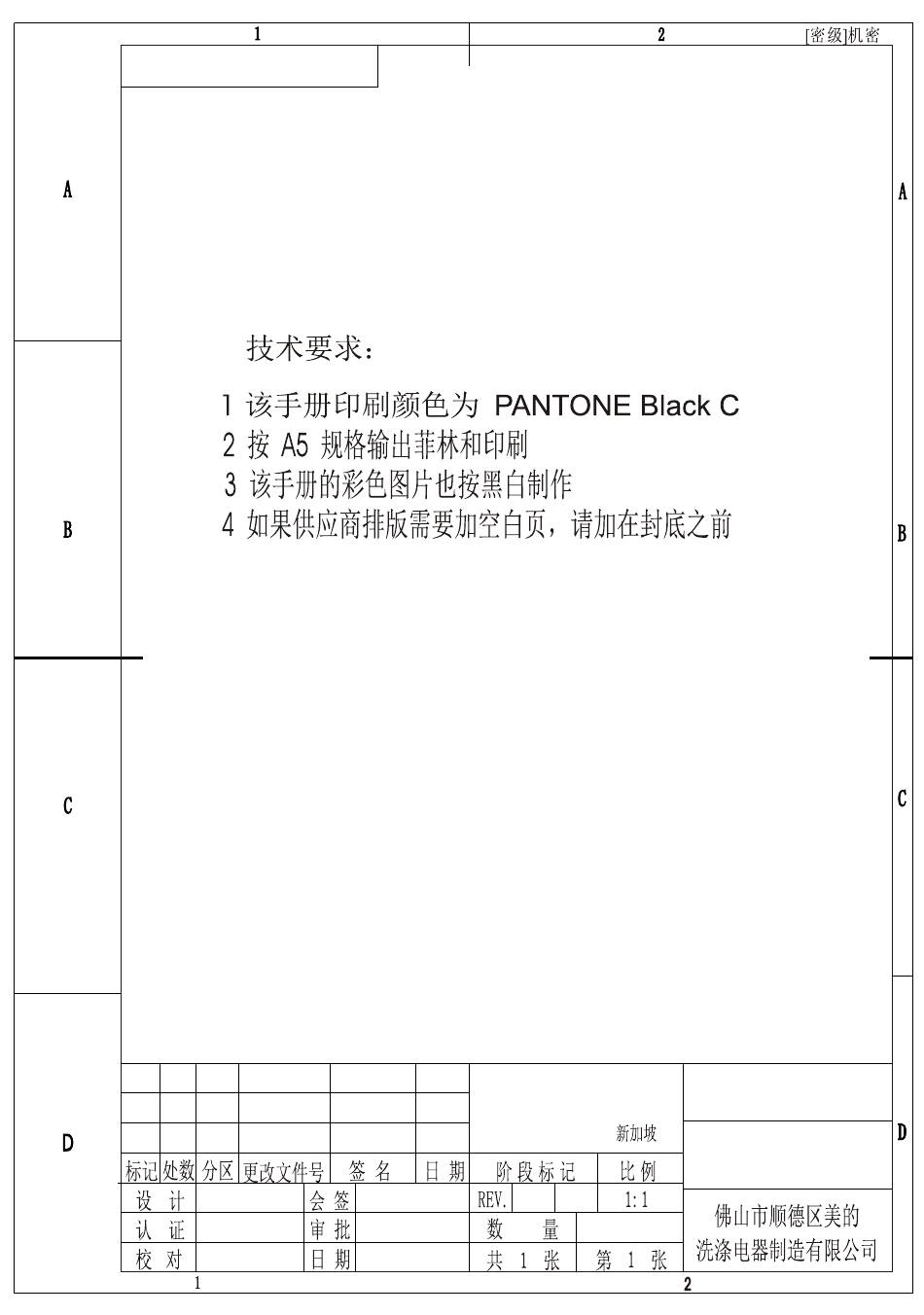

  • Page 1 用户手册 英文 6710022399 EFC3862MS(WQP8-3802) ELECTROLUX 80g双 胶纸 · Ö Ç ø...
  • Page 2 EFC3862MS Compact Dishwasher User manual...
  • Page 3 CONTENTS Quick operation guide……………………………..2 Safety information………………………………….3 Operation instruction………………………………6 Prior using for the first time……………………….7 Loading the dishwasher basket………………….11 Starting a washing programme…………………..12 Maintenance and cleaning………………………..16 Installation instruction……………………………..18 Troubleshooting tips……………………………….22 10. Technical information………………………………24 11. Consumer care center……………………………..25 Note: • Please carefully read this manual before using the dishwasher, it will help you to use and maintain the dishwasher properly.
  • Page 4 QUICK OPERATION GUIDE For detailed operating method read the corresponding content on the instruction manual. Switch on the appliance Press the Power switch button to switch on the appliance, Open the door. Compartment Compartment A: Fill the detergent dispenser With each wash cycle. (Follow the user instructions!) (On models with water softener system only.) Electric indicator on control panel.
  • Page 5 SAFETY INFOMRATION WARNING! WARNING! When using your dishwasher, follow the precautions listed below: This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -farm houses; -by clients in hotels, motels and other residential type environments; -bed and breakfast type environments.
  • Page 6 Do not abuse, sit on, or stand on the door or dish rack of the dishwasher. Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully if the dishwasher is operating, there is a risk of water squirting out.
  • Page 7 Disposal Disposal Dispose of the dishwasher packaging material correctly. All packaging materials can be recycled. Plastic parts are marked with the standard international abbreviations: for polyethylene, e.g. sheet wrapping material for polystyrene, e.g. padding material polyoxymethylene, e.g. plastic clips polypropylene, e.g. Salt filler Acrylonitrile Butadiene Styrene, e.g.
  • Page 8 Operation (Button) Press this button to turn on your dishwasher Power Press the Delay button to increase the delay start time.Delay a cycle for up to 24 Delay hours in one-hour increments. After setting the delay time, press the Start/Pause button to start.
  • Page 9 Dishwasher Features Dishwasher Features Spray arm Filter Salt container assembly Dispenser upper spray arm Upper basket Cutlery rack Lower basket Inlet pipe Drain pipe connector connector...
  • Page 10 PRIOR USING FOR THE FIRST TIME If your model have no water softener, you may skip this section. NOTE: NOTE: A . . Loading the SaIt Into the Salt container Always use salt intended for use with dishwasher. The salt container is located beneath the basket and should be filled as follows: Attention! Only use salt specifically designed for use in dishwashers! All other types of salt not specifically designed for use in a dishwasher, especially table salt, will...
  • Page 11 Adjusting salt consumption The dishwasher is designed to allow for adjustment in the amount of salt consumed based on the hardness of the water used. This is intended to optimise and customise the level of salt consumption. Please follow the steps below for adjustment in salt consumption. 1.
  • Page 12 At tention ! Only use branded rinse aid fo r dishwashe r. Never fill th e rinse aid dispenser wit h any othe r substances (e.g. Dishwasher cleanin g agent , liq uid detergent) . This would damag e th e applia nce. When to Refill the Rinse Aid Dispenser You can judge the amount of rinse-aid by the color of the optical level indicator C located next to the cap.
  • Page 13 Normally new pulverised detergent is without phosphate. The water softener function of phosphate is not given. In this case we recommend to fill salt in the salt container even when the hardness of water is only 6 dH. If detergents without phosphate were used in case of hard water often white spots appear at dishes and glasses.
  • Page 14 WARNING! WARNING! Dishwasher detergent is corrosive! Take care to keep it out of reach of children. Proper Use of Detergent Use only detergent specifically made for use in dishwashers. Keep your detergent fresh and dry. Don't put powder detergent into the dispenser until you're ready to wash dishes. Fill in detergent Fill the detergent dispenser with detergent.
  • Page 15 STARTING A WASHING PROGRAMME Attention before or after loading the Dishwasher Baskets Attention before or after loading the Dishwasher Baskets (For best performance of the dishwasher, follow these loading guidelines. Features and appearance of baskets and cutlery baskets may vary from your model.) Scrape off any large amounts of leftover food.
  • Page 16 3.Cutlery rack: Up rack Down rack Number Item Soup spoons Forks Knives Teaspoons 4 4 4 Dessert spoons Serving spoons Serving forks Gravy ladles Information for comparability tests in accordance with EN60436 Capacity: 8 place settings Position of the upper basket: lower position Program: ECO Rinse aid setting: 6 Softener setting: H4...
  • Page 17 Wash Cycle Table Wash Cycle Table The table below shows which programs are best for the levels of food residue on them and how much detergent is needed. It also show various information about the programs.Consumption values and program duration are only indicative except for ECO program.
  • Page 18 Changing The Program Mid-cycle A program can only be changed if it has been running only for a short period of time, otherwise the detergent may have already been released or the wash water with detergent has already been drained. If this is the case, the dishwasher needs to be reset and the detergent dispenser must be refilled.
  • Page 19 Auto Open After washing, the door will open automatically to achieve better drying effect. Program quick and pre-rinse don’t have auto open function. NOTE: The dishwasher door must not be blocked when set to open automatically. This can disrupt door lock functionality.Make sure that the dishwasher is horizontally placed Or there is a risk of conflict between the door and the side of tub when auto open, which will influence drying performance Please rotate the adjustable feet to match the situation...
  • Page 20 The End. NOTE: NOTE: If do it from step1 to step 3, the filter system will be removed; while if do it from Step 3 to Step 1, the filter system will be installed. Remarks: - Inspect the filters for blocking every time the dishwasher has been used. - By unscrewing the coarse filter.you can remove the filter system.Remove any food remnants and clean the filters under running water.
  • Page 21 Cleaning the Spray Arms It is necessary to clean the spray arms regularly as hard water chemicals will clog the spray arm jets and bearings. Open Open To remove the upper spray arm, hold the nut, rotate the arm clockwise to remove it. To remove the lower spray arm, pull out the spray arm upward.
  • Page 22 Installation Installation preparation preparation The installation position of dishwasher should be near the existing inlet and drain hoses and power cord. One side of the cabinet sink should be chosen to facilitate the connection of drain hoses of the dishwasher. Positioning the Appliance Positioning the Appliance Position the appliance in the desired location.
  • Page 23 Connection of drain hoses Connection of drain hoses Insert the drain hose into a drain pipe with a minimum diameter of 40mm, or let it run into the sink, making sure to avoid bending or crimping it. Use the special plastic support that comes with the appliance.
  • Page 24 Built-In Installation Step 1. Selecting the best location for the dishwasher The installation position of dishwasher should be near the existing inlet and drain hoses and power cord. Illustrations of cabinet dimensions and installation position of the dishwasher. 1. Less than 5 mm between the top of dishwasher and cabinet and the outer door aligned to cabinet.
  • Page 25 How to Drain Excess Water From Hoses If the sink is 1000mm higher from the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink.
  • Page 26 Suds in the tub Improper detergent Use only the special dishwasher detergent to avoid suds. If this occurs, open the dishwasher and let suds evaporate. Add 1 gallon of cold water to the tub. Close and latch the dishwasher, then Start any wash cycle to drain out the water .
  • Page 27 Dishes block Re-loading the dishes properly. detergent cups. The dishes Improper loading Load the dishwasher as suggested in the directions. are not drying Too little rinse-aid Increase the amount of rinse-aid/Refill the rinse-aid dispenser. Dishes are removed Do not empty your dishwasher immediately after too soon.
  • Page 28 TECHNICAL INFORMATION 604mm 550mm 500mm (with the door closed) 964mm (with the door opened 90°)
  • Page 29 CONSUMER CARE CENTER Layanan langsung konsumen: 08041119999 PT. Electrolux Indonesia Jalan Tanah Abang II Nomor 42, 351 Braddell Road, #01-04 Desa/Kelurahan Petojo Selatan, Singapore 579713 Kec. Gambir, Kota Adm. Jakarta Pusat, Consumer Care Center Te: +65 6727 3699 Provinsi DKI Jakarta, Kode Pos: 10160 Email: customer-care.sin@electrolux.com...
