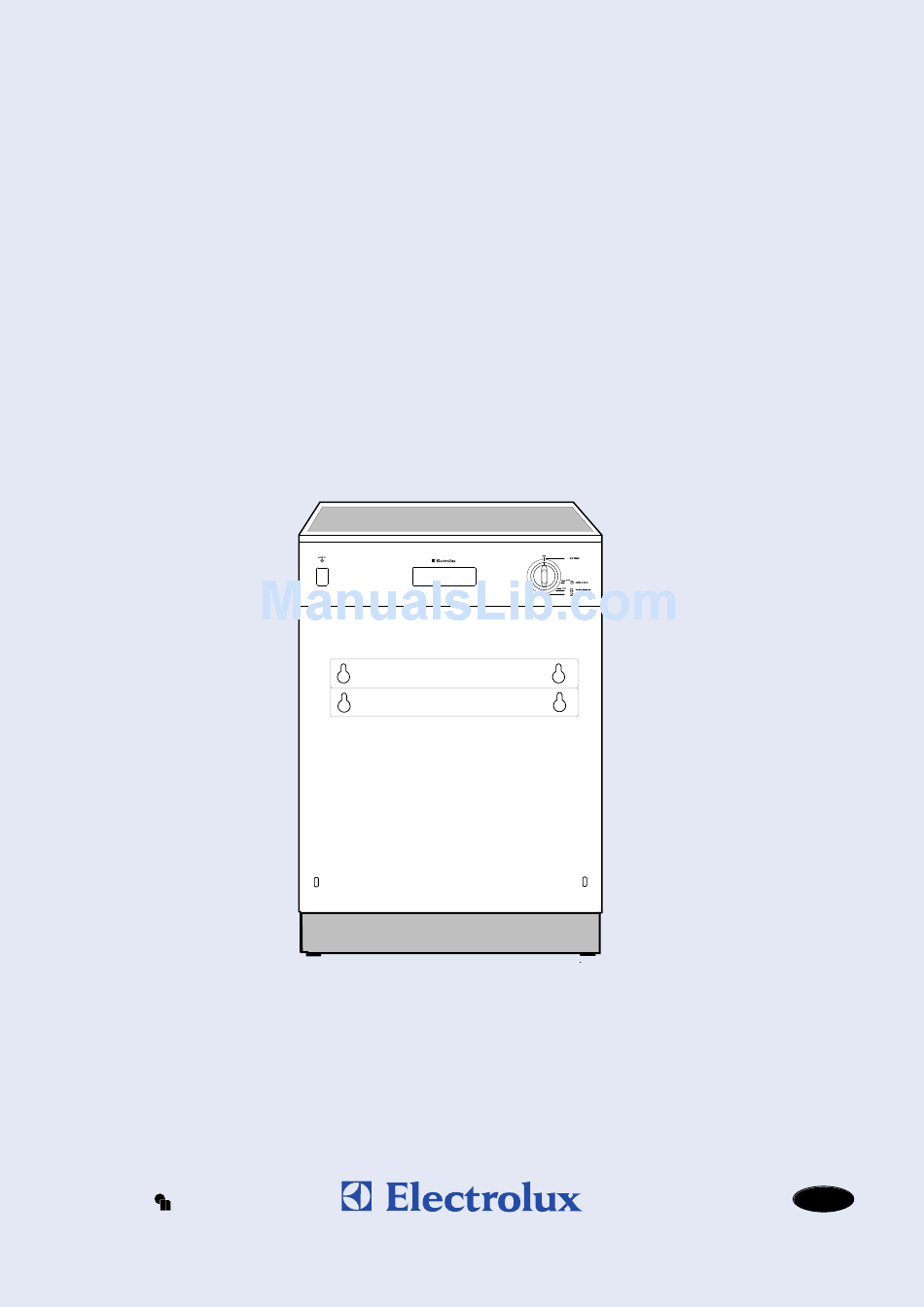

INSTRUCTION BOOK

Model ESI 600
GB
152991 79/0
0/0398

Advertisement

Table of Contents
loading

Summary of Contents for Electrolux ESI 600

  • Page 1: Instruction Book

    D i s h w a s h e r INSTRUCTION BOOK Model ESI 600 152991 79/0 0/0398...
  • Page 2: Important Safety Information

    During Use Items that are contaminated by petrol, paint,steel or iron debris, corrosive, acidic or alkaline chemicals must not be washed in this dishwasher. Under no circumstances should you open the door whilst the appliance is in operation. Always turn off the appliance before opening the door.
  • Page 3: Table Of Contents

    Moving the machine Something not working Service and spare parts Gurantee Conditions Electrolux Service Force Guide to use the instruction book The following symbols will be found in the text to guide you throughout the instructions: For the installer Installation instruction...
  • Page 4: Description Of The Appliance

    Description of the appliance Water hardness adjustment Levelling spacers Upper basket stop Large filter Salt container Detergent dispenser IN46 Rinse aid dispenser Upper basket Upper spray Lower spray Central filters Lower basket Cutlery basket Rating plate Control panel PDA02UK...
  • Page 5: The Control Panel

    The control panel 1. On/Off indicator light 2. On/Off pushbutton By depressing this button the machine starts operating and, at the same time the On/Off indicator light illuminates. When the washing programme has finished, the machine stops automatically and the indicator light remains on.
  • Page 6: Before Use

    Before use Before using your dishwasher for the first time: ensure that the electrical and water connections comply with the installation instructions remove all packaging from inside the appliance set the water softener fill the salt container fill the rinse aid dispenser.
  • Page 7: Filling With Salt

    Salt must be used from level 2 upward. Only use salt specifically designed for use in dishwasher. All other types of salt not specifically designed for use in dishwasher, specifically table salt, will damage the water softener. Only fill with salt just before starting one of the complete washing programmes (not the Rinse and Hold programme).
  • Page 8: Rinse Aid

    Rinse aid Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, spot and streak free drying. The dispenser, which is positioned inside the door, holds about 110 ml of rinse aid, which is sufficient for 16 - 40 dishwashing programmes, depending upon the dosage setting.
  • Page 9: Use Of Detergent

    Finish liquid Gel ideal for every day use. As the gel is extra gentle is it recommended for fine bone china. To fill the dishwasher with detergent proceed as follows: 1. Open the dispenser lid by pulling the catch (D).
  • Page 10: Using Your Appliance

    Using your appliance Loading your appliance Before placing dishes in the machine, remove any scraps of food, to avoid clogging the filters and consequently reducing the performance. Do not load very small items which can fall through the baskets. Open the door and slide out the baskets to load the dishes.
  • Page 11: Adjusting The Height Of The Upper Basket

    The upper basket The upper basket is designed for plates (dessert plates, saucers, dinner plates of up to 24 cm in diameter), salad bowls, cups and glasses; Glasses with long stems can be placed upside down in the raised cup racks. Larger plates (dinner plates up to 24 cm in diameter) must be loaded in the front part of the upper basket.
  • Page 12: Hints And Tips

    Hints and tips To save energy Place dishes in the machine immediately after every meal and wait until the dishwasher is full before washing. If necessary run the Rinse and Hold programme (see "Washing Programmes" chart on the following page),...
  • Page 13: Washing Programmes

    Washing programmes Programme Degree of soil type of load Heavy soil. POWER Crockery, WASH cutlery pots and 65°C pans NORMAL Normal soil. WASH Crockery and 65°C cutlery Normal soil. Crockery and WASH cutlery Any. RINSE AND Partial load (to HOLD be completed later in the day).
  • Page 14: Operating Sequence

    On/Off pushbutton is depressed. 10. Switch off the dishwasher Switch off the dishwasher by pressing the On/Off pushbutton. When the wash programme has finished, it is recommended that the dishwasher is unplugged and the water tap turned off.
  • Page 15: Maintenance And Cleaning

    Ensure that the seals around the door, the detergent and rinse aid dispensers are cleaned regularly with a damp cloth. We recommend the use of Finish Dishwasher Cleaner every 3 months or run a 65°C wash without dishes using detergent. Regular use of Finish Dishwasher Cleaner cleans inaccessible parts, eliminates unpleasant food odours and helps prevent the build-up of limescale.
  • Page 16: External Cleaning

    External cleaning Clean the external surfaces of the machine and control panel with a damp soft cloth. If necessary use only neutral detergents. Never use abrasive products, scouring pads or solvent (acetone, trichloroethylene etc...). Prolonged periods of non- operation If you are not using the machine for any period of time you are advised to: 1.
  • Page 17: Something Not Working

    Dishes are rattling against each other, (refer to “Loading your machine”). The spray arms are knocking against the dishes. The dishwasher is not level, or not properly built-in. The baskets are too full. The dishes have not been arranged properly.
  • Page 18: Service And Spare Parts

    Service and spare parts In the event of your appliance requiring service, or if you wish to purchase spare parts please contact your local Electrolux Service Force Centre by telephoning: 0990 929929 Your telephone call will be automatically routed to the Service Centre covering your post code area.
  • Page 19: Guarantee Conditions

    Standard guarantee conditions We, Electrolux, undertake that if within 12 months of the date of purchase this Electrolux appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that: •...
  • Page 20: Electrolux Service Force

    ELECTROLUX SERVICE FORCE To contact your local Electrolux Service Centre telephone CHANNEL ISLANDS GUERNSEY Guernsey Electricity PO Box 4 Vale, Guernsey Channel Islands JERSEY Jersey Electricity Company PO Box 45 Queens Road St Helier Jersey Channel Islands JE4 8NY SCOTLAND...
  • Page 21 ELECTROLUX SERVICE FORCE To contact your local Electrolux Service Centre telephone MIDLANDS BIRMINGHAM 66 Birch Road East, (M18) Wyrley Road Industrial Estate Witton Birmingham B6 7DB BOURNE Manning Road Ind (M44) Estate Pinfold Road Bourne PE10 9HT BRIDGNORTH 1 Underhill Street...
  • Page 22: Installation Instruction

    Installation instructions Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person. Any plumbing work required to install this appliance should be carried out by a qualified plumber or competent person. Technical specifications DIMENSIONS ELECTRICAL CONNECTION...
  • Page 23: Water Supply Connections

    If possible, position the machine next to a water tap and a drain. Water supply connections This dishwasher must be plumbed into a cold water supply. The water pressure must be within the limits given in the technical specifications.
  • Page 24: Water Outlet Hose Connection

    (minimum) and 100 cm (maximum) from the floor. It makes no difference which way the drain hose faces, either to the right or left of the dishwasher. Ensure the hose is not bent or squashed as this could prevent or slow down the discharge of water.
  • Page 25: Electrical Connection

    The cover/carrier is indicated by the coloured insert at the base of the product. A replacement cover/carrier must be obtained from your local Electrolux Service Force Centre. This appliance complies with the following E.E.C. Directives: - 73/23 or 19.2.73 (Low Voltage Directive) and subsequent modifications;...
  • Page 26: Building-In

    Building-in This dishwasher is designed to be fitted under a kitchen counter or worksurface. It is essential that the recess dimensions indicated in the diagram are followed. No further openings for venting of the dishwasher are required, but only to let the water fill and drain hose and power supply cable pass through.
  • Page 27: The Furniture Door

    2 - 7.5 kg max The panel height should be no more than indicated, otherwise complete opening of the door will no longer be possible as the panel hits against the dishwasher plinth. Furthermore, it is possible to line up the control panel to...
  • Page 28: Adjusting The Door Balance

    Adjusting the door balance The door of the dishwasher is balanced when it is open in any position. Fitting the decor panel may sometimes affect this balance. In this case it will be necessary to adjust the balance as follows: Half-open the door and regulate the screws located on the kick plate.
  • Page 29: Kitchen Plinth Adjustment

    Kitchen plinth adjustment To allow correct opening of the door it is sometimes necessary to cut the kitchen plinth. Refer to the cutting table. According to dimensions (a) and (b) as shown on the figure, you will find on the following table the depth (x) of the cut to be made on the plinth.
