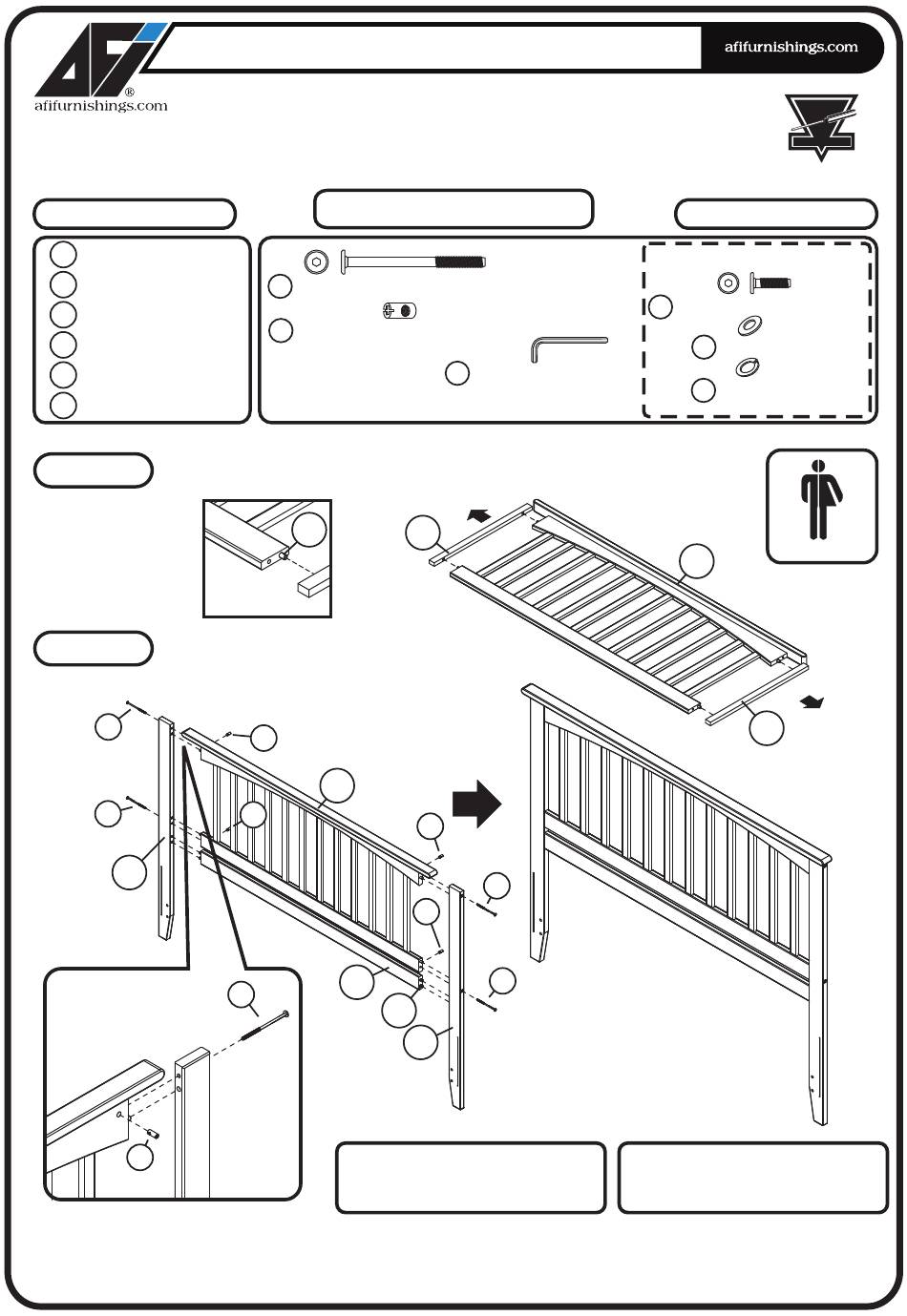

AFi HB-MSN Assembly Instructions

Before assembling your headboard, please read through these
instructions carefully and familiarize yourself with the different parts.
please contact afifurnishings at customerservice@afifurnishings.com or 1-800-955-3726
PARTS LIST
1 HEADBOARD PANEL 1 PC
2 LEFT LEG 1 PC
3 RIGHT LEG 1 PC
4 PILLOW STOP 1 PC
5 WOOD DOWELS 8 PCS
(Factory Installed)
6 PACKING STICK 2 PCS
NOTE: WE INCLUDE SPARE HARDWARE IN CASE DAMAGE OCCURS DURING ASSEMBLY.
Step 1
Remove packing stick (6) from headboard panel (1) and
Step 2
Attach the legs (2) and (3) to headboard panel (1)
and pillow stop (4) using JCB (A) and barrel nut (B).
Tighten with the Allen wrench (F).
A
A
2
BACK VIEW
B
If you purchased a wood headboard to attach to metal bed frame, please refer to page 3.
HEADBOARD
ASSEMBLY INSTRUCTIONS
ATTENTION! If you receive a damaged or defective item,
Instructions apply for bed sizes
QUEEN > KING
A
JCB M6 X 110mm (4 3/8") - 4 pcs
B
Barrel nut - 4 pcs
Spare - 1 pc
5
B
1
B
4
A
5
CODE
HB-MSN
Spare - 1 pc
F
Allen wrench - 1pc
Spare - 1pc
DISCARD
6
B
A
B
A
3
ITEM ITEM
R-28784X R-28785X
ASSEMBLE
HARDWARE
HARDWARE FOR METAL BED FRAME
C
JCB M6 X 25mm (1") - 4 pcs
Spare - 1 pc
D
Flat washer - 4 pcs
Spare - 1 pc
E
Split washer - 4 pcs
Spare - 1 pc
.
Adult assembly
1
6
PO :
Page 1 of 3
READY
TO
