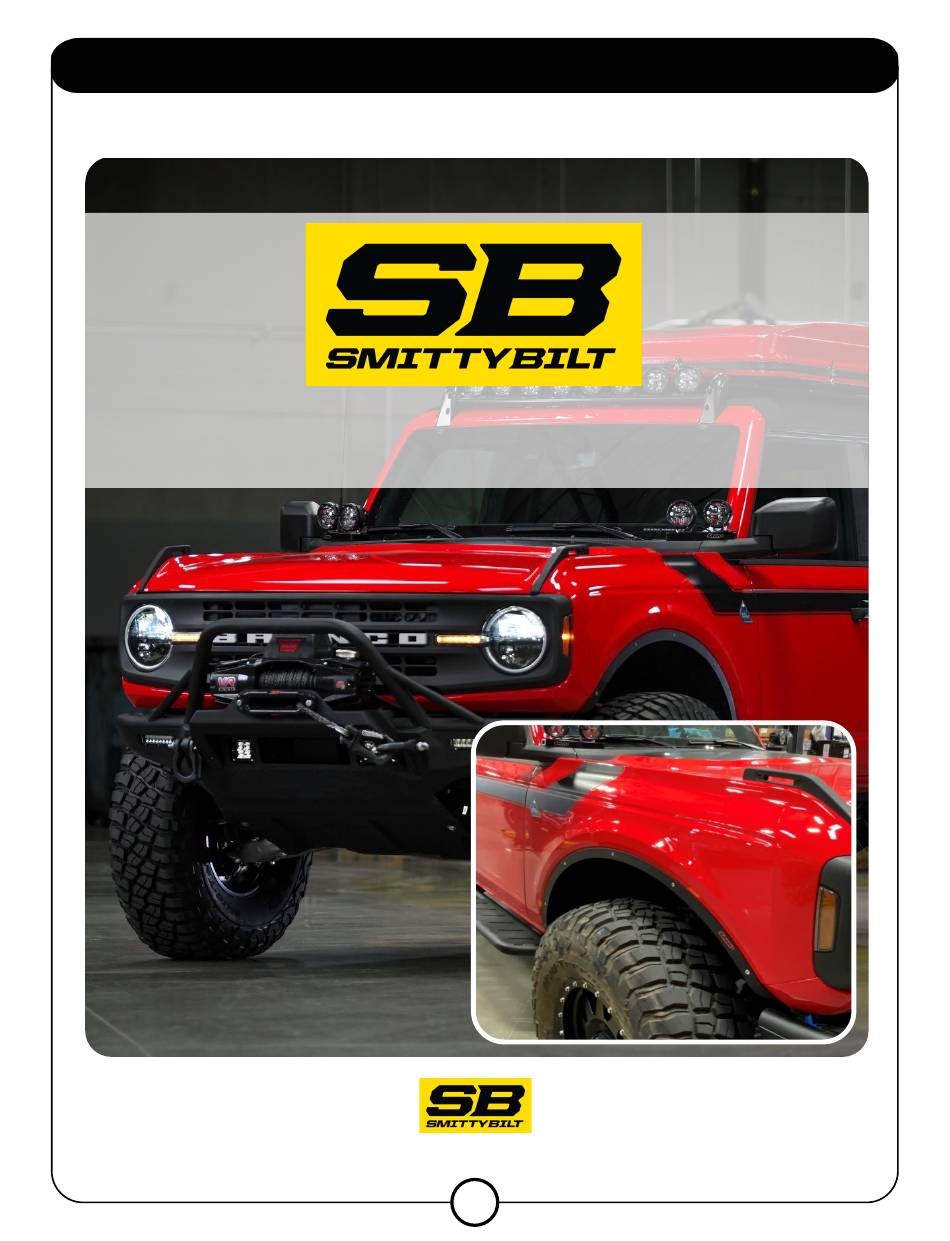

- Page 1 Ford Bronco Fender Deletes (2DR / 4DR) Part # S/B61768W / S/B61769W For Technical Support / Warranty Information please call 800-776-0767 EXT 1317 or Email at info@smittybilt.com Ford Bronco Fender Deletes (2DR / 4DR) Rev 1/18/2023 Part # S/B61768W / S/B61769W...
-
Page 2: Tools Required
Introduction Thank you for choosing Smittybilt accessories for your Ford Bronco. If you would like to view our full range of available accessories, please visit us at www.smittybilt.com Ford® and Bronco® are registered trademarks of Ford Motor Company. Important Notes Before Starting Carefully read through this entire instruction manual thoroughly before attempting to install this part. - Page 3 Box Contents: 4 Door Models SB61768W 4-DOOR BOX CONTENTS ITEM NO. PART NO. DESCRIPTION 84-12391 FENDER DELETE, FRONT, DRV 84-12392 FENDER DELETE, FRONT, PASS 84-12393 FENDER DELETE, REAR, DRV, 4-DOOR 84-12394 FENDER DELETE, REAR, PASS, 4-DOOR 90-60827 - HARDWARE PACK ,FRONT PART NO.
- Page 4 M6X1.0X20MM FLAT HEAD SST TORX SCREW 35-44197 WELD NUT BARREL STYLE M6X1.0 84-12399 ROCK LIGHT MOUNT For Technical Support / Warranty Information please call 800-776-0767 EXT 1317 or Email at info@smittybilt.com Ford Bronco Fender Deletes (2DR / 4DR) Rev 1/18/2023 Part # S/B61768W / S/B61769W...
-
Page 5: Important Note
Open the box containing your Ford Bronco 2DR/ 4DR Fender Deletes, check all parts against the Bill of Materials outlined in the first pages of these instructions. If anything is missing, contact Smittybilt Technical Support immediately. Step 2: Remove OE Fender Flare. - Page 6 These serve a dual purpose, as they hold the plastic fender liner up as well. For Technical Support / Warranty Information please call 800-776-0767 EXT 1317 or Email at info@smittybilt.com Ford Bronco Fender Deletes (2DR / 4DR) Rev 1/18/2023 Part # S/B61768W / S/B61769W...
- Page 7 Fender Delete. Hold it in place and loosely secure it with an M6 Torx screw. For Technical Support / Warranty Information please call 800-776-0767 EXT 1317 or Email at info@smittybilt.com Ford Bronco Fender Deletes (2DR / 4DR) Rev 1/18/2023 Part # S/B61768W / S/B61769W...
- Page 8 IMPORTANT NOTE Refer to page 11 of instructions for torque specifications. For Technical Support / Warranty Information please call 800-776-0767 EXT 1317 or Email at info@smittybilt.com Ford Bronco Fender Deletes (2DR / 4DR) Rev 1/18/2023 Part # S/B61768W / S/B61769W...
- Page 9 The fender liner should hold this in place against the panel. For Technical Support / Warranty Information please call 800-776-0767 EXT 1317 or Email at info@smittybilt.com Ford Bronco Fender Deletes (2DR / 4DR) Rev 1/18/2023 Part # S/B61768W / S/B61769W...
- Page 10 Reinstall the OE fender liner fasteners and double check the vehicle to insure that all hardware and fasteners are tight. Your installation is complete. For Technical Support / Warranty Information please call 800-776-0767 EXT 1317 or Email at info@smittybilt.com Ford Bronco Fender Deletes (2DR / 4DR) Rev 1/18/2023 Part # S/B61768W / S/B61769W...
-
Page 11: Bolt Torque Specifications
Use this only as a guide for hardware without a called out torque specification in the instruction manual. For Technical Support / Warranty Information please call 800-776-0767 EXT 1317 or Email at info@smittybilt.com Ford Bronco Fender Deletes (2DR / 4DR) Rev 1/18/2023... - Page 12 BLANK PAGE This page has been intentionally left blank For Technical Support / Warranty Information please call 800-776-0767 EXT 1317 or Email at info@smittybilt.com Ford Bronco Fender Deletes (2DR / 4DR) Rev 1/18/2023 Part # S/B61768W / S/B61769W...
