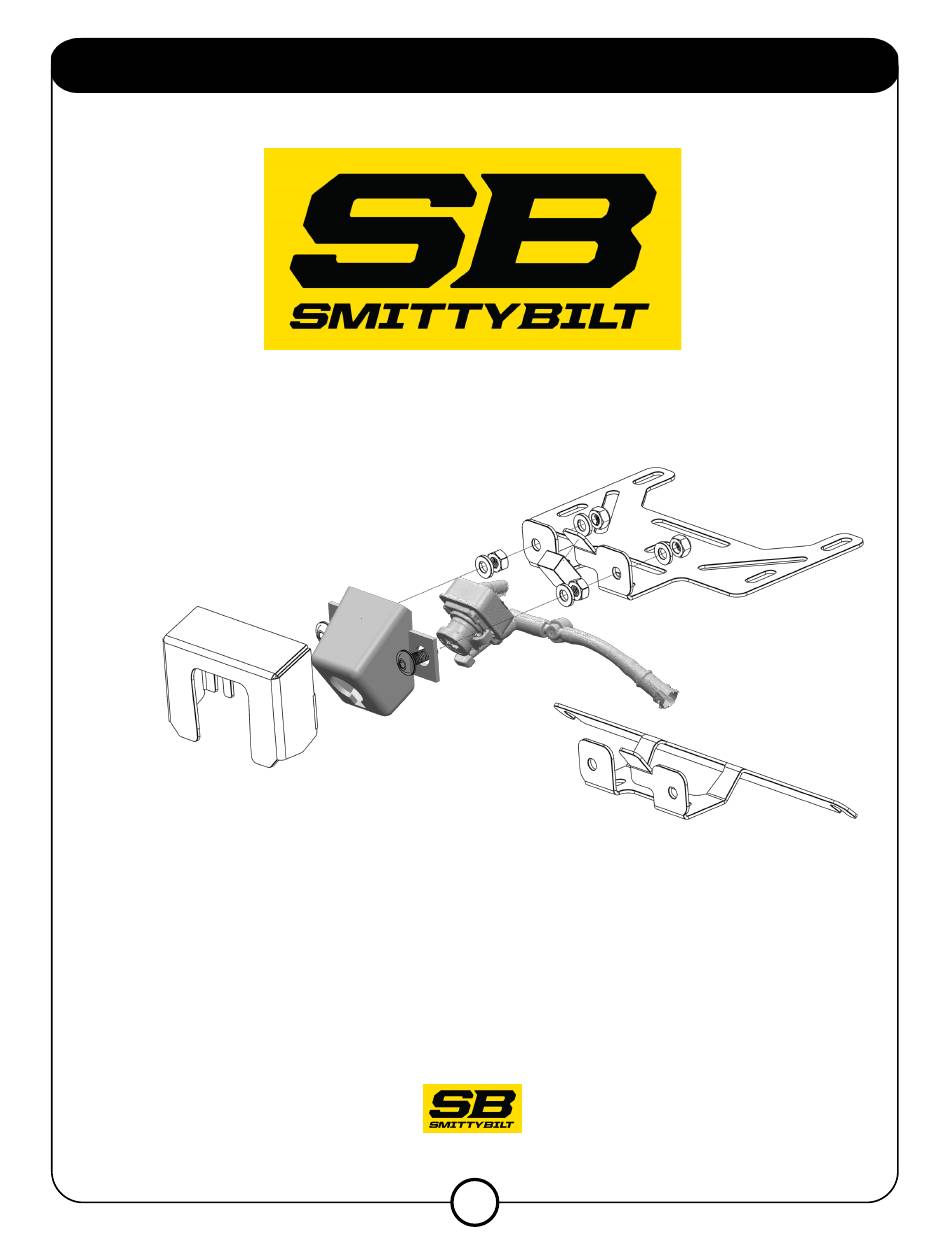

- Page 1 Installation Instructions Camera Relocation Mount Kit Part # S/B61268FCM For Technical Support / Warranty Information please call 800-776-0767 EXT 1317 Smittybilt, 400 W Artesia, Compton, CA 90220 Camera Relocation Mount Kit Rev 9/9/2022 Part # S/B61268FCM...
- Page 2 NOTE: This kit is designed to work with most winch applications. Two mounting solutions are provided. A specific Smittybilt X20 gen 3 winch mount and a “universal” mount designed to mount to the winch control box. Not all control boxes are the same, so some modifications to the mount...
-
Page 3: Box Contents
Adhesive Foam Backing Barbed Fitting M6 Hex Nut M6 Nylocks Button Head Screws Washers For Technical Support / Warranty Information please call 800-776-0767 EXT 1317 Smittybilt, 400 W Artesia, Compton, CA 90220 Camera Relocation Mount Rev 9/9/2022 Part # S/B61268FCM... - Page 4 Step 2: Next remove the (4) 10mm bolts. For Technical Support / Warranty Information please call 800-776-0767 EXT 1317 Smittybilt, 400 W Artesia, Compton, CA 90220 Camera Relocation Mount Kit Rev 9/9/2022 Part # S/B61268FCM...
- Page 5 For Technical Support / Warranty Information please call 800-776-0767 EXT 1317 Smittybilt, 400 W Artesia, Compton, CA 90220 Camera Relocation Mount Kit Rev 9/9/2022 Part # S/B61268FCM...
-
Page 6: Step 5: Removing The Camera
The two outermost mounting holes on the flange will be removed. For Technical Support / Warranty Information please call 800-776-0767 EXT 1317 Smittybilt, 400 W Artesia, Compton, CA 90220 Camera Relocation Mount Kit Rev 9/9/2022... - Page 7 Once you are done it should look like the picture below. For Technical Support / Warranty Information please call 800-776-0767 EXT 1317 Smittybilt, 400 W Artesia, Compton, CA 90220 Camera Relocation Mount Kit Rev 9/9/2022 Part # S/B61268FCM...
- Page 8 You can now reinstall the grille to the vehicle For Technical Support / Warranty Information please call 800-776-0767 EXT 1317 Smittybilt, 400 W Artesia, Compton, CA 90220 Camera Relocation Mount Kit Rev 9/9/2022...
- Page 9 Installation Instructions: Mounting to Winch Step 11: Installing Relocation Mount to Winch Note: For Smittybilt X20 Gen3 winches follow this step. If using another winch proceed to step 12 . First remove the top covers (four 3mm allen head screws). Once covers are removed loosen the three...
- Page 10 NOTE: Not all winch control boxes are the same. Some modifications may be required for your particular application. For Technical Support / Warranty Information please call 800-776-0767 EXT 1317 Smittybilt, 400 W Artesia, Compton, CA 90220 Camera Relocation Mount Kit Rev 9/9/2022 Part # S/B61268FCM...
-
Page 11: Bolt Torque Specifications
Use this only as a guide for hardware without a called out torque specification in the instruction manual. For Technical Support / Warranty Information please call 800-776-0767 EXT 1317 Smittybilt, 400 W Artesia, Compton, CA 90220 Camera Relocation Mount Kit Rev 9/9/2022... - Page 12 Customer’s remedy hereunder shall be limited only to repair or replacement (at Smittybilt’s option) of any defective part(s) returned to Smittybilt at customer’s expense. The determination of whether or not a returned part is defective or subject to coverage under the limited warranties stated herein shall be made at Smittybilt’s sole discretion.
