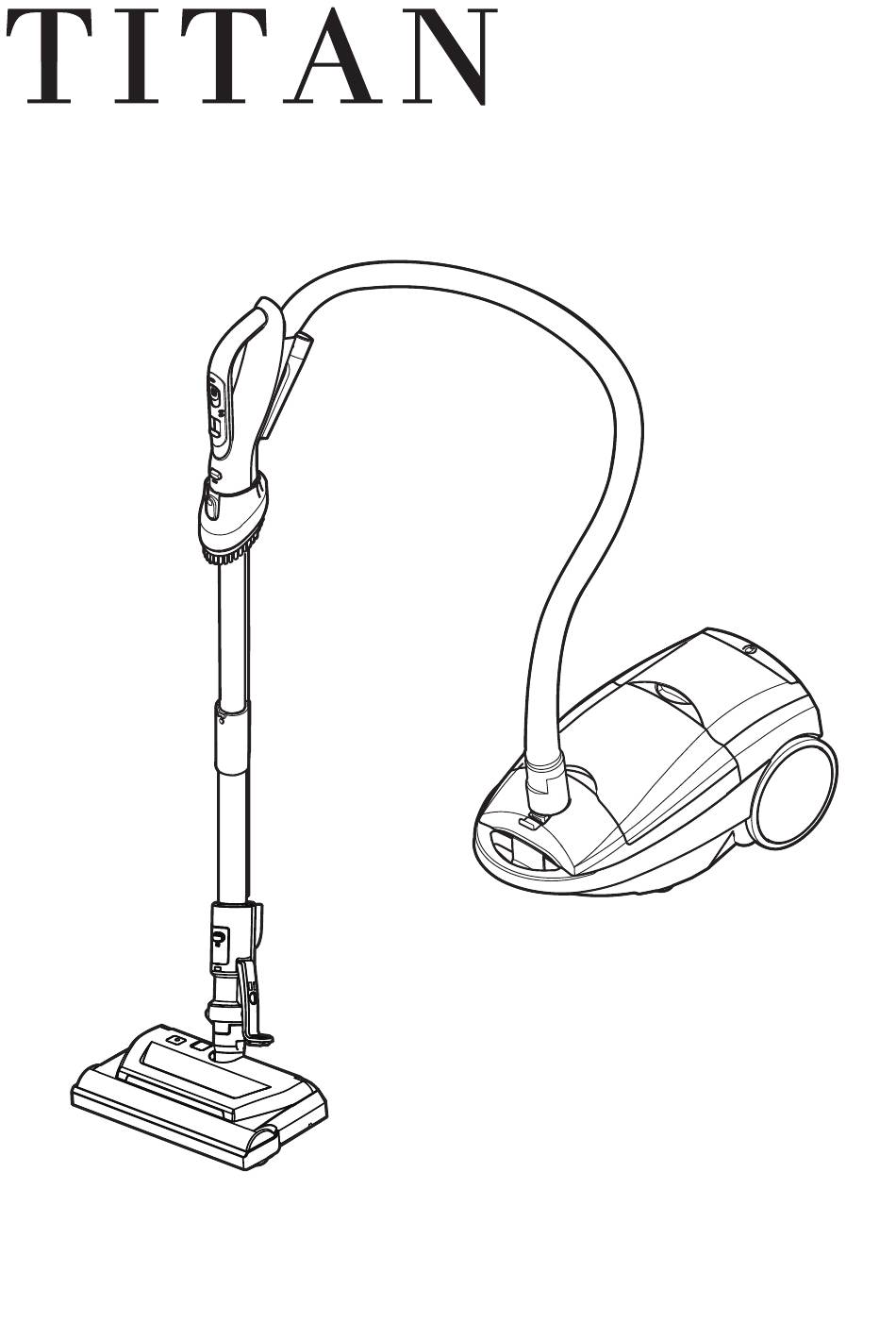

  • Page 1 User's Manual TITAN T9400 DELUXE CANISTER VACUUM...

  • Page 2: Table Of Contents

    TitanVacs.com. Please have your model number and serial number available to complete the registration process. Your vacuum cleaner’s model and serial numbers are located on the label. Use the space below to record the model number and serial number of your new TITAN Vacuum cleaner. Model No.

  • Page 3: Titan Vacuum Cleaner Warranty

    4. Damage to or failure of this appliance resulting from installation not performed by Titan Vacuums authorized service agents, including installation that was not in accordance with electrical, gas or plumbing codes.

  • Page 4: Important Safety Instructions

    1. Use your vacuum cleaner only as described in this guide. Use only with Titan Vacuums recommended attachments. 2. Disconnect electrical supply before servicing or cleaning out the brushroll area. Failure to do so could result in the electrical shock or brushroll suddenly starting.
  • Page 5 20. Do not use the vacuum cleaner to pick up sharp hard objects, small toys, pins, paper clips, etc. They may damage the vacuum cleaner. 21. Do not operate the vacuum cleaner without the exhaust filter or filter door in place. The hose contains electrical wires.

  • Page 6: Parts And Features

    PARTS AND FEATURES It is important to know your vacuum cleaner’s parts and features to ensure its proper and safe use. Review these before using your vacuum cleaner. Handle & Hose Assembly Canister Upper Wand Lower Wand Motorized Nozzle...

  • Page 7: Replacement Parts

    MOTORIZED NOZZLE & WANDS Upper Lower Wand Wand Tool Release Brushroll Wand Quick Status Release Indicator Headlight Pedal Height Adjustment and Lens Indicator Handle Furniture Release Guard Pedal Height Adjustment Edge Cleaner (Not Pedal Shown) Wood Belt Brushroll REPLACEMENT PARTS Item Part No.
  • Page 8 HANDLE & HOSE ASSEMBLY 3-Way On/Off Switch Off/Floor/Carpet Electronic Suction Control Handle Wand Hose Release Brush Tool Crevice Tool (pre-installed) Dusting Brush Hose Swivel CANISTER Pet Pickup Tool Cord Rewind Button Bare Exhaust Filter Cover Floor Brush (Exhaust Filter inside) Power Cord Check Bag Indicator...

  • Page 9: Assembly Instructions

    Please pay special attention to these hazard alert boxes, and follow any instructions given. WARNING statements alert you to such dangers as fire, electric shock, burns and personal injury. CAUTION statements alert you to such dangers as personal injury and/or property damage. ASSEMBLY INSTRUCTIONS WARNING Electrical Shock Hazard...
  • Page 10 HOOD AND TOOL STORAGE COVER It is normal for the canister hood and tool storage cover to come off when opened further than needed. Line up the hinge slots, insert the hinges into the slots, and close the hood and tool storage cover to reinstall. CAUTION Never open canister hood with the tool storage cover open.
  • Page 11 WANDS 1. Insert the upper wand into the lower wand until the lock button snaps in place. To remove: Press the lock button and pull wands apart. Upper Wand Lock Button Cord Holder Lower Wand 2. Insert the plug of the cord into the plug holder as shown. DO NOT force. Raised area of the plug must be towards hand.
  • Page 12 HANDLE Insert the wand into the handle until the wand locks into place. Make sure the hose is not twisted. To remove: Press the wand release button and pull up on the handle. The dusting brush can be stored on the hose handle by placing on hose handle before the upper wand.

  • Page 13: Operating Instructions

    OPERATING INSTRUCTIONS CAUTION Moving parts! To reduce the risk of personal injury, DO NOT touch the brushroll when vacuum cleaner is on. Contacting the brushroll while it is rotating can cut, bruise or cause other injuries. Always turn off and unplug from electrical outlet before servicing.
  • Page 14 2. Plug the polarized power cord into a 120 Volt outlet located near the floor. To rewind: Turn off and unplug the vacuum cleaner. Hold the plug while rewinding to prevent damage or injury from the moving cord. Push the cord rewind button. 3.

  • Page 15: Vacuuming Tips

    NOTE ： When this switch is in the HARDFLOOR position the nozzle headlight DOES NOT function since no electricity flows to the motorized nozzle. CAUTION DO NOT leave the motorized nozzle running in one spot for any length of time. Damage to carpet may occur.
  • Page 16 CAUTION Product Damage Hazard Use care if the motorized nozzle and wand is left in the upright position as it may tip over easily. Property damage can occur if tipped. WARNING Personal Injury and Product Damage Hazard • DO NOT run over power cord with motorized nozzle. Personal injury or product damage could result.

  • Page 17: Edge Cleaner

    functions and the canister is resting securely on the stairs when the canister is placed on residential stairs. EDGE CLEANER Active brush edge cleaners are on both sides of the motorized nozzle. Guide either side of the nozzle along the wall or next to furniture to help remove dirt trapped at carpet edges. HOSE SWIVEL The 360°...
  • Page 18 ATTACHMENTS CAUTION DO NOT attach or remove handle or wands while vacuum cleaner is ON. This could cause sparking and damage the electrical contacts or electronic controls. ATTACHMENTS ON HANDLE NOTE: If the motorized nozzle is attached, turn the vacuum cleaner off before removing the handle from the wand.
  • Page 19 NOTE: To remove the dusting brush, press the brush release button and slide off. Brush Release NOTE: To remove bare floor brush and/or pet pickup tool, press the wand release button and slide off. Wand Wand Release Release ATTACHMENTS ON WAND 1.
  • Page 20 3. Put attachments on the wand as needed. See ATTACHMENT USE TABLE (page 22). Wand Wand Wand Wand Dusting Brush Bare Floor Brush Dusting Brush Bare Floor Brush Pet Pickup Tool Wand Wand Pet Pickup Tool Wand Upholstery Brush Wand Upholstery Brush vice Crevice...

  • Page 21: Dusting Brush

    DUSTING BRUSH The dusting brush is for use on various surfaces. See ATTACHMENT USE TABLE (page 22). To remove the brush tool, release by pressing the tab and lifting off the holder. To attach, insert the tab on holder into the slot on the brush tool and press until the tab snaps into place.

  • Page 22: Attachment Use Table

    2. Align the slot on the flat end of the crevice tool with the tab on the handle. 3. Press the crevice tool onto the handle until the crevice tool snaps into place. ATTACHMENT USE TABLE CLEANING AREA Between Bare Carpeted ATTACHMENTS Furniture...

  • Page 23: Attachment Storage

    ATTACHMENT STORAGE Pet Pickup Tool This canister is equipped with an on-board storage area for a Pet Pickup Tool attachment. To Store: 1. Open the Pet Pickup Tool storage cover. 2. Insert the Pet Pickup Tool and press down until it clicks into place. 3.

  • Page 24: Vacuum Cleaner Storage

    VACUUM CLEANER STORAGE 1. Store the vacuum cleaner in upright position. With the motorized nozzle attached, store the wand into the slot located on the bottom of the canister as shown. 2. Press the cord rewind button to rewind the power cord. 3.

  • Page 25: Thermal Protector

    To correct the problem: Turn off the vacuum cleaner, remove the obstruction, then turn on the vacuum cleaner again. The brushroll status indicator will be off. If the problem persists, have the vacuum cleaner serviced by a Titan Vacuums or other qualified service agent.

  • Page 26: Removing Clogs

    REMOVING CLOGS REMOVING CLOGS The vacuum cleaner creates suction that picks up dirt. Rapidly moving air carries the dirt to the dust bag through the airflow passages. The dust bag lets the air pass through, while it traps the dirt. For best cleaning results, keep the airflow passage open.

  • Page 27: Cleaning Exterior And Attachments

    CLEANING EXTERIOR AND ATTACHMENTS 1. Turn off and unplug the vacuum cleaner. DO NOT drip water on the vacuum cleaner. 2. To clean the exterior, or to reduce static electricity and dust build-up, wipe the outer surface with a clean, soft cloth that has been dipped in a solution of mild liquid detergent and water, then wring dry.

  • Page 28: Replacing Dust Bag

    5. Pull bag out of the bag mount and dispose of dust bag. NOTE: Check the motor safety filter and replace, if necessary. (See MOTOR SAFETY FILTER CLEANING, page 29). NOTE: The bag mount will flip forward after removing bag. This will prevent the hood from closing until a new bag is installed.

  • Page 29: Motor Safety Filter Cleaning

    MOTOR SAFETY FILTER CLEANING Check motor safety filter occasionally and clean when dirty. WARNING Electrical Shock Hazard Turn off and unplug vacuum cleaner from electrical outlet. Do not operate the vacuum cleaner without the motor safety filter. Be sure the filter is dry and properly installed to prevent motor failure and/or electrical shock.
  • Page 30 WARNING Fire and/or Electrical Shock Hazard Do not operate with a clogged exhaust filter or without the exhaust filter installed. Do not operate without filter cover installed. 1. Pull out and down on the exhaust filter cover to remove from the canister and lay aside. 2.

  • Page 31: Motorized Nozzle Care

    MOTORIZED NOZZLE CARE Always follow all safety precautions when performing maintenance to the motorized nozzle. WARNING Electrical Shock or Personal Injury Hazard Always turn off and unplug the vacuum cleaner before performing maintenance to the vacuum cleaner. Failure to do so could result in electrical shock or personal injury from vacuum cleaner suddenly starting.
  • Page 32 3. Turn the motorized nozzle upside down. 4. Lift up the front wheels to show the two (2) screws. Unscrew the two screws using a Phillips head screwdriver. Reserve the two screws properly for re-installation. Front wheels Screws 5. Turn the nozzle right side up. Remove the top cover and the headlight cover. Headlight Cover Top Cover 6.
  • Page 33 7. Firmly grasp both sides of the back section of the middle cover and pull out. Remove the middle cover. Wood Brushroll Middle Cover 8. To remove the wood brushroll, first remove its non-belt side. Use a suitable tool (e.g. a flat head screwdriver) to carefully pry off the end cap as shown and release the non-belt side from the base.
  • Page 34 10. Remove the wood brushroll and the worn belt. Wood Brushroll Belt 11. Check and clean the wood brushroll and the belt. See BRUSHROLL ASSEMBLY (page 34) for picture of complete brushroll assembly. TO CLEAN THE BRUSHROLL NOTE: In order to keep high cleaning efficiency and to prevent damage to your vacuum cleaner, the brushroll must be cleaned every time the belt is changed.

  • Page 35: To Replace Belt

    TO REPLACE BELT NOTE: To use replacement belt, see part number detail in REPLACEMENT PARTS (page 7). 1. Install the new belt over the motor drive, then over the belt path. Belt Path Belt Motor Drive 2. Install the belt side of the brushroll back into the base. Replace the end cap into position and then press down firmly as shown until it is locked into place.
  • Page 36 5. Press firmly on both sides of the middle cover back section until it snaps into place. 6. Align the headlight cover with the top cover and insert the headlight cover into the top cover. Make sure the rib on the top cover and the headlight cover are connected into place. 7.
  • Page 37 BRUSHROLL SERVICING WARNING Electrical Shock Or Personal Injury Hazard Always turn off and unplug vacuum cleaner before performing maintenance to the vacuum cleaner. Failure to do so could result in electrical shock or personal injury from vacuum cleaner suddenly starting. TO CHECK THE BRUSHES When brushes are worn to the level of the base support bars, replace the brushroll assembly.

  • Page 38: Troubleshooting

    TROUBLESHOOTING Review this table to find do-it-yourself solutions for minor performance problems. Any other service needed should be performed by a Titan Vacuums or other qualified service agent. WARNING Always turn off and unplug the vacuum cleaner before performing maintenance to the vacuum cleaner.
  • Page 39 Wrong hose or hood Check connections; reconnect hose ends electrical connections. (page 10). Turn off the vacuum cleaner and remove any items that may be caught or jammed, then Vacuum cleaner Tripped overload restart the vacuum cleaner. If the vacuum starts but shuts protector in the motorized cleaner starts and stops again, clean the...
  • Page 40 Adjust the electronic suction control to Suction too strong. pushes too decrease suction (page 15). hard. Have the vacuum cleaner serviced by a Titan Headlight will Burned out LED light. Vacuums or other qualified service agent to not work. change the LED light.
