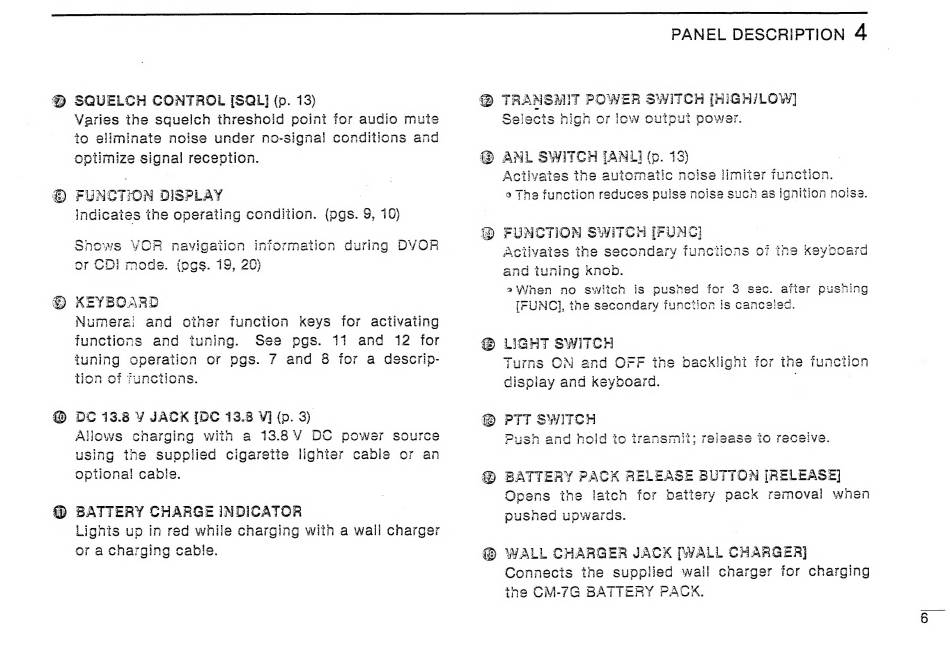

PANEL DESCRIPTION 4
Q TRANSMIT POWER SWITCH [HIGH/LOW]
1
Selects nign or low output power.
D ANL SWITCH]
Activates the automatic noise limiter function
ə The function reduces pulse noise sucn as ignition noises
ios me ‫وس‬‎ de
and tuning knob.
ə When no switch is pushed for 3 sec. after pushing
[FUNC], the secondary function isc
LIGHT SWITCH
Turns ON and OFF ihe backlight for the function
dispiay and keyboard.
@ BATTERY PACK RELEASE BUTTON [RELEASE]
Opens ihe latch
for battery pack
removal when
pushed upwards.
WALL CHARGER JACK [WALL CHARGER]
Connects
the supplied wall charger
for charging
ihe CM-7G BATTERY PACK.
SQUELCH CONTROL [SQL] (p. 13)
Varies the squelch threshold point for audio mute
to eliminate noise under no-signal conditions anc
optimize signal reception.
FUNCTION DISPLAY
indicates the operating condition. (pgs. 9, 10)
Snows VOR navigation information during DVOR
or CDi mode. (pgs. 19, 20)
KEYBOARD
Numera: and other function keys for activating
See pgs. 11 and 12 for
a descrip-
functions and tuning.
tuning operation or pgs. 7 and 8 for
tion of functions.
DC 13.8 V JACK [DC 13.8 V] (p. 3)
Allows charging with a 13.8V DC power sourc
using the supplied cigaretie lignier 8
optional cable.
or an
BATTERY CHARGE INDICATOR
Lights up in red while charging with a wall charger
or a charging cable.
