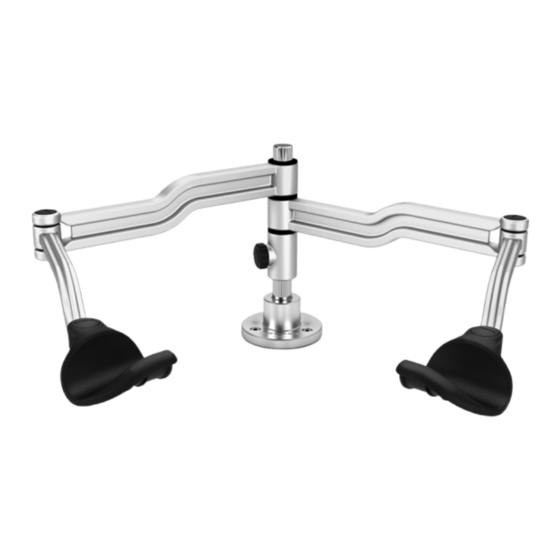

  • Page 1 INSTRUCTION MANUAL 130 mm RHTD Articulated Table-Mounted Double Hand Rest...

  • Page 2: Packing List

    This manual corresponds to the following reference: RHTD-A Packing List The following items are included: Articulated Right Hand Articulated Left Hand Arm ........1 unit Arm ........1 unit Flange ......1 unit Allen Key ......1 unit Flange Nut ....3 units...
  • Page 3 para manuales - color gris 200 mm Features 130 mm 130 mm 100 mm Shaft Hand Rest Arm 80 mm Height Adj. Flange Headless Screw 60 mm 50 mm Flange Screw (Washer and Nut below) 40 mm Flange Hand Rest Assembly Fixing the Flange Fix the flange on your work table with the supplied screws, nuts and washers.

  • Page 4: Height Adjustment

    Assembly Fit the shaft into the flange bushing (1) and tighten the headless screw at the rear (2). Then, assemble first the height adjustment flange (3) and then the right hand rest arm (4) onto the shaft. Finally place the left hand rest arm on top (5).

  • Page 5: Hand Position

    200 mm Work Position Adjustment 130 mm 130 mm 100 mm 80 mm 60 mm RHTD allows adjustment for different positions The articulated arm covers the entire working 50 mm according to your work needs. area. 40 mm Hand Position...
  • Page 6 Workplace Example HRR and HRL can be combined with: RWT* Adjustable Rework Arm, RWS* Adjustable Rework Arm for PHSE and RWB* Adjustable Rework Arm for PHBE. Assemble first the height adjustment flange (1), then HRR (2) and afterwards HRL (3). Assemble the second height adjustment flange (4) and finally RWT (5).

  • Page 7: Maintenance

    - Replace any defective damaged parts. Use original JBC spare parts only. 80 mm - Repairs should only be performed by a JBC authorized technical service. 60 mm Do not leave the RHTD over the preheater when it is in operation.

  • Page 8: Specifications

    18.66 x 14.49 x 7.68 in / 8.12 lb Complies with CE standards. ESD Safe. Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labor. Warranty does not cover product wear or misuse.
