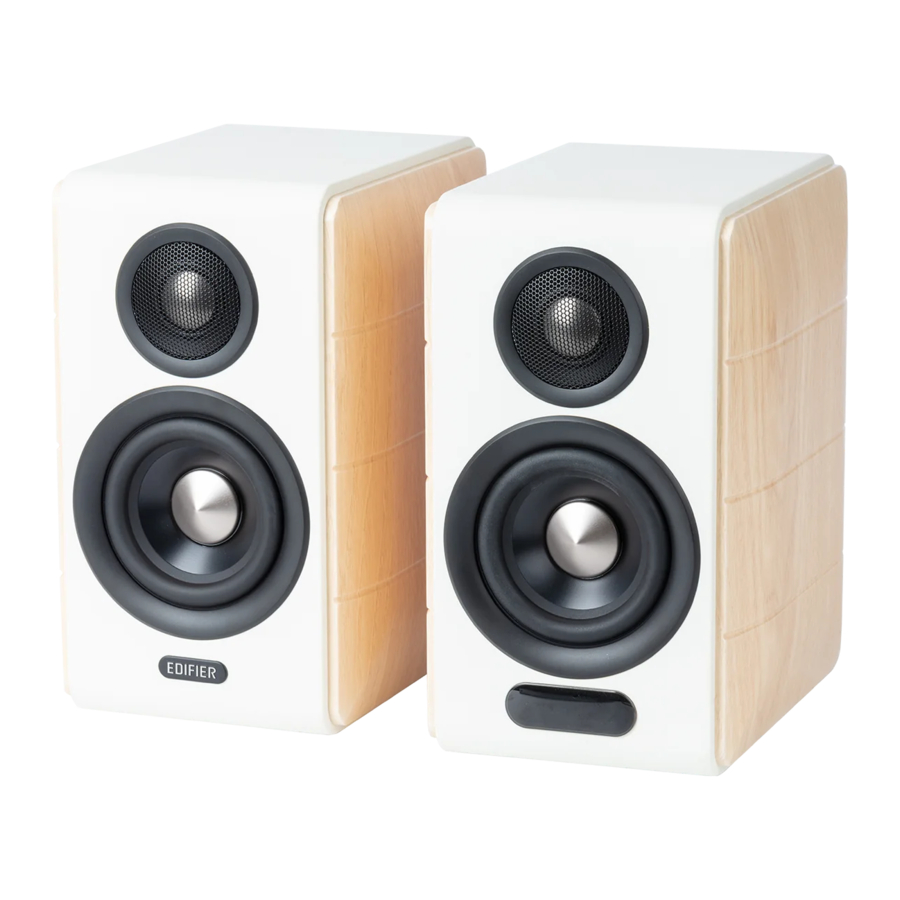

EDIFIER S880DB MKII Manual

EDIFIER ConneX app

With this app, you can

• Switch input modes,
• Control play,
• Select or customize EQs,
• Upgrade the firmware, and
• More functions.

EDIFIER ConneX app

Download EDIFIER ConneX app

1. With your smart device, scan the QR code on the quick start guide or the packaging.

• You can also search for "EDIFIER ConneX" in Apple App Store (iOS devices) or Google Play (Android devices).

2. Download and install the app.

How to use this app

1. Connect your smart device with the speaker via Bluetooth.
2. In Bluetooth mode, open EDIFIER ConneX App on your smart device.
3. Tap the menu for settings and playback control.
   Note: The BLE connection between your smart device and the speaker remains active even if the speaker is switched to non-Bluetooth input modes.

What's in the box?

Note:

• Images are for illustrative purposes only and may differ from the actual product.
• For the need of technical improvement and system upgrade, information and specifications contained herein may be slightly different from actual product. If any difference is found, the actual product prevails.

Cable connection

Note:
* Power input: 100-240V~ 50/60Hz 400mA
* This plug type is meant for illustration purpose only.
** The subwoofer is not bundled. To connect it with a subwoofer, another suitable audio cable may be required.

• For initial use, connect the remote control to a charger (5V 1A) to activate it first. The indicator will turn green after the remote control is activated.
• The remote control will enter power-saving mode if there is no operation in 10 seconds. To wake it up, reach your hand to it. The indicator on the remote control will turn green.
• If the battery level is lower than 5%, the indicator will turn red. After the remote control is fully charged, the indicator will turn off.

Power on/off

Power on: Switch the main power button on the rear panel to "ON".
Power off: Switch the main power button to "OFF".

• To switch the speaker to standby mode or work mode, tap and hold the "" button on the remote control or press and hold the "Volume/Source" knob on the rear panel.

Input source selection

Press the "Volume/Source" knob on the rear panel or tap the " " button on the remote control to switch between input sources.

Input Source	OLED Display
USB-C input port	USB
Line In 1 input port	Line In 1
Line In 2 input port	Line In 2
Bluetooth input
OPT input port	OPTICAL
COAX input port	COAXIAL

Note: You can also tap the " " button on the remote control to switch to Bluetooth input.

Bluetooth connection

1. Switch to Bluetooth input. " " will blink rapidly on the OLED display.
2. On your device, select "EDIFIER S880DB MKII" in its Bluetooth device list to connect, and " " will be displayed constantly when the connection is established.
   • To disconnect from the current Bluetooth device, double press the "Volume/Source" knob on the rear panel, or tap and hold the " " button on the remote control.


Note:

• USB interface of the speaker is built on USB Audio Class 2.0, which supports high-resolution audio with sample rate up to 192kHz. For a computer running Windows 8 or earlier versions, a driver needs to be installed. You can visit www.edifier.com, search for "S880DB MKII", go to its detail page, scroll down to the support information, and click the link to download the driver.
• For further information about the driver, access the following link for details: https://www.xmos.com/support/usb-audio-driver-support.
• Make sure that S880DB MKII is set as the audio output device.
  1. For Windows users, access "Control Panel"→"Sound"→"Play"→"Set as Default" to set "EDIFIER S880DB MKII" or "XMOS USB Audio" as the current audio output device.
  2. For Mac users, access "System Preferences"→"Sound"→"Output" to select "EDIFIER S880DB MKII" as the current audio output device.
  • In USB mode, the following sample rates are supported: 44.1kHz, 48kHz, 96kHz, and 192kHz.

Button	Action
	Tap to pause or resume the playback in Bluetooth or USB mode.
	Tap to mute or unmute the speaker in Line In 1/Line In 2/ Optical/Coaxial modes.
	Tap to switch between audio effects.

Button	Action
	Swipe from " " to " " to skip to the next track in Bluetooth or USB mode.
	Swipe from " " to " " to skip to the previous track in Bluetooth or USB mode.

Specifications

Total output power (RMS): R/L (Treble) 12W+12W
R/L (Mid-range and bass) 32W+32W
Frequency response: 50Hz-40kHz
Declaration for EU
Frequency Band: 2.402GHz ~ 2.480GHz
RF Power Output (Speaker): ≤ 13 dBm (EIRP)
RF Power Output (Remote control): ≤ 4 dBm (EIRP)
There is no restriction of use.

Troubleshooting

Cannot connect to your Bluetooth device

• Make sure that the distance between this product and your Bluetooth device is less than 10 meters and there are no obstacles between them.
• Make sure that no device is connected to this product via Bluetooth.
• Make sure that this product is in Bluetooth pairing mode. If not, manually switch it to this mode.
• Restart this product, enable Bluetooth function on your Bluetooth device, and then try again.
• Reset this product to factory settings and try again.

No power

• Make sure that the power cable is properly connected.
• Make sure that the power supply is not disconnected.
• Make sure that the main power button on the rear panel is switched to "ON".

No sound

• Make sure that this product is powered on.
• Make sure that this product and your device is properly connected.
• Make sure that the playback is not paused.
• Make sure that this product and your device are not muted.
• Increase the volume of this product and your device.

Noise coming from speakers

• EDIFIER speakers generate little noise, while the background noise of some audio devices are too high. Please unplug audio cables and turn the volume up. If no sound can be heard at 1 meter away from the speaker, there is no problem with this product.
