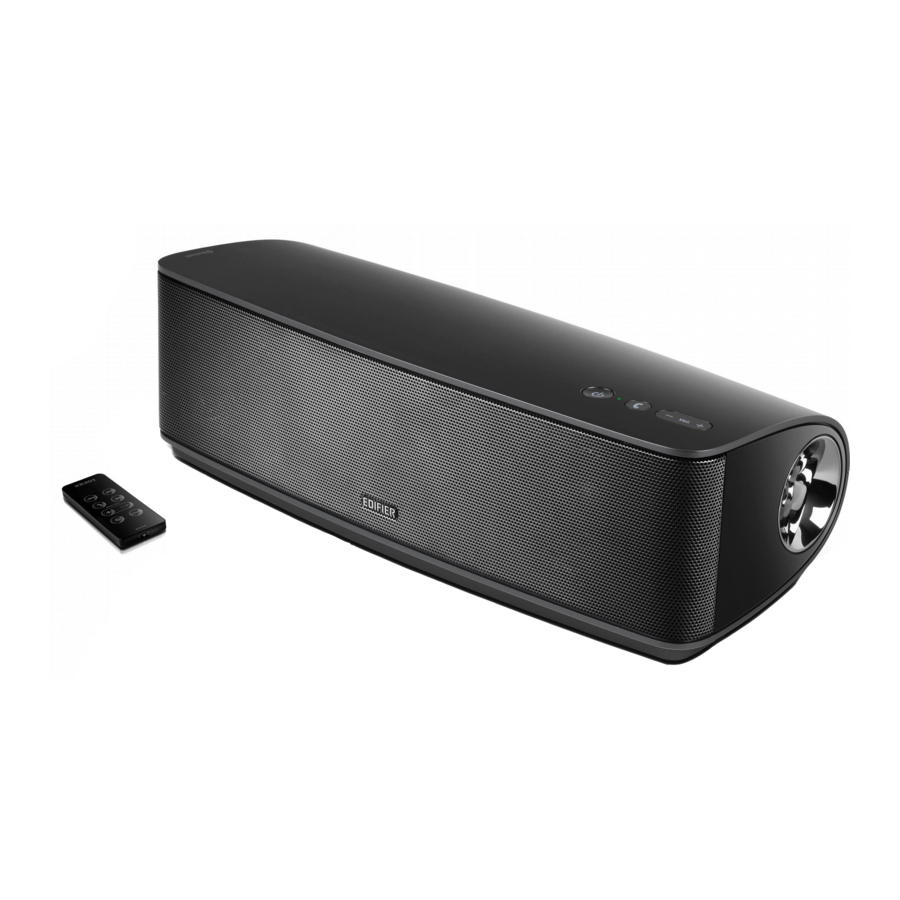

Edifier iF335BT Plus - Multimedia Speaker Manual

Important safety instruction

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

Thank you for purchasing this Edifier product. For generations, Edifier tries to provide powered speaker products to satisfy the need of our end customers, even the most demanding ones. This product can add to your home entertainment, personal computer, and mini home theater great sound performance. Please read this manual carefully to obtain the best of this system.

The lightning flash with arrowhead inside the triangle, is intended to alert the user to the presence of un-insulated dangerous voltage within the product's enclosure that may be of a sufficient magnitude to constitute a risk of electric shock to persons.

RISK OF ELECTRIC SHOCK
DO NOT OPEN
The exclamation point inside the triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

To prevent the risk of electric shock, do not remove cover (or back). No user-serviceable Parts inside. Refer servicing to qualified Service personnel only.

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Unplug this apparatus during lightning storms or when unused for long periods of time.
13. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
14. The MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

DO NOT INGEST BATTERY, CHEMICAL BURN HAZARD
This product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just 2 hours and can lead to death.
Keep new and used batteries away from children, if the battery compartment does not close securely, stop using the product and keep it away from children.
If you think batteries might have been swallowed or placed inside any part of body, seek immediate medical attention.
The battery (in remote control) shall not be exposed to excessive heat such as sunshine, fire or the like.

Unpack the Box

Box contents

Illustrations

1. ON Press
   Standby: Press and hold
2. LED Indicator:
   Green: AUX input
   Blue: Bluetooth input
3. Volume decrease / increase
4. Phone key
   Press: answer/end the phone call
   Press & hold:
   1. decline the incoming phone
   2. disconnect Bluetooth
5. Microphone
6. IR remote control receiver
7. AUX:
   AUX input (PC sound card, MP3/MP4 player etc.)
8. DC IN (12V):
   Connect to power adapter
9. Charging indicator
   less than 30% power: LED indicator is on steady
   30%-60% power: LED indicator circularly blinks
   60%-90% power: LED indicator circularly blinks twice by twice
   90%-100% power: LED indicator circularly blinks three by three times
   Fully charged: LED indicator is OFF
10. Remote control storage

Remote control & Power on

1. Audio input selection
2. Standby/On
3. Volume decrease
4. Volume increase
5. Play/Pause
6. Press: answer/end the phone call
   Press & hold: decline the incoming phone call
7. Previous track
8. Next track

Battery loading: Please refer to the illustration to open the battery compartment, insert the CR 2025 battery and close the compartment.

Note:

1. Do not place the remote control in places that are hot and humid.
2. Do not charge the batteries.
3. Remove the batteries when unused for long period of time.
4. The battery should not be exposed to excessive heat such as direct sun, fire or similar.
5. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

Power on
Connect the power adapter to the rear panel of the speaker, and then to the wall socket. The system is on and the indicator is green.

Operational guide

Bluetooth

2. Set you device (mobile phone, tablet device, MP3/MP4 player etc.,) to search and select "EDIFIER iF335BT Plus". Pair your device with the "EDIFIER iF335BT Plus".

3. Play the music on the paired device and adjust the volume to a desired level.

4. Press: answer/end the phone call
   Press & hold: decline the incoming phone call


• When answering call, press & hold this key to switch to answering mode for your phone.
• While in Bluetooth mode, press & hold this key to disconnect Bluetooth, and the system will automatically switch to AUX mode.

Note: Bluetooth connectivity and compatibility may be different between different source devices, depending on the software versions of source devices.

Note:

1. "Previous/Next track" are available only for devices that support AVRCP (Audio / Video Remote Control Profile).
2. When connecting to a Bluetooth device (e.g. mobile phone), please ensure the source device supports A2DP (Advanced Audio Distribution Profile).
3. PIN code for connection is "0000" if needed.

AUX input

2. Connect the 3.5mm-3.5mm AUX cable to the AUX port on the back panel to your external PC sound card, MP3/MP4 player or other audio source with the 3.5mm audio port.

3. Play the connected device and adjust the volume to a desired level.


Available keys

Specifications

Power output:	RMS 6W×2
Signal to noise ratio:	85 dBA
Distortion	0.5%
Input sensitivity:	550mV ± 50mV
Frequency response:	170Hz~20KHz (+/-8db)
Input type:	AUX/Bluetooth
Adjustment:	Buttons, Remote control
Speaker unit:	2¾ inch (70mm)

Troubleshooting

• Switch the EDIFIER iF335BT Plus off then on and reconnect to the audio source.
• Ensure Bluetooth function is enabled on your Bluetooth devices.
• Move the devices closer and retry the connection.
• Try another Bluetooth device for connection.
• Check the power cord connection and make sure the wall outlet is on.
• Switch the system off then on and reconnect to the audio source.
• Confirm that the system is ON and not in STBY mode.
• Check the master volume and confirm that it is turned up.
• Check for proper connections of the audio input cable.
• Check audio source to confirm that it is functioning properly.

Thank you for purchasing this EDIFIER product. For warranty information regarding your new purchase please visit www.edifier.com

If you have any further questions or concerns regarding EDIFIER Products anywhere in the world. please visit our website at: www.edifier.com or email EDIFIER Support for further assistance at: main@edifier.com.

To contact us by phone : 1-877-EDIFIER (334-3437) in US and Canada; for South America: Please visit www.edifier.com (English) or www.edifierla.com (Spanish/Portuguese) for detailed local contact information.

Suit 2207, 22nd floor,
Tower II,Lippo centre,
89 Queensway
Hong Kong

Tel: +852 2522 6989
Fax: +852 2522 1989
www.edifier-international.com
© 2016 Edifier International Limited. All rights reserved.
Printed in China

NOTICE: For the need of technical improvement and system upgrade, information contained herein may be subject to change from time to time without prior notice.
Products of EDIFIER will be customized for different applications. Pictures and illustrations shown on this manual may be slightly different from actual product. If any difference is found, the actual product prevails.
