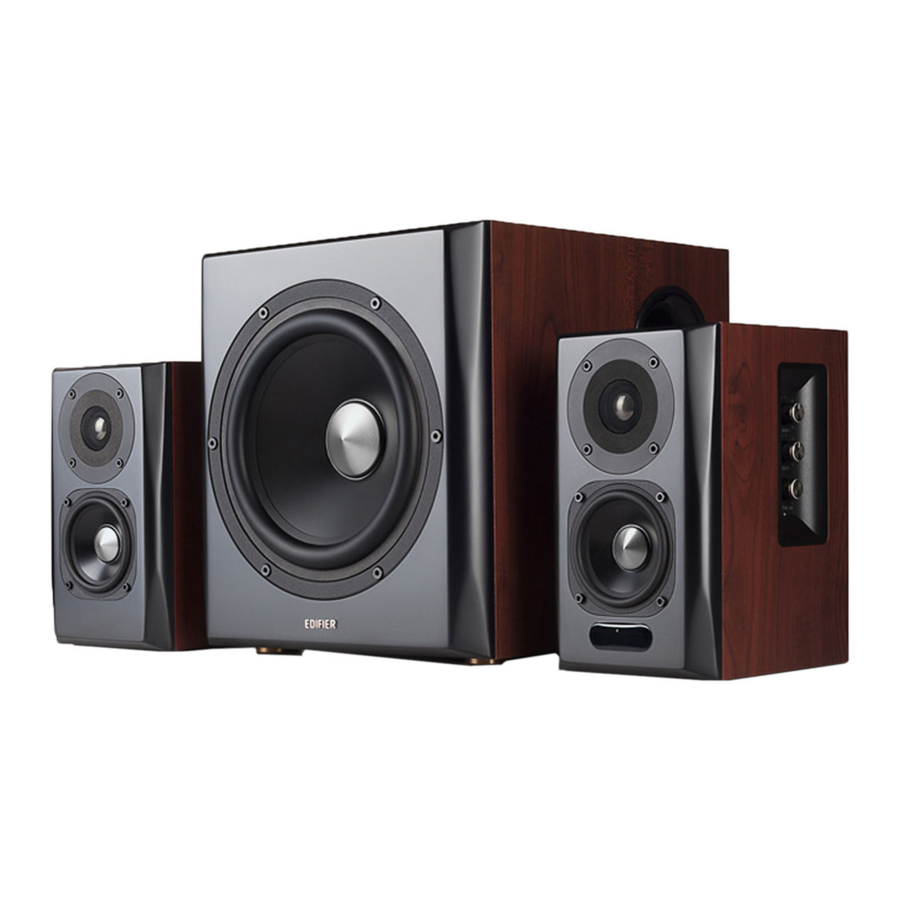

EDIFIER S350DB Manual

What's In The Box

Box Contents:

Speaker Controls

Speaker Controls Overview

  1. Power switch
  2. Power cable connector
  3. PC input
  4. AUX input
  5. Optical input
  6. Coaxial input
  7. Connect to satellite speaker (R)
  8. Connect to satellite speaker (L)
  9. Connect to subwoofer
  10. Display screen
  11. Treble volume dial
  12. Bass volume dial
  13. Master volume dial/input selection
    Press it to navigate between audio inputs: PC > AUX > Optical > Coaxial > Bluetooth.
    Press and hold to enable and disable the standby function
  14. Power indicator

Remote control

Remote control overview

  1. ON/OFF
  2. Optical input
  3. Coaxial input
  4. Bluetooth input
  5. PC input
  6. AUX input
  7. Previous track
  8. Volume increase
  9. Volume decrease
  10. Play/pause
  11. Next track

Installation and replacement of controller battery:
As the illustration, please insert a coin into the slot and rotate anticlockwise to the "" position to open battery cover, then place the CR2025 battery and rotate clockwise to the "" position to close the cover.

  1. Don't swallow the battery; danger of chemical burn.
  2. The product includes a wafer battery. Swallowing this battery may lead to injury or death. Do not place the new or old battery in where children can get to it.
  3. Don't use the product if the battery cover is missing or not closed, and keep the remote inaccessible to children.
  4. Please go to the hospital immediately if the battery is swallowed.

Note:

  1. Do not place the remote control in places that are hot and humid.
  2. Do not charge the batteries.
  3. Remove the batteries when unused for a long period of time.
  4. The battery should not be exposed to excessive heat such as direct sun, fire or similar.
  5. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

Connections

Connections

Optical and Coaxial Input

Optical and Coaxial Input

  1. Press the master volume control on the active satellite speaker or press the "OPT/COX" button on the remote control to select optical/coaxial input.
  2. Using optical or coaxial cable (optical cable included) to connect audio sources to your speaker.
  3. Play from your devices and adjust the volume accordingly.

Note:
In optical and coaxial modes, only PCM signal with 44.1KHz/48KHz can be decoded.

PC/AUX Input

PC/AUX Input

  1. Press the master volume control on the active satellite speaker or press the "PC/AUX" button on the remote control to select PC/AUX input.
  2. Use the audio cable to connect audio sources (mobile phones, tablets etc) to your speaker.
  3. Play from your device and adjust the volume accordingly.

Bluetooth Input

Bluetooth Input

Pairing

  1. Turn on speaker and switch to Bluetooth mode by pressing the Bluetooth button on the remote control or press the master volume control on the active satellite speaker until Bluetooth icon comes on.
  2. Go to setup on your source devices (mobile phones, tablets, etc.) and search for nearby Bluetooth devices, you will find "EDIFIER S350DB" in the list.
  3. Pair your device with "EDIFIER S350DB".
  4. Play audio tracks on your device and adjust the volume to a desired level.
  5. To disconnect Bluetooth, press and hold the Bluetooth button on the remote control.

Note:

  1. Bluetooth on the product can be searched and connected only when speaker is ON and switch to the Bluetooth input. When the speaker is switch to other audio inputs, the Bluetooth connection will be disconnected. When switched to Bluetooth input, the speaker will try to connect the last connected Bluetooth source device.
  2. Bluetooth connectivity and compatibility may be different among different source devices, depending on the software version of source devices.
  3. To enjoy the full Bluetooth functions of this product, please ensure your mobile device supports A2DP and AVRCP profile.
  4. PIN code for connection is "0000" if needed.
  5. The built-in Qualcomm® aptX™ decoder in the product helps to achieve better wireless transmission sound quality, therefore please use the device supporting Qualcomm® aptX™ as the audio source.

Specifications

Power output: R/L (treble): 15W+15W
R/L (mid-range and bass): 25W + 25W
SW: 70W
Noise level: ⩽ 25dB (A)
Frequency response range: SW: 40Hz~160Hz
R/L: 160Hz~20KHz
Audio inputs: PC/Auxiliary/Optical/Coaxial/Bluetooth
Frequency Band: 2.402GHz~2.480GHz
RF Power output: ⩽ 20 dBm (EIRP)

There are no restrictions of use.
Note: the rated test frequency is as follows: the treble test is 10KHz, mid-range and bass test is 500Hz, the bass test is 80Hz.

Troubleshooting

Problem Solution
No sound
  • Check if the power indicator light is ON
  • Try to turn up the volume using either the master volume control or remote control.
  • Ensure the audio cables are firmly connected and the input is set correctly on the speakers.
  • Check if there is a signal output from the audio source.
Cannot connect via Bluetooth
  • Make sure the speaker is switched to Bluetooth input. If it is in other audio input modes, Bluetooth will not connect. Disconnect from any Bluetooth device by pressing and holding the volume dial in Bluetooth mode, then try again.
  • Effective Bluetooth transmission range is 10 meters; please ensure that operation is within the range.
  • Try another Bluetooth device for connection.
The S350DB does not turn on
  • Check if main power is connected, or if the wall outlet is switched on.

Important safety instruction

  1. Please read the instructions carefully. Keep it in safe place for future reference.
  2. Use only accessories approved by the manufacturer.
  3. Install the instrument properly by following the instructions in the device connection section.
  4. Using the product in a 0-35 environment is recommended.
  5. To reduce the risk of fire and electric shock, do not expose the product to rain or moisture.
  6. Do not use this product near water. Do not immerge the product into any liquid or have it exposed to dripping or splashing.
  7. Do not install or use this product near any heat source (e.g. radiator, heater, stove, or other devices that generate heat).
  8. Do not place any object filled with liquids, such as vases on the product; neither should any open fire, such as lighted candles be placed on the product.
  9. Do not block any ventilation openings. Do not insert any object into ventilation openings or slots. It may cause fire or electric shock.
  10. Keep sufficient clearance around the product to maintain good ventilation (minimum 5cm is recommended).
  11. Do not force a plug into the jack. Before connection, check for blockage in the jack and whether the plug matches the jack and is oriented to the right direction.
  12. Keep the provided accessories and parts (such as screws) away from children to prevent from being swallowed by mistake.
  13. Do not open or remove the housing yourself. It may expose you to dangerous voltage or other hazardous risks. Regardless the cause of damage (such as damaged wire or plug, exposure to liquid splash or foreign object falling in, exposure to rain or moisture, product not working or being dropped, etc.), the repair has to be performed by an authorized service professional immediately.
  14. Before cleaning the product with dry cloth, always turn off the product and disconnect the power plug first.
  15. Never use strong acid, alkali, gasoline, alcohol, or other chemical solvents to clean the product surface. Use only neutral solvent or clear water for cleaning.

Excessively loud music may lead to hearing loss. Please keep the volume in a safe range.
Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

Power warning:

  1. Place the product near the power outlet.
  2. Before use, make sure that the operating voltage is the same as your local power supply. Correct operating voltage can be found on the product plate.
  3. For safety purpose, unplug the product during lightning storms or when unused for extended periods of time.
  4. Under normal conditions, the power supply may get hot. Please keep good ventilation in the area and exercise caution.
  5. Safety warning labels on the housing or bottom of the product or power adaptor.

shock hazard This symbol is to alert the user to the presence of un-insulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
warning This symbol is to warn the user not to disassemble the enclosure of the product and there is no user-replaceable part inside. Take the product to an authorized service center for repair.
This symbol indicates that the product is for indoor use only.
This symbol indicates that the product is a CLASS II or double insulated electrical device with no earth requirement.
The MAINS plug is used as the disconnect device, the disconnect device shall remain readily operable.

For wireless product:

  1. Wireless product may generate shortwave radio frequencies and interfere with the normal use of other electronic devices or medical equipment.
  2. Turn off the product when it's disallowed. Do not use the product in medical facilities, on airplane, at gas stations, near automatic gates, automatic fire alarm system or other automated devices.
  3. Do not use the product in the vicinity of a pacemaker within a 20cm range. The radio waves may affect the normal operation of the pacemaker or other medical devices.

To learn more about EDIFIER, please visit www.edifier.com
For Edifier warranty queries, please visit the relevant country page on www.edifier.com and review the section titled Warranty Terms.
USA and Canada: service@edifier.ca
South America: Please visit www.edifier.com (English) or www.edifierla.com (Spanish/Portuguese) for local contact information.
