ULTIMATE SPEED UMAP 12000 A2 Manual

List of pictograms used

List of pictograms used
	Read the operating instructions!
	Please note
	Observe warnings and safety instructions!
	The LED bulb is not suitable for domestic room lighting.
-21°C	The LED bulb is suitable for extreme temperatures down to -21°C.
	Protection class 3
	The device is only suitable for indoor operation.
	USB socket
	Alternating voltage in volt
	Made from recycled material
	Packaging material made from corrugated paper
	Risk of serious injury or death!
	Warning: Risk of electric shock! Danger to life!
	Caution! Explosion hazard!
	Don't throw away – recycle!
	Dispose of packaging properly. Do not dispose of the appliance in household waste!
	Protection type
	Protection class 2
	Dispose of batteries in an environmentally friendly manner!
	Direct current
	Frequency of 50/60 Hertz
	Nominal ambient temperature of the charger 40°C.

Introduction

Please familiarise yourself with the product before using it for the first time. To do so, please read through the following operating and safety instructions carefully. This product must be set up or used only by people who have been trained to do so.

KEEP OUT OF THE REACH OF CHILDREN!

Only for petrol motors with a max. 3 litre engine and for diesel motors with a max. 2 litre engine.

Intended use

This portable jump starter with power bank serves as additional support for 12-V vehicle battery systems during starting problems in diesel and petrol vehicles, which is caused by weak, empty or faulty starter batteries. However, the portable jump starter with power bank cannot replace the vehicle battery. If no more than 500 A are needed for starting (max. peak current), the starter lets the user single-handedly start the vehicle when necessary, without additional help from a third party.

This portable jump starter with power bank does not serve as additional support for 6-V batteries.
The portable jump starter with power bank also has 2 USB outputs. This means that mobile phones, satnavs or other USB-enabled devices can also be charged if needed. Keep these instructions in a safe place. Ensure you hand over all documentation when passing the product on to anyone else. Any use that differs to the intended use as stated above is prohibited and potentially dangerous. Damage or injury caused by misuse and disregarding the above warning is not covered by the warranty or any liability on the part of the manufacturer. The device is not intended for commercial use. Commercial use will void the guarantee.

• The LED bulb is not suitable for domestic room lighting.
• The LED bulb is suitable for extreme temperatures down to -21°C.

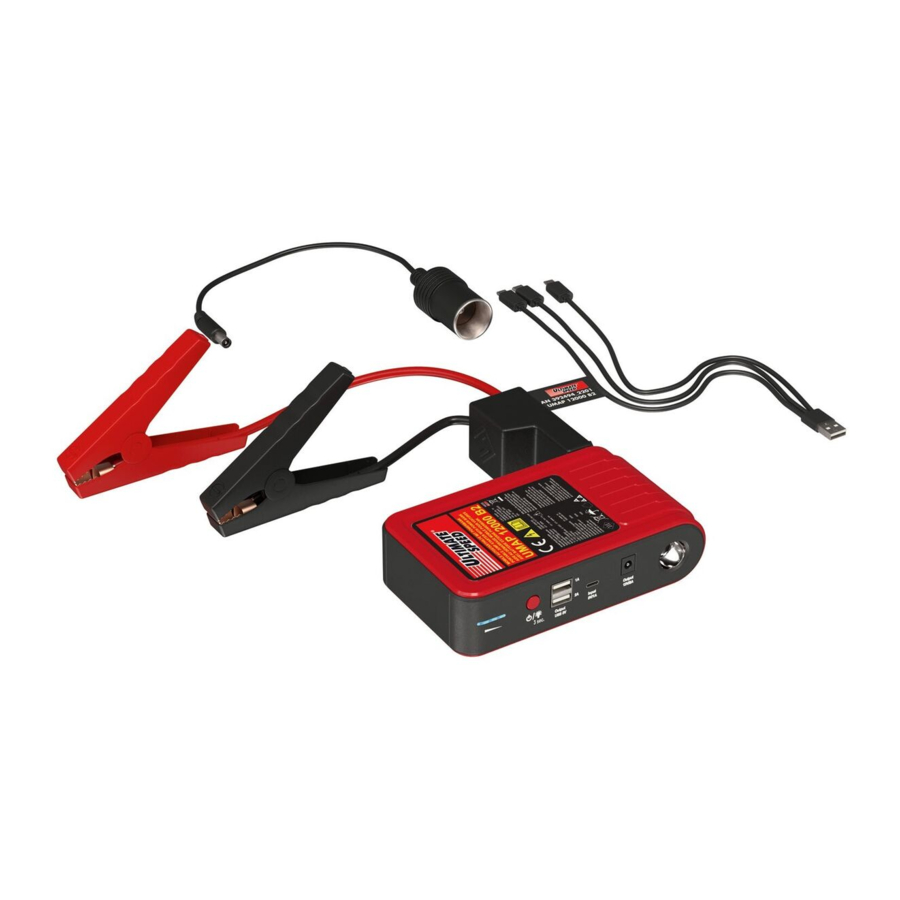

Package contents

1 portable jump starter with power bank
1 3-way USB cable
1 jump lead
1 AC adapter
1 12 V cigarette lighter adapter
1 set of operating instructions
1 storage bag

Parts description

After unpacking the product, please check that all of the package contents are present and that the device is in perfect condition. Do not use the device if it is defective.

1. Portable jump starter with power bank
2. LED light
3. 12 V DC output 8 A
4. Charging connection 5 V / 1A
5. USB output 5 V / 1A
6. USB output 5 V / 2A
7. Power switch
8. Charge status indicator lights
9. Vehicle jumpstart outlet
10. Jump lead
11. Button LED box
12. Start LED
13. Error LED
14. 12 V/8 A cigarette lighter adapter
15. AC adapter
16. 3-way USB cable
    16a. USB C connector
    16b. Mini USB connector
    16c. Micro USB connector
17. Storage bag

Note: The use of the term "product" or "device" in the following text refers to the portable jump starter with power bank named in these operating instructions.

Technical specifications

The four individual cells used to construct the rechargeable battery are connected in series to produce a total voltage of 4 × 3.2V ≈ 12V and a capacity of 3000 mAh. The battery output produced in this way is the same as the output from a rechargeable battery with a total capacity of 12000 mAh at 3.2 V.

Model:	UMAP 12000 A2
Battery, type:	LiFePO4
Battery, capacity:	12000 mAh/ 3.2 V /38.4 Wh
Charge cycles:	1,500
Charging time:	max. 13.5 hours
Peak current:	500 A
Starting current:	300 A
Operating temperature:	0 – 60°C
Voltage:	12 V
Input voltage (charging port):	5 V /1A
Capacity:	7000 mAh/5 V
Output voltage (USB port):	5 V /1A/2A

Power supply

Only for petrol motors with a max. 3 litre engine and for diesel motors with a max. 2 litre engine.

Changes to technical and visual aspects of the product may be made as part of future developments without notice. Accordingly, no warranty is offered for the physical dimensions, information and specifications in these operating instructions. The operating instructions cannot therefore be used as the basis for asserting a legal claim.

General safety instructions

This section covers the basic safety instructions applicable when working with the device.

Personal safety

• This device may be used by children aged 8 years and older, and by persons with reduced physical, sensory or mental capacities, or a lack of experience and knowledge, if they are supervised or have been instructed in how to use the device safely and understand the dangers that may arise when using it. Do not allow children to play with the device. Cleaning and day-to-day maintenance must not be performed by children without supervision.
• Children must be supervised to ensure that they do not play with the device.
• Keep the device away from people – especially children – and household pets.
• Within the working area, the user is responsible for any damage or injury to third parties that was caused by the use of the device.
• Keep the device in a dry location and out of the reach of children.

How to avoid damage to the device and any harm to persons that may result from such damage:

Working with the device

• Do not use the device while driving the vehicle.
• In hot weather, do not leave the device in a car. This could permanently damage the device. Before setup or first use, check the device for any damage and do not use unless in perfect working order.
• Do not expose the device to rain or wet weather and do not allow it to come into contact with water or to be submerged in water. There is a risk of electric shock!
• Keep all openings of the device free during operation. Do not block the openings with your hands or fingers, and do not cover the device. There is a risk of overheating!
• Switch the device off and remove the plug from the socket in the following cases:
  • When you are not using the device;
  • If you are leaving the device un supervised;
  • When you are carrying out cleaning or maintenance work;
  • If the connection cable is damaged;
  • If foreign objects have got into the device or you notice unusual noises.
• Only use the accessories supplied and recommended by the manufacturer.
• Do not dismantle or modify the portable jump starter with power bank. This device must only be repaired by a maintenance technician.
• Do not use the device in areas with a risk of explosion, e.g. near flammable liquids, gases or powders.
• Do not expose the device to any source of heat.
• Do not store in places where the temperature can exceed 70°C.
• Only charge in an ambient temperature between 0°C – 40°C.
• Only use the power adapter as supplied with the device.

How to avoid accidents and injuries resulting from electric shock:

Electrical safety:

• Do not carry the device by the cable. Do not unplug the plug from the socket by pulling on the cable. Protect the cable from heat, oil and sharp edges.
• Do not short-circuit the two crocodile clips. This can lead to a hazardous situation!
• Do not use the device if the switch cannot be switched on and off. Arrange for damaged switches to be replaced.
• If the cable is damaged, unplug the plug immediately from the socket.

Batteries:

EXPLOSION HAZARD!
Do not short-circuit the rechargeable battery and/or open it. This could cause the device to overheat, ignite or explode.

• Do not expose the rechargeable battery to high temperatures. It could explode.
• Regularly check the battery for leakage. Leaking or damaged rechargeable batteries may cause burns to the skin if touched; therefore, always wear suitable safety gloves! Carefully wipe up the liquid with a cloth and avoid contact with skin and eyes. In the event of contact with skin or eyes, rinse immediately with clean water and seek medical attention.

Specific safety instructions

• We recommend charging the portable jump starter with power bank once a month.
• A slightly higher temperature during charging is absolutely normal and not a malfunction. However, we do recommend leaving the portable jump starter with power bank to rest for 15 minutes before using.
• Protect the portable jump starter with power bank from moisture and high temperatures, including fires.
• Store the portable jump starter with power bank in a dry place and protect the device from moisture and corrosion.
• If you notice the portable jump starter with power bank is leaking, producing an unusual odour or looking deformed in any way, stop using the device immediately and contact the manufacturer.
• Do not drop the portable jump starter with power bank while it is being used.
• When using the jump lead , ensure that the blue plug is securely plugged into the vehicle jumpstart outlet .
• When using the jumpstart, make sure that at least 3 indicator lights are illuminated.
• If the indicator lights for charging status go out during the start attempt, charge the portable jump starter with power bank .
• If the vehicle does not start after the 3rd – 5th start attempt, stop the start process and check the other causes that may be preventing the vehicle from starting.

Using the device

Check the capacity of the portable jump starter with power bank

Note: After switching on the portable jump starter with power bank using the power switch the device will switch off automatically after approx. 20 seconds, if a consumer unit is not connected.

• To check the capacity of the portable jump starter with power bank press the power switch .
• During charging, the indicator lights will flash .
• The number of permanently lit indicator lights shows the charge level of the portable jump starter with power bank .
• If the portable jump starter with power bank is completely charged, all indicator lights will light up permanently.

Charge portable jump starter with power bank

• Connect the 3-way USB cable to the AC adapter .
• Connect the 3-way USB cable to the Micro USB connector on the charging connection (5V /1A) of the portable jump starter with power bank .
• Plug the AC adapter into a power socket.

Note: An undervoltage protection circuit is installed in the portable jump starter with power bank to protect the device from damage. This prevents a deep discharge of the portable jump starter with power bank and automatically switches the device off once the battery is fully discharged.

Shortly before the undervoltage protection circuit is activated, the last blue indicator light will start to flash.
As soon as the undervoltage protection circuit is activated, the last blue indicator light flashes and power will no longer be delivered. Please charge the portable jump starter with power bank again.

Using the jumpstart feature

• When using the jumpstart, make sure that at least 3 indicator lights are permanently illuminated.

Step	LEDs	Meaning/ Error	Solution
Connect the jump lead of the portable jump starter with power bank to the jumpstart outlet of the portable jump starter with power bank .	Red Error LED is continuously lit on the jump lead .	The voltage determined in the portable jump starter with power bank is not enough to start the car.	Charge the portable jump starter with power bank .
	Green Start LED and the red Error LED flash alternately.	The portable jump starter with power bank is ready.	Carry on with step 2.
First connect the red clamp (A) to the positive pole of the vehicle battery and then connect the black battery clamp (B) to the negative pole (see Fig. 1).	The red Error LED flashes, a short alarm signal sounds.	The temperature is too high, possibly due to several jump start attempts.	Disconnect the black (B) battery clamp first and then the red clamp (A) from the battery poles. Start again from step 1.
	The red Error LED flashes, a continuous alarm signal sounds.	Battery clamps (A) and (B) are the wrong way round. It is caused by a short circuit or the battery is leaking.
	The red Error LED flashes once, a continuous alarm is sounded and then followed by two short alarm sounds.
	Green Start LED and the red Error LED flash alternately.	The connection is correct	Carry on with step 3.
	After 1–2 seconds only the green LED glows.
Starting up the vehicle.

Fig.1

As soon as the vehicle starts, remove the jump lead from the portable jump starter with power bank within 30 seconds and disconnect firstly the black battery clamp and then the red clamp from the battery poles. Otherwise, it could result in dangerous situations!

• Leave the vehicle engine running.

Note: The button on the LED box of the jump lead has no effect and must not be used. It is only used for troubleshooting purposes during the manufacture of the device.

Charging mobile phones and tablets

• Press the power switch .
• Connect your mobile phone or tablet's USB power cable to the USB output (5 V /1 A /2 A ) and then to your mobile phone or tablet.

Note: Charging is not possible if the portable jump starter with power bank is being charged itself.

Using the 12 V DC output 8 A with cigarette lighter adapter

1. Press the power switch .
2. Connect the 12 V/8 A cigarette lighter adapter on the 12 V DC output 8A to your portable jump starter with power bank and then connect it to your terminal device.

Note: You will not be able to use the portable jump starter with power bank if it is being charged.

Only use the 12 V/8 A cigarette lighter adapter delivered with your product . There is a risk of a short circuit if you use third-party adapters.

Switch on lighting

Light mode

• When switching on the LED lights , hold down the power button for 3 seconds.
• Press and hold the power button again for 3 seconds to turn the LED lights off again.

Flash mode

• To switch on the LED light in flashing or SOS mode, first press and hold the power switch for 3 seconds.
  Then the LED light will be permanently lit.
• Briefly press the power switch once again and the LED light will switch to flashing mode.
• Briefly press the power switch once again and the LED light will switch to SOS mode. There will be 3 short flashes, 3 long flashes and another 3 short flashes.
• Briefly press the power switch once again to switch off the LED light .

Do not look directly at the LED lights as this can damage your eyes.

Note: It is not possible to turn on the light while the portable jump starter with power bank is being charging.

FAQs

Q: How can I switch the device off?
A: The device automatically switches off after 20 seconds of none use. There is no provision for switching it off manually.

Q: How long does it take to fully charge a mobile phone with the device?
A: With a battery power of 2500 mAh:
Approx. 2–3 hours if connected to the USB output 5V /1A . Approx. 1–2 hours if connected to the USB output 5V /2A . Please note that if the device is switched on, it will continually use battery power while actually charging and this can extend the charging time.

Q: How long does the device's battery last?
A: 3–6 months. However, we recommend charging the battery every 1–2 months.

Troubleshooting

= problem
= cause
= remedy

The portable jump starter with power bank is not fully charged, even though all 4 indicator lights are permanently lit.
It is 60% charged after a long period out of use or in storage.
Charge the portable jump starter with power bank again as described in the section: "Charge portable jump starter with power bank".

There is no response to pressing the power button .
The undervoltage protection circuit for the portable jump starter with power bank is activated.
Charge the portable jump starter with power bank again as described in the section: "Charge portable jump starter with power bank".

One indicator light flashes, however the portable jump starter with power bank cannot be used.
The undervoltage protection circuit for the portable jump starter with power bank is activated.
Charge the portable jump starter with power bank again as described in the section: "Charge portable jump starter with power bank".

Cleaning

The device must not come into contact with water or be placed in water. There is a risk of injury due to electric shock if moisture enters the device.

• Do not use cleaners or solvents. These could damage the device beyond repair.
• Keep the housing and device accessories clean.
• Use a damp cloth or a soft brush to clean the device and the accessories.

Storage

• Keep the device in a dry location and out of the reach of children.
• Store the device, including accessories, in the storage bag provided.
