Introduction

Before reading, unfold the page containing the illustrations and familiarize yourself with all functions of the device.

Table of pictograms used

Read the operating instructions!
warning Please note
warning Observe warnings and safety instructions!
The LED bulb is not suitable for domestic room lighting.
The LED bulb is suitable for extreme temperatures down to -21°C.
Appliance class III
The device is only suitable for indoor operation.
DC voltage in volt
Made from recycled material
Packaging material made from corrugated paper
Keep away from rain and moisture!
On/off switch for LED
Risk of serious injury or death!
shock hazard Warning: Risk of electric shock! Danger to life!
Caution! Explosion hazard!
Don't throw away – recycle!
Dispose of the device and packaging in an environmentally friendly manner!
You are legally obliged to place devices marked as such in a collection which is separate from unsorted municipal waste. Disposal through household waste is prohibited.
Direct current

Please familiarise yourself with the product before using it for the first time. To do this, please read through the following operating and safety instructions carefully. This product must be set up or used only by people who have been trained to do so.

KEEP OUT OF THE REACH OF CHILDREN!

warning PLEASE NOTE: Only for petrol motors with a max.
3 litre engine and for diesel motors with a max.
2 litre engine.

Intended use

This portable jump starter with power bank serves as additional support for 12 V vehicle battery systems during starting problems in diesel and petrol vehicles, which is caused by weak, empty or faulty starter batteries. However, the portable jump starter with power bank cannot replace the vehicle battery. If no more than 500 A are needed for starting (max. peak current), the power bank lets the user single-handedly start the vehicle when necessary, without additional help from a third party. This portable jump starter with power bank does not serve as additional support for 6 V batteries. The portable jump starter with power bank also has 2 USB outputs. This means that mobile phones, satnavs or other USB-enabled devices can also be charged if needed. Keep these instructions in a safe place. Ensure you hand over all documentation when passing the product on to anyone else. Any use that differs to the intended use as stated above is prohibited and potentially dangerous. Damage or injury caused by misuse and disregarding the above warning is not covered by the warranty or any liability on the part of the manufacturer. The device is not intended for commercial use. Commercial use will void the guarantee. This product is only intended for standard use.


The LED bulb is not suitable for domestic room lighting.


The LED bulb is suitable for extreme temperatures down to -21°C.

Scope of delivery

  • 1 portable jump starter with power bank
  • 1 USB C cable
  • 1 jump lead
  • 1 12 V cigarette lighter adapter
  • 1 set of operating instructions
  • 1 storage bag

Parts description

warning PLEASE NOTE: After unpacking the product, please check that all of the package contents are present and that the device is in perfect condition. Do not use the device if it is defective.

For this see Fig. A to F:
Parts description

1 Power switch (power bank)

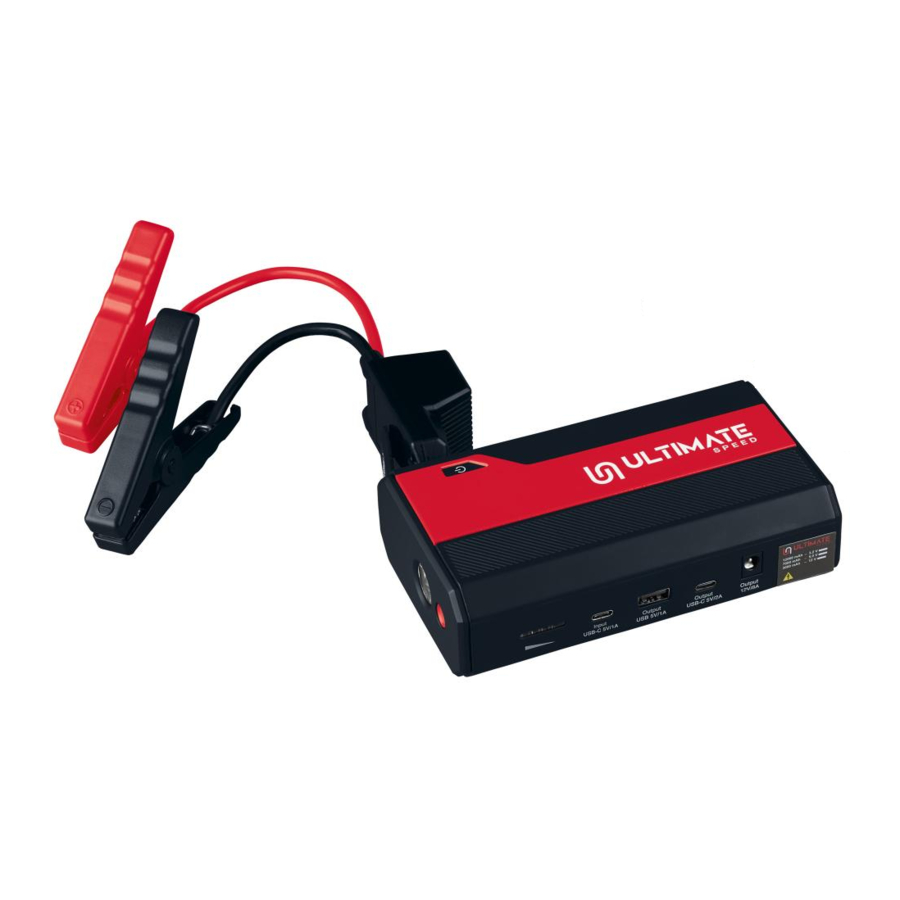

2 Portable jump starter with power bank
3 12 V DC output 8 A
4 USB C port 5 V 2 A
5 USB A port 5 V 1 A
6 Charging port (USB C)
7 Charge status indicator lights
8 Power switch for LED light
8a LED lamp
9 Car jumpstart outlet
10 Jump lead
11 LED box
12 Start LED (green)
13 Error LED (red)
14 12 V/8 A cigarette lighter adapter
15 USB A connector
16 USB C cable
16a USB C connector
17 Storage bag

warning PLEASE NOTE: The use of the terms "product" or "device" in the following text refers to the portable jump starter with power bank named in these operating instructions.

Technical Specifications

The four individual cells used to construct the rechargeable battery pack are connected in series to produce a total voltage of 4 × 3.2V ≈ 12V and a capacity of 3000 mAh. The battery output produced in this way is the same as the output from a rechargeable battery pack with a total capacity of 12000 mAh at 3.2 V.

Model: UMAP 12000 C4
Battery, type: Lithium polymer rechargeable battery pack (F8054106)
Battery, chemical system: Lithium Iron Phosphate (LiFePO4)
Battery, capacity: 12000 mAh / 3.2 V / 38.4 Wh
Charge cycles: 1500
Charging time: max. 13.5 hours at 1A charge current
Peak current: 500 A
Starting current: 300 A
Operating temperature for power bank: 0–45°C
Operating temperature for LED: –21°C – 45°C
Voltage: 12 V
Input voltage (charging port): 5 V / 1A (USB C)
Capacity: 7000 mAh / 5 V
Output voltage (USB port): 5 V / 1A USB A
5 V / 2A USB C

warning Please note: Only for petrol motors with a max.
3 litre engine and for diesel motors with a max.
2 litre engine.

Changes to technical and visual aspects of the product may be made as part of future developments without notice. Accordingly, no warranty is offered for the physical dimensions, information and specifications in these operating instructions. The operating instructions cannot therefore be used as the basis for asserting a legal claim.

General safety instructions

This section covers the basic safety regulations applicable when working with the device.

Personal safety:

  • This device may be used by children aged 8 years and older, and by persons with reduced physical, sensory or mental capacities, or a lack of experience and knowledge, if they are supervised or have been instructed in how to use the device safely and understand the dangers that may arise when using it. Do not allow children to play with the device. Cleaning and day-to-day maintenance must not be performed by children without supervision.
  • Children must be supervised to ensure that they do not play with the device.
  • Keep the device away from people – especially children – and household pets.
  • Within the working area, the user is responsible for any damage or injury to third parties that was caused by the use of the device.
  • Keep the device in a dry location and out of the reach of children.


How to avoid damage to the device and any harm to persons that may result from such damage: Working with the device:

  • Do not use the device while driving the vehicle.
  • In hot weather, do not leave the device in the car. This could permanently damage the device. Before setup or first use, check the device for any damage and do not use unless in perfect working order.
  • Do not expose the device to rain or wet weather and do not allow it to come into contact with water or to be submerged in water. There is a risk of electric shock!
  • Keep all openings of the device free during operation. Do not block the openings with your hands or fingers, and do not cover the device. There is a risk of overheating!
  • Switch the device off and remove the plug from the socket in the following cases:
    • when you are not using the device;
    • if you are leaving the device unsupervised;
    • when you are carrying out cleaning or maintenance work
    • if the connection cable is damaged
    • if foreign objects have got into the device or you notice unusual noises
  • Only use the accessories supplied and recommended by the manufacturer.
  • Do not dismantle or modify the portable jump starter with power bank. This device must only be repaired by a maintenance technician.
  • Do not use the device in areas with a risk of explosion, e.g. near flammable liquids, gases or powders.
  • Do not expose the device to any source of heat.
  • Do not store in places where the temperature can exceed 70°C.
  • Only charge in an ambient temperature between 0°C – 40°C.
  • Only use the USB C cable delivered with the device.


How to avoid accidents and injuries resulting from electric shock: Electrical safety:

  • Do not carry the device by the cable. Do not unplug the plug from the socket by pulling on the cable. Protect the cable from heat, oil and sharp edges.
  • Do not short-circuit the two clips. This can lead to a hazardous situation!
  • Do not use the device if the switch cannot be switched on and off. Arrange for damaged switches to be replaced.
  • If the cable is damaged, unplug the plug immediately from the socket.

Rechargeable battery packs:


EXPLOSION HAZARD!
Do not short-circuit the rechargeable battery pack and/or open it. This could cause the device to overheat, ignite or explode.

  • Do not expose the rechargeable battery pack to high temperatures. It could explode.
  • Regularly check the rechargeable battery pack for leakage. Leaking or damaged rechargeable battery packs may cause burns to the skin if touched; therefore, always wear suitable safety gloves! Carefully wipe up the liquid with a cloth and avoid contact with skin and eyes. In the event of contact with skin or eyes, rinse immediately with clean water and seek medical attention.

Specific safety instructions

  • We recommend charging the portable jump starter with power bank every 1–2 months.
  • A slightly higher temperature during charging is absolutely normal and not a malfunction. However, we do recommend leaving the portable jump starter with power bank to rest for 15 minutes before using.
  • Protect the portable jump starter with power bank from moisture and high temperatures, including fires.
  • Store the portable jump starter with power bank in a dry place and protect the device from moisture and corrosion.
  • If you notice the portable jump starter with power bank is leaking, producing an unusual odour or looking deformed in any way, stop using the device immediately and contact the manufacturer.
  • Do not drop the portable jump starter with power bank while it is being used
  • When using the jump lead , ensure that the plug is securely plugged into the vehicle jumpstart outlet .
  • When using the jumpstart, make sure that at least 3 indicator lights are illuminated.
  • If the indicator lights for charging status go out during the start attempt, charge the portable jump starter with power bank .
  • If the vehicle does not start after the 3rd – 5th start attempt, stop the start process and check the other causes that may be preventing the vehicle from starting.

Using the device

Checking the capacity of the portable jump starter with power bank

warning PLEASE NOTE: After switching on the portable jump starter with power bank using the power switch the device will switch off automatically after approx. 20 seconds, if a consumer unit is not connected.

  • To check the capacity of the portable jump starter with power bank press the power switch .
  • During charging, the indicator lights will flash.
  • The number of permanently lit indicator lights shows the charge level of the portable jump starter with power bank .
  • If the portable jump starter with power bank is completely charged, all indicator lights will light up permanently.
Indicator lights Charge level
not permanent 0%
1 permanently lit 25%
2 permanently lit 50%
3 permanently lit 75%
4 permanently lit 100%

Charging the portable jump starter with power bank

  • Connect the USB C cable with the charging port (USB C) and an appropriate USB A socket or an appropriate USB network adapter (working output voltage Uout, max 5 V ).

warning PLEASE NOTE: USB AC adapter not included in the scope of delivery.

warning PLEASE NOTE: An undervoltage protection circuit is installed in the portable jump starter with power bank to protect the device from damage. This prevents a deep discharge of the portable jump starter with power bank and automatically switches the device off once the rechargeable battery pack is fully discharged. Shortly before the undervoltage protection circuit is activated, the last blue indicator light will start to flash. As soon as the undervoltage protection circuit is activated, the last blue indicator light flashes and power will no longer be delivered. Please charge the portable jump starter with power bank again.

warning PLEASE NOTE: For safety reasons the device cannot be charged if a battery cell is defective or deeply discharged. In this case, please contact our service point.

Using the jumpstart feature

Step LEDs Meaning / Error Solution
  1. Connect the jump lead 10 of the power bank 2 to the car jumpstart outlet 9 of the power bank 2.
Red Error LED 13 is continuously lit on the jump lead 10. The voltage determined in the power bank 2 is not enough to start the car. Charge the power bank 2.
The green Start LED 12 and the red Error LED 13 flash alternately. The power bank 2 is ready. Carry on to step 2..
  1. First connect the red clip (A) to the positive pole of the vehicle battery and then connect the black battery clip (B) to the negative pole (see Fig. 1).
The red Error LED 13 lights up continuously, a short alarm signal sounds. The temperature is too high, possibly due to several jump start attempts. Disconnect the black battery clip (B) first and then the red battery clip (A) from the battery poles. Start again from step 1.
The red Error LED 13 lights up continuously, an alarm signal sounds continuously. Battery clips (A) and (B) are the wrong way round. A short circuit has occurred or the battery is leaking.
The red Error LED 13 lights up continuously, an alarm signal sounds continuously, followed by two short alarm signals.
The green Start LED 12 and the red Error LED 13 flash alternately. After 1–2 seconds only the green LED 12 lights up. The connection is correct. Carry on with step 3...
  1. Starting up the vehicle.

Using the jumpstart feature


As soon as the vehicle starts, remove the jump lead from the portable jump starter with power bank within 30 seconds and disconnect firstly the black battery clip and then the red clip from the battery poles. Otherwise, it could result in dangerous situations! Leave the vehicle engine running.

Charging mobile phones and tablets

  • Press the power switch .
  • Connect your mobile phone or tablet's USB power cable to the USB output (5 V / 1 A USB A /2 A USB C ) and then to your mobile phone or tablet.

warning PLEASE NOTE: Charging is not possible if the portable jump starter with power bank is being charged itself.

Using the 12 V DC output 8 A with cigarette lighter adapter

  • Press the power switch .
  • Connect the 12 V/8 A cigarette lighter adapter on the 12 V DC output 8 A to your portable jump starter with power bank and then connect it to your terminal device.

warning PLEASE NOTE: You will not be able to use the portable jump starter with power bank if it is being charged.

warning ATTENTION: Only use the 12 V/8 A cigarette lighter adapter delivered with your product . There is a risk of a short circuit if you use third-party adapters.

Switching the light on

Lighting mode

  • To switch the LED light on, press the power switch for the LED light.
  • Press the power switch for the LED light three times to switch the LED light off again.

Flash mode

  • To switch the LED light on in flash or SOS mode, press the power switch for the LED light. The LED light will then be permanently lit.
  • Briefly press the power switch for the LED light once again and the LED light will switch to flash mode.
  • Briefly press the power switch for the LED light once again and the LED light will switch to SOS mode. There will be 3 short flashes, 3 long flashes and another 3 short flashes.
  • Briefly press the power switch for the LED light once again to switch off the LED light .

warning ATTENTION: Do not look directly at the LED lights as this can damage your eyes.

warning PLEASE NOTE: It is not possible to turn on the light while the portable jump starter with power bank is being charged.

FAQs

Q: How can I switch the device off?
A: The device switches off automatically after 20 seconds of non-use. There is no provision for switching it off manually.

Q: How long does it take to fully charge a mobile phone with the device?
A: With a charge level of 3000 mAh:
Approx. 3–4 hours if connected to the USB output 5 V / 1 A USB A . Approx. 2–3 hours if connected to the USB output 5 V / 2 A USB C . Please note that if the device is switched on, it will continually use battery power while actually charging and this can extend the charging time.

Q: How long does the device's rechargeable battery pack last?
A: 3–6 months. However, we recommend charging the rechargeable battery pack every 1–2 months.

Troubleshooting

= problem
= cause
= remedy

The portable jump starter with power bank is not fully charged, even though all 4 indicator lights are permanently lit.
It is 60% charged after a long period out of use or in storage.

Charge the portable jump starter with power bank again as described in the section: "Charging the portable jump starter with power bank".

There is no response to pressing the power switch .

The undervoltage protection circuit for the portable jump starter with power bank is activated.
Charge the portable jump starter with power bank again as described in the section: "Charging the portable jump starter with power bank".

One indicator light flashes, however the portable jump starter with power bank cannot be used.
The undervoltage protection circuit for the portable jump starter with power bank is activated.
Charge the portable jump starter with power bank again as described in the section: "Charging the portable jump starter with power bank".

Cleaning


The device must not come into contact with water or be placed in water. There is a risk of injury due to electric shock if moisture enters the device.

  • Do not use cleaners or solvents. These could damage the device beyond repair.
  • Keep the housing and device accessories clean.
  • Use a damp cloth or a soft brush to clean the device and the accessories.

Storage

  • Keep the device in a dry location and out of the reach of children.
  • Store the device, including accessories, in the storage bag provided.

Service

How to contact us:

GB
Name: C. M. C. GmbH Holding
Website: www.cmc-creative.de
E-mail: service.gb@cmc-creative.de
Phone: 0-808-189-0652

Ordering spare parts:
www.ersatzteile.cmc-creative.de
