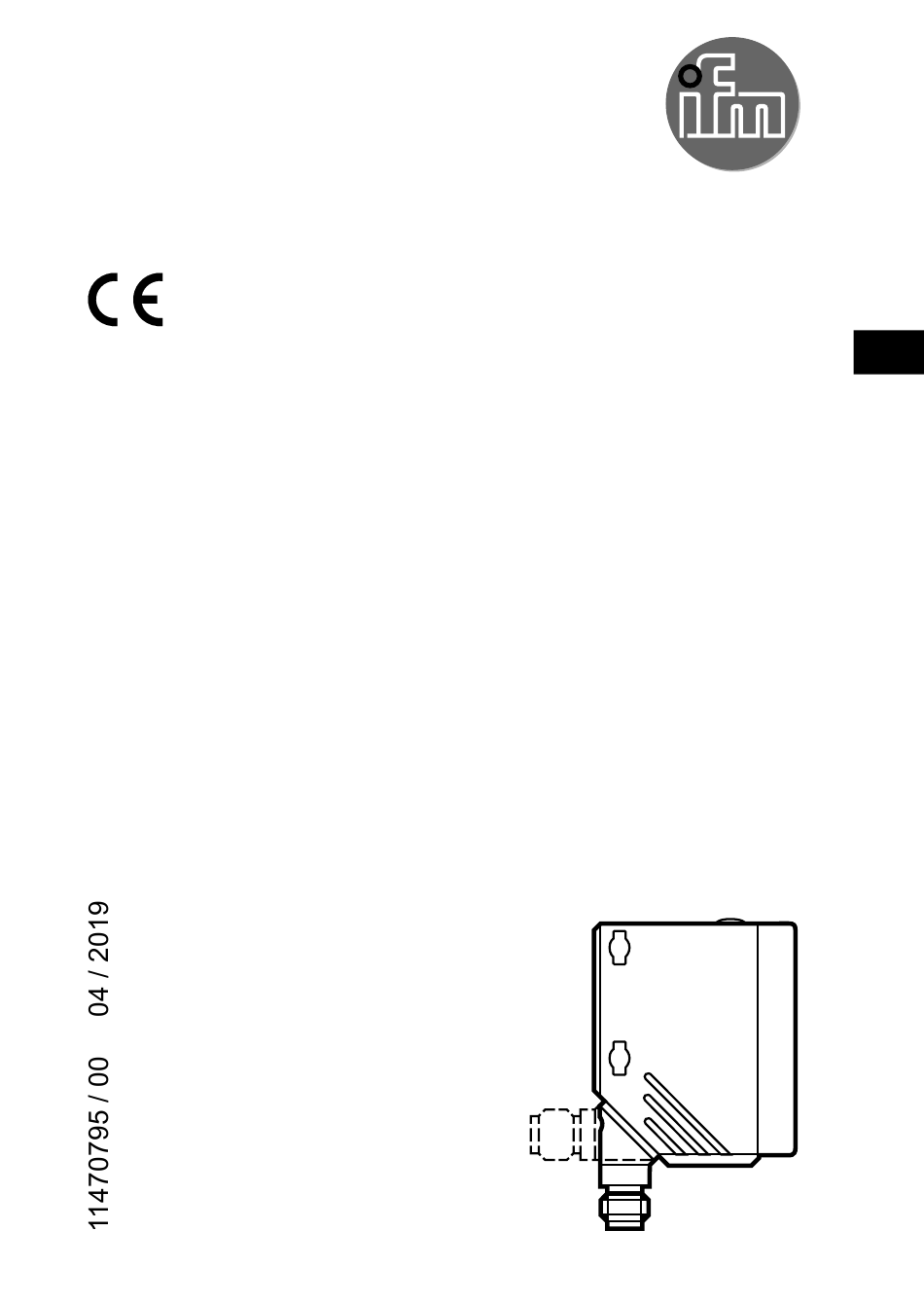

- Page 1 Operating instructions Diffuse reflection sensor with background suppression O5H7xx...
-
Page 2: Preliminary Note
1 Preliminary note 1.1 Symbols used ► Instruction > Reaction, result […] Designation of pushbuttons, buttons or indications → Cross-reference Important note Non-compliance can result in malfunctions or interference. 2 Safety instructions According to the cULus approval Caution - Use of controls or adjustments or procedures other than those specified herein may result in hazardous radiation exposure. -
Page 3: Installation
4 Installation ► Align the diffuse reflection sensor to the object to be detected. ► Secure it to a bracket. Note: The objects to be detected are to move transversally to the lens of the sensor. ► In case of other directions of movement it should be tested before whether safe switching is guaranteed. - Page 4 ► Disconnect power. ► Connect the unit as follows: DC PNP pin 1 = L+ (10...36 V DC) (pin 2 = not connected) pin 3 = L- pin 4 = load (PNP, 200 mA) 7 Settings 7.1 The sensor is to switch when the object is detected ►...
-
Page 5: Operation
► For cleaning do not use any solvents or cleaning agents which could damage the plastic material. ► Do not try to open the module enclosure. There are no user - serviceable components inside. Technical data and further information at www.ifm.com...
