Emerson Fisher FIELDVUE DLC3010 Instruction Manual page 2

DLC3010 Digital Level Controller
Parts
August 2020
Parts List
Note
Contact your Emerson sales office
DLC3010 Digital Level Controllers
(figure 7‐1)
Key Description
(1)
1 Transducer Module
(1)
2* Electronics Ass'y

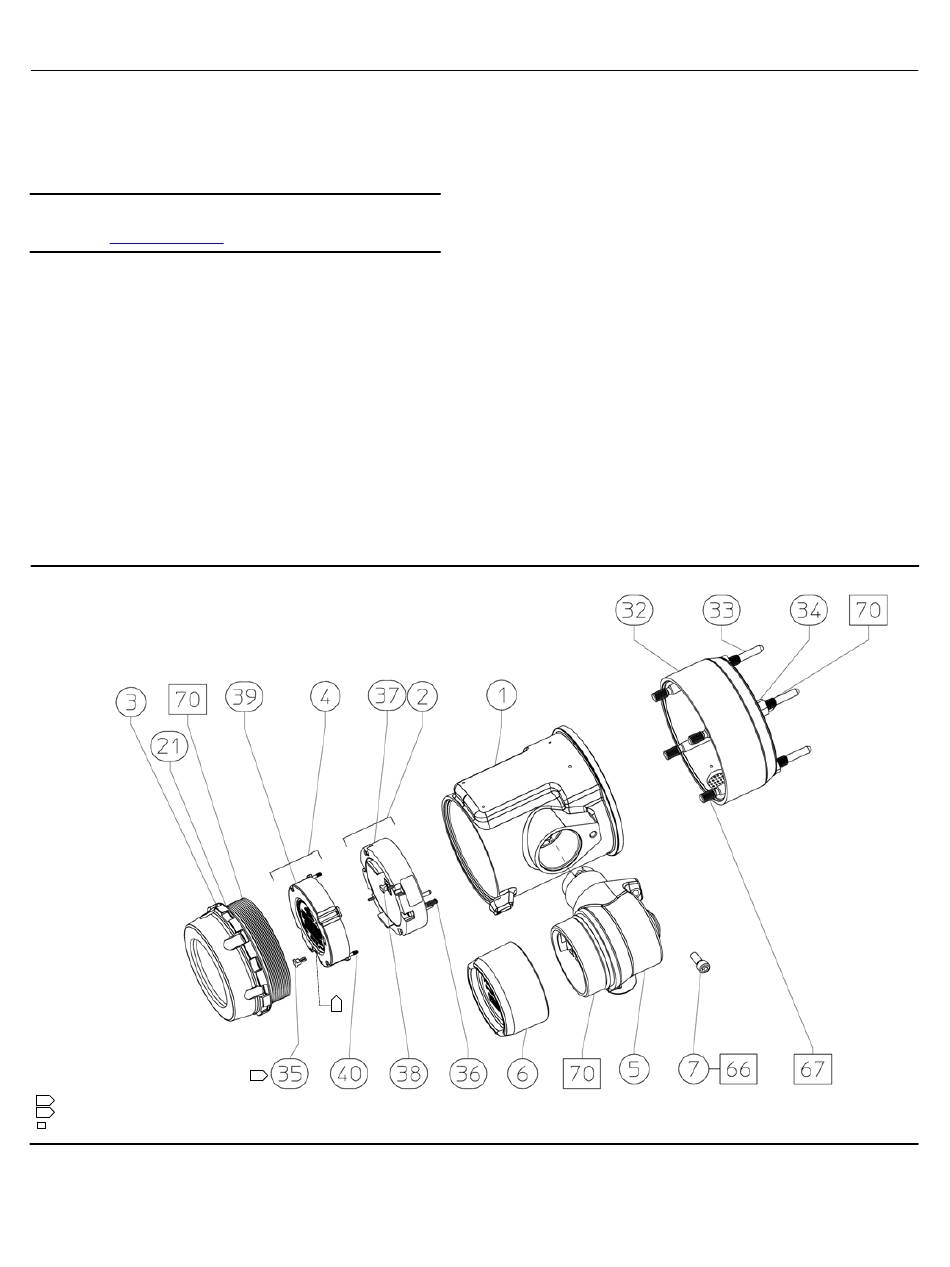

Figure 7‐1. DLC3010 Digital Level Controller Assembly
NOTES:
1 INSTALL ALARM JUMPER (KEY 35) ON ELECTRONICS ASSEMBLY (KEY2) WHEN LCD METER (KEY 4) IS NOT INSTALLED.
2 LOCATION OF ALARM JUMPER (KEY 35) WHEN LCD METER (KEY 4) IS INSTALLED.
APPLY LUB/THREADLOCK
58B5510‐E
92
for Part Ordering information.
2
1
Key Description
3 Cover Assy, includes O‐ring (key 21)
4 LCD Meter Ass'y, includes alarm jumper (key 35),
header ass'y (key 38) and captive screws (key 40),
and LCD Meter ass'y
5* Terminal Box Ass'y
6 Terminal Box Cover Ass'y, includes labels
(key 30 and 64) and set screw (key 31)
(2)
7 Screw, hex socket
8 Nameplate
9 Drive Screw
(3)
21* O‐ring
32 Adaptor Ring
33 Stud (4 req'd)
34 Hex Nut (4 req'd)
(2)(4)(5)
35 Alarm Jumper
36 Screw, captive
For electronics ass'y (2 req'd)
38 Header Assembly, dual row (not shown)
40 Screw, captive
For LCD meter (2 req'd)
66 Anti‐Seize Sealant (not furnished with instrument)
67 Thread locking adhesive (medium strength)
(not furnished with instrument)
70 Lithium grease (not furnished with instrument)
*Recommended spare parts
1. These parts are not replaced in the field due to serialization and
characterization issues, but can be replaced at a qualified service center or Fisher
Authorized Service Provider (FASP) that can issue nameplate. Contact your
Emerson sales office for additional information.
2. Included in small hardware spare parts kit.
3. Included in spare O‐rings kit.
4. Included in the Electronics Ass'y, key 2
5. Included in the LCD Meter Ass'y. key 4
Instruction Manual
D102748X012
Part Number
28B5738X022
28B5740X022
(4)
(2)(4)(5)
(5)
