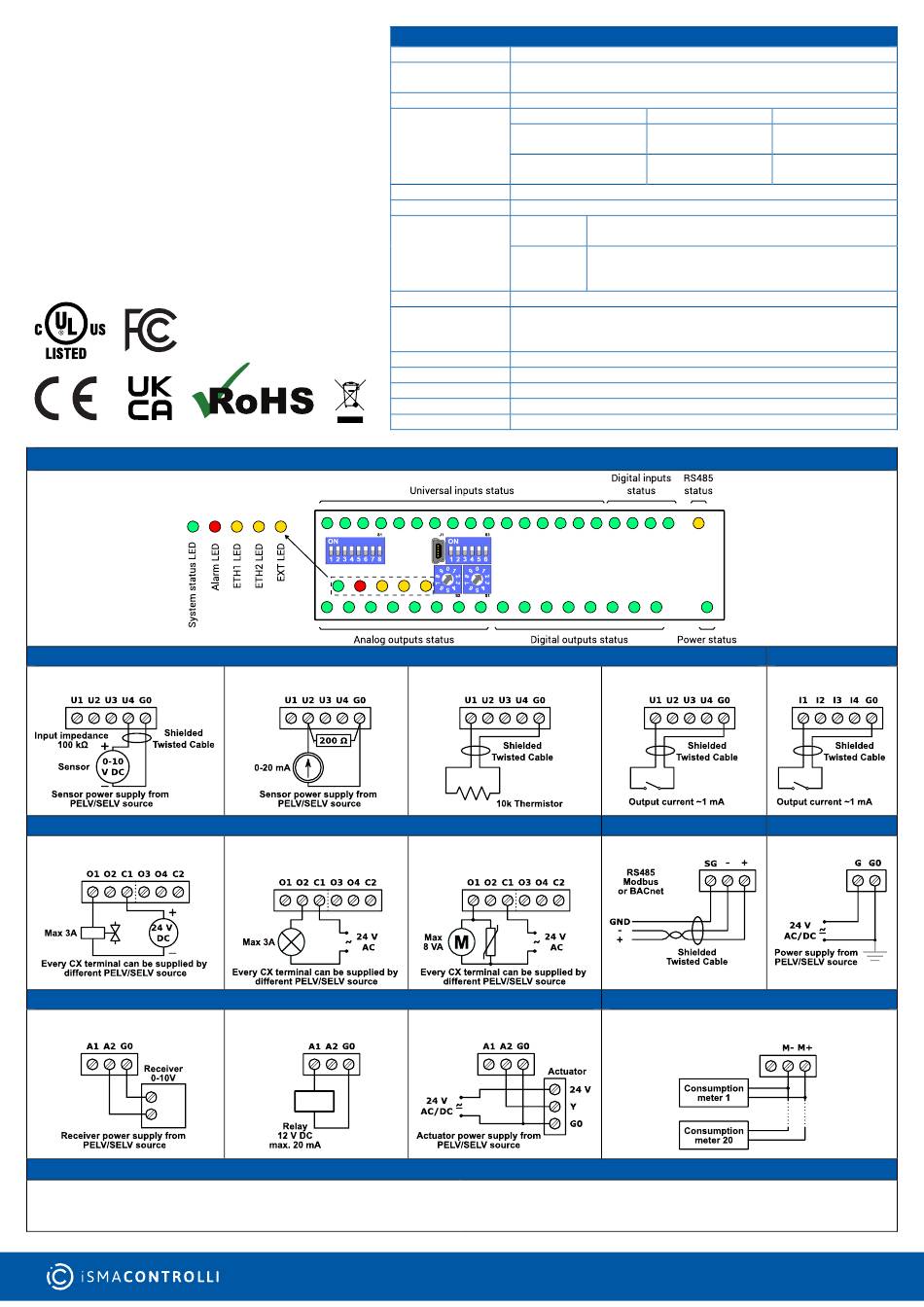

iSMA CONTROLLI iSMA-B-MAC36NL-RS Manual

iSMA-B-MAC36NL
iSMA-B-MAC36NL-RS
iSMA-B-MAC36NL-M
Voltage measurement
Connection of electrovalve
0-10 V output
• Purpose of control: Operating control
• Construction of control: Independently mounted
• Type of action: 1.C
iSMA CONTROLLI S.p.A. – Via Carlo Levi 52, 16010 Sant'Olcese (GE) - Italy | support@ismacontrolli.com
Power supply
Universal inputs
Digital inputs
Digital outputs
Analog outputs
Processor
Interfaces
Ingress protection
Temperature
Relative humidity
Connectors
Dimensions
Mounting
Housing material
UNIVERSAL INPUTS
Current measurement Temperature measurement
DIGITAL OUTPUTS
Connection of resistive
load
ANALOG OUTPUTS
Connection of relay
COMPLEMENTARY NOTES
www.ismacontrolli.com
SPECIFICATION
DC: 24 V ± 20%, 14 W; AC: 24 V ± 20%, 24 VA
16x voltage, current, resistance, temperature measurement, dry contact
inputs
4x dry contact inputs, high-speed pulse counter up to 100 Hz
8x relay output
Resistive load max.
Inductive load max.
8x 0-10 V DC outputs, maximum load up to 20 mA
Multicore Cortex-A Series ARM Processor
2x 10/100 Ethernet, 1x RS485 (half duplex, optoisolated),
Standard
2x USB (1x Host, 1x OTG), HDMI
Additional RS485 (half duplex, optoisolated),
Extensions or M-Bus (optoisolated, built-in power supply for 20
devices max.)
IP20 - for indoor installation
Operating: 0°C to 50°C (32°F to 122°F)
*See "Placement Recommendations" for more information;
Storage -40°C to 85°C (-40°F to 185°F)
5 to 95% RH (without condensation)
Removable screw terminals, separable 0.5 ... 2.5 mm
160 x 111 x 62 mm (6,3" x 4,4" x 2,45")
DIN rail mounting (DIN EN 50022 norm)
Plastic, self-extinguishing PC/ABS
TOP PANEL
Connection of inductive
load
Connection of actuator
• Pollution degree: 2
• Impulse voltage: 500 V
Installation Instruction| 2
Maximum ratings UL compliant ratings
3 A @ 230 V AC 3 A @ 24 V AC
3 A @ 30 V DC 3 A @ 30 V DC
75 VA @ 230 V AC 8 VA @ 24 V AC
30 W @ 30 V DC 30 W @ 30 V DC
(18 ... 12 AWG)
2
DIGITAL INPUTS
Dry contact input Dry contact input
COMMUNICATION POWER SUPPLY
M-BUS EXTENSION
Connection of M-Bus meters
Issue rev. 3 | 01/2022
nd
page 1
