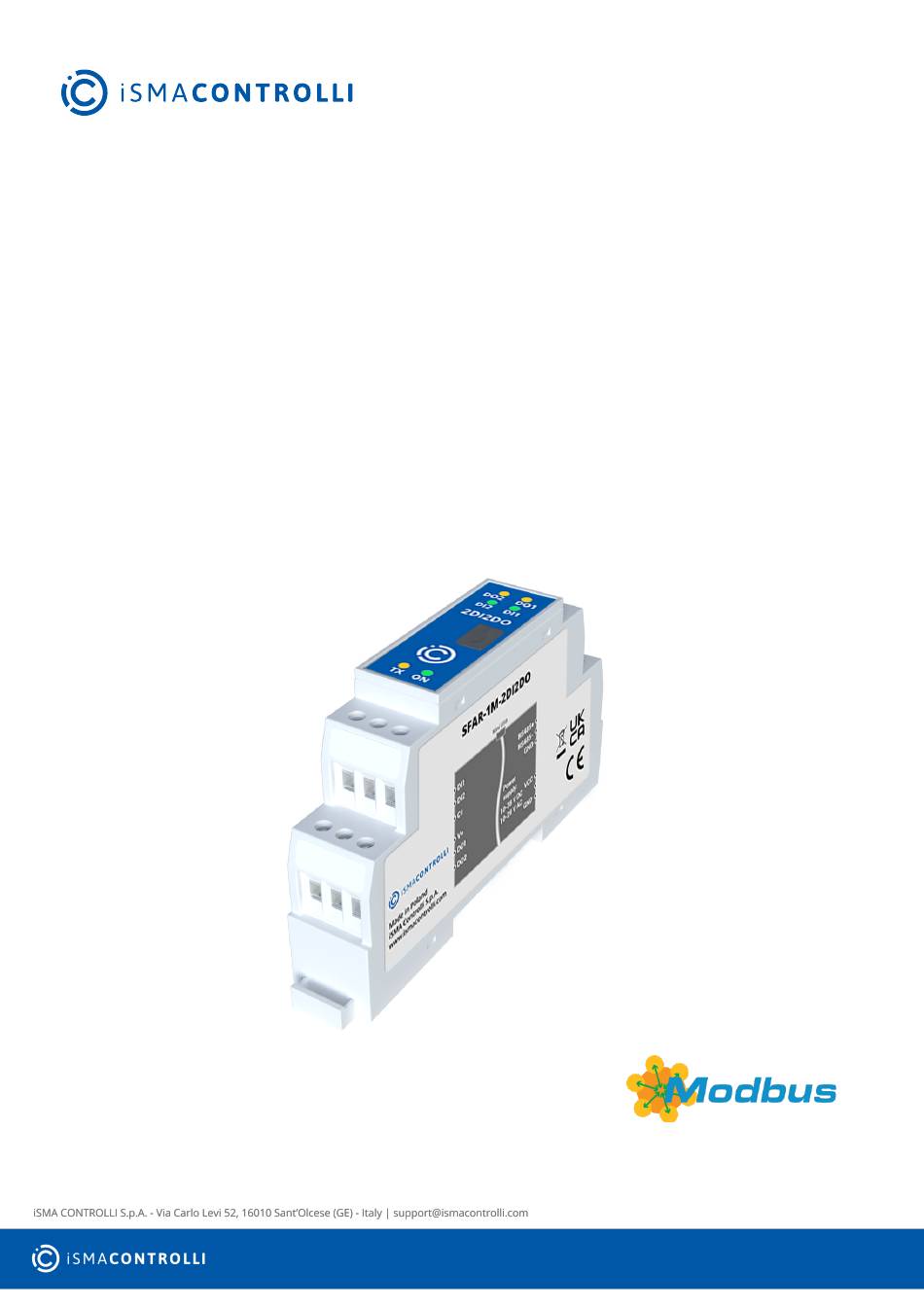

- Page 1 SfAR-1M-2DI2DO User Manual Expansion Module - 2 Digital Inputs, 2 Digital Outputs www.ismacontrolli.com DMP267en | 3rd Issue rev. 1 | 05/2022...
-
Page 2: Table Of Contents
SfAR-1M-2DI2DO User Manual Table of Contents Introduction ..........................3 Revision History..........................3 Safety Rules..........................4 Module Features........................5 Purpose and Description of the Module ...................5 Technical Specification ........................5 Dimensions ............................6 Communication........................8 Grounding and Shielding.......................8 Network Termination........................8 Types of Modbus Functions......................8 Communication Settings........................9... -
Page 3: Introduction
SfAR-1M-2DI2DO User Manual 1 Introduction Thank you for choosing our product. This manual will help you with proper handling and operating of the device. The information included in this manual have been prepared with utmost care by our professionals and serve as a description of the product without incurring any liability for the purposes of commercial law. -
Page 4: Safety Rules
SfAR-1M-2DI2DO User Manual 2 Safety Rules • Improper wiring of the product can damage it and lead to other hazards. Make sure that the product has been correctly wired before turning the power on. • Before wiring or removing/mounting the product, make sure to turn the power off. -
Page 5: Module Features
3 Module Features 3.1 Purpose and Description of the Module The SfAR-1M-2DI2DO module is an innovative device that provides a simple and cost- effective extension of the number of lines of input in popular PLCs. The module has 2 digital inputs with configurable timer/counter option, which allows to connect one encoders. -
Page 6: Dimensions
SfAR-1M-2DI2DO User Manual Digital Outputs No. of outputs Max. voltage 55 V Max. current 250 mA Output type Isolation 1500 Vrms Temperature Work -20°C to +65°C Storage -40°C to +85°C Connectors Power supply 3 pin Communication 3 pin Inputs 2 x 3 pin... - Page 7 SfAR-1M-2DI2DO User Manual Figure 1. Dimensions www.ismacontrolli.com DMP267en | 3rd Issue rev. 1 | 05/2022 page 7 of 17...
-
Page 8: Communication
SfAR-1M-2DI2DO User Manual 4 Communication 4.1 Grounding and Shielding In most cases, I/O modules will be installed in an enclosure along with the other devices, which generate electromagnetic radiation. Relays, contactors, transformers, motor invertors, etc., are examples of such devices. Radiation can induce electrical noise into both power and signal lines, as well as direct radiation into the module. -
Page 9: Communication Settings
SfAR-1M-2DI2DO User Manual Type Beginning Address Variable Access Modbus Command 40001 Output Registers Registered 4, 6, 16 Read/write Table 3. Types of Modbus functions supported by the module 4.4 Communication Settings The data stored in the module's memory is given in the 16-bit registers. The access to registers is via Modbus RTU or Modbus ASCII. -
Page 10: Watchdog
SfAR-1M-2DI2DO User Manual Modbus Address Decimal Address Hex Address Name Values 40004 0x03 Data Bits 7 – 7 data bits 8 – 8 data bits 40006 0x05 Response Delay Time in ms 40007 0x06 Modbus Mode 0 – RTU 1 – ASCII Table 5. -
Page 11: Indicators
SfAR-1M-2DI2DO User Manual 5 Indicators Figure 2. Indicators Indicator Description The LED indicates that the module is correctly powered The LED lights up when the unit received the correct packet and sends the answer DI1, DI2 The LED indicates that on the input is high state... -
Page 12: Connections
SfAR-1M-2DI2DO User Manual 6 Connections 6.1 Block Diagram Figure 3. Block diagram 6.2 Power Supply Connection 6.2.1 DC Power Connection Figure 4. DC power connection 6.2.2 AC Power Connection Figure 5. AC power connection www.ismacontrolli.com DMP267en | 3rd Issue rev. 1 | 05/2022... -
Page 13: Communication Bus Connection
SfAR-1M-2DI2DO User Manual 6.3 Communication Bus Connection Figure 6. Communication bus connection 6.4 Connection of Outputs Figure 7. Connection of outputs 6.5 Connection of Inputs Figure 8. Connection of inputs www.ismacontrolli.com DMP267en | 3rd Issue rev. 1 | 05/2022 page 13 of 17... -
Page 14: Modules Registers
SfAR-1M-2DI2DO User Manual 7 Modules Registers 7.1 Registered Access Modbus Decimal Register Name Access Description Address Address Address 30001 0x00 Version/Type Read Version and type of the device 30002 0x01 Address Read Module address 40003 0x02 Baud Rate Read/write RS485 baud rate... -
Page 15: Bit Access
SfAR-1M-2DI2DO User Manual Modbus Decimal Register Name Access Description Address Address Address 40056 0x37 Counter 2 MSR Read/write 40061 0x3C CCounter 1 LSR Read/write 32-bit value of captured counter 1 40062 0x3D CCounter 1 MSR Read/write 40063 0x3E CCounter 2 LSR... - Page 16 SfAR-1M-2DI2DO User Manual Modbus Dec Address Register Name Access Description Address Address 1154 1153 0x481 Capture 2 Read/write Capture counter 2 1169 1168 0x490 Captured 1 Read/write Captured value of counter 1 1170 1169 0x491 Captured 2 Read/write Captured value of counter 2 Table 8.
-
Page 17: Configuration Software
SfAR-1M-2DI2DO User Manual 8 Configuration Software The SfAR Configurator is the type of software, which is designed to set the communication module registers over Modbus network as well as to read and write the current value of other registers of the module. It is a convenient way to test the system as well as to observe real-time changes in the registers.
