iSMA CONTROLLI SfAR-S-6TI User Manual

Expansion module - 6 temperature inputs

Advertisement

Quick Links

SfAR-S-6TI
User Manual
Expansion Module - 6 Temperature
Inputs


www.ismacontrolli.com
DMP272en | 3rd Issue rev. 2 | 05/2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SfAR-S-6TI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for iSMA CONTROLLI SfAR-S-6TI

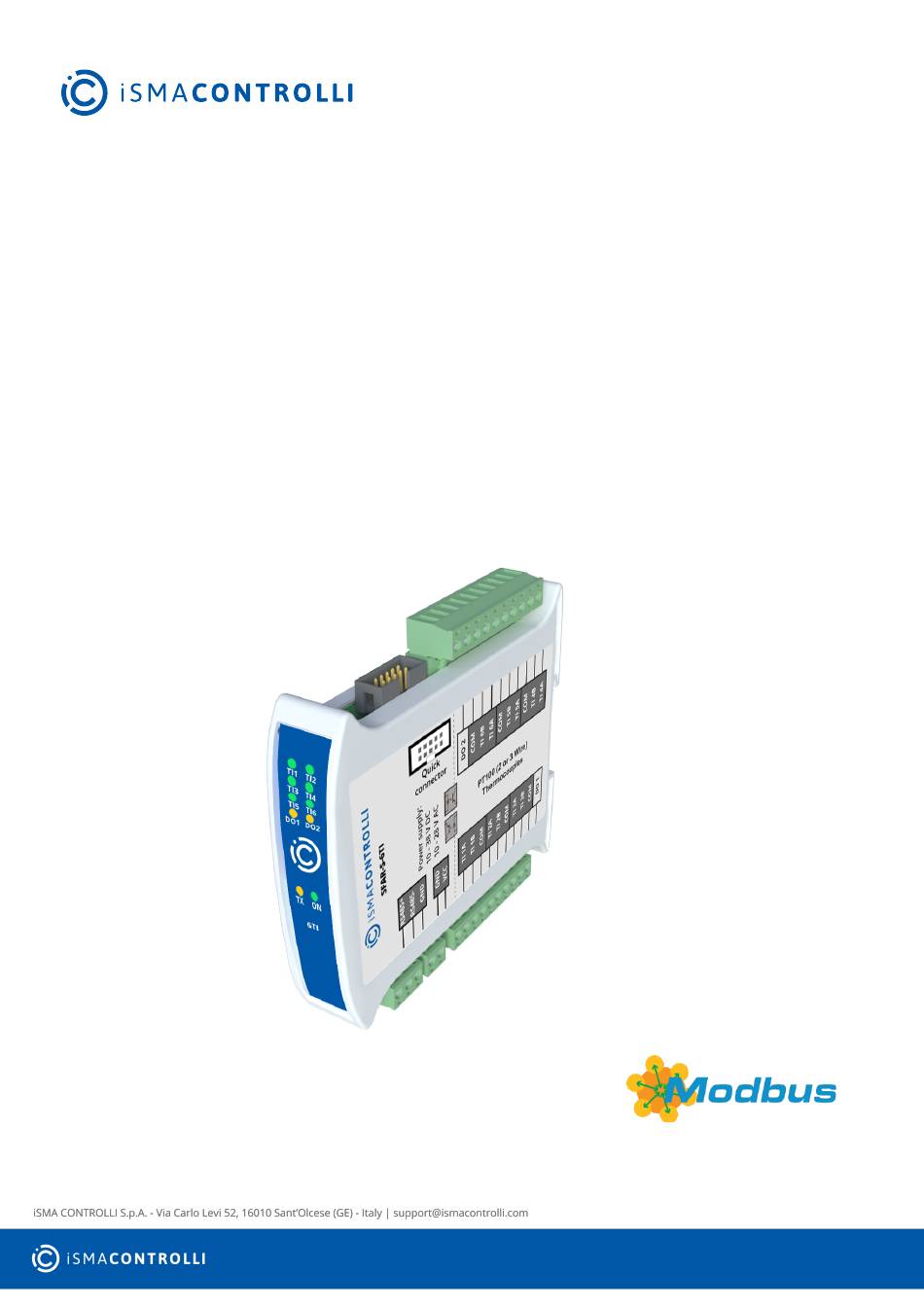

  • Page 1 SfAR-S-6TI User Manual Expansion Module - 6 Temperature Inputs     www.ismacontrolli.com DMP272en | 3rd Issue rev. 2 | 05/2022...
  • Page 2: Table Of Contents

    SfAR-S-6TI User Manual Table of Contents Introduction ..........................4 Revision History..........................4 Safety Rules..........................5 Module Features........................6 Purpose and Description of the Module ...................6 Technical Specification ........................6 Dimensions ............................8 Communication........................9 Grounding and Shielding.......................9 Network Termination........................9 Setting Module Address in RS485 Modbus Network .............9 Types of Modbus Functions.......................
  • Page 3 SfAR-S-6TI User Manual Configuration Software ....................... 25 www.ismacontrolli.com DMP272en | 3rd Issue rev. 2 | 05/2022 page 3 of 26...
  • Page 4: Introduction

    SfAR-S-6TI User Manual 1 Introduction Thank you for choosing our product. This manual will help you with proper handling and operating of the device. The information included in this manual have been prepared with utmost care by our professionals and serve as a description of the product without incurring any liability for the purposes of commercial law.
  • Page 5: Safety Rules

    SfAR-S-6TI User Manual 2 Safety Rules • Improper wiring of the product can damage it and lead to other hazards. Make sure that the product has been correctly wired before turning the power on. • Before wiring or removing/mounting the product, make sure to turn the power off.
  • Page 6: Module Features

    3 Module Features 3.1 Purpose and Description of the Module The SFAR-S-6TI module allows measuring temperature with popular sensors (PT100, PT500, PT1000, NI100, KTY81-110) and thermocouples (type J, K, T, N, S, R, B). In addition, it is possible to measure voltages in the range from 256 mV (10 μV resolution) to 2048 mV (100 μV resolution) as well as to measure resistance to 8 kΩ.
  • Page 7 SfAR-S-6TI User Manual T thermocouple operation range -200°C to +400°C N thermocouple operation range -200°C to +1300°C S thermocouple operation range -0°C to +1700°C R thermocouple operation range -0°C to +1700°C B thermocouple operation range -0°C to +1800°C Resistance From 0 to 8000 Ω (1 Ω resolution) Voltage 0 to 2048 mV (0.1 mV resolution)
  • Page 8: Dimensions

    SfAR-S-6TI User Manual Width 22.7 mm (0.894 in) Interface RS485 Up to 128 devices Table 2. Technical specification 3.3 Dimensions The appearance and dimensions of the module are shown below. The module is mounted directly to the rail in the DIN industry standard. Power connectors, communication, and I/Os are at the bottom and top of the module.
  • Page 9: Communication

    SfAR-S-6TI User Manual 4 Communication 4.1 Grounding and Shielding In most cases, I/O modules will be installed in an enclosure along with other devices, which generate electromagnetic radiation. Relays, contactors, transformers, motor controllers, etc. are examples of such devices. Radiation can induce electrical noise into both power and signal lines, as well as direct radiation into the module.
  • Page 10 SfAR-S-6TI User Manual Addr www.ismacontrolli.com DMP272en | 3rd Issue rev. 2 | 05/2022 page 10 of 26...
  • Page 11: Types Of Modbus Functions

    SfAR-S-6TI User Manual Addr Table 3. Setting module address in RS485 Modbus network 4.4 Types of Modbus Functions There are 4 types of Modbus functions supported by the SfAR modules: Type Beginning Address Variable Access Modbus Command 00001 Digital Outputs...
  • Page 12: Configuration Registers

    SfAR-S-6TI User Manual • turn the DIP switch SW6 on; • turn the power on; • when power and communication LED is lit, turn the switch SW6 off. Warning! After restoring the default configuration, all values stored in the registers will be cleared as well.
  • Page 13: Indicators

    SfAR-S-6TI User Manual 5 Indicators Figure 2. Indicators Indicator Description Power Supply The LED indicates that the module is correctly powered Communication The LED lights up when the unit received the correct packet and sends the answer Inputs State The LED indicates that the sensor is connected...
  • Page 14: Connections

    SfAR-S-6TI User Manual 6 Connections 6.1 Block Diagram Figure 3. Block diagram 6.2 Power Supply Connection 6.2.1 DC Power Connection Figure 4. DC power connection www.ismacontrolli.com DMP272en | 3rd Issue rev. 2 | 05/2022 page 14 of 26...
  • Page 15: Ac Power Connection

    SfAR-S-6TI User Manual 6.2.2 AC Power Connection Figure 5. AC power connection 6.3 Communication Bus Connection Figure 6. Communication bus connection 6.4 Connection of Temperature Inputs 6.4.1 Connection of 2-wire Sensor (PT100) and Resistance Input Figure 7. 2-wire connection of PT100 www.ismacontrolli.com...
  • Page 16: Connection Of 3-Wire Sensor (Pt100)

    SfAR-S-6TI User Manual 6.4.2 Connection of 3-wire Sensor (PT100) Figure 8. 3-wire connection of PT100 6.4.3 Connection of Thermocouple or Voltage Input Figure 9. Connection of thermocouple 6.5 Connection of Digital Outputs Figure 10. Connection of digital outputs 6.6 Quick Connector The Quick Connector is a unique feature of modules that allows for quickly connecting a group of devices with a flat ribbon cable.
  • Page 17 SfAR-S-6TI User Manual connect up to 10 devices next to each other. It is important that the various types of modules in the SfAR-S family can be connected with the ribbon cable. Figure 11. Quick Connector www.ismacontrolli.com DMP272en | 3rd Issue rev. 2 | 05/2022...
  • Page 18: Dip Switch

    SfAR-S-6TI User Manual 7 DIP Switch Figure 12. DIP switch Switch Function Description Module address +1 Setting module address from 0 to 31 Module address +2 Module address +4 Module address +8 Module address +16 Restoring default settings Restoring default settings Table 8.
  • Page 19: Analog Filtering

    SfAR-S-6TI User Manual 8 Analog Filtering If the measured signal is noisy it is possible to eliminate the noise by switching on the lowpass filter. It is possible to configure the filter for all inputs (it is not possible to enable the filter for only one input).
  • Page 20: Module Registers

    SfAR-S-6TI User Manual 9 Module Registers 9.1 Registered Access Modbus Decimal Register Name Access Description Address Address Address 30001 0x00 Version/Type Read Version and type of the device 30002 0x01 Switches Read Switches state 40003 0x02 Baud Rate Read/write RS485 baud rate...
  • Page 21 SfAR-S-6TI User Manual Modbus Decimal Register Name Access Description Address Address Address in °C·10 for temperature 30054 0x35 Temperature 2 Read in Ω for resistance 30055 0x36 Temperature 3 Read 30056 0x37 Temperature 4 Read 30057 0x38 Temperature 5 Read...
  • Page 22 SfAR-S-6TI User Manual Modbus Decimal Register Name Access Description Address Address Address 40079 0x4E Alarm Settings 5 Read/write 40080 0x4F Alarm Settings 6 Read/write 40081 0x50 Constant Junction Read/write Value of junction Temperature temperature 40082 0x51 Junction Temperature Read/write Junction temperature...
  • Page 23: Bit Access

    SfAR-S-6TI User Manual Modbus Decimal Register Name Access Description Address Address Address +512 – Output is set if 40090 0x59 Output 2 Settings Read/write value is less than Alarm Value ( register 40091 or 40092) („heating") +1024 – The lowest value from selected inputs +2048 –...
  • Page 24 SfAR-S-6TI User Manual Modbus Decimal Register Name Access Description Address Address Address 0x324 Input 5 Read Set when the sensor is connected 0x325 Input 6 Read Set when the sensor is connected 0x330 Alarm 1 Read Alarm state 1 0x331...
  • Page 25 SfAR-S-6TI User Manual 10 Configuration Software The SfAR Configurator is a software, which is designed to set the communication module registers over Modbus network as well as to read and write the current value of other registers of the module. It is a convenient way to test the system as well as to observe real-time changes in the registers.
  • Page 26 SfAR-S-6TI User Manual Figure 15. The SfAR Configurator www.ismacontrolli.com DMP272en | 3rd Issue rev. 2 | 05/2022 page 26 of 26...
