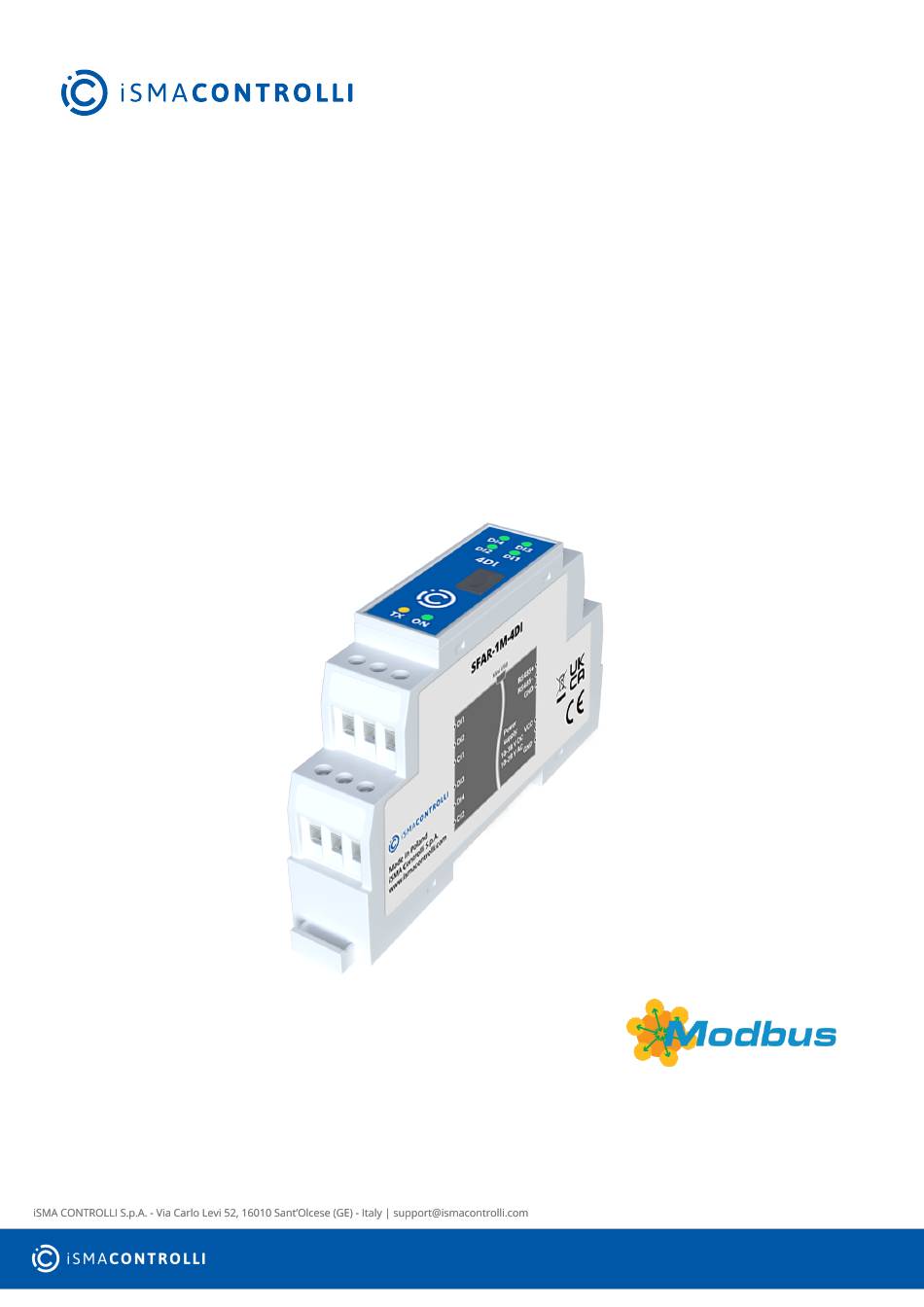

- Page 1 SfAR-1M-4DI User Manual Expansion Module - 4 Digital Inputs www.ismacontrolli.com DMP269en | 3rd Issue rev. 1 | 05/2022...
-
Page 2: Table Of Contents
SfAR-1M-4DI User Manual Table of Contents Introduction ..........................3 Revision History..........................3 Safety Rules..........................4 Module Features........................5 Purpose and Description of the Module ...................5 Technical Specification ........................5 Dimensions ............................6 Communication........................7 Grounding and Shielding.......................7 Network Termination........................7 Types of Modbus Functions......................7 Communication Settings........................8... -
Page 3: Introduction
SfAR-1M-4DI User Manual 1 Introduction Thank you for choosing our product. This manual will help you with proper handling and operating of the device. The information included in this manual have been prepared with utmost care by our professionals and serve as a description of the product without incurring any liability for the purposes of commercial law. -
Page 4: Safety Rules
SfAR-1M-4DI User Manual 2 Safety Rules • Improper wiring of the product can damage it and lead to other hazards. Make sure that the product has been correctly wired before turning the power on. • Before wiring or removing/mounting the product, make sure to turn the power off. -
Page 5: Module Features
3 Module Features 3.1 Purpose and Description of the Module The SfAR-1M-4DI module is an innovative device that provides a simple and cost-effective extension of the number of lines of input in popular PLCs. The module has 4 digital inputs with configurable timer/counter option, which allows to connect two encoders. -
Page 6: Dimensions
SfAR-1M-4DI User Manual Temperature Work -20°C to +65°C Storage -40°C to +85°C Connectors Power supply 3 pin Communication 3 pin Inputs 2 x 3 pin Configuration mini USB Size Height 90 mm Length 56.4 mm Width 17.5 mm Interface RS485 Up to 128 devices Table 2. -
Page 7: Communication
SfAR-1M-4DI User Manual 4 Communication 4.1 Grounding and Shielding In most cases, I/O modules will be installed in an enclosure along with the other devices, which generate electromagnetic radiation. Relays, contactors, transformers, motor invertors, etc., are examples of such devices. Radiation can induce electrical noise into both power and signal lines, as well as direct radiation into the module. -
Page 8: Communication Settings
SfAR-1M-4DI User Manual Type Beginning Address Variable Access Modbus Command 40001 Output Registers Registered 4, 6, 16 Read/write Table 3. Types of Modbus functions supported by the module 4.4 Communication Settings The data stored in the module's memory is given in the 16-bit registers. The access to registers is via Modbus RTU or Modbus ASCII. - Page 9 SfAR-1M-4DI User Manual Modbus Address Decimal Address Hex Address Name Values 40004 0x03 Data Bits 7 – 7 data bits 8 – 8 data bits 40006 0x05 Response Delay Time in ms 40007 0x06 Modbus Mode 0 – RTU 1 – ASCII Table 5.
-
Page 10: Indicators
SfAR-1M-4DI User Manual 5 Indicators Figure 2. Indicators Indicator Description The LED indicates that the module is correctly powered The LED lights up when the unit received the correct packet and sends the answer DI1, 2, 3, 4 The LED indicates that on the input is high state Table 6. -
Page 11: Connections
SfAR-1M-4DI User Manual 6 Connections 6.1 Block Diagram Figure 3. Block diagram 6.2 Power Supply Connection 6.2.1 DC Power Connection Figure 4. DC power connection www.ismacontrolli.com DMP269en | 3rd Issue rev. 1 | 05/2022 page 11 of 16... -
Page 12: Ac Power Connection
SfAR-1M-4DI User Manual 6.2.2 AC Power Connection Figure 5. AC power connection 6.3 Communication Bus Connection Figure 6. Communication bus connection 6.4 Connection of Digital Inputs Figure 7. Connection of digital inputs www.ismacontrolli.com DMP269en | 3rd Issue rev. 1 | 05/2022... -
Page 13: Module Registers
SfAR-1M-4DI User Manual 7 Module Registers 7.1 Registered Access Modbus Decimal Register Name Access Description Address Address Address 30001 0x00 Version/Type Read Version and type of the device 30002 0x01 Address Read Module address 40003 0x02 Baud Rate Read/write RS485 baud rate... -
Page 14: Bit Access
SfAR-1M-4DI User Manual Modbus Decimal Register Name Access Description Address Address Address 40059 0x3A Counter 4 LSR Read/write 32-bit counter 4 40060 0x3B Counter 4 MSR Read/write 40061 0x3C CCounter 1 LSR Read/write 32-bit value of captured counter 1 40062... - Page 15 SfAR-1M-4DI User Manual Modbus Dec Address Register Access Description Address Address Name 10804 0x323 Input 4 Read Input 4 state 1153 1152 0x480 Capture 1 Read/write Capture counter 1 1154 1153 0x481 Capture 2 Read/write Capture counter 2 1155 1154...
-
Page 16: Configuration Software
SfAR-1M-4DI User Manual 8 Configuration Software The SfAR Configurator is the type of software, which is designed to set the communication module registers over Modbus network as well as to read and write the current value of other registers of the module. It is a convenient way to test the system as well as to observe real-time changes in the registers.
