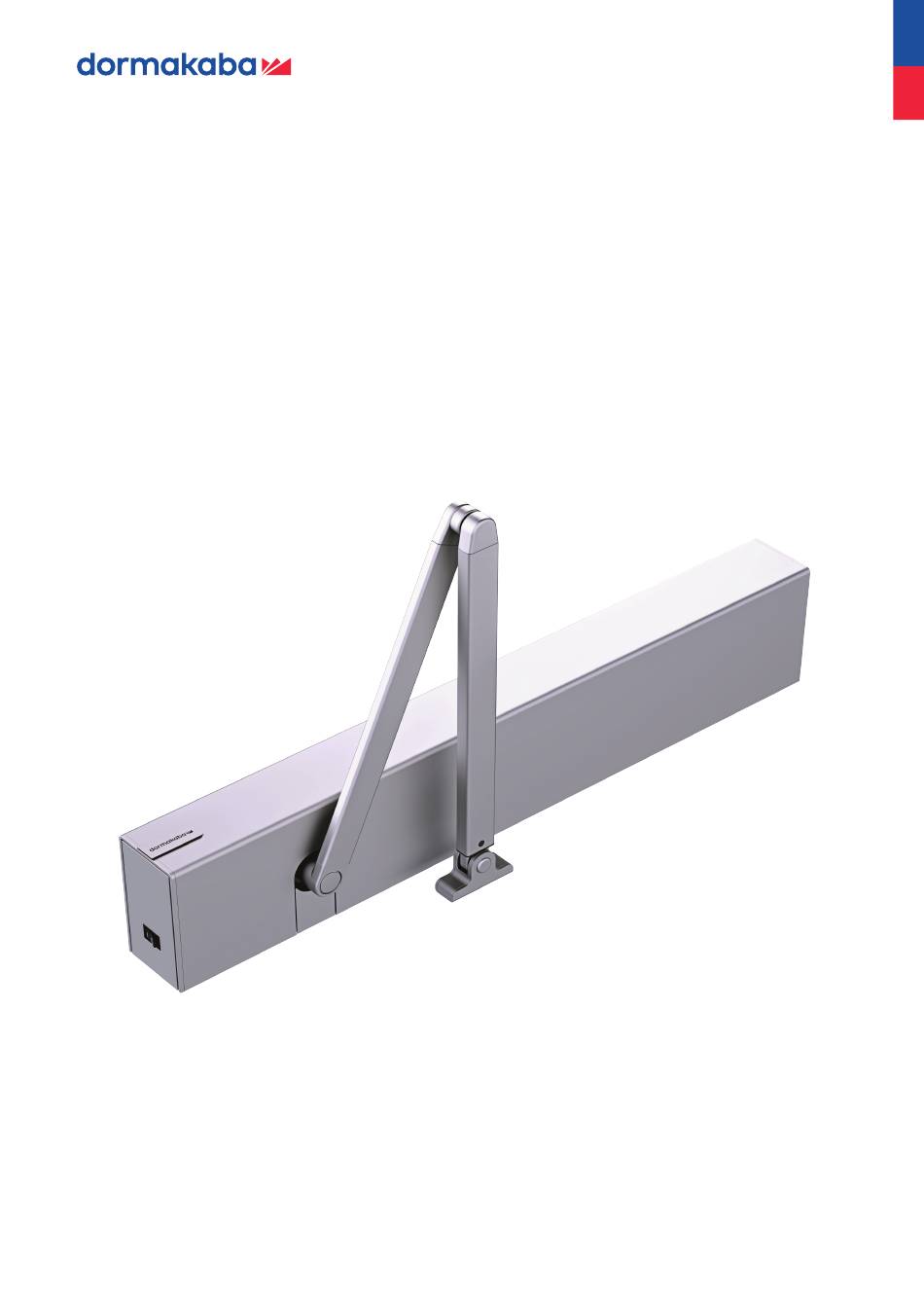

- Page 1 ED 100, ED 250 double leaf door systems VARIO cover Mounting instructions 058177-45532/16080 – 06/2024...
- Page 2 ED 100, ED 250 double leaf door systems VARIO cover Mounting instructions The following steps have to be performed in addition to the information mentioned in the mounting instructions: Remove the PCB with the internal program switches from both operators.
- Page 3 ED 100, ED 250 double leaf door systems VARIO cover Mounting instructions Drill holes into the interim plate as indicated in the drawing. The drill holes in the middle are only required if the hinge clearance exceeds 1,800 mm. The holes À are drilled into the inner notch.
- Page 4 ED 100, ED 250 double leaf door systems VARIO cover Mounting instructions Assemble and align the mounting plates and the intermediate Thread-cutting plate on a level surface. screws The two connectors are fixed at the mounting plates with cheese-head screws and at the intermediate base plate with thread-cutting screws.
- Page 5 ED 100, ED 250 double leaf door systems VARIO cover Mounting instructions Fix each bracket with two thread-cutting screws respectively. Slightly screw in the two thread-cutting screws for the bracket in the middle (a few turns will suffice). Then move the bracket under the screw heads and screw down tight.
- Page 6 ED 100, ED 250 double leaf door systems VARIO cover Mounting instructions At the passive leaf. Commissioning of a double-leaf system Put the active leaf into operation. (See „Commissioning instructions“ in the Installation and Operating Instructions.) Following the learning cycle, adjust the program switch to PERMANENT OPEN.
- Page 7 ED 100, ED 250 double leaf door systems VARIO cover Mounting instructions Fix the middle cover on the brackets. Attach the small covers to hide the cutting edges. Fix the lateral covers. 058177-45532 – 06/2024...
- Page 8 Copyright © dormakaba 2023 dormakaba Deutschland GmbH DORMA Platz 1 58256 Ennepetal Germany +49 2333 793-0 www.dormakaba.com www.dormakaba.com...
