Installation instructions

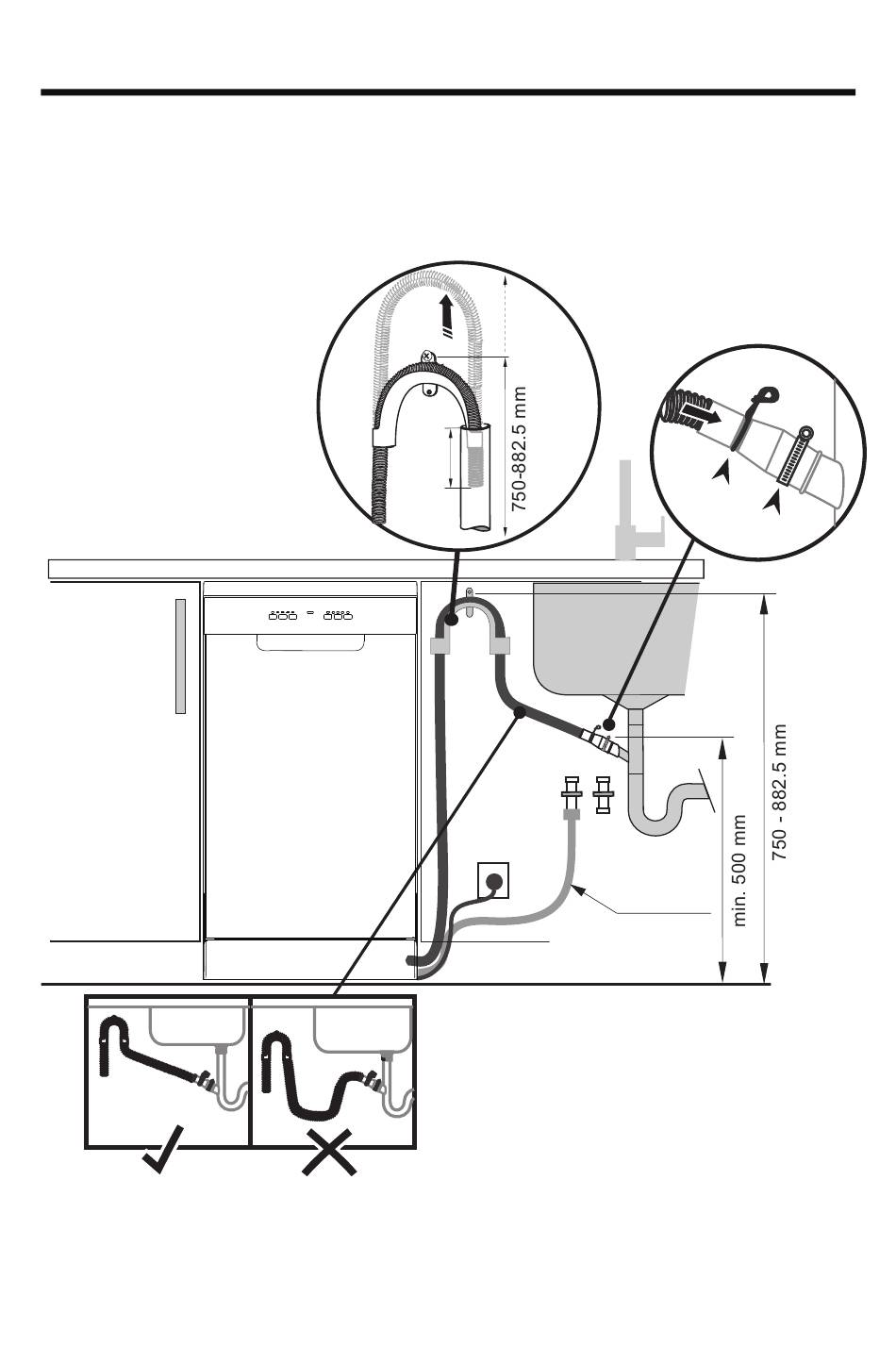

Dishwasher using drain hose joiner
onto sink trap/waste tee
If space is limited
for fixing, push hose
through drain hose
support to required
height.
Ensure drain hose is routed
straight to joiner. Remove excess
drain hose material if necessary.
Do not shorten the inlet hose.
10
2
1
Installer to provide
drain hose joiner to suit
min. 15mm waste tee.
step 4
min. radius
200 mm
IMPORTANT!
Do not connect the drain hoses
to a Waste Disposal Unit, as this
type of connection may lead to a
blockage in the drain hoses.
3
