Parts Manual

Dishwasher

Model:

HDW101SST HA AA

Product Code:

61507-A

Need help?

Do you have a question about the HDW101SST HA AA and is the answer not in the manual?

Questions and answers

Summary of Contents for Haier HDW101SST HA AA

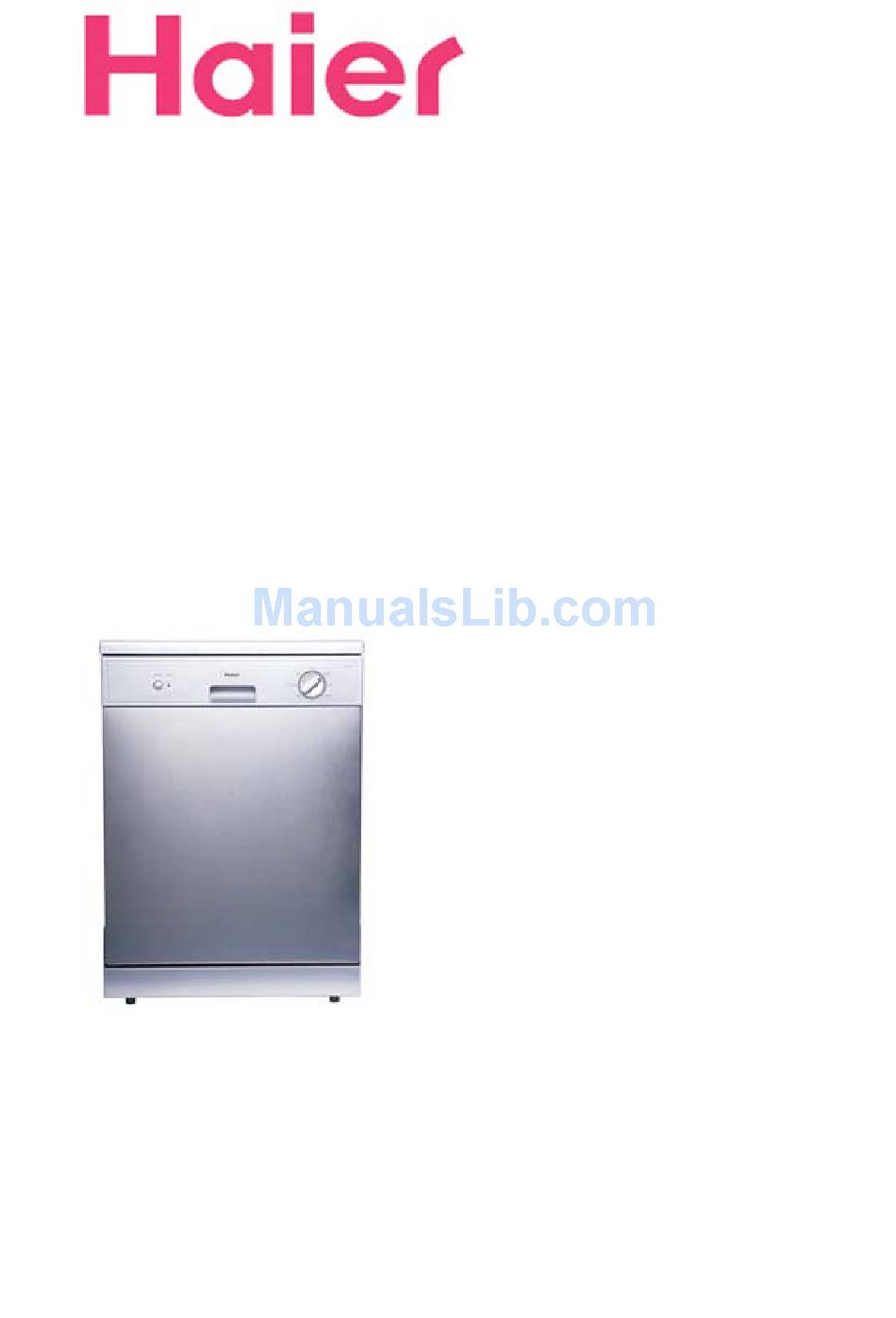

Page 1: Parts Manual
Parts Manual Dishwasher Model: HDW101SST HA AA Product Code: 61507-A 61507-A...
Page 2 61507-A...
Page 3 61507-A - NOVEMBER 2009 PRODUCT Brand Haier Voltage 220-240V, 50Hz Model HDW101SST HA AA Product Code 61507-A Fisher & Paykel Appliances Ltd 78 Springs Road, East Tamaki, PO Box 58-732, Botany, Manukau 2163, New Zealand Telephone: 09 273 0600 Facsimile: 09 273 0656 ...
Page 4 61507-A...
Page 5 61507-A CONTENTS CABINET & BASKET AREA ......................6 DOOR AREA............................. 8 RETICULATION AREA ........................10...
Page 6 61507-A CABINET & BASKET AREA...
Page 7 61507-A CABINET & BASKET AREA PART DESCRIPTION H0120103797 COMPLETE TOP H0120200057 SHELF FASTENING SMALL BLOCK H012G2150037 DOOR HOOK H012G1310020 UPPER REAR CROSSPIECE INSULATED TUB ASSEMBLY H0120104771 PAINTED LEFT SIDE PANEL H0120104772 PAINTED RIGHT SIDE PANEL H0120300248 TUB GASKET H0120200966 RAIL SUPPORT ASSEMBLY H012G1020069 MOBILE RAIL FOR BASKET H0120200967...
Page 8 61507-A DOOR AREA...
Page 9 61507-A DOOR AREA PART DESCRIPTION H0124000213 DETERGENT DISPENSER H0120805452 INNER DOOR ASSEMBLY H0120200981 DOOR SIDE COVER H012G6050032 DOOR SWITCH H012G2150051 PIN FOR CLOSING LEVER H0120200639 CLOSING SUPPORT H012G1040017 SPRING FOR CLOSING LEVER H012G2150050 CLOSING LEVER H0120200640 HANDLE SMALL BLOCK H012G1040016 HANDLE SPRING H0120201452 CLOSING HANDLE...
Page 10 61507-A RETICULATION AREA...
Page 11 61507-A RETICULATION AREA PART DESCRIPTION H0120202556A INSULATED TUB INLET H012G405058 RING H0120202557A INSULATED TUB INLET NUT H012G4050253 PIPE CONNECT WITH 3RD SPRAYER H012G1040022 BAND H012G2160200 CONNECT WITH 3RD SPRAYER H012G4050157 O-RING GASKET H0120201003 3RD SPRAYER H012G2160236 OUTER DUCT H0120202777 UPPER SPRAYER BASE H0120202779 INNER DUCT H0120202780...
Page 12 61507-A RETICULATION AREA...
Page 13 61507-A RETICULATION AREA PART DESCRIPTION H012G4050151 CUP GASKET H0120201292 RING NUT FOR CUP FASTENING H012G1040014 MICROFILTER (POLYESTHERE) H0120200949 INNER FILTER SCREEN H012G1040012 PLANE FILTER SCREEN H0120201009 EXTRACTABLE GLASS-FILTER H0120202285 EXTRACTABLE GLASS-FILTER COLUMN H0124000821 ANTIJAMMING FILTER WITH TERMINAL H012G1040028 BAND H012G4050242 DUCT COUPLING H0120800379 THERMO LIMITER ASSEMBLY...
