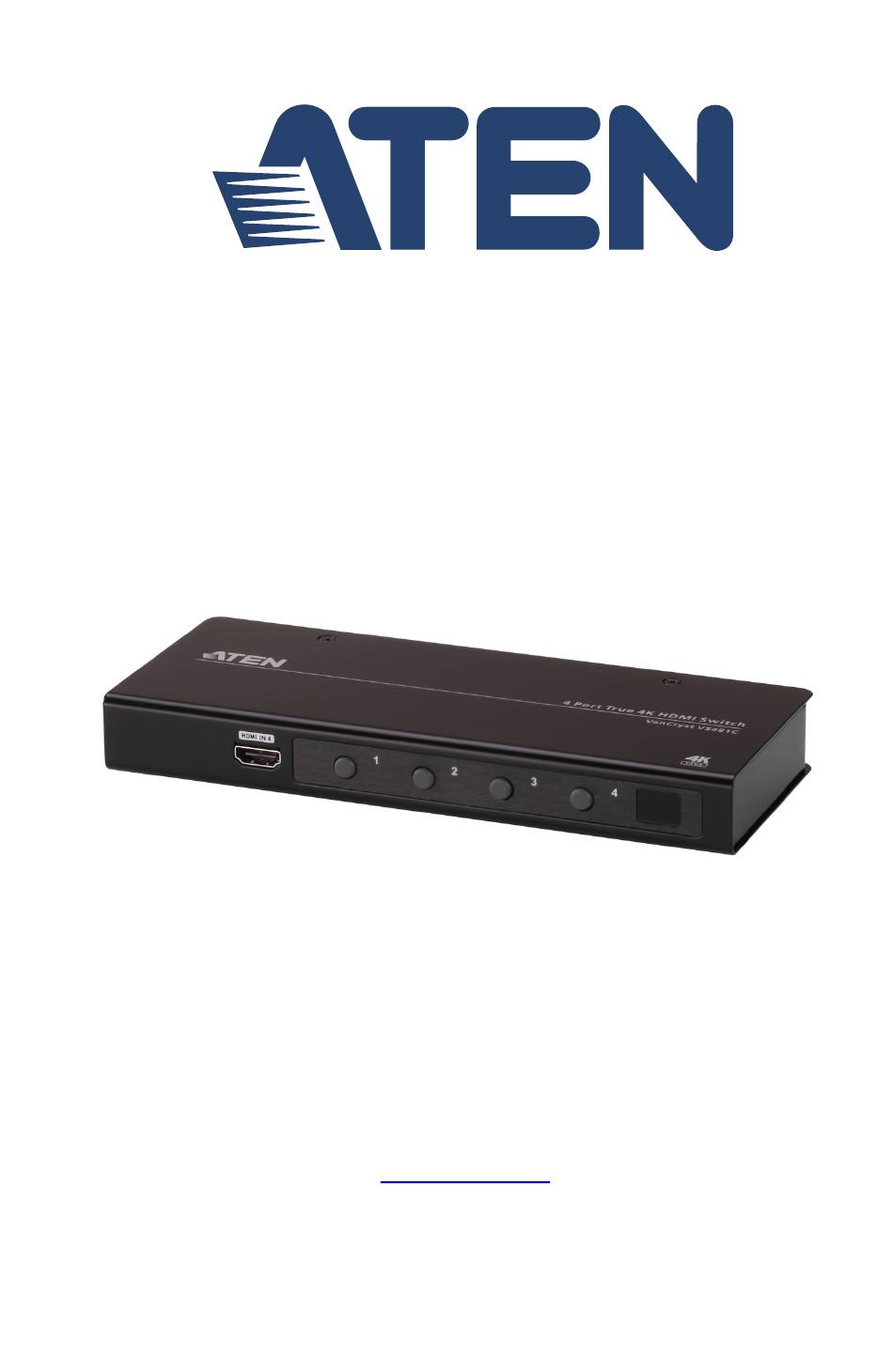

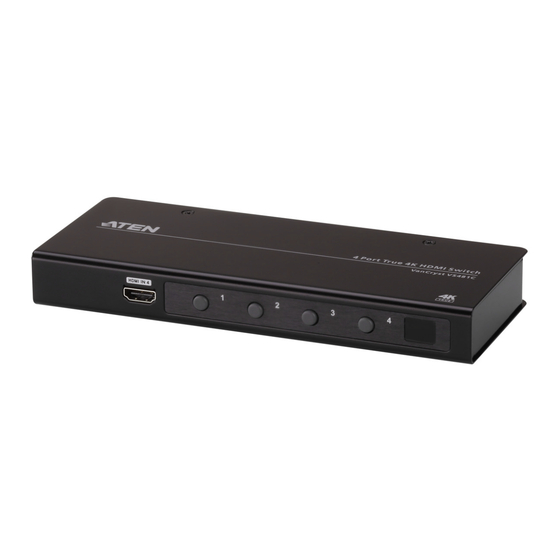

- Page 1 4-Port True 4K HDMI Switch VS481C User Manual www.aten.com...
-
Page 2: Emc Information
VS481C User Manual EMC Information FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 3: User Information
Japan 81-3-5615-5811 Korea 82-2-467-6789 North America 1-888-999-ATEN ext 4988 1-949-428-1111 User Notice All information, documentation, and specifications contained in this manual are subject to change without prior notification by the manufacturer. The manufacturer makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties as to merchantability or fitness for any particular purpose. -
Page 4: Package Contents
VS481C User Manual Package Contents 1 VS481C 4-Port True 4K HDMI Switch 1 HDMI Cable 1 IR Remote Control Unit 1 Power Adapter 1 User Instructions Note: Make sure that all of the components are present and in good order. If anything is missing or was damaged in shipping, contact your dealer. -
Page 5: Table Of Contents
Optional Equipment........3 Compatible ATEN Products ....... . . 3 2. - Page 6 VS481C User Manual Upgrade Failed ..........21 Firmware Upgrade Recovery .
-
Page 7: About This Manual
Read this manual thoroughly and follow the installation and operation procedures carefully to prevent any damage to the unit or any connected devices. ATEN regularly updates its product documentation for new features and fixes. For an up-to-date VS481C documentation, visit http://www.aten.com/global/en/... -
Page 8: Conventions
VS481C User Manual Conventions This manual uses the following conventions: Indicates text that you should key in. Monospaced Indicates keys you should press. For example, [Enter] means to press the Enter key. If keys need to be chorded, they appear together in the same bracket with a plus sign between them: [Ctrl+Alt]. -
Page 9: Product Information
VS481C User Manual Product Information For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International http://www.aten.com... - Page 10 VS481C User Manual This Page Intentionally Left Blank...
-
Page 11: Introduction
Integrator-friendly features include Auto Switch, bidirectional RS-232, and IR pass-through for remote device control. Engineered to meet today’s demand of true 4K signal transmission and user- oriented design, the ATEN VS481C is a powerful solution for a wide range of settings, such as home theater, meeting... -
Page 12: Features
Chapter 1. Introduction Features Allows up to 4 HDMI sources to be connected to one HDMI display HDMI 2.0 (3D, Deep Color, 4K); HDCP 2.2 compliant Superior video quality – True 4k resolutions of 4k x 2k @ 60 Hz (4:4:4) ... -
Page 13: Planning The Installation
The VS481C is compatible with the following ATEN products: Product Type Models ATEN Video Extender VE811T, VE811R, VE8900T, VE8900R, VE8950T, VE8950R ATEN Video Switch VS0801HB Others VanCryst HDMI cables Note: For an up-to-date list of compatible ATEN products, go to the VS481C product web page at http://www.aten.com/global/en/... - Page 14 Chapter 1. Introduction This Page Intentionally Left Blank...
-
Page 15: Hardware Setup
Chapter 2 Hardware Setup Components Front View No. Component Description HDMI In Port Connects to the HDMI Out Port on the source device. Port Selection Selects the corresponding HDMI input. Pushbuttons Port LEDs A Port LED lights green to indicate that the corresponding HDMI input is selected. -
Page 16: Rear View
Chapter 2. Hardware Setup Rear View No. Component Description Power Jack Connects to the power adapter. HDMI Out Port Connects to the HDMI In Port on the display device. HDMI In Port Connects to the HDMI Out Port on the source device. RS-232 Serial Port Connects to an RS-232 serial controller, such as a PC or a control system. -
Page 17: Ir Remote Control Unit
VS481C User Manual IR Remote Control Unit No. Component Description Port Up / Port Down Press the Port Up Button to cycle forward (e.g. source 1 Buttons to 2) through the source devices and the Port Down Button to cycle backward (e.g. source 2 to 1). Port Selection Buttons Press a button to bring the focus directly to the source device attached to its associated port. -
Page 18: Connecting The Vs481C
2. Do not power on the VS481C until all the necessary hardware is connected. Follow the steps below to connect the VS481C to a source, a compatible ATEN Video Extender, and other devices as required. 1. Use an HDMI cable to connect the HDMI In Port on the display device to the HDMI Out Port on the VS481C. - Page 19 4. (Optional) To extend the reception range for IR signals, plug in an IR Receiver to the to the IR Port on the VS481C. Note: This requires a separate purchase of an IR Receiver. ATEN recommends using the 2XRT-0003G IR Receiver. For more information about this accessory, visit our website at http://www.aten.com/global/en/...
- Page 20 Chapter 2. Hardware Setup This Page Intentionally Left Blank...
-
Page 21: Operation
Chapter 3 Operation Overview You can operate the VS481C using the panel pushbuttons, the IR remote control unit, or an RS-232 serial controller. The availability of actions with the three methods is summarized in the table below. Operation Methods Action Panel IR Remote Serial Controller... -
Page 22: Switching The Display Source
Chapter 3. Operation Switching the Display Source You can switch the display source using either the panel pushbuttons, IR remote control unit, or RS-232 serial controller: Panel pushbuttons Press the Port Selection Pushbutton that corresponds to the source you wish to switch to. -
Page 23: Setting The Switch Mode
VS481C User Manual Setting the Switch Mode You can have VS481C automatically switch ports for display. The VS481C supports the following switch modes: Switch Mode Description off mode The VS481C does not switch ports automatically. next mode The VS481C switches to the next port that has a new source device connected to it. -
Page 24: Executing An Rs-232 Command
Chapter 3. Operation Executing an RS-232 Command 1. Make sure you have connected a hardware device (e.g. PC) to the VS481C. For information on device requirements and installation, see Optional Equipment, page 3 and Connecting the VS481C, page 8 respectively. 2. -
Page 25: Rs-232 Commands
VS481C User Manual RS-232 Commands Task RS-232 Command Description Switch the source Switch the display to a sw i<source_number> For example, to switch to source 1, type specific source sw i01 or sw Turn on the output port sw on Turn off the output port sw off Change the switch mode... - Page 26 Chapter 3. Operation This Page Intentionally Left Blank...
-
Page 27: The Firmware Upgrade Utility
Chapter 4 The Firmware Upgrade Utility Introduction The purpose of the Windows-based Firmware Upgrade Utility is to provide an easy process for upgrading the VS481C. The program comes as part of a Firmware Upgrade Package that is specific for each device. As new firmware versions become available, new firmware upgrade packages are posted on our website. -
Page 28: Preparation
VS481C User Manual Preparation To prepare for the firmware upgrade, do the following: 1. Use an RS-232 cable to connect a COM port on your computer to the RS- 232 Serial Port of your VS481C. VS481C 2. Unplug the VS481C’s power adapter. 3. -
Page 29: Starting The Upgrade
Chapter 4. The Firmware Upgrade Utility Starting the Upgrade To upgrade the firmware: 1. Run the downloaded firmware upgrade package file either by double- clicking the file icon, or by opening a command line and entering the full path to it. The Firmware Upgrade Utility welcome screen appears: Note: The screens shown in this section are for reference only. - Page 30 VS481C User Manual 3. Click Next to continue. The Firmware Upgrade Utility main screen appears. The devices capable of being upgraded are listed in the Device List panel: 4. Click Next to perform the upgrade. The Port LEDs 1, 3, and 4 will flash while the upgrade is in process.
-
Page 31: Upgrade Succeeded
Chapter 4. The Firmware Upgrade Utility Upgrade Succeeded After the upgrade has completed, all port LEDs will stop flashing and a screen appears to inform you that the procedure was successful: Click Finish to close the Firmware Upgrade Utility. Upgrade Failed If the Upgrade Succeeded screen doesn't appear, it means that the upgrade failed to complete successfully. -
Page 32: Firmware Upgrade Recovery
VS481C User Manual Firmware Upgrade Recovery There are three conditions that call for firmware upgrade recovery: When a firmware upgrade is manually aborted. When the mainboard firmware upgrade fails. When the I/O firmware upgrade fails. To perform a firmware upgrade recovery, do the following: 1. -
Page 33: Appendix
Appendix Safety Instructions General This product is for indoor use only. Read all of these instructions. Save them for future reference. Follow all warnings and instructions marked on the device. Do not place the device on any unstable surface (cart, stand, table, etc.). If the device falls, serious damage will result. - Page 34 Appendix Do not allow anything to rest on the power cord or cables. Route the power cord and cables so that they cannot be stepped on or tripped over. If an extension cord is used with this device make sure that the total of the ampere ratings of all products used on this cord does not exceed the extension cord ampere rating.
-
Page 35: Technical Support
Support Documentation Software Updates Telephone Support 1-888-999-ATEN ext 4988 When you contact us, please have the following information ready beforehand: Product model number, serial number, and date of purchase Your computer configuration, including operating system, revision level, expansion cards, and software ... -
Page 36: Specifications
Appendix Specifications Function Specifications Video Input Interfaces 4 x HDMI Type A Female (Black) Impedance 100 Ώ Max. Distance Video Output Interfaces 1 x HDMI Type A Female (Black) Impedance 100 Ώ Max. Distance Video Max. Data Rate 18 Gbps (6 Gbps per lane) Max. - Page 37 VS481C User Manual Function Specifications Operating Temperature 0 - 40°C Storage Temperature -20 - 60°C Humidity 0 x 80% RH, Non-Condensing Physical Properties Housing Metal Weight 0.47 kg Dimensions (L x W x H) 20.00 x 8.21 x 2.50 cm...
-
Page 38: Limited Warranty
ATEN will provide a repair service, without charge, during the Warranty Period. If a product is detective, ATEN will, at its discretion, have the option to (1) repair said product with new or repaired components, or (2) replace the entire product with an identical product or with a similar product which fulfills the same function as the defective product.
