Features

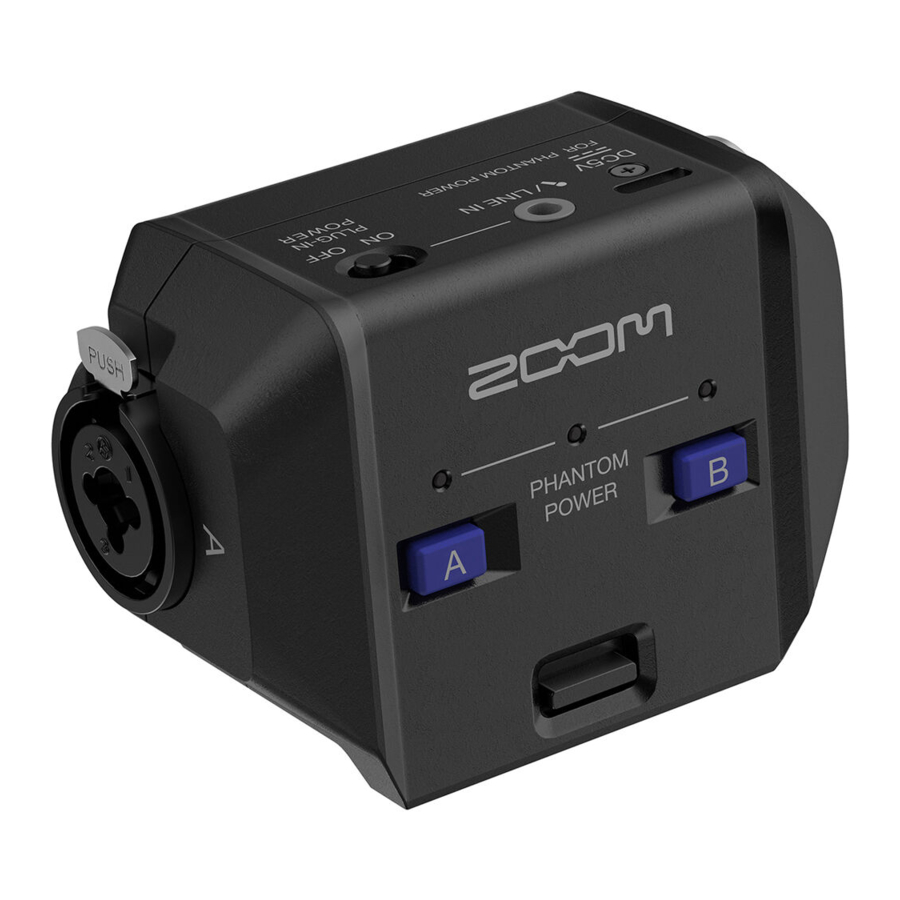

- Capsule that adds 2 lockable XLR/TRS input jacks to the recorder
- Input gain adjustment is unnecessary, and equipment ranging from mics to line level devices can be connected
- Phantom power supply is supported, and condenser mics can be used
- MIC/LINE stereo mini input jack also built in (supports plug-in power)
Functions of parts
INPUT A/B jacks
When connecting mic-level devices, use the XLR plugs.
When connecting line-level devices, use the TRS plugs.
When disconnecting an XLR plug, pull it while pushing the lock release button.
INPUT A and B buttons and status indicators
Press an INPUT A/B button, lighting its status indicator, to enable that input jack. (Phantom power will be supplied if power is connected to the USB port.) See the recorder operation manual for details.
PHANTOM POWER indicator
This will light when power is connected to the USB port and phantom power can be supplied.
USB port (Type-C)
By connecting a portable battery or AC adapter here, phantom power can be supplied from the INPUT A and B XLR jacks.
MIC/LINE IN jack (stereo mini)
Other mics and devices can be connected here.
This also supports mics that use plug-in power.
PLUG-IN POWER ON/OFF switch
Turn this ON when connecting a mic that requires plugin power to the MIC/LINE jack.
Connection example
When connecting condenser mics and other devices that require phantom power, use an external power supply.
Do not supply phantom power to devices that are not compatible with it. Doing so could damage the device.
Specifications
- INPUT A/B jacks
Connectors: XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)
Input gain: adjustment unnecessary
Input impedance: 3.8 kΩ or higher (MIC) / 39 kΩ or higher (LINE)
Maximum input level: −4 dBu (MIC) / +16 dBu (LINE)
Phantom power: +48 V, 10 mA maximum per channel
Equivalent input noise: −120 dBu or less (IHF-A) at 150Ω input - MIC/LINE jack
Connector: stereo mini jack
Input gain: adjustment unnecessary
Input impedance: 2 kΩ or higher - Dimensions
78.1 mm (W) × 56.7 mm (D) × 43.9 mm (H) - Weight
96 g
Before using this recorder, check its firmware version and update it as necessary.
The latest update files can be in the ZOOM website (zoomcorp.com/help/exh-6e).
or details, see the firmware update guide.
