ZOOM MS-90LP+ Manual

Installing batteries

Installing batteries - Step 1

  • When using batteries, follow the precautions below to prevent leakage.
  • Do not use batteries if their covers are coming off or their exteriors are damaged.
  • Do not mix batteries of different types or made by different manufacturers.
  • Do not use new and old batteries together. Remove dead batteries as soon as possible.
    Remove batteries when not using them for a long time.

The specified AC adapter (ZOOM AD-16) or a commercially-available USB portable battery can be used.
Installing batteries - Step 2

Connecting equipment and turning the power on

Connecting equipment and turning the power on

Setting the looper

Make looper settings on the Home Screen.
Setting the looper

TIME
(FREE / ♩ × 1–64)
The length of recorded phrases can be set. The BPM (tempo) can be set on the RHYTHM Screen.
START
(QUICK/FADE)
This sets how loop playback starts.
STOP
(QUICK/END/FADE)
This sets how loop playback stops.
LOOP VOL
(0–200)
This adjusts the loop playback volume.

Looper settings are also on the MENU Screen. ( → Functions available in the menu)

Using rhythms

Using rhythms

Rhythm settings are also on the MENU Screen. ( → Functions available in the menu)

Using the looper

Recording and playback

  • Recording the first phrase
    Using the looper - Recording and playback - Step 1
  • Stopping recording
    Using the looper - Recording and playback - Step 2
    The setting can be changed so that pressing the enables immediate overdubbing or stops recording without starting new playback. ( → Functions available in the menu)
  • Overdubbing (repeat recording)
    Using the looper - Recording and playback - Step 3
  • Stopping overdubbing
    Using the looper - Recording and playback - Step 4

Stopping recording/playback

Using the looper - Stopping recording/playback

Undoing the last recording

Using the looper - Undoing the last recording

UNDO and REDO functions can be used on changes in a memory until another memory is opened.

Clearing recorded phrases

Using the looper - Clearing recorded phrases

Using loop effects (LOOP FX)

Loop effects can be used during loop playback. These include reverse, half-speed and double-speed playback, as well as repeat playback of a short interval.

Using a loop effect during playback

LOOP FX - Using a loop effect during playback - Step 1
LOOP FX - Using a loop effect during playback - Step 2

Setting the loop effect

LOOP FX - Setting the loop effect - Step 1

REVERSE The loop will be played backward.
REVERSE UNLATCH The loop will be played backward only while is being pressed.
HALF SPEED The loop will be played at half speed.
HALF SPEED UNLATCH The loop will be played at half speed only while is being pressed.
DOUBLE SPEED The loop will be played at double speed.
DOUBLE SPEED UNLATCH The loop will be played at double speed only while is being pressed.
HOLD ( ) A short interval will be played repeatedly.
HOLD UNLATCH ( ) A short interval will be played repeatedly only while is being pressed.
TAPE STOP Playback will slow down until it stops.
ONE-SHOT PLAY The loop will play once and then stop.
RESTART The loop will begin playing from the beginning.
TAP TEMPO The tempo can be set by pressing repeatedly at the desired speed.

LOOP FX - Setting the loop effect - Step 2

Using memories

The MS-90LP+ manages recorded phrases in memories. Looper and rhythm settings along with the selected LOOP FX are saved together in memories.

Using memories

Functions available in the menu

Functions available in the menu

Memory management

Set the automatic saving function to "OFF", "SETTING ONLY" or "SETTING & PHRASE". Copy the memory. (This only appears when the automatic saving function is set to "SETTING & PHRASE".)
Save the memory. (This only appears when the automatic saving function is set to "OFF" or "SETTING ONLY".) Set the memory name.

Looper settings

Set the automatic recording function. Set the fade in/out time.
The looper can be set to start playback, start overdubbing or stop after the first phrase completes recording.

Rhythm settings

Set whether the looper is synchronized to the rhythm. Turn the pre-count on/off.

Hardware settings

Set the output routing. Adjust the overall output level.
Set the channel used to receive MIDI. Set the channel used to send MIDI.
Turn on/off the MIDI clock output function. Turn on/off the MIDI program change output function.
Set which connectors thru output MIDI data when it is received through the MIDI IN and USB connectors. Set the type of batteries.
Adjust the backlight brightness. Adjust the display contrast.
Turn ECO MODE on/off. Transfer files to and from a computer, smartphone or tablet.
Restore settings to their factory defaults. Check the firmware version.
Show a 2D code for checking MS-90LP+ operation procedures.

See the Operation Manual for detailed information about all the functions.

Functions of parts

Top

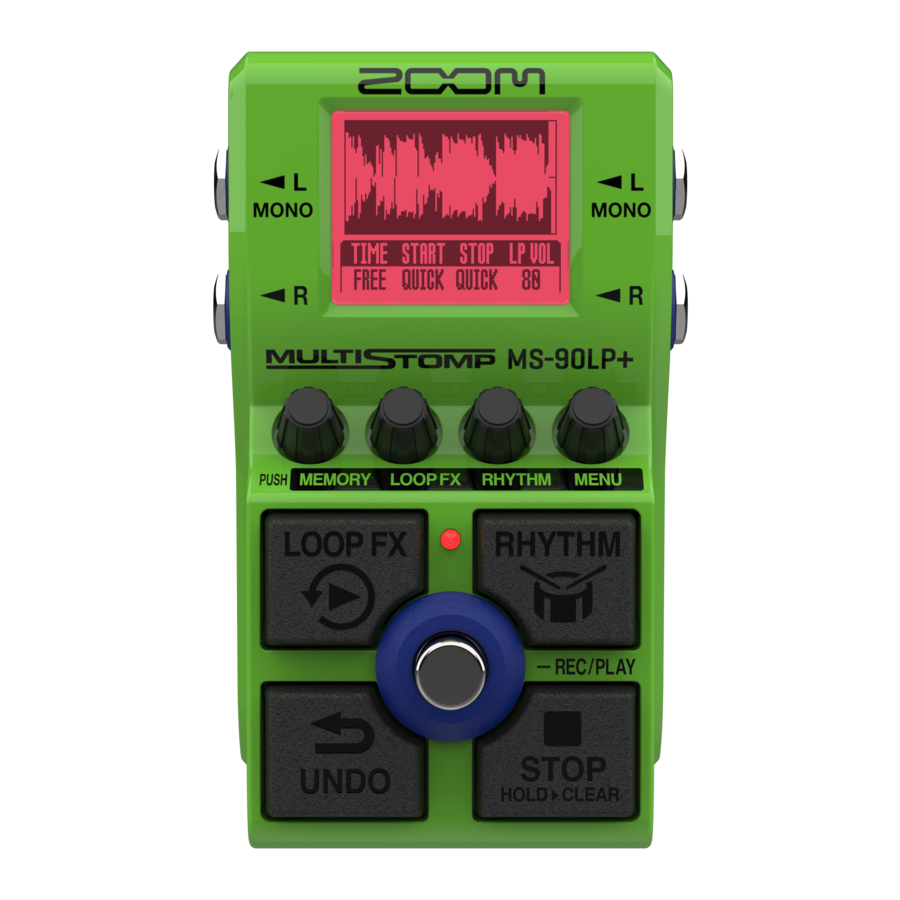

Functions of parts - Top

Output jacks
Connect an amp or another effect here. Use MONO for mono connections.

Display
This shows the looper status, parameter settings and other information.

Input jacks
Connect a guitar, another instrument or an effect here. Use MONO for mono connections.

Parameter knobs
Use these to adjust parameters and make various settings.

Indicator
The blinking rate shows the tempo.

Secondary footswitches
Use these to stop the looper, undo phrase recording, turn on/off the looper playback effect, and start/stop rhythm playback.

Footswitch
Use this for looper recording and playback operations.

Bottom

Functions of parts - Bottom

Battery cover
Open this when installing or removing AA batteries.

Back

Functions of parts - Back

DC 9V AC adapter connector
Connect a dedicated AC adapter (ZOOM AD-16) here.

MIDI jacks
Use 3.5mm TRS cables to connect MIDI devices.
To connect MIDI devices with 5-pin DIN connectors, use 5-pin DIN-TRS MIDI (Type-A) conversion cables.
By connecting MIDI devices, the MS- 90LP+ can be controlled as well as be synchronized with other equipment.

USB (Type-C) port
The following operations are possible when connected to a computer, smartphone or tablet.

  • Back up memories
  • Import loop sound sources
  • Control the MS-90LP+ using its MIDI functions

This supports operation on USB bus power.

Other functions

Transferring files to and from a computer, smartphone or tablet

By connecting the MS-90LP+ to a computer, smartphone or tablet, memories can be backed up, and loop sound sources can be imported, for example.
Transferring files to and from a computer

Setting the output routing (ROUTING)

Output routing can be selected according to use.
Setting the output routing (ROUTING)

The instrument, looper and rhythm sounds will be output in stereo.
The rhythm sound will be output independently from the R jack. The instrument and looper sounds will be output from the L (MONO) jack in mono.
This is useful when playing back through monitor speakers or another playback device.
The instrument sound will be output from the R jack. The looper sound will be output independently from the L (MONO) jack. (The rhythm will be output in stereo.)
This is useful when you want to separately output the sound of the instrument and the looper to a mixer, for example.

MIDI functions

A computer or a MIDI device that is connected to the MS-90LP+ can be used to switch memories and synchronize the tempo.
See the Operation Manual for details.
Other functions - MIDI functions

Troubleshooting

The unit will not power on

  • Check the connections.
  • If using batteries, connect a cable to the L/MONO output jack.
  • If the indicator blinks and it will not start, update the firmware.

There is no sound or output is very quiet

  • Check the connections.
  • Adjust the looper and rhythm levels.
  • Adjust the output volume.

Sounds from the output jacks are strange

  • Check the ROUTING setting.

There is a lot of noise

  • Confirm that nothing is wrong with the instrument cable.
  • Use a genuine AC adapter (ZOOM AD-16).

Batteries lose their charge quickly

  • Set the type of battery being used correctly. Due to their characteristics, using nickel metal hydride batteries (especially high-capacity ones) or lithium batteries should enable longer use than alkaline batteries when power consumption is high.
  • Set the display backlight to "NORMAL".
