Zoom R20 Manual

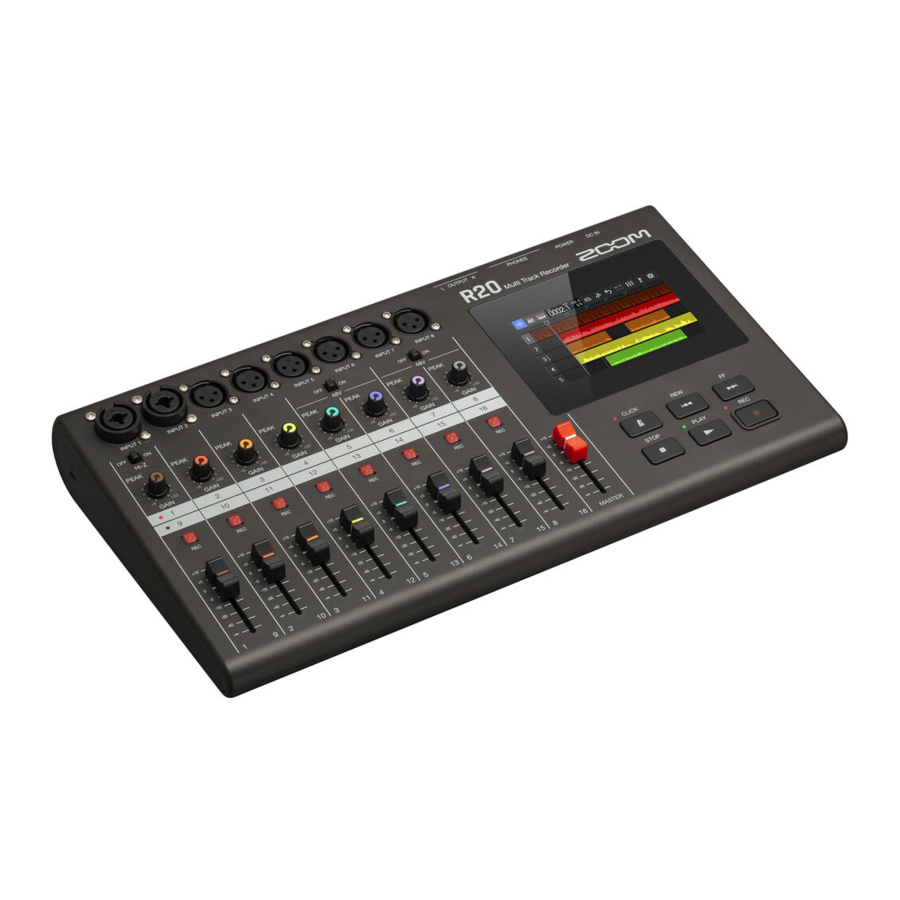

Recording AUDIO with R20 Multi Track Recorder (ZOOM)

  1. Plug the preferred microphone in the Multi Track Recorder:
    Recording AUDIO - Step 1
    • For the wired microphones, plug the XLR end into the appropriate input. (If you need Phantom Power, make sure to connect to input 5 through 8 and switch to 48V)
      Recording AUDIO - Step 2
    • For the wireless microphones, plug the receiver to input 1 or 2 and turn on one, or both microphones.
  1. Insert your SD card if you wish to save your recording work (It will save it automatically)
    Recording AUDIO - Step 3
  2. When you see new project on the touch screen, hit create to get started.
    Recording AUDIO - Step 4
  3. Connect headphones to the Multi Track recorder.
  4. Press the rec button according to the input chosen.
  1. The click setting is automatic but can be turned off.
    Recording AUDIO - Step 5
  2. Press the record button under the touchscreen to start recording and press the stop button to end the recording.
    Recording AUDIO - Step 6
  3. To listen to the recording, move the slider to the beginning of the recording, or press the rewind button.
    Recording AUDIO - Step 7
  4. To delete the recording, double tap the recording and an option to delete will show at the top of the screen.
    Recording AUDIO - Step 8

** Make sure to remove and take your SD card before leaving the Studio. **
