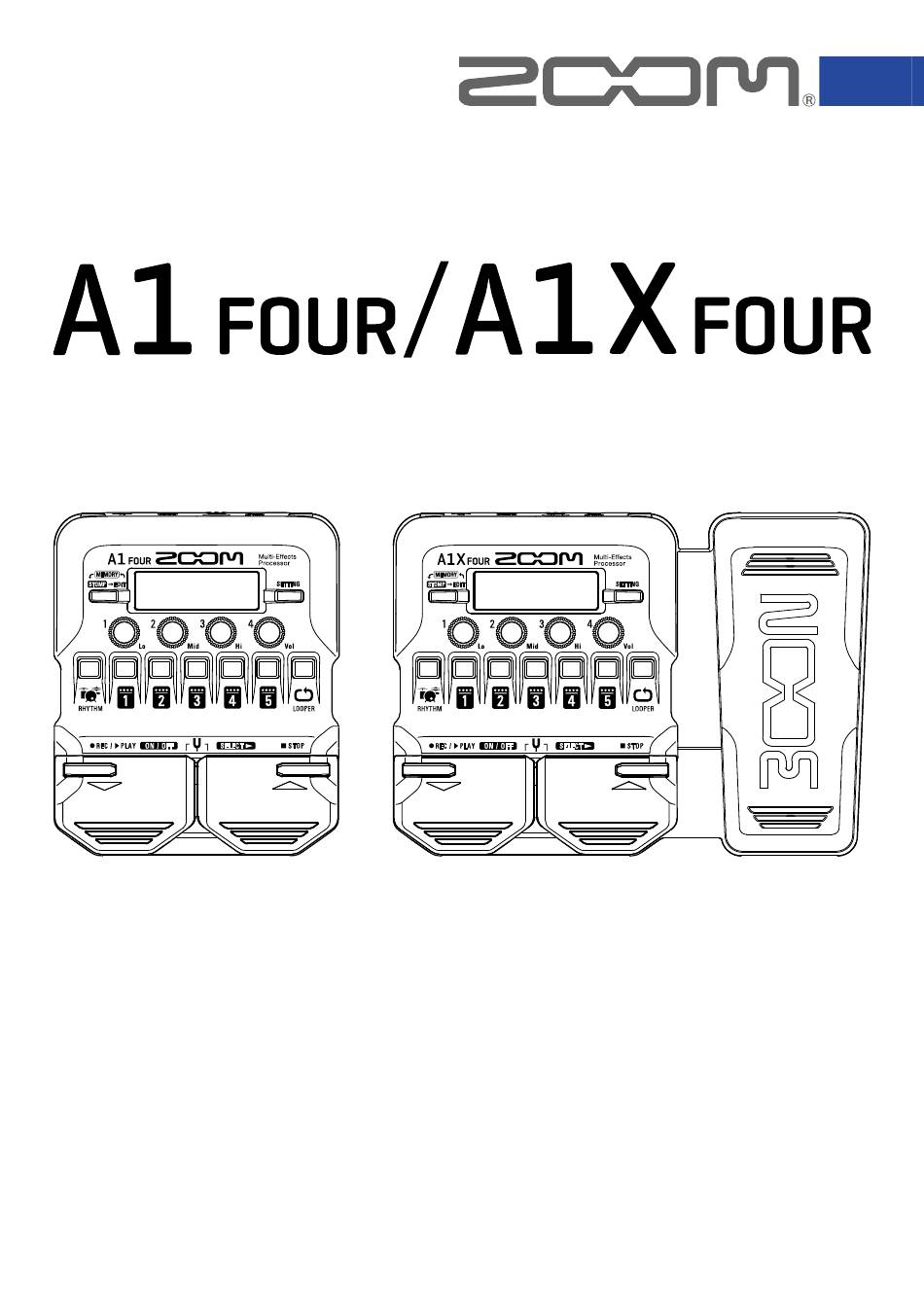

Multi-Effects Processor
Operation Manual
You must read the Usage and Safety Precautions before use.
© 2019 ZOOM CORPORATION
Copying or reprinting this manual in part or in whole without permission is prohibited.
Product names, registered trademarks and company names in this document are the property of their respective companies. All trademarks and regis-
tered trademarks in this document are for identification purposes only and are not intended to infringe on the copyrights of their respective owners.
Advertisement
Table of Contents
Related Manuals for Zoom A1 FOUR
Summary of Contents for Zoom A1 FOUR
- Page 1 Operation Manual You must read the Usage and Safety Precautions before use. © 2019 ZOOM CORPORATION Copying or reprinting this manual in part or in whole without permission is prohibited. Product names, registered trademarks and company names in this document are the property of their respective companies. All trademarks and regis-...
-
Page 2: Introduction
Introduction Thank you very much for purchasing a ZOOM Multi-Effects Processor. This multi-effect processor has a variety of effects, including reverb, chorus and distortion, that can be used in combination to alter the sound. Effect combinations and parameter settings can be saved as patch memories to be recalled and used whenever you like. -
Page 3: Terms Used In This Manual
Terms used in this manual Patch memory A “patch memory” stores effect ON/OFF states and parameter setting values. Effects are saved and recalled in units of patch memories. Five effects can be added to one patch memory, and the can store up to 50 patch memories. Bank One group of 10 patch memories is a “bank”... -
Page 4: Table Of Contents
Contents Introduction ����������������� 2 Making power and display settings ����� 37 Setting the type of batteries used ����� 37 Terms used in this manual ���������� 3 Setting the ECO mode ���������� 38 Setting the backlight time �������� 39 Contents ������������������ 4 Adjusting the display contrast ������... -
Page 5: Structure
A1 FOUR/A1X FOU structure Signal flow Patch memory Looper Level Looper INPUT Output Output Effect volume Post OUTPUT Tuner Rhythm AUX IN The input instrument sound passes through effects 1 – 5 in order. “Using patch memories (MEMORY mode)” on page The patch memory level is adjusted. - Page 6 Memory overview (patch memories/banks) can save up to 50 patch memories. Patch memories are managed in banks of 10. Bank 1 Bank 2 Bank 3 Bank 4 Bank 5 Patch memory 10 Patch memory 40 Patch memory 50 Patch memory 20 Patch memory 30 Patch memory 11 Patch memory 21...
-

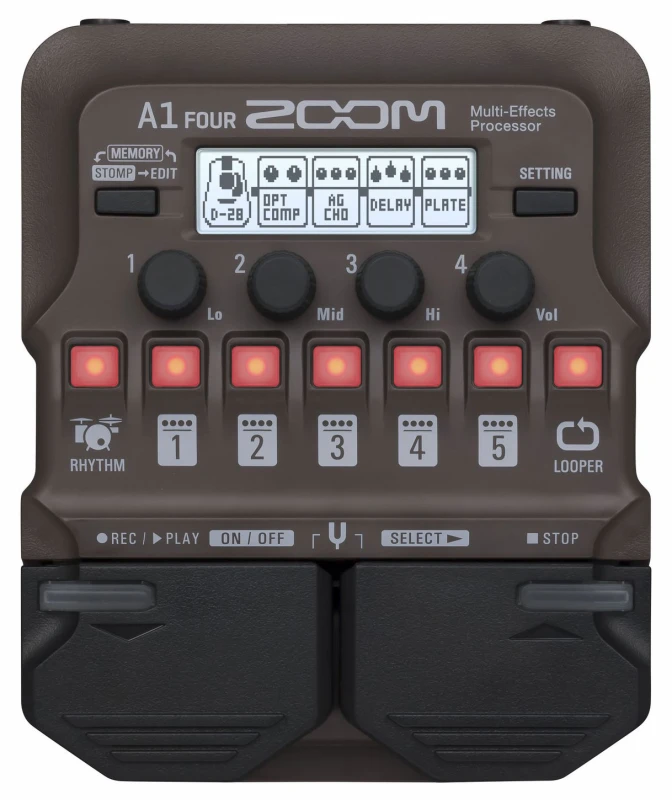

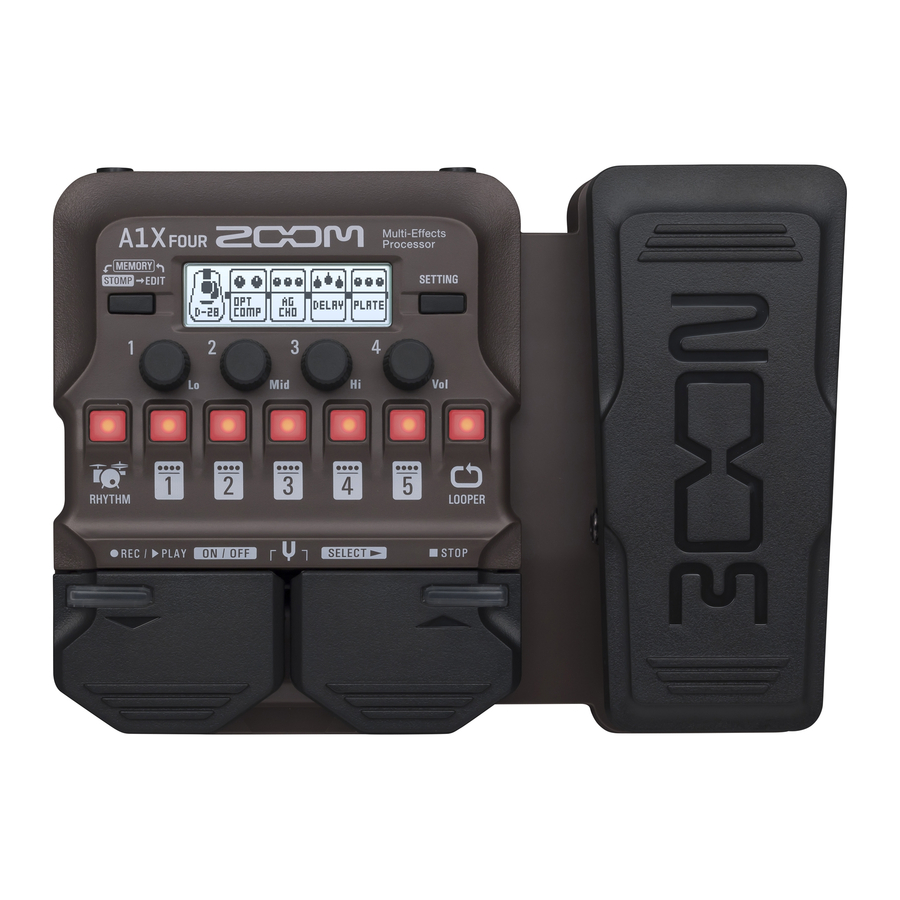

Page 7: Names Of Parts
Names of parts Front Panel Display This shows information, including the names of the selected patch memory and its effects and their pa- rameter values Mode switch Press this to cycle through the MEMORY, STOMP and EDIT modes. Parameter knobs Use these to adjust effect parameters and to make various settings. - Page 8 Signals input through the AUX IN jack will be sent to the OUTPUT jack directly without passing through the built-in effects. AC adapter connector Connect the dedicated AC adapter (ZOOM AD-16) here. USB port Connect a computer or other external device here. By using Guitar Lab, you can manage patch memo- ries and edit and add effects, for example, from a computer.
-
Page 9: Loading Batteries
“Setting the type of batteries used” on page HINT • If a dedicated AC adapter (ZOOM AD-16) is connected, it can run on AC power. • Power for operation can also be supplied through the USB port. ECO mode overview •... -
Page 10: Connecting
Connecting MAA-1 1、 7 Minimize the volume of the output device. To use AC power supply, connect the dedicated AC adapter (ZOOM AD-16) to the AC adapter jack and an outlet. This turns the power ON. To use a computer, connect a USB cable (not included) to the USB port and the computer. -
Page 11: Connecting A Mic Using The Maa-1
Connecting a mic using the MAA-1 Using the MAA-1 to connect a mic to the , it can be enjoyed with instruments that do not have pickups, including harmonicas, violins, trumpets, saxophones and other string and brass instru- ments. Putting batteries into the MAA-1 Press and slide the battery compartment cover down to open it. - Page 12 Turn the MAA-1 power on. to the ON position. will light red. When connecting a condenser mic or other device that requires phantom power, set it to the +48V position. NOTE When connecting devices that are not compatible with phantom power, do not set to +48V.
-
Page 13: Adjusting The Overall Audio Character And Output Level
Adjusting the overall audio character and out- put level In MEMORY or STOMP mode, turn – Function Operation Adjust the level of low frequencies Turn Adjust the level of middle frequencies Turn Adjust the level of high frequencies Turn Adjust the overall level Turn HINT These adjustments are retained even when the patch memory is changed. -
Page 14: Using Patch Memories (Memory Mode)
Using patch memories (MEMORY mode) manages effects in patch memories. A patch memory can have up to five effects and save their ON/OFF states and parameter settings. Patch memory Effect Up to 50 patch memories can be created. Groups of 10 patch memories are organized into banks, so ef- fects can be quickly recalled by switching banks. -
Page 15: Selecting Patch Memories And Banks
Selecting patch memories and banks Switching patch memories Press This changes the patch memory. Function Operation Switch to lower-numbered patch memory Press Switch to higher-numbered patch memory Press HINT • By continuing to press , you can continuously switch patch memories. •... -
Page 16: Changing Individual Patch Memory Settings
Changing individual patch memory settings Select the patch memory with settings you want to change. Press This opens the SETTING screen. Press This opens the patch memory setting screen. The patch memory level and name can be changed. ( “Changing patch memory levels” on page “Changing patch memory names”... - Page 17 Changing patch memory names Turn This moves the cursor. Turn This changes the character at the cursor position. HINT • Press to end patch memory setting and return to the original screen. • The characters and symbols that can be used are as follows. A–Z, a–z, 0–9, ! # $ % &...
-
Page 18: Turning Effects On/Off With Footswitches (Stomp Mode)
Turning effects ON/OFF with footswitches (STOMP mode) In STOMP mode, you can turn effects ON/OFF with footswitches. Activating STOMP mode When using MEMORY or EDIT mode, press Pressing repeatedly, cycles through the MEMORY, STOMP and EDIT modes in order. -
Page 19: Turning Effects On/Off With Footswitches
Turning effects ON/OFF with footswitches Press Select the effect to control. The selected effect is shown with light and dark inverted. Press repeatedly to move the selection to the right. Press This turns the effect ON/OFF . To turn an effect ON/OFF by hand, press the –... -
Page 20: Editing Effects (Edit Mode)
Editing effects (EDIT mode) In EDIT mode, you can change the effects used in patch memories and adjust their parameters. Patch memory Effect EDIT mode screen Activating EDIT mode Select a patch memory in MEMORY mode. Press Pressing repeatedly, cycles through the MEMORY, STOMP and EDIT modes in order. -
Page 21: Selecting Effects
Selecting effects Press – for the effect you want to edit. This switches the effect. The LED for the selected effect lights. Unit number Effect name Parameters HINT The effect unit number is its position in the patch memory order. Turning effects ON/OFF Press the –... -
Page 22: Changing Effect Types
Changing effect types Selecting effect types Press � Function Operation Change to the previous effect type Press Change to the next effect type Press Selecting effect categories While pressing , press The category name appears on the display. Press again to show the next category name. �... -
Page 23: Adjusting Effect Parameters
Adjusting effect parameters Turn – The parameters assigned to each knob depend on the effect. Refer to the names shown on the dis- play. If an effect has 5 or more parameters, use to change the screen. HINT • When AUTO SAVE is set to ON, parameter changes will be saved automatically. ( “Setting the AUTO SAVE function”... -
Page 24: Changing The Effect Order
Changing the effect order Press This opens the SETTING screen. Press This opens the CHAIN screen. The effects used in the selected patch memory are shown as icons. Press the – button for the effect you want to move. Press the –... -
Page 25: Managing Patch Memories
Managing patch memories Saving patch memories Patch changes can be saved to the same patch memory, overwriting it. They can also be saved to a patch memory with a different number. Press This opens the SETTING screen. Press This opens the SAVE screen. –... - Page 26 Press at the same time. This saves the patch memory, overwriting the content.
-
Page 27: Swapping Patch Memories
Swapping patch memories The contents of the patch memory can be switched with a patch memory at a different number. Press This opens the SETTING screen. Press This opens the SAVE screen. Turn The icon on the display changes from SAVE to SWAP . –... - Page 28 Press at the same time. This swaps the patch memories. NOTE A patch memory that has been edited must be saved before it can be swapped. Save the patch memory before trying to swap it. ( “Saving patch memories” on page...
-
Page 29: Adjusting The Master Tempo
Adjusting the master tempo The master tempo is the tempo shared by effects, rhythms and the looper. Press This opens the SETTING screen. Press This opens the SETUP screen. Turn HINT • This can be set from 40 to 250. •... -
Page 30: Setting The Auto Save Function
Setting the AUTO SAVE function This function can be used to automatically save changes to patch memory and effect settings when they are made. Press This opens the SETTING screen. Press This opens the SETUP screen. Turn Setting Explanation Automatic saving is enabled. Automatic saving is disabled. - Page 31 Turn Setting Explanation Changes will be saved. Changes will not be saved. NOTE If you select “NO” , the other patch memory will open without saving the changed patch memory settings. Press This opens a screen for selecting the patch memory number to use for saving. –...
- Page 32 Press at the same time. The edited patch memory is saved. HINT An edited patch memory can also be saved on the SETTING screen. ( “Saving patch memories” on page...
-
Page 33: Setting The Preselect Function
Setting the PRESELECT function This function can be used to switch to a patch memory at any location while continuing to use the tone of the currently selected patch memory. Press This opens the SETTING screen. Press This opens the SETUP screen. Turn Setting Explanation... - Page 34 When PRESELECT is ON In MEMORY mode, use – This opens a screen for selecting the number of the preselect destination patch memory. Function Operation Switch to lower-numbered patch memory Press Switch to higher-numbered patch memory Press Switch to patch memory numbers 10 – 19 Press Switch to patch memory numbers 20 –...
- Page 35 When PRESELECT is OFF In MEMORY mode, use – This changes the patch memory. Function Operation Switch to lower-numbered patch memory Press Switch to higher-numbered patch memory Press Switch to patch memory numbers 10 – 19 Press Switch to patch memory numbers 20 – 29 Press Switch to patch memory numbers 30 –...
-
Page 36: Setting The Bank Hold Function
Setting the BANK HOLD function This function can be used to limit to the same bank when switching patch memories. Press This opens the SETTING screen. Press This opens the SETUP screen. Turn When BANK HOLD is ON Switching down from the lowest patch memory in a bank will open the highest patch memory in the same bank. -
Page 37: Making Power And Display Settings
Making power and display settings Setting the type of batteries used Set the type of battery used correctly so that the amount of remaining battery charge can be shown accu- rately. Press This opens the SETTING screen. Press This opens the PWR/LCD screen. Turn Setting Explanation... -
Page 38: Setting The Eco Mode
Setting the ECO mode This function can be used to turn the power off automatically if unused for 10 hours. Press This opens the SETTING screen. Press This opens the PWR/LCD screen. Turn Setting Explanation The power will automatically turn off if unused for 10 hours. This disables ECO mode. -
Page 39: Setting The Backlight Time
Setting the backlight time Press This opens the SETTING screen. Press This opens the PWR/LCD screen. Turn Setting Explanation The backlight stays off. The backlight stays on. The backlight turns off 15 seconds after the last operation. The backlight turns off 30 seconds after the last operation. -
Page 40: Adjusting The Display Contrast
Adjusting the display contrast Press This opens the SETTING screen. Press This opens the PWR/LCD screen. Turn HINT This can be set from 1 to 13. -
Page 41: Using The Tuner
Using the tuner Use this to tune the connected instrument. Activating the tuner When using MEMORY, STOMP or EDIT mode, press at the same time. This activates the tuner. HINT Pressing anything other than will close the tuner and return to the original screen. Tuning instruments Play the sound that you want to tune and adjust its pitch. - Page 42 Other tuners (for guitars) Use this to tune to the correct pitch for the nearest string number, which is shown according to the selected type. The nearest string number and pitch detuning will be shown on the display and by the LEDs. When the pitch is accurate, the LED at the center of the meter will light green and the LEDs to the left and right will light red.
-
Page 43: Changing Tuner Settings
Changing tuner settings Press when the Tuner Screen is open. This opens the TUNER settings screen. Setting the output method Turn Setting Explanation BYPASS Effects are bypassed and the instrument sound is output. MUTE The instrument sound is not output. HINT You can also turn on the Tuner Screen to change this setting. - Page 44 Setting the tuner type Turn Setting Explanation The pitch detuning is shown according to the nearest note (in CHROMATIC semitones). The nearest string number is shown according to the selected Other tuner types type, and the amount of detuning from its pitch is shown. The following tuner types can be selected.
-
Page 45: Preventing Feedback
Preventing feedback Select Anti FB (anti feedback) as an effect to use the anti-feedback function. This function can detect and cut the frequency band that is feeding back to reduce it. Select a patch memory for assignment of the Anti FB effect in MEMORY mode. Press repeatedly to activate EDIT mode. -
Page 46: Using Rhythms
Using rhythms You can play along with built-in rhythms. Activating the rhythm function When using MEMORY, STOMP or EDIT mode, press This opens the RHYTHM screen. HINT • Press to return to the original mode. • During rhythm playback, press to continue rhythm playback and return to the original mode. -
Page 47: Setting The Rhythm
Setting the rhythm Selecting rhythm patterns Turn This selects the rhythm pattern. ( “Rhythm patterns” on page Setting the precount Turn This sets the precount. This plays a count sound before looper recording starts. Setting Explanation A precount is not played. A precount is played. -
Page 48: Starting/Stopping Rhythm Playback
Starting/stopping rhythm playback Press This starts rhythm playback. Press This stops rhythm playback. HINT During rhythm playback, you can switch MEMORY, STOMP and EDIT modes. To stop rhythm playback, press to open the RHYTHM screen, and then press... -
Page 49: Rhythm Patterns
Rhythm patterns Pattern Name Time Pattern Name Time Pattern Name Time Sig. Sig. Sig. Metro Jazz4 Djembe1 Metro3 8Beats1 Djembe2 Metro4 8Beats2 Reggae1 Metro5 8Beats3 Reggae2 Guide1 8Beats4 NuSoul1 Guide2 16Beats1 NuSoul2 Cajon1 16Beats2 LoFiHH1 Cajon2 Funk1 LoFiHH2 Cajon3 Funk2 NuJazz1 Cajon4 Fusion... -
Page 50: Using The Looper
Using the looper You can record your playing and create mono loop phrases that are up to 30 seconds long. Activating the looper When using MEMORY, STOMP or EDIT mode, press This opens the LOOPER screen. HINT Press to return to the original mode. -
Page 51: Setting The Looper
Setting the looper Setting of the loop recording time Turn Setting Explanation Recording will continue until stopped manually or the maxi- MANUAL mum recording time is reached. Set the value to 1 – 64 quarter notes. The actual recording time ×1–64 depends on the BPM setting. - Page 52 Setting the looper position Turn Setting Explanation The looper is positioned before the effects. Post The looper is positioned after the effects. HINT This is convenient when using acoustic instruments that are loud unamplified because putting the loop- er at the beginning of the effect chain allows sound to be played once, then looped and manipulated without additional playing.
-
Page 53: Recording And Playing Loops
Recording and playing loops Press This starts loop recording. Stop recording and start loop playback. If the recording time is set to "Manual" Pressing again or allowing the maximum recording time to be reached will stop recording and start loop playback. If the recording time is set to “... -
Page 54: Overdubbing Loops
Overdubbing loops Additional performances can be added to the recorded loop. Press during loop playback. This starts overdubbing. When the end of the loop is reached, loop playback will continue from the beginning, and overdub- bing can be repeated. Press during overdubbing. -
Page 55: Clearing The Loop
Clearing the loop When loop playback is stopped, press and hold This clears the recorded loop. -
Page 56: Using The Expression Pedal ( Only)
Using the expression pedal ( only) A1X FOUR If an effect in the PEDAL category is selected when using an , you can control the amount of the effect with the expression pedal. Setting pedal effects In EDIT mode, select an effect from the PEDAL category. NOTE Only one effect in a patch memory can be selected from the PEDAL category. -
Page 57: Adjusting The Pedal
Adjusting the pedal Adjusting the pedal sensitivity While pressing , turn the power on. This opens the PEDAL CALIBRATION screen. Operate the pedal as shown on the display, and press each time. Calibration is finished when “Complete!” appears. NOTE • Adjust the pedal sensitivity in the following cases. –... - Page 58 Adjusting the torque Insert a 5 mm hex wrench into the torque adjustment screw on the side of the pedal. Turn it clockwise to tighten the pedal and counterclockwise to loosen it. Loosen Tighten NOTE Be careful because loosening the torque adjustment screw too much could cause it to become discon- nected internally, making it impossible to keep the pedal in a fixed position.
-
Page 59: Managing The Firmware
Managing the firmware Checking the firmware versions While pressing , turn the power on. This opens the firmware version screen. Press This restarts the and reopens the usual screen. -
Page 60: Updating The Firmware
Updating the firmware Check the ZOOM website (www.zoom.co.jp/), and download firmware for the While pressing both , use a USB cable to connect the and the computer. This turns the power on and opens the FIRMWARE UPDATE screen. Launch the firmware update application on the computer. -
Page 61: Restoring Factory Default Settings
Restoring factory default settings While pressing , turn the power on. This opens an initialization confirmation screen. Turn This selects the operation. Setting Explanation Initialize settings, rewriting them with the factory defaults. Cancel initialization and return to the usual screen. Press This starts initialization. -
Page 62: Troubleshooting
“Adjusting the MAA-1 input level” on page There is a lot of noise • Confirm that a shielded cable is not the cause. • Use a genuine ZOOM AC adapter. ( “Connecting” on page Effects are not working • If the effect processing power is being exceeded, “PROCESS OVERFLOW” will appear on the display. -
Page 63: Specifications
120 dB Noise floor (residual noise) −97 dBu Power AC adapter: 9V DC 500mA center negative (ZOOM AD-16) 4 AA batteries (about 18 hours continuous operation time when using alkaline batteries with the LCD backlight off) USB MIDI, USB Micro-B •... - Page 64 ZOOM CORPORATION 4-4-3 Kanda-surugadai, Chiyoda-ku, Tokyo 101-0062 Japan www.zoom.co.jp Z2I-3771-01...
