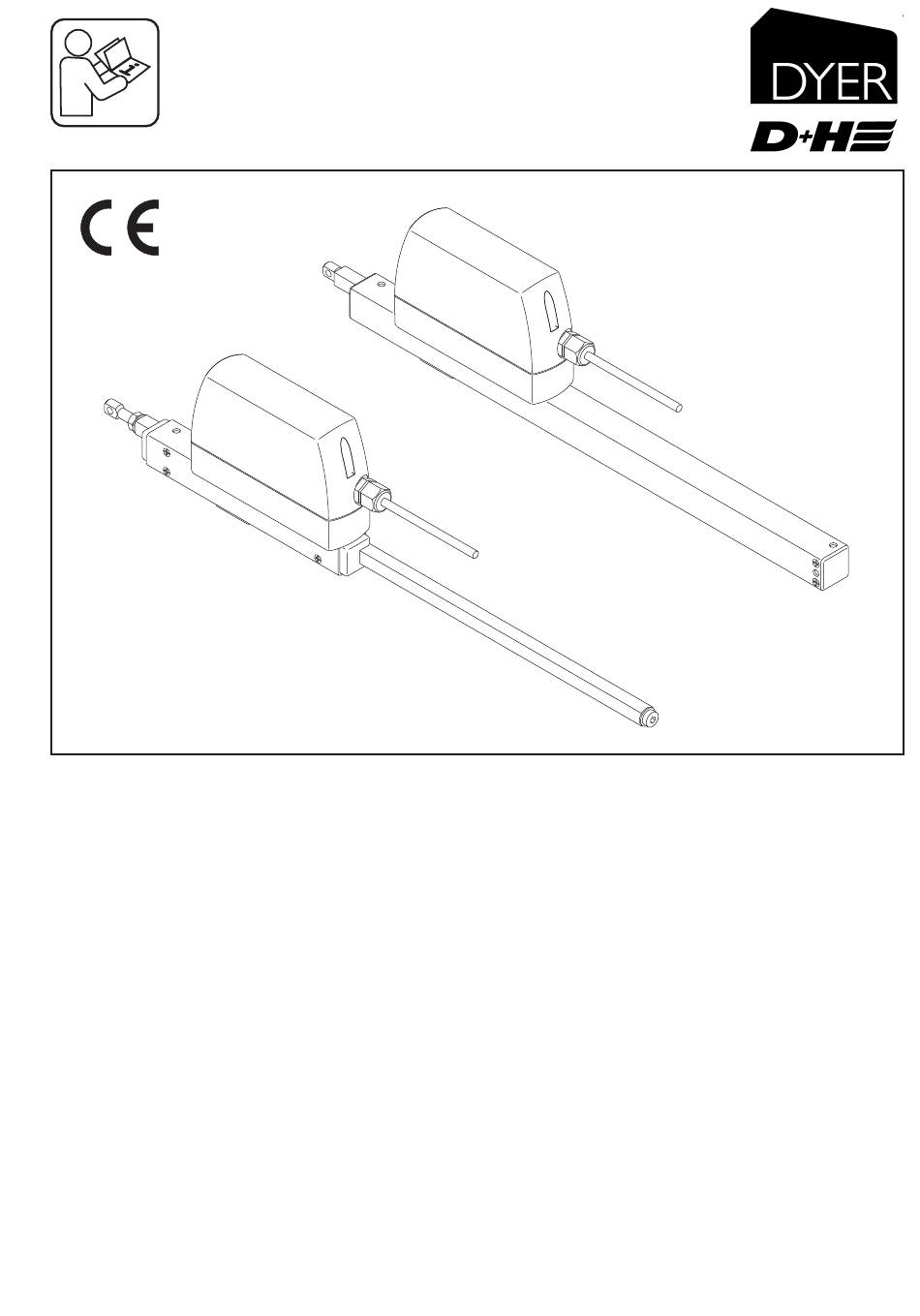

- Page 1 ZA-0300/0800/1000/1500-1-PLP(-HS) instructions Standard version Version without tube (option "-OT") Please order bracket sets separately...
- Page 2 Pressure load diagram Guarantee Maximum pressure load of the toothed rack is not You will get 2 years guarantee for all D+H products automatically identical with maximum pressure force from date of verified handing over of the system up to...
-
Page 3: Technical Data
Closing edge protection activated (3 stroke repeatings) * Adjustable with PLP 1 ** Programmable with PLP 1 and SCS Running speed and forces Normal operation = SHEV- fast running = Forces ZA-0300 ZA-0800 ZA-1000 ZA-1500 OPEN 300 N 800 N 1000 N 1500 N All forces... -
Page 4: Mounting Information
10 ... 20 mm stop position damping. Brackets can be damaged by to rigid adjustment! - Technical clarification is required with D+H in case of only tensile force applications of more than 500N - A programming should be done before... - Page 5 Not in case of GVL -E/ -K/ -M Protect against short circuit In case of connection to D+H SHEV control panels with E/HS line monitoring **** Cable acc. to D+H table for layout of cables (see instructions for use of control panel) ZA-1-PLP...
- Page 6 Dimensions Stroke 82 mm, 100 mm Stroke≥ 165 mm t r o t r o Version without tube (option "-OT") ZA-1-PLP...
