1.9
CONNECTING THE CHILLER LINE
As far as connecting the cooling line is concerned, all the instructions contained in the Outdoor Unit instructions booklet must be fol-
lowed.
Make the connections directly on the Indoor Unit couplings, or use the rear outlet kit (optional).
1.10 ELECTRICAL CONNECTION
Disconnect power to the Indoor Unit before making any electrical connection.
The Indoor Unit has an IPX4D degree of protection; electrical safety of the appliance is achieved only when it is properly connected to an
efficient earthing system, as specified by current safety standards.
The manufacturer declines any responsibility for damage or physical injury caused by failure to connect the Indoor Unit to an
efficient earthing system or failure to comply with the IEC reference standards.
Connection cables must respect the prearranged routes.
Use 3 clips (c) (not supplied) to group the individual cables (max. 1.5 mm
Use the specific fairleads (d) on the left side, making sure to put at most 2 multi-polar cables (max 3 x 1 mm

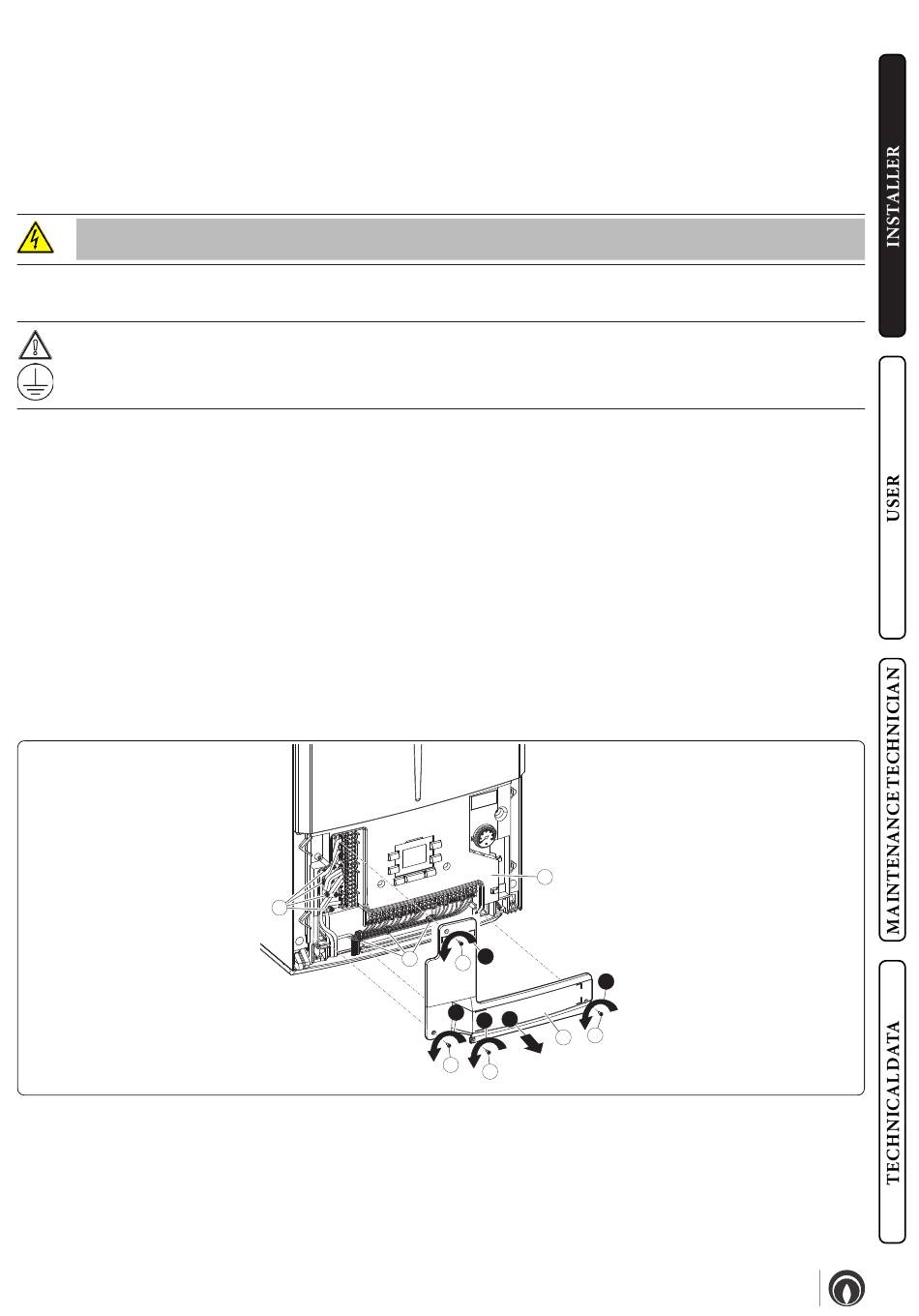

The figure 9 shows cables in a hypothetical connection. To make the connections based on your own requirements, see the instructions
below.
Open the control panel connections compartment (Fig. 9).
To carry out electrical connections, all you have to do is open the connections compartment as follows.
1. Remove the front panel.
2. Disassemble the cover.
3. Loosen the screws (a).
4. Remove the cover (b) from the control panel (c).
At this point, you can access the terminal board.
Also ensure that the electrical installation corresponds to maximum absorbed power specifications as shown on the Indoor Unit da-
ta-plate.
The Indoor Units are supplied complete with a "Y" type H 05 VVF 3 x 0.75 mm
d
c
a
ST.008705/000
into the lower terminal board.
2
power supply cable, without plug.
2
c
1
a
1
1
2
1
a
b
a
Magis Combo 12/14/16 V2 I
) in each fairlead.
2
21
9
