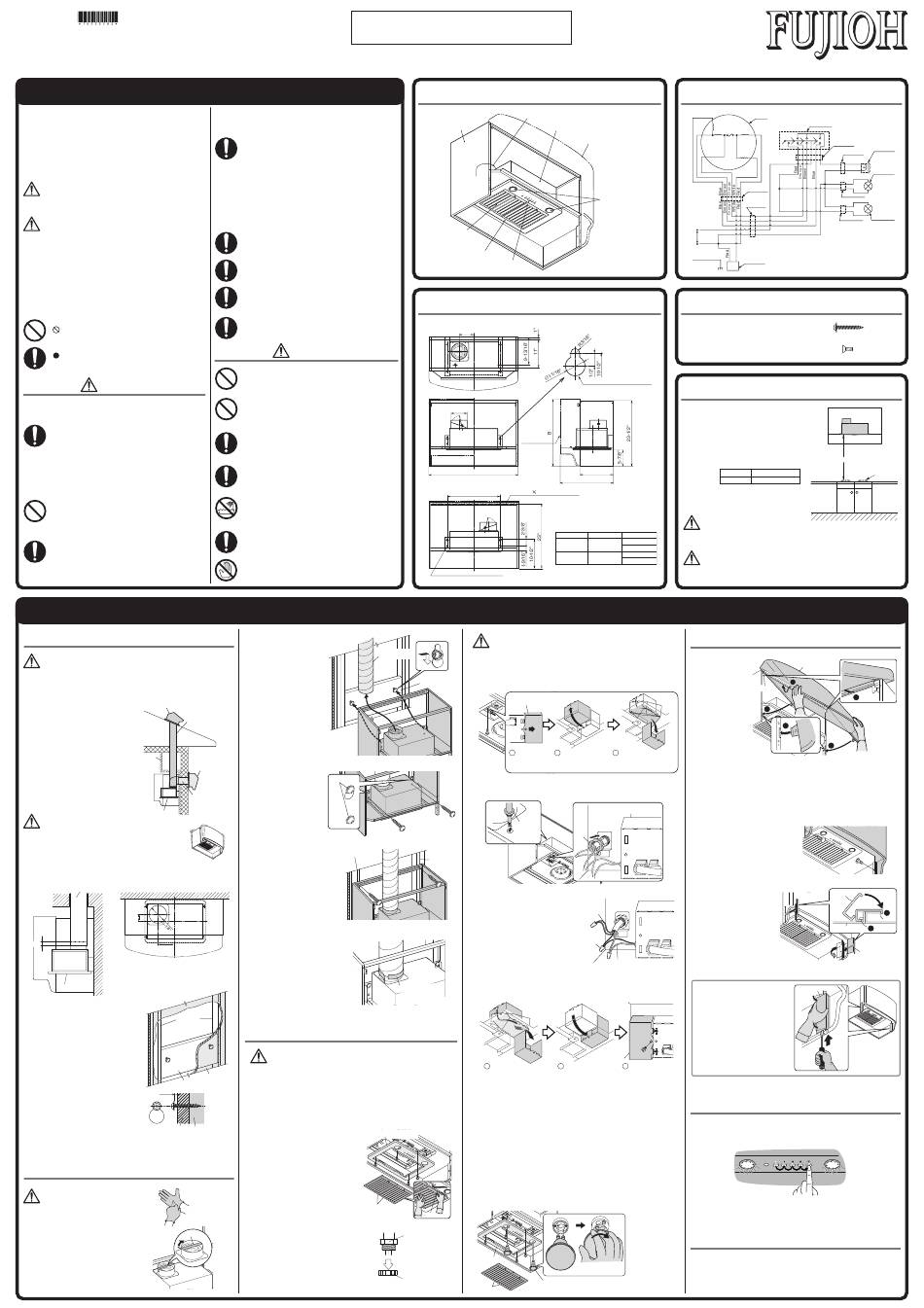

Fujioh EBW-300-1 Installation Manual

1U03 2282
Model: EBW-300-1/360-1
SAFETY INSTRUCTIONS
Before installation and operation, read these instructions carefully
and use this product only in the manner described by the
manufacturer in the operation manual.
The instruction shown below are used to alert you to potential
personal injury and property damage hazards.
There are three hazard classifications based on potentially
dangerous situations.
Obey all safety instructions that show these symbols to avoid
possible injury, death and property damage.
WARNING:
WARNING indicates a potentially
hazardous situation which, if not
avoided, could result in death or
serious injury.
CAUTION:
CAUTION indicates a potentially
hazardous situation which, if not
avoided, may result in minor or
moderate injury.
CAUTION:
CAUTION used without the safety
alert symbol indicates a potentially
hazardous situation which, if not
avoided, may result in property
damage.
NOTE: The safety instructions are explained with the following
pictographic symbols.
means prohibition. It indicates actions, if any,
that mustn't be done.
means forcible execution. It indicates actions, if
any, that must be done.
WARNING
1. TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK, OR INJURY TO PERSONS, OBSERVE
THE FOLLOWING:
a) Use this unit only in the manner intended by the
manufacturer. If you have questions, contact the
manufacturer.
b) Before servicing or cleaning the unit, switch power
off at service panel and lock the service
disconnecting means to prevent power from being
switched on accidentally. When the service
disconnecting means cannot be locked, securely
fasten a prominent warning device, such as a tag,
to the service panel.
2. To reduce the risk of fire or electric shock, do not
use this product with any solid-state speed control
device.
3. TO REDUCE THE RISK OF FIRE, ELECTRIC
SHOCK, OR INJURY TO PERSONS, OBSERVE
THE FOLLOWING:
a) Installation work and electrical wiring must be
done by a qualified person(s) in accordance with
all applicable codes and standards, including fire-
rated construction.
1. Preparation
WARNING:
• If the range hood is not installed properly, it could become detached
and fall.
• Ensure that the metal duct does not touch other metal housing
materials, otherwise fire or electric shock could result.
Roof cap
1
According to the conditions where
6" round duct
(For vertical discharge)
the range hood is installed,
determine whether it will be
discharged vertically or horizontally
(6" round duct). For vertical or
horizontal discharge, run duct work
Soffit
between the hood location and the
roof cap or wall cap.
For best result in either direction,
use a minimum number of
transitions and elbows. Be sure to
attach a roof cap or wall cap to
avoid rain/wind entry.
Range hood
CAUTION:
• Install the range hood unit on a wall strong enough
to support its weight. Otherwise, it may become
detached and fall down.
2
Arrange the ends of 6" round duct and wiring conduit so that they
can connect with the top of the range hood unit.
Duct
2-1/4"
1-3/16"
5-3/16"
Range hood unit
3
Referring to "DIMENSIONS"
Wall stud
above, insert 2 supplied screws
(M5.1×45) into the mounting wall
for the left and right keyholes of
the cabinet. Allow about 1/4"
space between the wall and
screw-heads for hanging.
Wood panel
Note: Be sure to reinforce the wall
1/4"
with some wood panel.
Wall
2. Range Hood Mounting
CAUTION:
• Wear working gloves to avoid injury.
Tape
1
Detach the tape on the exhaust port.
INSTALLATION MANUAL
b) Sufficient air is needed for proper combustion and
exhausting of gases through the flue (chimney)
of fuel burning equipment to prevent back drafting.
Follow the heating equipment manufacturer's
guidelines and safety standards such as those
published by the National Fire Protection
Association (NFPA), and The American Society
for Heating, Refrigeration and Air Conditioning
Engineers (ASHRAE), and the local code
authorities.
c) When cutting or drilling into wall or ceiling, do not
damage electrical wiring and other hidden utilities.
d) Ducted fan must always be vented to outdoors.
e) The end user is responsible to ensure compliance
with all Federal, State and Local Environmental
and Fire codes.
4. TO REDUCE THE RISK OF FIRE, USE ONLY
METAL DUCTWORK.
5. This unit must be grounded.
6. Check that the hood is correctly installed, since
incorrect installation could result in the range hood
becoming detached and falling off.
7. Connect only to an AC120 Volt power source or
the range hood could result in fire, electric shock,
and damage.
CAUTION
1. For general ventilating use only. Do not use to
exhaust hazardous or explosive material and
vapors.
2. To reduce the risk of fire and to properly exhaust
air, be sure to duct air outside. Do not vent exhaust
air into spaces within walls, ceilings or into attics,
crawl spaces or garages.
3. Read specification label on this product for further
information and requirements.
4. Use only for the purpose of kitchen ventilation.
5. Do not install this range hood in the bathroom or
in other wet rooms since electrical shock and
damage may result.
6. Fasten the filter and other parts securely. Incorrect
attachment may result in personal injury or
property damage.
7. Keep your hands and other objects away from
the fan while it is in motion. The range hood may
injure you or damage itself.
2
With inserting the
exhaust port to the
duct, hook both the left
and right keyholes of
the cabinet on the
screws provided "1.
Preparation" in step 3.
Wall cap
3
Tighten both the left
Tighten
and right screws, then
put 2 supplied screws
6" round duct
(M5.1×45) in the holes
(For holizontal
discharge)
under the keyholes
and tighten them
firmly.
4
Fix the range hood
Wall stud
securely by adding 2 more
supplied screws (M5.1×45)
to the upper rear part of the
cabinet. As it has several
oval holes in the part,
select appropriate holes so
that the range hood can be
fixed to the wall studs by
the screws.
5
Make the duct joint secure and
air-tight using non-flammable
tape (not supplied).
3. Connecting Power Supply Wires
WARNING:
• Electrical wiring should be done by a qualified person(s) in accordance
Wall
with all applicable codes and standards, including fire-rated
construction. An unqualified person doing the work could result in
fire, electric shock or injury.
• This range hood uses 120V AC. Do not connect to other voltage since
fire, electric shock or damage could result.
Wood panel
1
Remove the following parts.
(1) Loosen 2 knobs and detach
the slot filters.
(2) Remove 4 screws fixing the
front cover and detach it.
2
Remove the nut (not supplied) from
the conduit connector at the end of
power wiring.
Range Hood
NAMES OF PARTS
Exhaust port
Cabinet
Slot Filter
Front cover
Switch
DIMENSIONS
TOP VIEW
5-3/16"
FRONT VIEW
5-7/8"
Front panel
(Requires a
front panel for
a complete
unit)
A
REAR VIEW
∅
10- 3/8" 2-3/8"
18-11/16"
Holes for mounting range hood
∅
2- 3/8"
Holes for mounting range hood
INSTALLATION
WARNING:
6" round duct
Be sure to switch OFF the power at service panel before wiring.
3
Remove one screw fixing the wire cover and detach it by following
Wood panel
the steps below.
Wire cover
1 Detach 2 tabs.
4
Connect the conduit through the connecting hole of the enclosure
using the nut previously removed.
Conduit
Wall stud
5
Connect wires tightly and
securely using wire
connectors (not supplied).
Connect the electrical wires
as follows:
• Black to Black
• White to White
• Green to Green
6
Replace the wire cover with the screw removed previously. Make
sure that all wires are connected properly and enclosed inside of
Non-flamable tape
the wiring compartment.
1 Replace the wire cover
with tilting it, and rotate
its screw-hole part.
7
(1) Replace the front cover with 4 screws.
To prevent the screw holes from being damaged, be sure to
tighten the screws with the torque of 13 inch-lbs. (1.5 N-m) or less.
(2) Replace the slot filter.
Front cover
(3) Two 35 Watt halogen light bulbs (not supplied) can be mounted in
this range hood.
Prior to function check, install light bulbs (Bulb type standard
MR16-GU10), rated 120 V - 35 Watt or below.
The following light bulbs are recommended for this range hood.
• GE Model No. Q35GU10/FL/CD
• PHILIPS Model No. Twistline 35W GU10 120V MR16
Turn the lamps clock-wise to install.
Slot Filter
Knob
Conduit
(Not supplied)
Front cover
Nut
(Not supplied)
Lamp (standard MR16-GU10, 35Watt)
Slot Filter
(not supplied)
CIRCUIT DIAGRAM
Enclosure
Front panel
(Requires a front panel
for a complete unit)
Lamp
(standard MR16-GU10,
35Watt)
(not supplied)
Black
White
120V
60Hz
White
Green
(Unit: inch)
• Screw M5.1×45 ........ Six (6) pcs.
• Screw M4×10 ........... Two (2) pcs.
Holes for mounting range hood
RANGE HOOD LOCATION
RIGHT SIDE VIEW
1
The range hood must be installed just
above the cooktop.
2 The minimum distance from the cooking
surface to the front cover of the range
hood must be 24".
3 The total weight of the range hood units
are as follows;
11-15/16"
EBW-300-1 32.0 lbs. (14.5kg)
EBW-360-1 34.2 lbs. (15.5kg)
19"
4 Power requirements are:
AC120 V, 60 Hz, 2 Amp
WARNING:
A B
• Check that the hood is correctly installed, since incorrect installation could
24"
result in the detachment of the range hood and the unit could fall down.
EBW-300-1 30"
30"
24"
EBW-360-1 36"
CAUTION:
30"
• To protect hands from injury, wear working gloves when installing the range
hood.
4. Attaching Front Panel
1
With holding the
front panel by
both hands,
engage the
upper hook of
the front panel
with the crossbar
of the cabinet.
2 Slant the wire cover. 3 Remove the wire cover
by lifting and rotating it as
illustrated after removing
the screw.
2
Lower the bottom of the front panel slowly with checking that the
front panel has hung on the left and right stoppers of the cabinet,
then insert both the left and right tabs of the front panel into the slits
of the cabinet.
Note: Be careful not to drop the front panel to avoid injury.
Wire box
Nut 3
Fix the front panel using
2 screws (M4×10) supplied.
4
Attach 2 cover plates
(supplied with the front
panel) to the left and right
Wires
of the front panel as
(conduit side)
illustrated.
(1) Hook the cover plate
Wire connector
(not supplied) on the front panel.
(2) Press the cover plate
Wires (unit side)
until it is locked.
How to remove the cover plate
While holding the cover plate,
slide a flat-head screwdriver into
the gap below.
Note:
Please be careful not to
damage the cover plate by the
flat-head screwdriver.
2 Slant the wire cover 3 Insert 2 tabs and
as shown. tighten the screw.
(1) Turn on the power to the range hood.
(2) Make sure that the switches and light operate correctly.
Refer to page 4 of the Operation Manual.
(3) Make sure that the range hood functions properly and it has no
abnormal noises and/or vibration.
Note:
When installing
6. Explanation to the End User
the bulb, be
sure to fix to the
socket securely.
(1) Referring to the Operation Manual, explain the operation of this
Push the lamp, and
range hood to the end user.
turn it clock-wise.
(2) The Installation Manual and Operation Manual should be given to
the end user.
Motor
Fan Switch
Connector
Pilot Lamp
Connector
Black Grey Yellow
Yellow Yellow
Lamp:35W
White
White
Black
Connector
Black
Connector
Connector White
White
Black
Black
Lamp:35W
Connector
White
Capacitor
ACCESSORIES
24"(minimum)
Cook top
*without front panel
Front panel
1
Stopper
1
2
2
2
Cover plate
2
Lock
Front panel 1
Hook
Cover plate
Cover Plate
5. Function Check
Push to turn ON
