IDEAL 630 Series Manual

Technician grade multimeter
Hide thumbs Also See for 630 Series:

Advertisement

630 Series
Technician Grade Multimeter
#61-633
#61-635

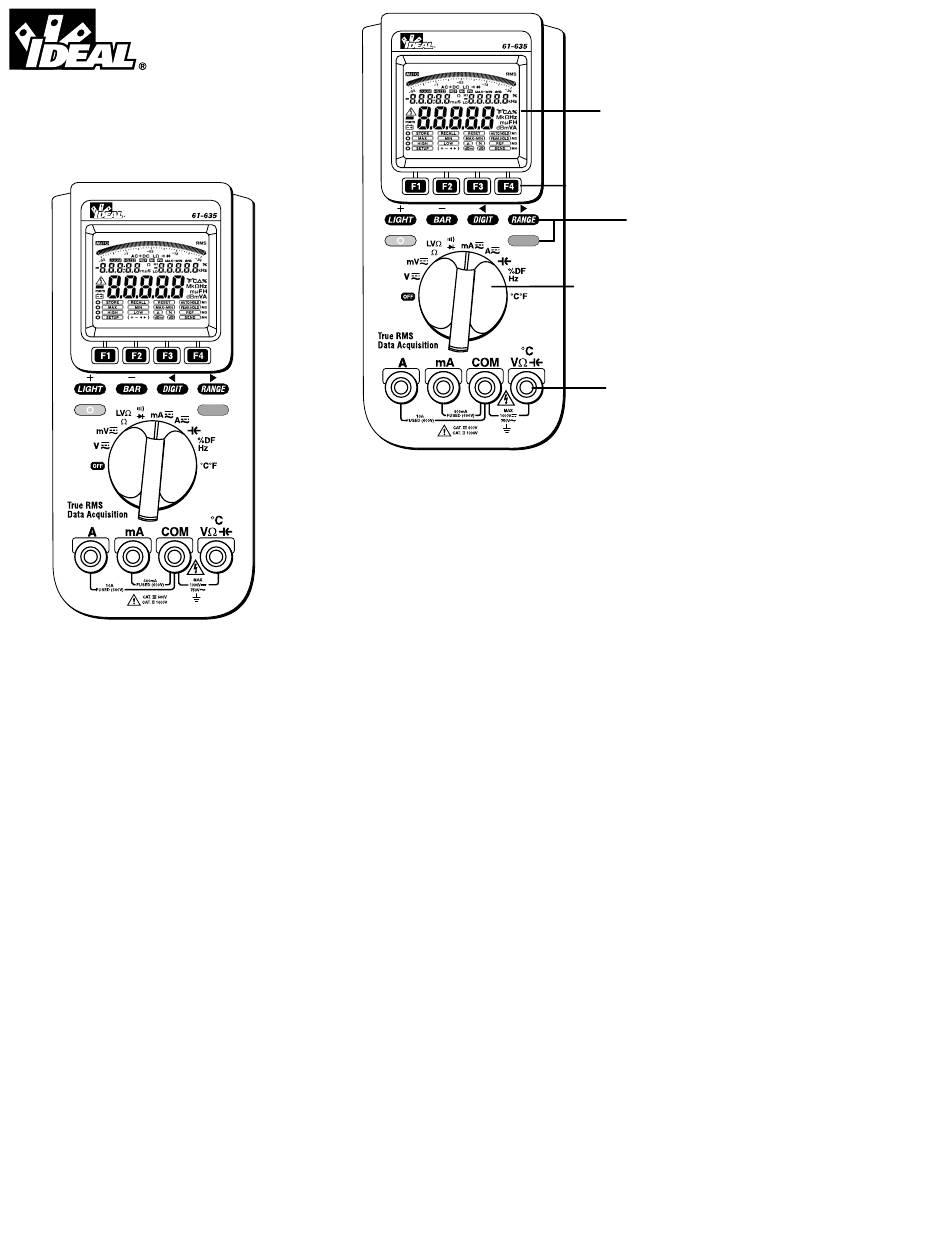

1. LCD Display
2. LCD Menu Function Buttons
3. Function Buttons
4. Rotary Function Switch
5. Input Connectors
1
2
3
4
5
2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 630 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for IDEAL 630 Series

  • Page 1 #61-633 #61-635 630 Series Technician Grade Multimeter 1. LCD Display 2. LCD Menu Function Buttons 3. Function Buttons 4. Rotary Function Switch 5. Input Connectors...
  • Page 2 WARNING! 1. DO NOT UNDER ANY CIRCUMSTANCES EXCEED THESE RATINGS: - Voltage is not to exceed 1000 Volts. - Resistance, Capacitance, Logic and Continuity functions are not to be performed on circuits capable of delivering greater than 600 Volts. - Current measurements are not to be performed on cir- cuits capable of delivering greater than 500 Volts 2.
  • Page 3 LCD Menu Function Buttons Reset • Pressing the F3 button while the Ο indicates row M1 acti- • Use the Ο button to select the row of the function menu. vates the reset function. The rows number is labeled on the right hand side. The •...
  • Page 4 High and Low Limit REF (Reference) continued • Pressing the F1 or F2 button while the Ο indicates row M2 • Press the buttons to move left and right through activates the high or low limit function. the reference value to select the appropriate digit to be •...
  • Page 5 DBm, dB Digit Button • Press the F3 button while the Ο indicates row M4 toggles • The digit button toggles between 40000 or 4000 counts. between dBm and dB mode. • The display is updated 2 times per second at 40000 counts and 4 times per second at 4000 counts.
  • Page 6 Overload Protection Voltage Measurements (DC, AC, AC+DC) Function Overload Protection DC Voltage Resolution Accuracy Accuracy Range (61-633) (61-635) VAC & VDC 1000V 40mV 1µV +(0.2% +8) +(0.6% +8) AAC & ADC 1A/500V 400mV 10µV +(0.2% +2) +(0.6% +2) 10A/500V 100µV Ohms (Ω) 600VAC/600VDC Diode...
  • Page 7 Current Measurements (DC, AC, AC+DC) dBm (typical): -15dBm ~ 55dBm (0dBm = 1mW into 600Ω) DC Current Resolution Accuracy Accuracy dBm (typical): -80dBV ~ 50dBV = 1VRMS) Range (61-633) (61-635) Input Impedance: 10MΩ, <100pF Overload Protection: 1000VDC, 750VRMS 40mA (0.5% +4) (0.2% +4) ±...
  • Page 8: Range Resolution

    Resistance and Low Voltage Resistance Measurements (Ohms) Resistance Resolution Accuracy Accuracy Range (61-633) 61-635) 400Ω 10mΩ ±(0.5% +2) ±(0.3% +2) 4kΩ 100mΩ 40kΩ 1Ω 400kΩ 10Ω 4MΩ 100Ω ±(0.5% +4) ±(0.3% +4) To Measure Current: 40MΩ 1kΩ ±(5.0% +5) ±(5.0% +5) 1.
  • Page 9 Frequency and Duty Factor Measurements Frequency Resolution Accuracy Accuracy Range (61-633) (61-635) 400Hz 0.01Hz ±(0.01% +1) ±(0.01% +1) 4kHz 0.1Hz 40kHz To Measure Resistance: 400kHz 10Hz 1. Turn the power off to the 4MHz 100Hz circuit or device that is to be measured and discharge all capacitors before attempting a measurement.
  • Page 10: Capacitance Measurements

    Capacitance Measurements Temperature Measurements Range Resolution Accuracy Accuracy Temperature Resolution Accuracy Accuracy (61-633) (61-635) Range (61-633) (61-635) ±(1.9% +20) ±(0.9% +20) -200°C ~ -100°C 0.1°C 3°C + 1 digit 40nF 10pF -100°C ~ -50°C 2°C + 1 digit 400nF 100pF -50°C ~ 1200°C 1°C + 1 digit 4µF...
  • Page 11 Diode Testing Continuity Check To Verify Continuity: A continuity test ensures that all circuit connections are intact. Diode Check: 1. Plug the Black test lead into the COM port and the Red test To ensure a proper functioning diode, the meter will develop a lead into the VΩ...
  • Page 12: Maintenance

    General Specifications Certifications & Compliances Safety: Designed to IEC 1010-1, Stated accuracies are at 23oC ±5oC at less than 80% RH and UL3111 and CSA without battery indicator displayed. Specifications Input Rating: 1000VDC Category II Features 61-633 61-635 600VDC Category III 750VAC Category II LCD Backlight •...
  • Page 13 Battery Installation or Replacement: Fuse Replacement The #61-633 and #61-635 are powered by one 9 volt battery. 1. Remove the test leads from the front terminals and turn the 1. Remove the test leads from the front terminals and turn the meter off.
  • Page 14 Any implied warranties arising out of the sale of an IDEAL product, including but not limited to implied warranties of mer- chantability and fitness for a particular purpose, are limited to the above.
