IMPORTANT: Read entire instruction before installing
the thermostat.
CONTENTS
SAFETY CONSIDERATIONS . . . . . . . . . . . . . . . . . . . . . . 1
GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
PACKAGE CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
INSTALLATION CONSIDERATIONS . . . . . . . . . . . . . . . 2
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Wiring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Thermostat Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2,3
CONFIGURATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7
Setting Time and Day of the Week. . . . . . . . . . . . . . . . 4
Configuration Options . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
SYSTEM START-UP AND CHECKOUT . . . . . . . . . . .7,8
Installer Test Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Terminating Installer Test . . . . . . . . . . . . . . . . . . . . . . . . 8
Checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
PROGRAMMING THE THERMOSTAT . . . . . . . . . . . .8,9
Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
with Hold Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Programming Schedules . . . . . . . . . . . . . . . . . . . . . . . . . 9
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9,10
Mode Selection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Power Up Processing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Display Lighting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Door Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Remote Sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Mounting Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
O/B Terminal-On HP Thermostat Only . . . . . . . . . . . 10
Timers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Five-Minute Compressor Timeguard . . . . . . . . . . . . 10
Minimum On Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Cycle Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Staging Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
TROUBLESHOOTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Space Temperature Sensor Failure . . . . . . . . . . . . . . 10
Fan Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Memory Failure. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Equipment Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
WIRING DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . 10-20
Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.
Catalog No. 04-53330029-01
Installation Instructions
Part Number 33CSCPACHP-01
Page
Printed in U.S.A.
Commercial Thermostat

SAFETY CONSIDERATIONS

Read and follow manufacturer instructions carefully. Fol-
low all local electrical codes during installation. All wiring
must conform to local and national electrical codes. Improper
wiring or installation may damage thermostat.
Recognize safety information. This is the safety alert sym-
bol
. When the safety alert symbol is present on equipment
or in the instruction manual, be alert to the potential for person-
al injury.
Understand the signal words DANGER, WARNING, and
CAUTION. These words are used with the safety alert symbol.
DANGER identifies the most serious hazards which will result
in severe personal injury or death. WARNING signifies a haz-
ard which could result in personal injury or death. CAUTION
is used to identify unsafe practices which would result in minor
personal injury or property damage.

GENERAL

Carrier's Comfort Pro programmable thermostats are wall-
mounted, low-voltage thermostats that maintain room tempera-
ture by controlling the operation of a heating and/or air condi-
tioning system (Fig. 1). The thermostat can be used with a heat
pump, air conditioner or water source heat pump operation. A
variety of features are provided including battery operation,
separate heating and cooling set points, auto changeover, key-
pad lockout, backlighting, and built-in installer test.
The programming interface is a one touch interface, with
the comfort selections Occupied, Unoccupied, and Limit (En-
ergy Savings Mode). The user can adjust the heating and/or
cooling set points for each of the three comfort selections.
This
Installation
configuration, and start-up of the Comfort Pro thermostat. For
operational details, consult the Owner's Manual for this
specific thermostat.
a33-9231

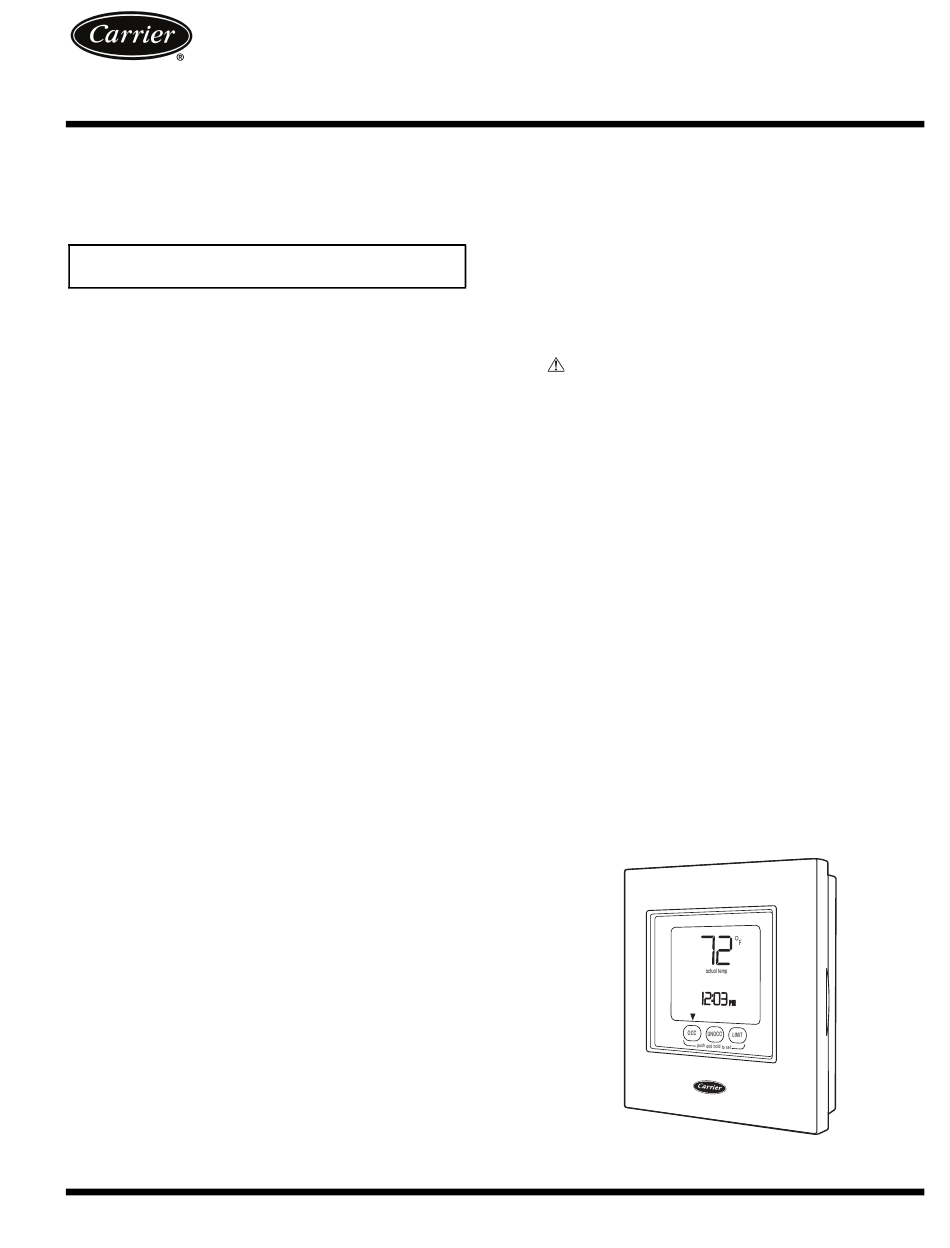

Fig. 1 - Comfort Pro Programmable
Commercial Thermostat
Form 33CS-77SI
Pg 1
Comfort™ Pro
Programmable
Instruction
covers
installation,
7-13
Replaces: 33CS-69SI
