ASROCK Rack E3C256D4ID2 Quick Installation Manual

*15G065250000AK*
P/N: 15G065250000AK V1.0
Quick Installation Guide
E3C256D4ID2 / E3C252D4ID2
The server board User's Manual is available for download from the ASRock Rack's official website
at http://www.asrockrack.com.
Take note of the following precautions before you install server board components or change any
server board settings.
1. Unplug the power cord from the wall socket before touching any components.
2. To avoid damaging the server board's components due to static electricity, NEVER place your
server board directly on the carpet or the like. Also remember to use a grounded wrist strap or
touch a safety grounded object before you handle the components.
3. Hold components by the edges and do not touch the ICs.
4. Whenever you uninstall any component, place it on a grounded anti-static pad or in the bag
that comes with the component.
5. When placing screws into the screw holes to secure the server board to the chassis, please do
not over-tighten the screws! Doing so may damage the server board.

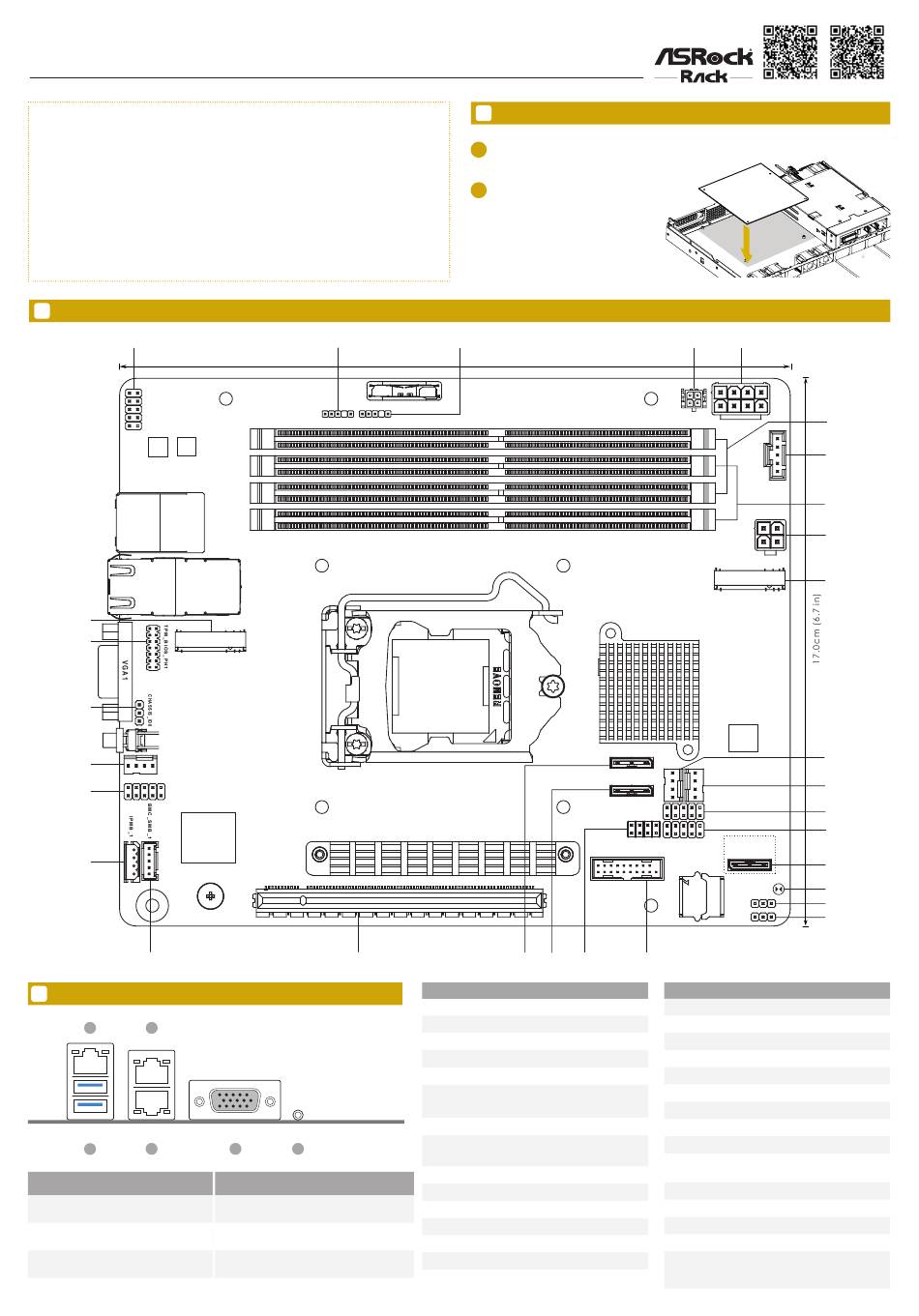

2 Motherboard Layout
1
NCSI1
Intel Intel Intel Intel
I210 I210 I210 I210
(LAN1) (LAN2)
USB 3.2 Gen1
T: USB_1
IPMI_LAN
B: USB_2
LAN2
LAN1
(Bottom) (Top)
(NCSI)
30
M2_1
29
28
UID1
27
FAN1
26
COM1
ASPEED
AST2500
25
24
3 I/O Panel
2 4
1 3
No. Description
1 USB 3.2 Gen1 Ports (USB3_1_2)
2 LAN RJ-45 Port (IPMI_LAN)
3 1G LAN RJ-45 Port (LAN1)
2
CMOS Battery
IPMI_LED1 UID_HEADER
DDR4_B1
DDR4_B2
DDR4_A1
DDR4_A2
PCIE7
23
5 6
No. Description
4 1G LAN RJ-45 Port (LAN2)
5 VGA Port (VGA1)
6 UID Switch (UID1)
1 Install the Server Board
1
Insert the server board into the chassis.
2
A f f i x t he screws clock w ise into t he
mounting holes in all of the corners of
the server board.
Do not over-tighten the screws
3
20.8cm (8.2 in)
E3C256D4ID2
E3C252D4ID2
22 21 20
No. Description
1 NCSI Header (NCSI1)
2 UID Button Header (UID_HEADER)
3 IPMI LAN LED Header (IPMI_LED1)
4 Micro-Fit Power Connector (ATX4PIN1)
5 ATX 12V Power Connector (ATX12V2)
2 x 288-pin DDR4 DIMM Slots (DDR4_A1,
6
DDR4_B1)
7 PSU SMBus Header (PSU_SMB1)
2 x 288-pin DDR4 DIMM Slots (DDR4_A2,
8
DDR4_B2)
9 SATA Power Connector (SATA_PWR1)
10 M.2 Socket (M2_2) (Type 2280)
11 System Fan Connector (FAN2)
12 System Fan Connector (FAN3)
13 Auxiliary Panel Header (ITX_AUX_PANEL1)
14 System Panel Header (PANEL1)
15 OCuLink x4 Connector (OCU3)
(E3C256D4ID2 only)
www.asrockrack.com
E3C256D4ID2
4 5
ATX4PIN1
ATX12V2
PSU_SMB1
SATA_PWR1
M2_2
Intel
C256/
C252
OCU2
FAN2
FAN3
OCU1
ITX_AUX_PANEL1
SATA_SGPIO1 PANEL1
(E3C256D4ID2 only)
OCU3
CLRMOS1
USB3_3_4
T 1 R
BIOS
ROM
SEC_OR1
19
No. Description
16 Clear CMOS Pad (CLRMOS1)
17 Thermal Sensor Header (TR1)
18 Security Override Jumper (SEC_OR1)
19 USB 3.2 Gen1 Header (USB3_3_4)
20 SATA SGPIO Connector (SATA_SGPIO1)
21 OCuLink x4 Connector (OCU1)
22 OCuLink x4 Connector (OCU2)
23 PCI Express 4.0 x16 Slot (PCIE7)
24 BMC SMBus Header (BMC_SMB_1)
Intelligent Platform Management Bus Header
25
(IPMB_1)
26 COM Port Header (COM1)
27 System Fan Connector (FAN1)
28 Chassis ID Jumper (CHASSIS_ID0)
29 SPI TPM Header (TPM_BIOS_PH1)
M.2 Socket (M2_1) (Type 2280)
30
*The M2_1 slot is not supported with the 10
tium Series Processors installed.
E3C252D4ID2
6
7
8
9
10
11
12
13
14
15
16
17
18
th Gen Intel® Pen-
